WILSON GAS EQUIPMENT NQ-SV3 GAS COMPRESSOR, 600V, 100A, 10-20/3600 PSIG, RUFFNECK HP7-24 HX

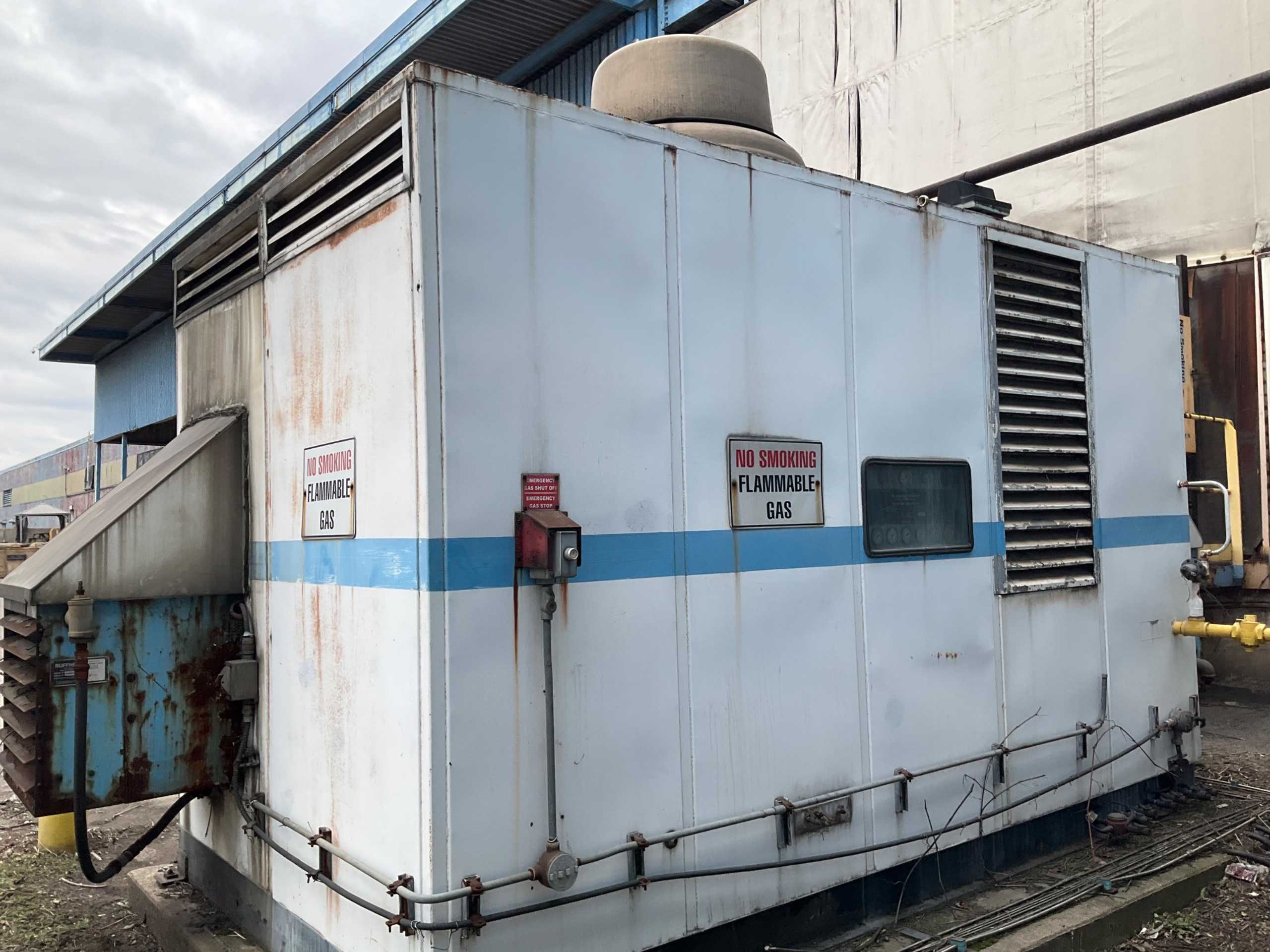

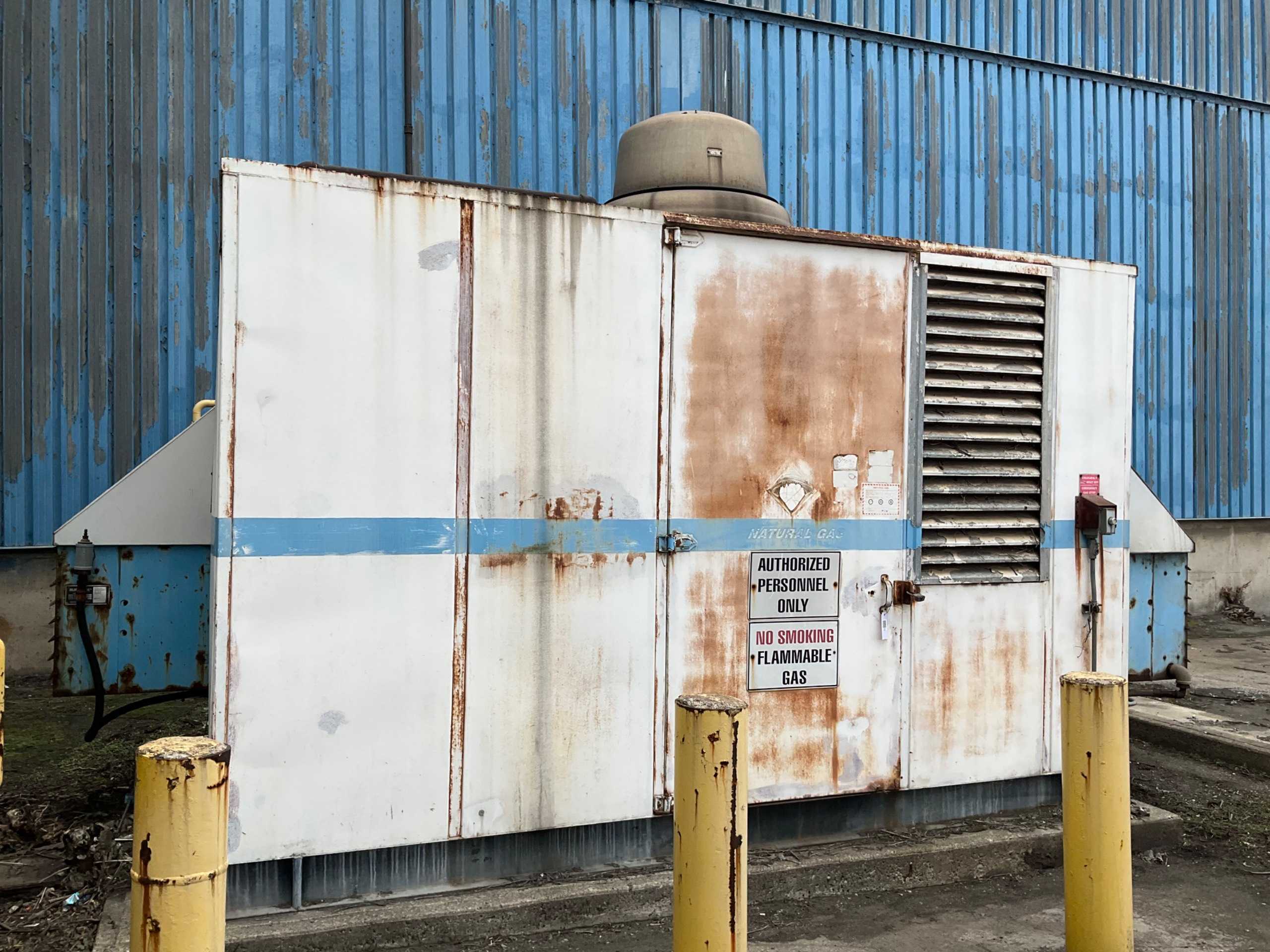

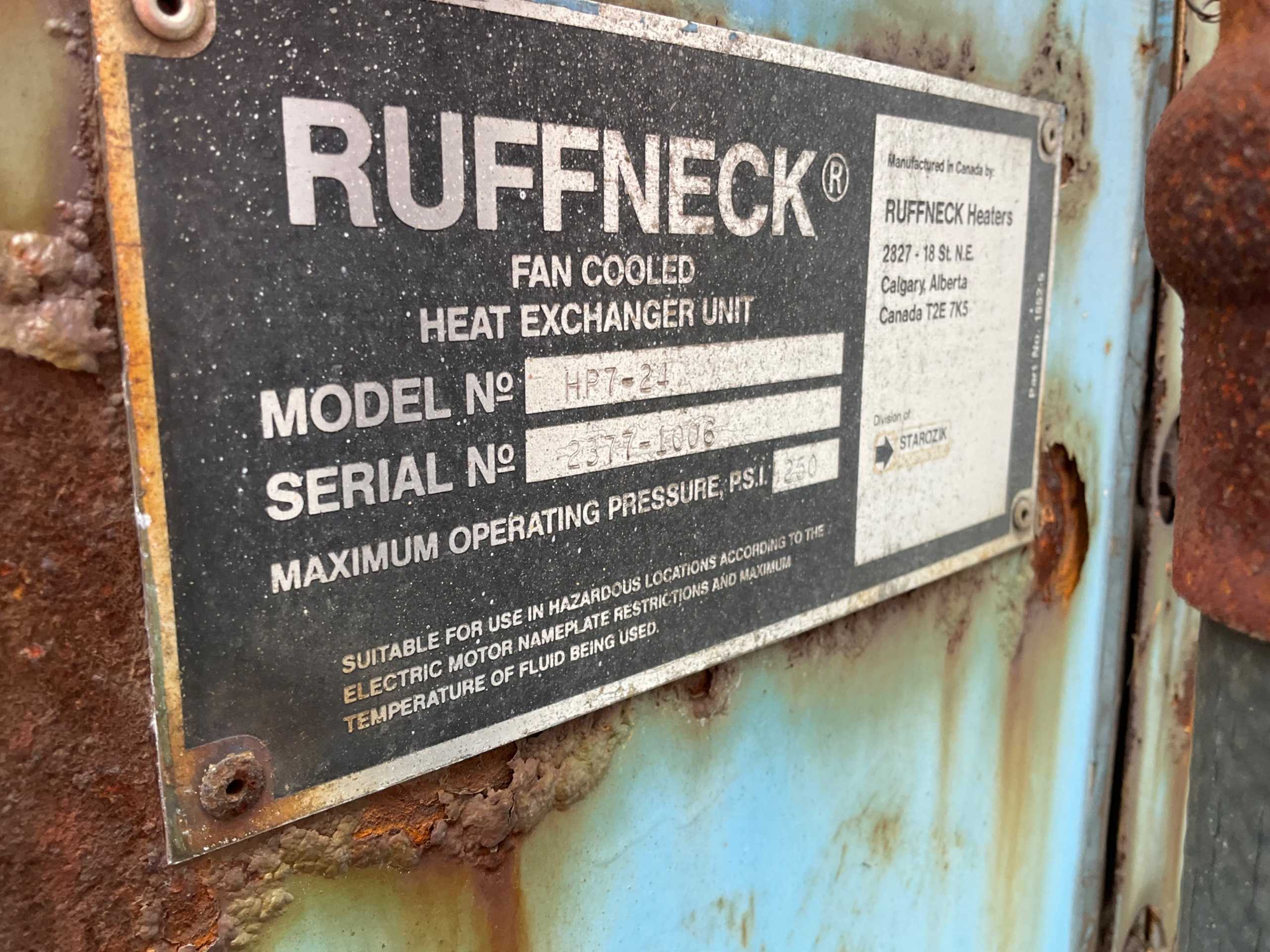

THE WILSON GAS EQUIPMENT NQ-SV3 IS A HIGH-PRESSURE GAS COMPRESSOR PACKAGE INTEGRATED WITH A RUFFNECK HEATERS HP7-24 FAN-COOLED HEAT EXCHANGER. THE COMPRESSOR SYSTEM IS DESIGNED FOR A SUCTION PRESSURE RANGE OF 10–20 PSIG AND A MAXIMUM DISCHARGE PRESSURE OF 3600 PSIG. IT OPERATES ON A POWER REQUIREMENT OF 600 V, 100 A, 3-PHASE, 60 HZ. THE ASSOCIATED RUFFNECK HP7-24 UNIT IS AN EXTRA HEAVY-DUTY HEAT EXCHANGER CONSTRUCTED FROM 14-GAUGE EPOXY-COATED STEEL. IT FEATURES A SEVEN-PASS CORE CONFIGURATION WITH 5/8-INCH DIAMETER CARBON STEEL TUBES AND TENSION-WOUND, CLOSE-FITTING ALUMINUM FINS AT A DENSITY OF 10 FINS PER INCH. THIS SPECIFIC HEAT EXCHANGER MODEL UTILIZES A 24-INCH DIAMETER, THREE-WING ALUMINUM PROPELLER FAN DRIVEN BY A 1/2 HP, 1725 RPM MOTOR. THE UNIT IS DESIGNED TO HANDLE VARIOUS HEATING OR COOLING FLUIDS, INCLUDING STEAM, GLYCOL, AND OIL, WITH A MAXIMUM OPERATING PRESSURE OF 250 PSI FOR THIS SPECIFIC ASSEMBLY.
