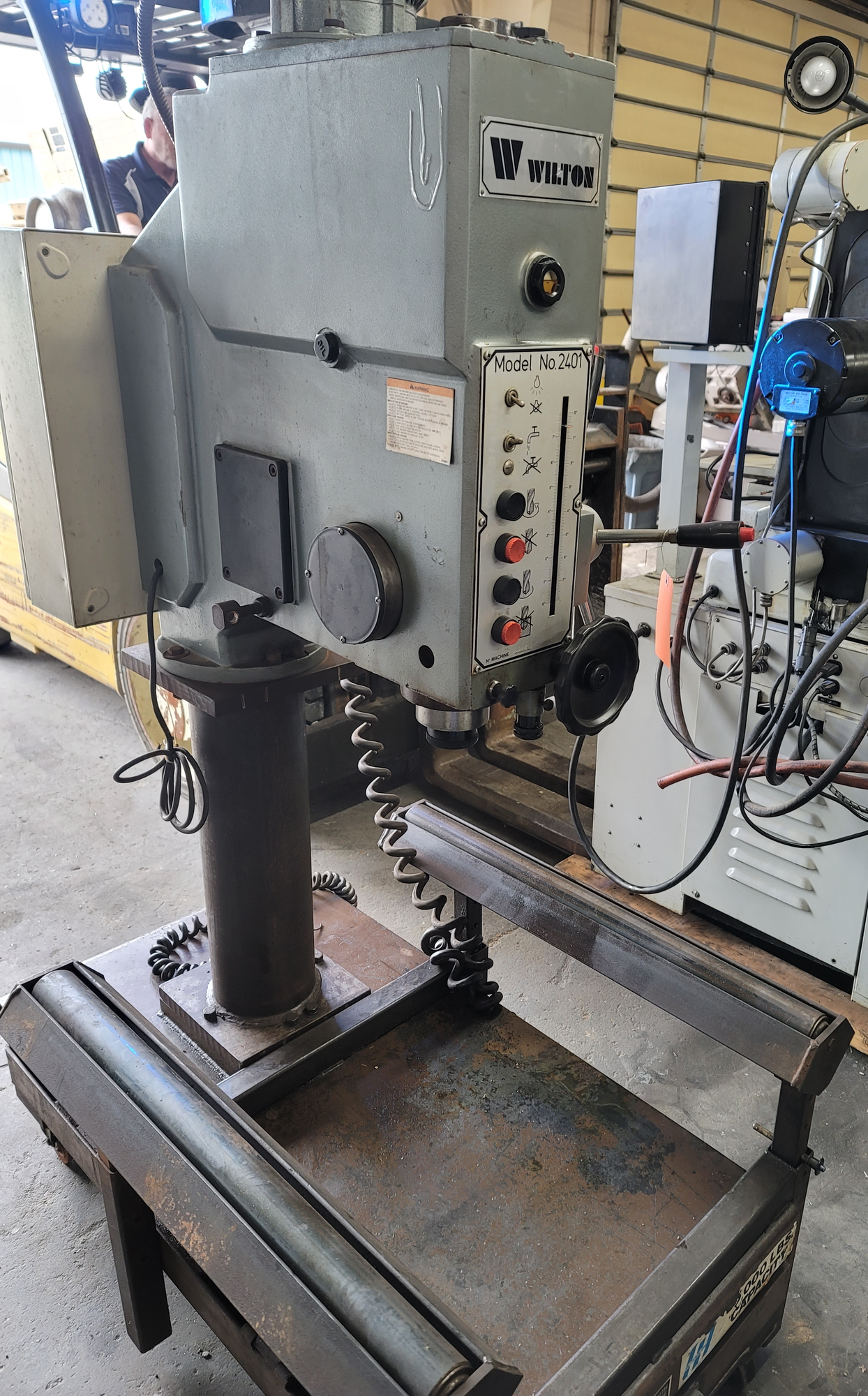

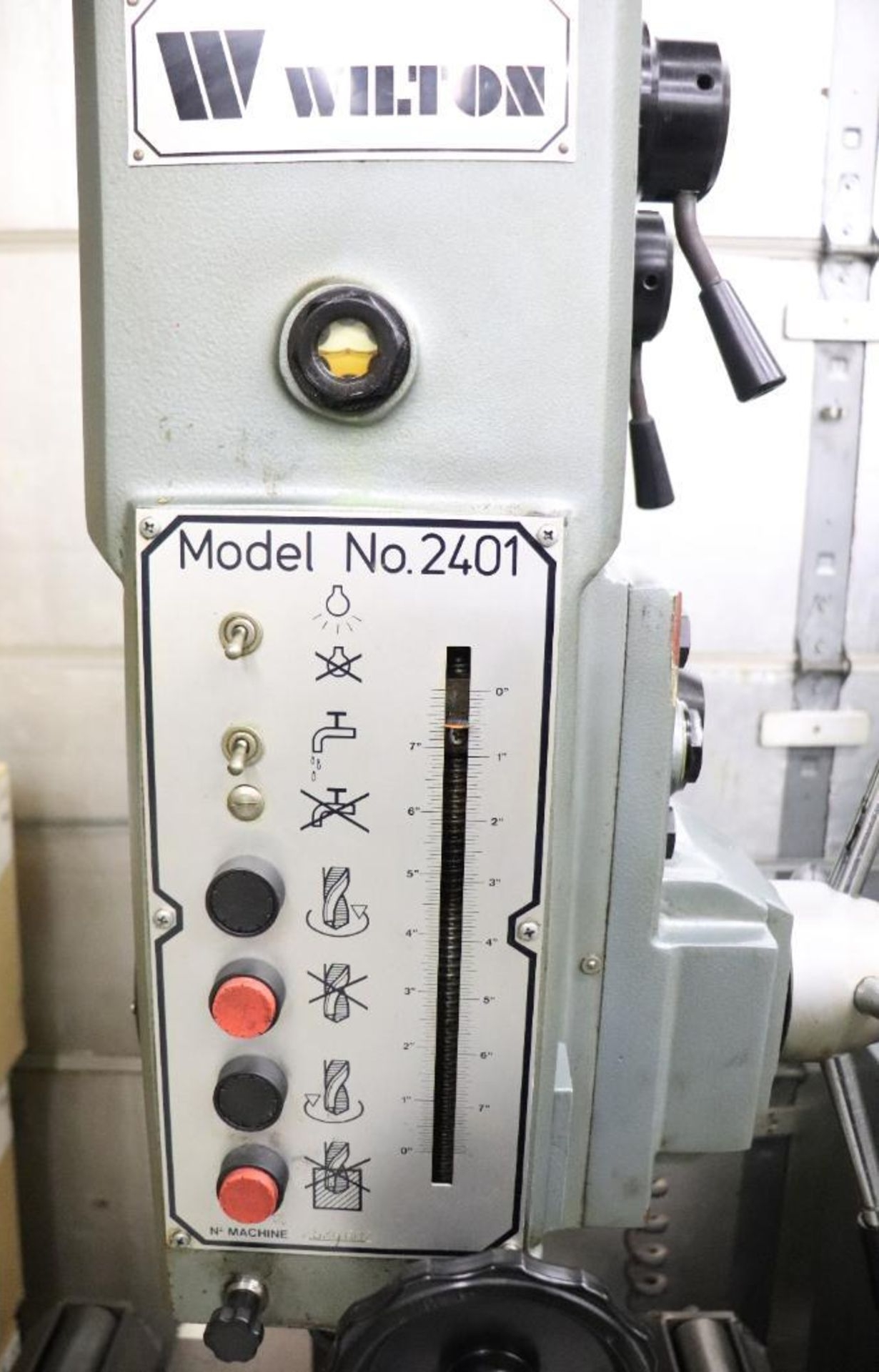

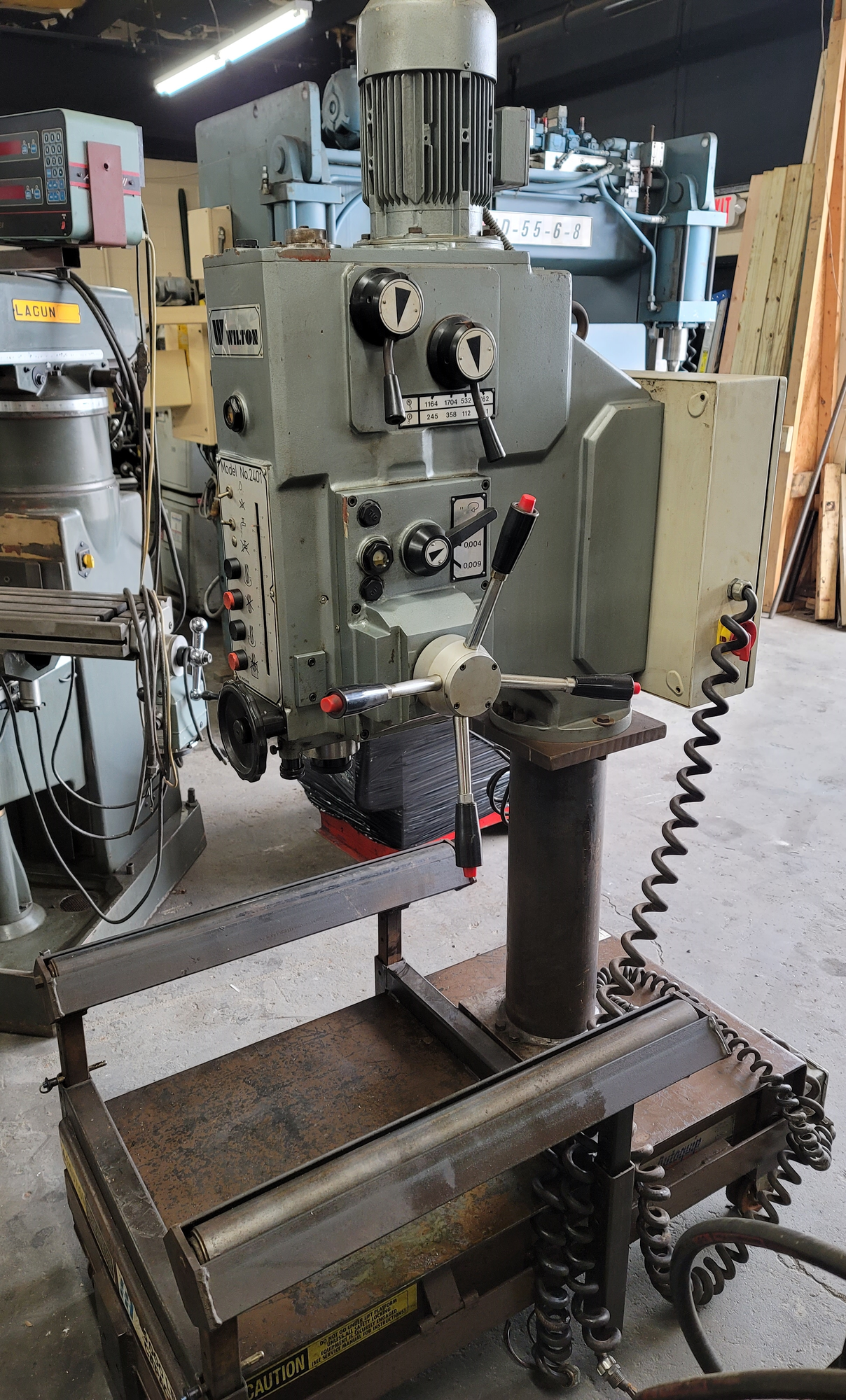

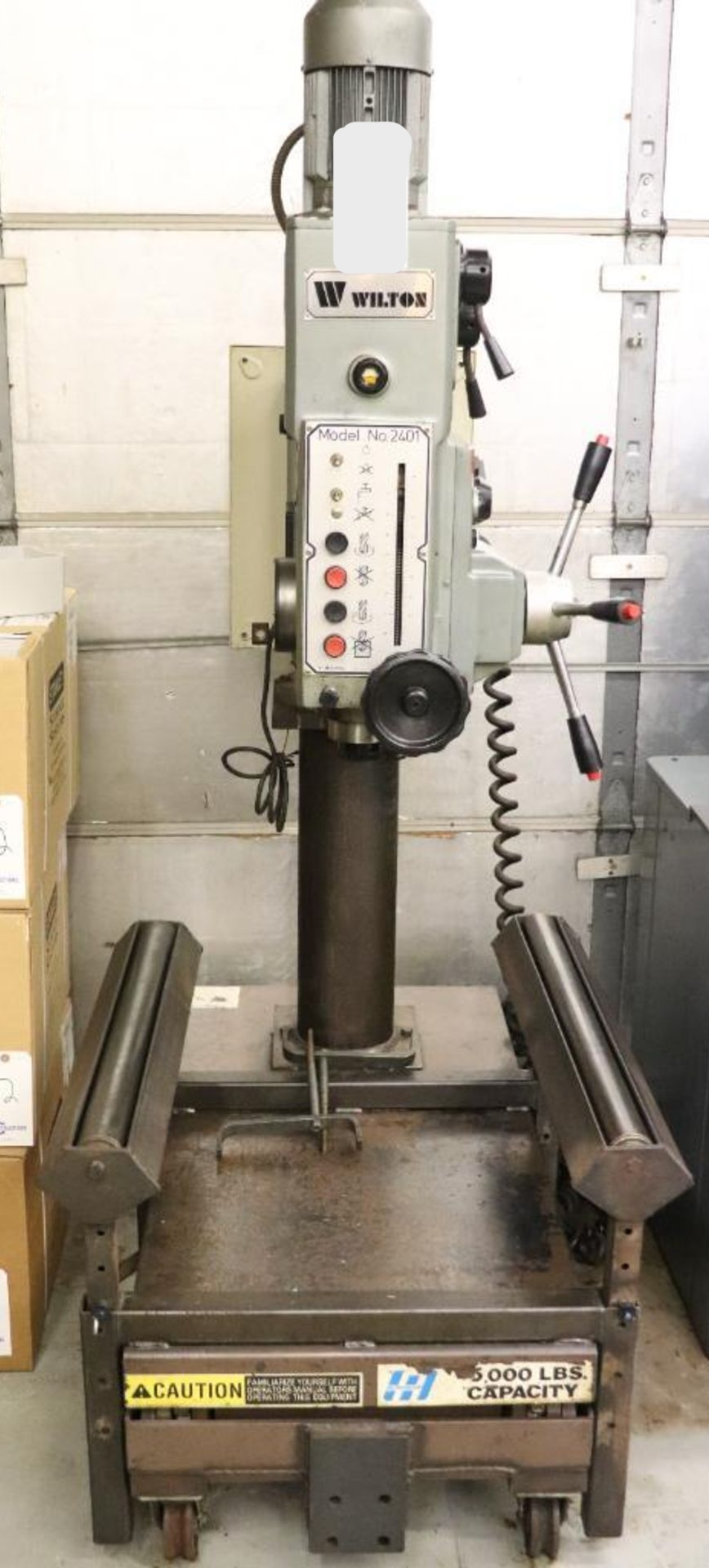

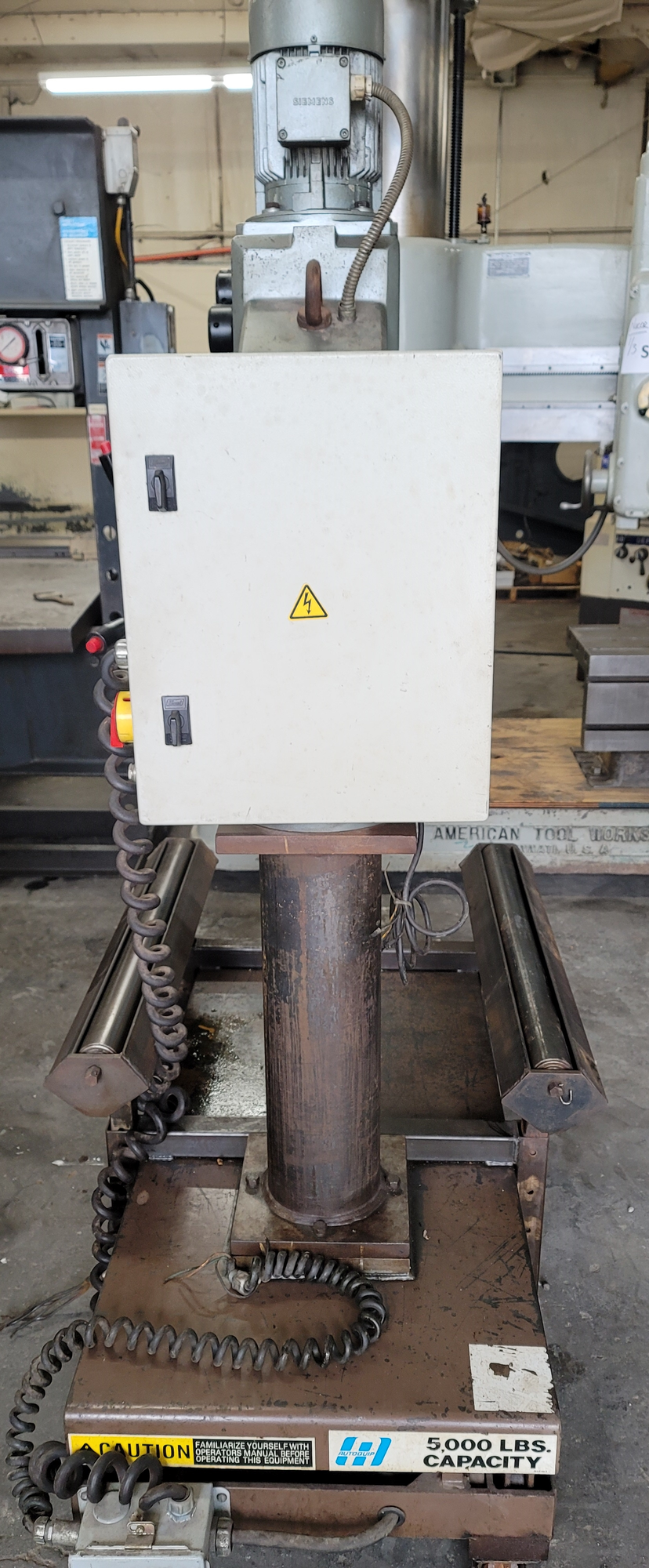

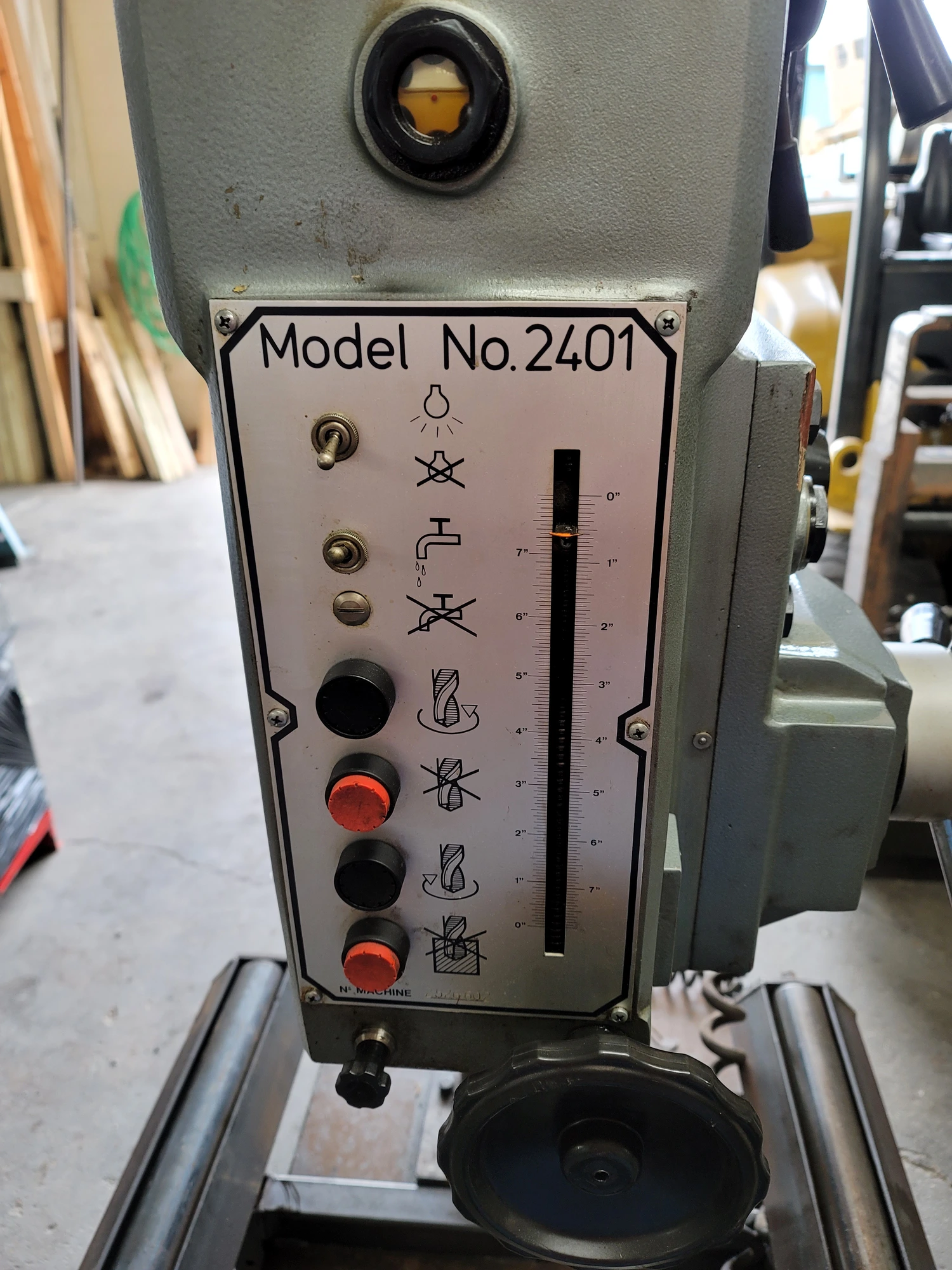

WILTON 2401 GEARED HEAD DRILL PRESS W/ POWERED DOWN FEED & CUSTOM TABLE W/ ROLLERS

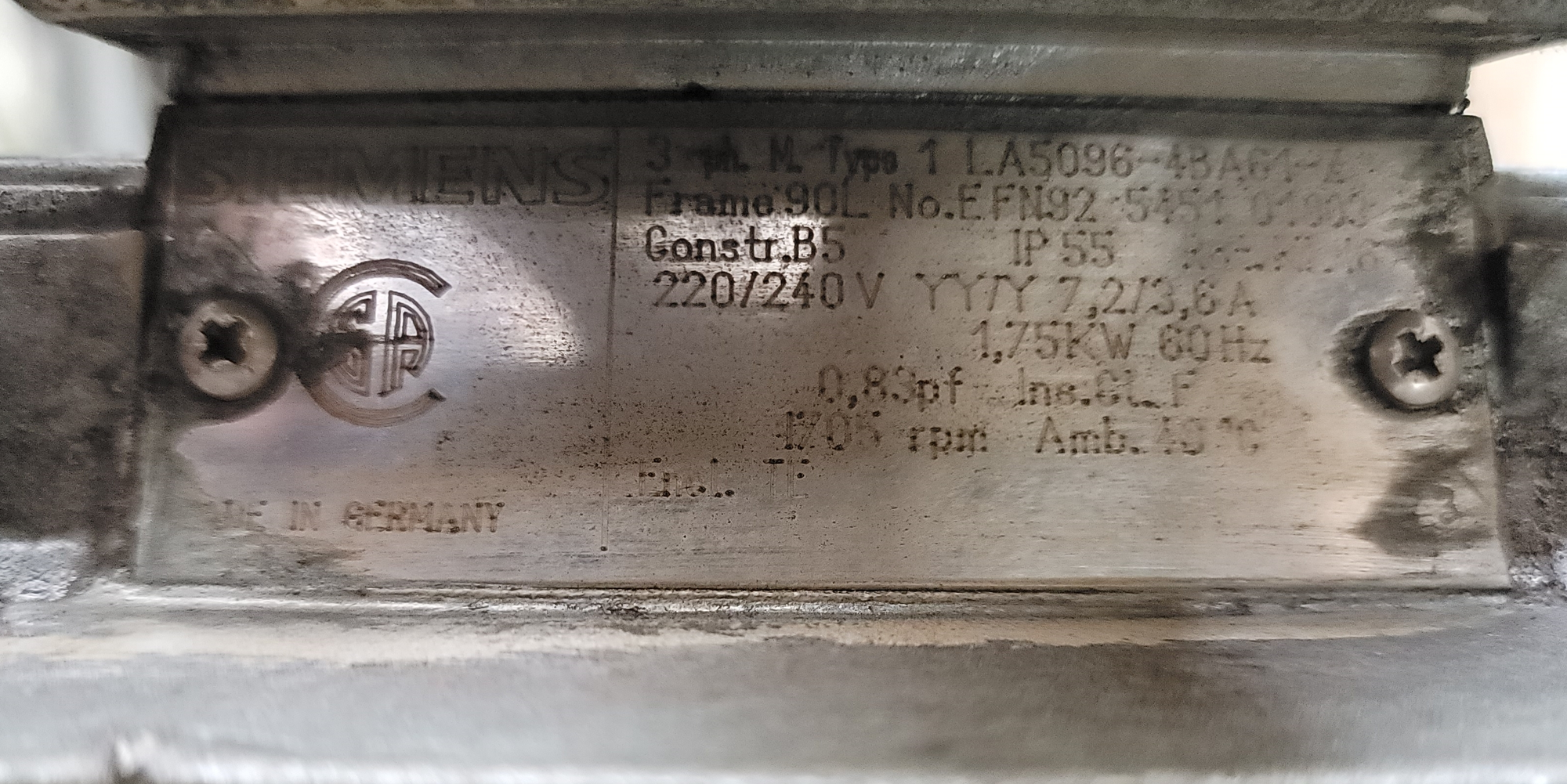

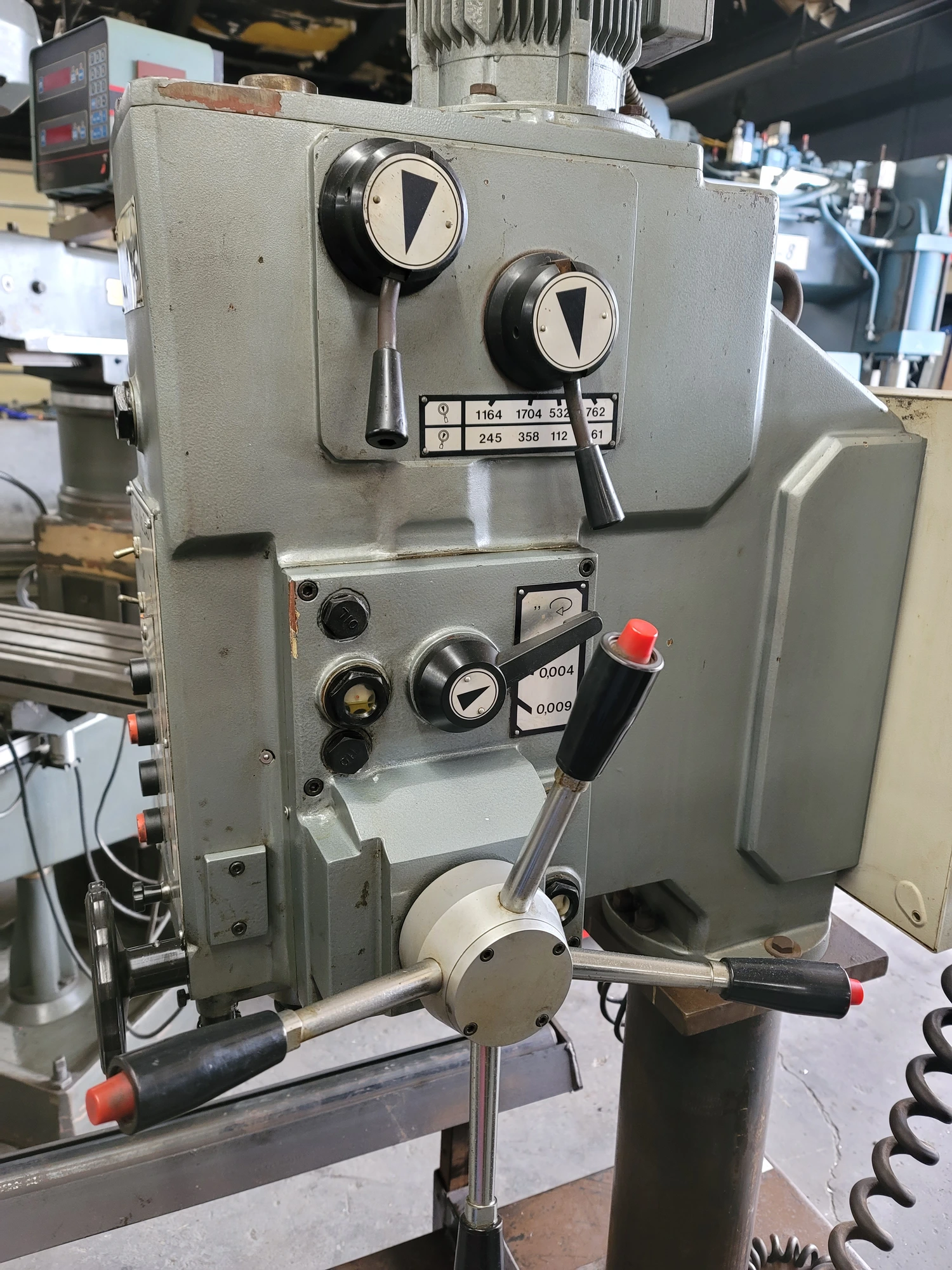

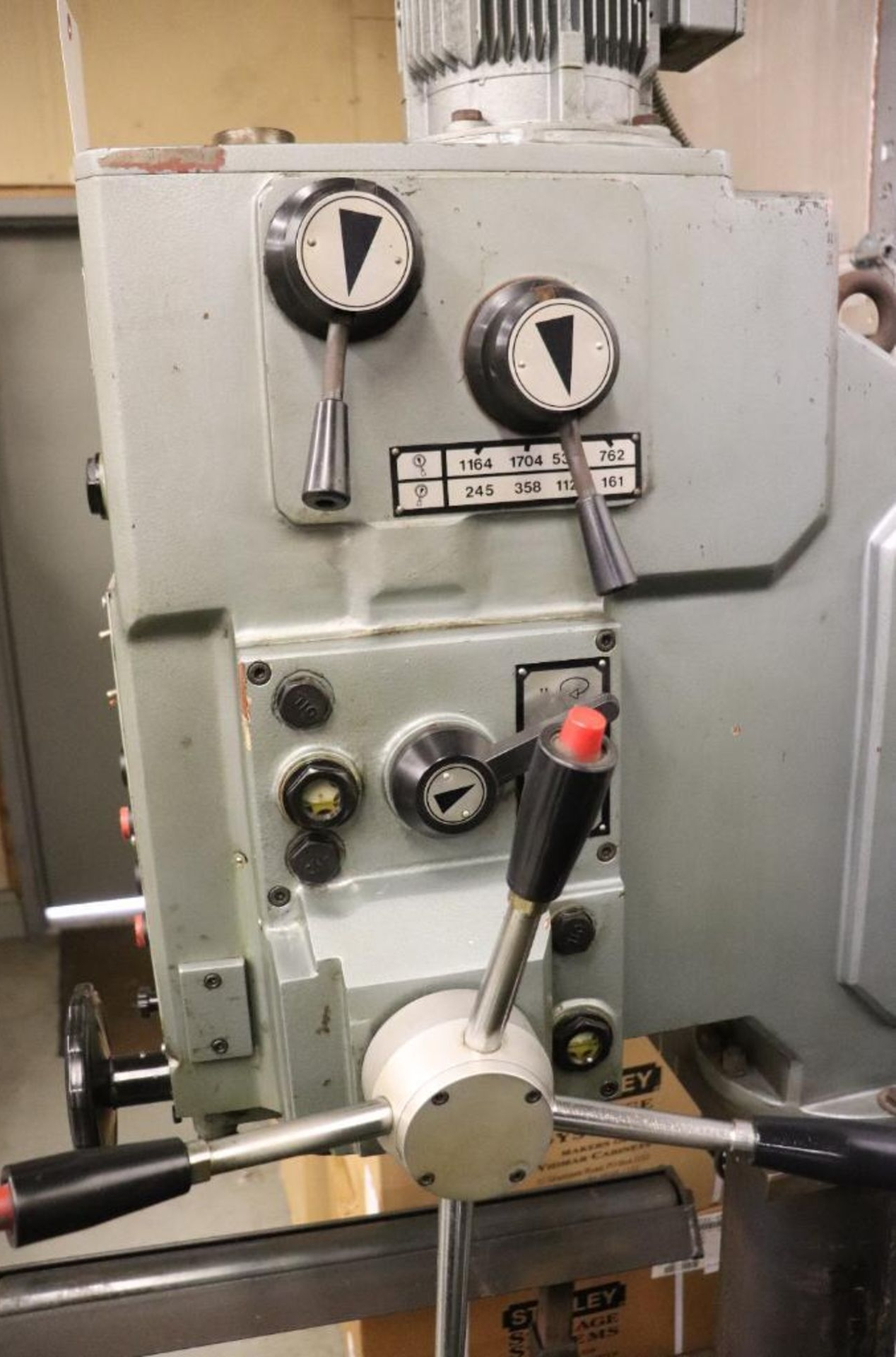

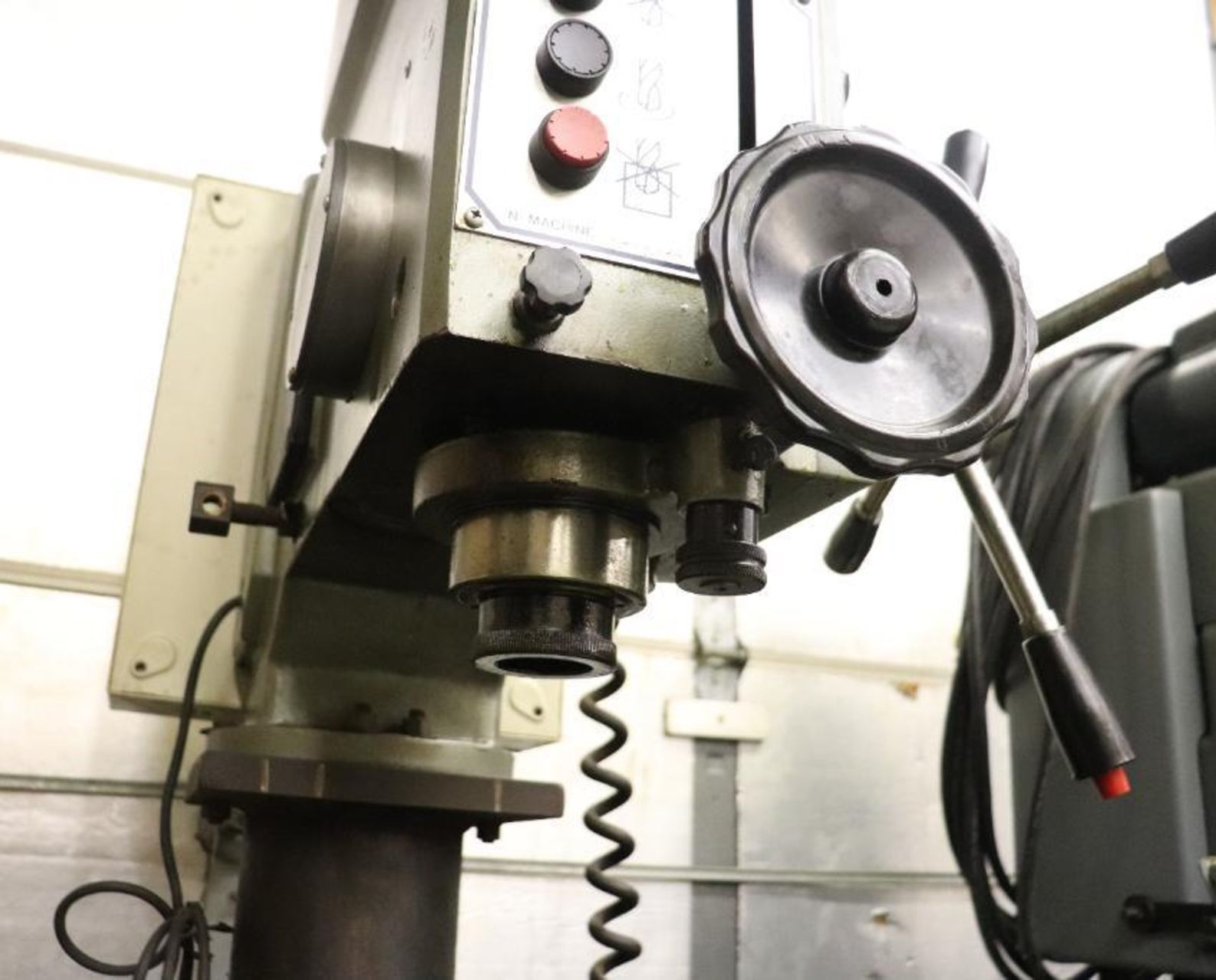

THE WILTON 2401 GEARED HEAD DRILL PRESS IS EQUIPPED WITH A 2 HP MOTOR AND FEATURES AN 8-SPEED RANGE, OFFERING SPEEDS OF 112, 160, 245, 358, 532, 762, 1164, AND 1704 RPM. IT IS DESIGNED FOR HEAVY-DUTY APPLICATIONS WITH A CAST IRON DRILLING CAPACITY OF 1-1/2 INCHES AND A STEEL DRILLING CAPACITY OF 1-3/8 INCHES. THE DRILL PRESS ALSO SUPPORTS CAST IRON TAPPING UP TO 1-9/16 INCHES AND STEEL TAPPING UP TO 1-1/2 INCHES. THE MACHINE INCLUDES AUTOMATIC FEEDS WITH INCREMENTS OF .004, .007, AND .010 INCHES, ENHANCING ITS VERSATILITY FOR VARIOUS TASKS. THE SPINDLE TRAVEL IS 7 INCHES, AND THE SPINDLE CAN BE ADJUSTED TO A MINIMUM DISTANCE OF 11.4 INCHES AND A MAXIMUM DISTANCE OF 34 INCHES FROM THE TABLE. THE DRILL PRESS HAS A MORSE TAPER NO. 4 AND A COLUMN DIAMETER OF 6.88 INCHES. IT OPERATES ON A 220/240V, 3-PHASE POWER SUPPLY. THE CUSTOM TABLE WITH ROLLERS SUPPORTS A LOAD CAPACITY OF UP TO 5,000 POUNDS, MAKING IT SUITABLE FOR DEMANDING INDUSTRIAL APPLICATIONS. THE DRILL PRESS CAN DRILL TO A CENTER DISTANCE OF 28 INCHES, PROVIDING AMPLE SPACE FOR LARGE WORKPIECES.
