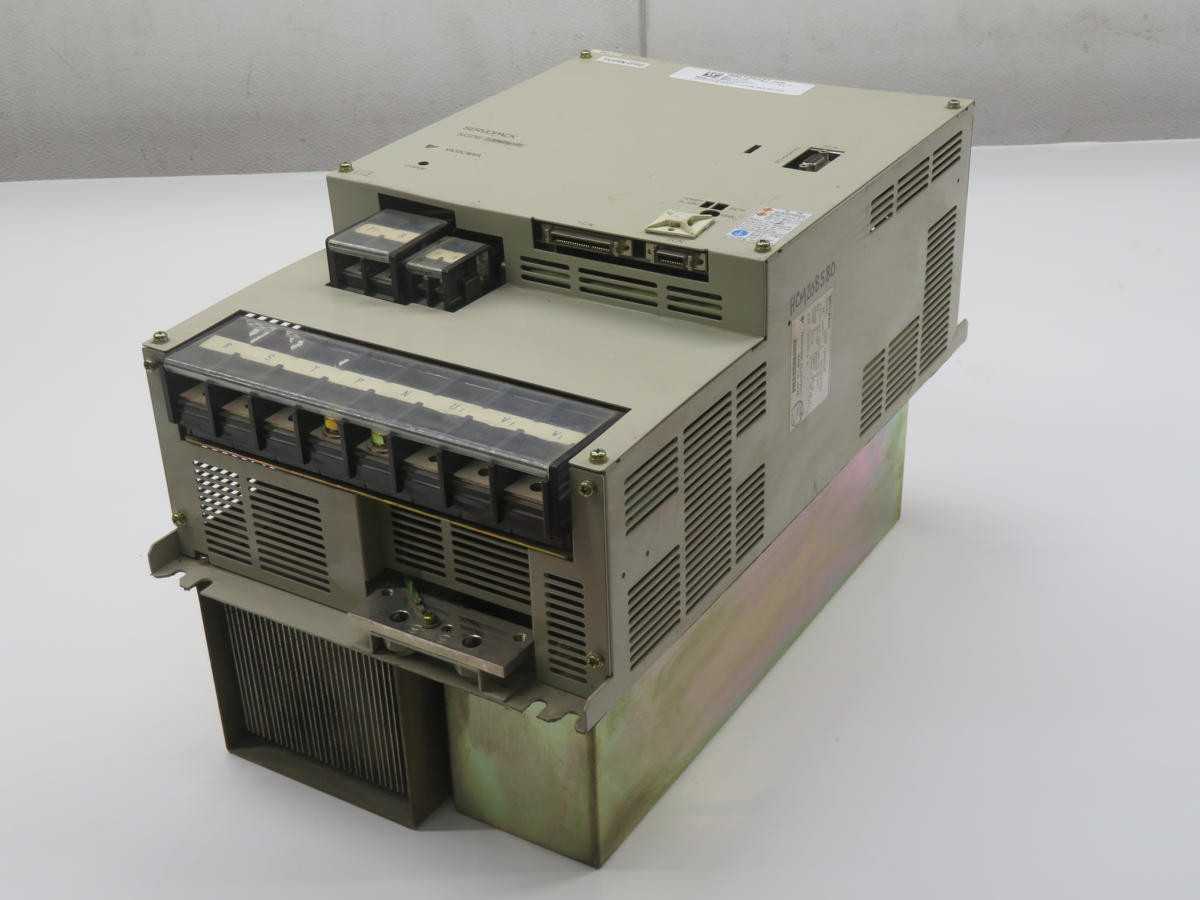

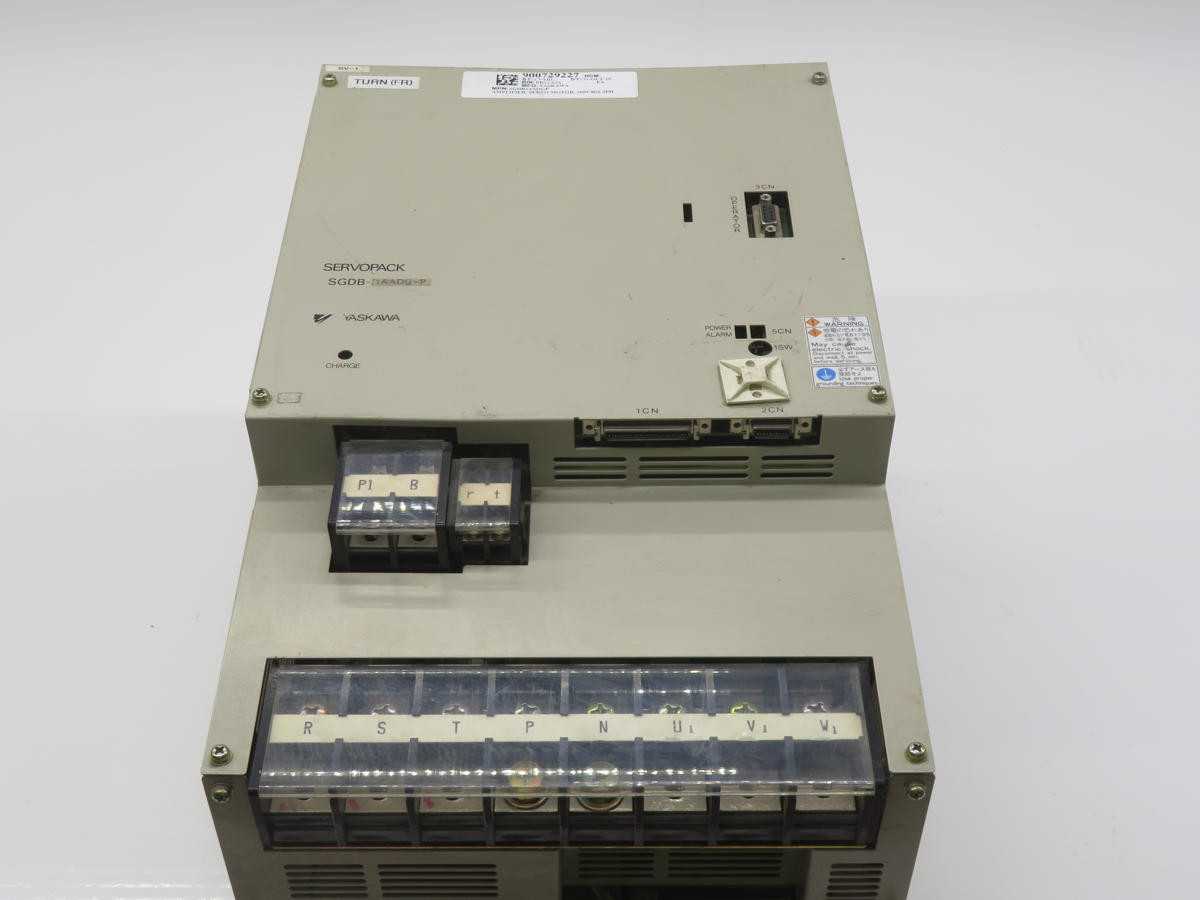

YASKAWA SGDB-1AADG-P SERVO DRIVE, 200-230V AC IN, 60A IN, 11.0KW AC OUT, 58.6A OUT

THE YASKAWA SGDB-1AADG-P IS A THREE-PHASE AC SERVOPACK SERVO DRIVE. IT ACCEPTS AN AC INPUT OF 200-230 VAC AT 50/60 HZ WITH A RATED INPUT CURRENT OF 60 AMPERES. THE DRIVE DELIVERS A THREE-PHASE AC OUTPUT RANGING FROM 0-230 V, RATED AT 58.6 AMPERES, PROVIDING AN OUTPUT POWER OF 11.0 KW (14.7 HP). THIS UNIT FEATURES IGBT PWM CONTROL AND CURRENT CONTROL METHODS. IT IS COMPATIBLE WITH YASKAWA SGMGH SERIES SERVO MOTORS AND SUPPORTS A 17-BIT ABSOLUTE/INCREMENTAL ENCODER FEEDBACK INTERFACE. THE '-P' SUFFIX INDICATES A PULSE TRAIN COMMAND INTERFACE FOR CONTROL SIGNALS.
