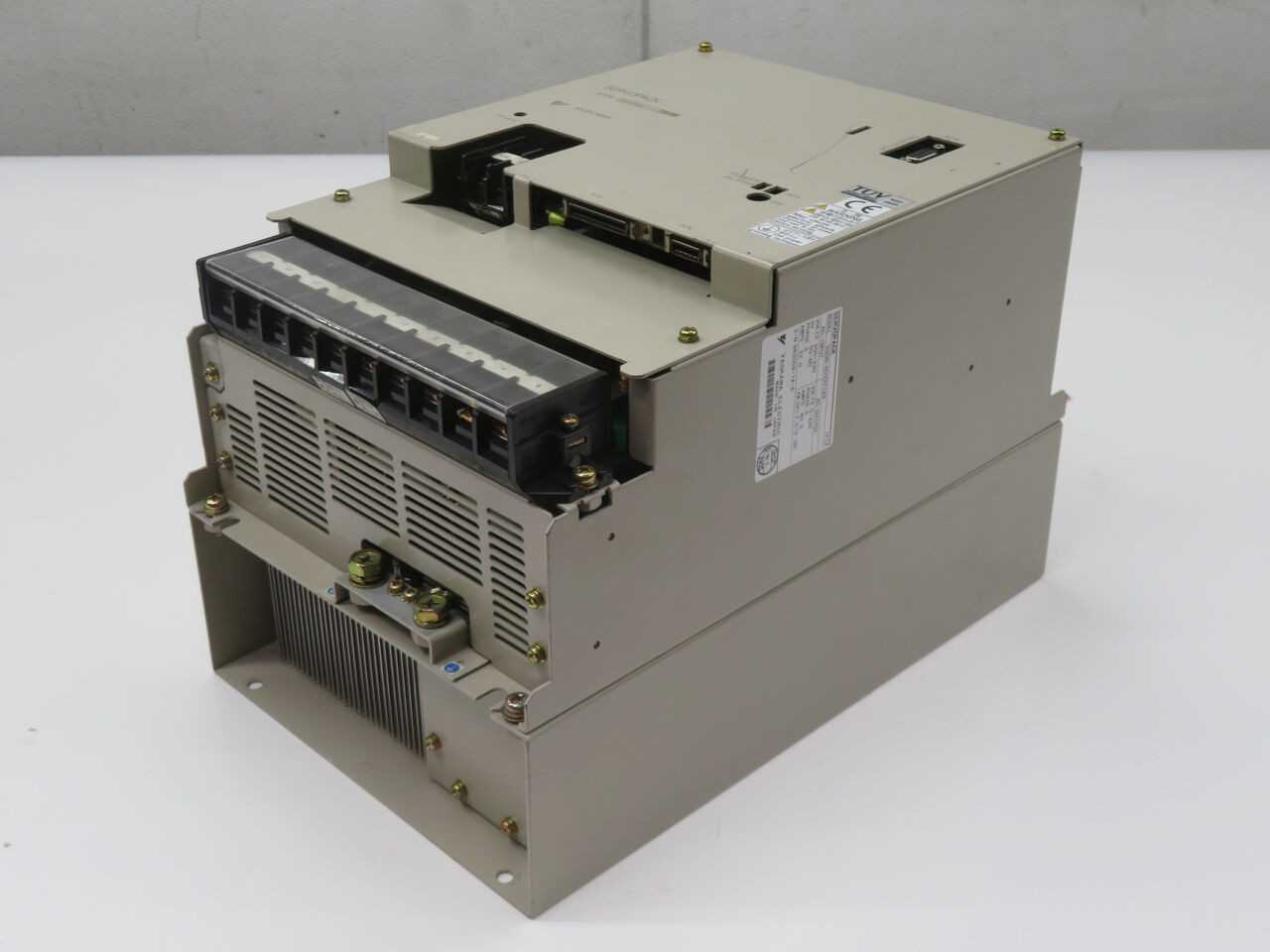

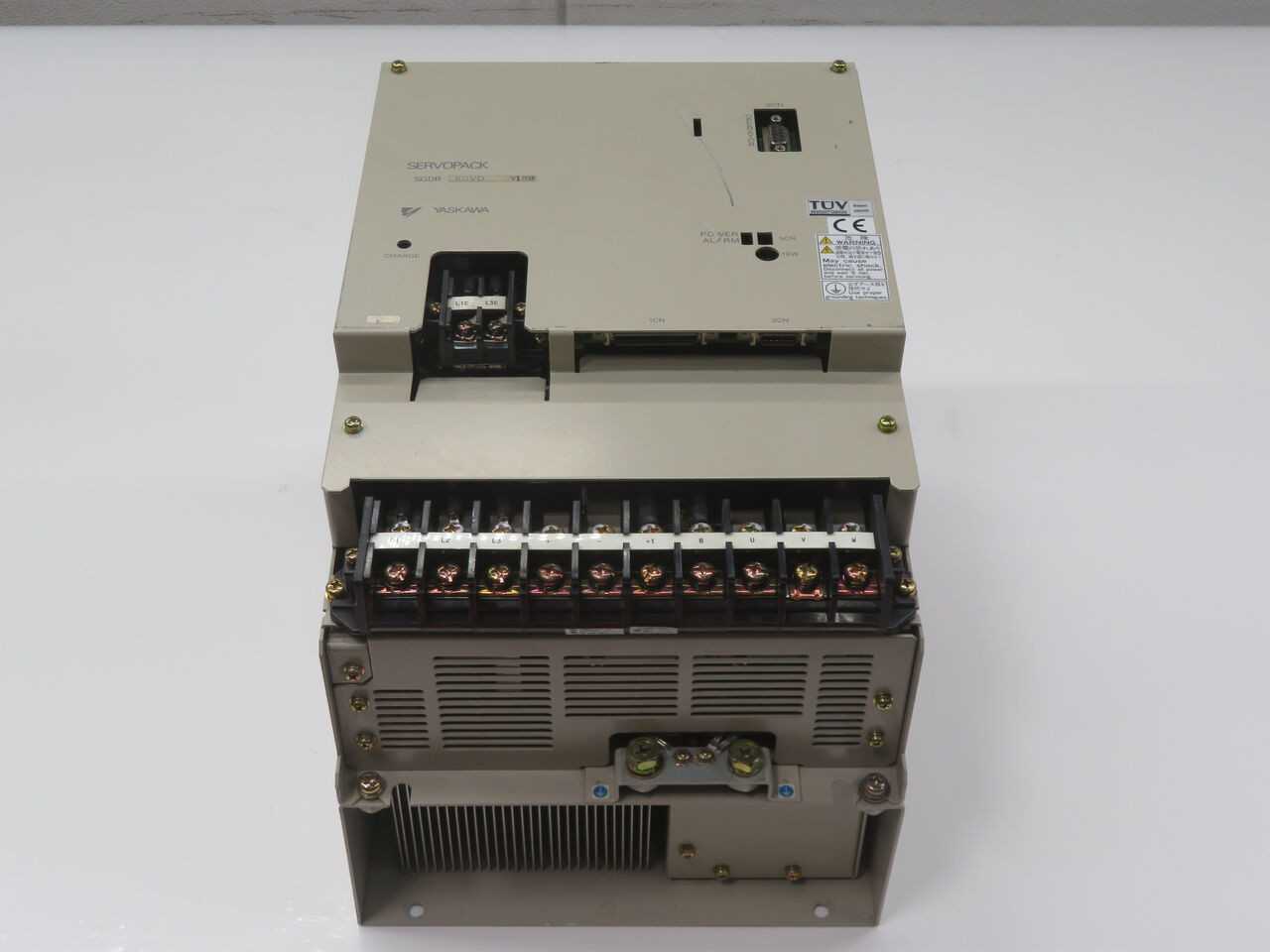

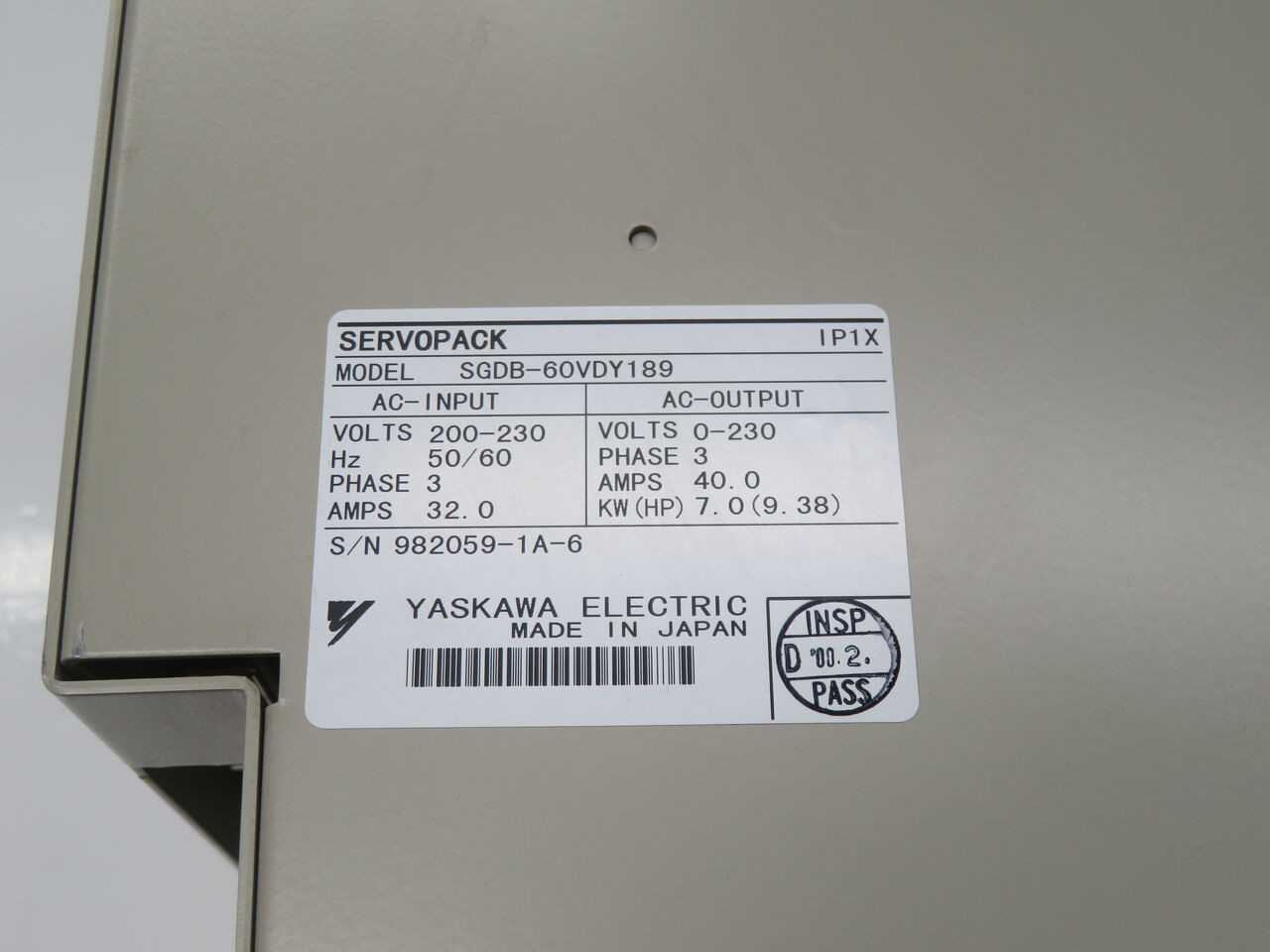

YASKAWA SGDB-60VDY189 SERVOPACK DRIVE, 200-230VAC INPUT, 32A INPUT, 40A OUTPUT, 0-55C TEMP

THE YASKAWA SGDB-60VDY189 IS A 200V CLASS DIGITAL SERVOPACK DRIVE. IT ACCEPTS A 3-PHASE INPUT OF 200-230VAC AT 50/60HZ, WITH A MAXIMUM INPUT CURRENT OF 32A. THE UNIT PROVIDES A 3-PHASE OUTPUT RANGING FROM 0-230V, DELIVERING A MAXIMUM OUTPUT CURRENT OF 40A. THIS SERVOPACK DRIVE FEATURES ADVANCED DIGITAL SIGNAL PROCESSING FOR PRECISE MOTION CONTROL. IT TYPICALLY SUPPORTS MULTIPLE COMMAND INPUT METHODS, INCLUDING ANALOG VOLTAGE AND PULSE TRAIN COMMANDS, FACILITATING HIGH-SPEED POSITION, SPEED, AND TORQUE CONTROL. THE DRIVE INCORPORATES COMPREHENSIVE PROTECTIVE FUNCTIONS, ENCOMPASSING OVERCURRENT, OVERVOLTAGE, UNDERVOLTAGE, REGENERATION OVERLOAD, MOTOR OVERLOAD, AND ENCODER ERROR DETECTION. DESIGNED FOR DRIVING SYNCHRONOUS AC SERVO MOTORS, THE SGDB SERIES GENERALLY OFFERS AN OPERATING AMBIENT TEMPERATURE RANGE OF 0 TO 55°C AND A NON-CONDENSING HUMIDITY TOLERANCE OF 90% RH OR LESS. IT ALSO TYPICALLY INCLUDES AUTOMATIC TUNING CAPABILITIES FOR OPTIMIZED PERFORMANCE.
