Yaskawa SGMG-1EAWW-NJ11 Servo Motors, 15.0 kW Power, 71.6 Nm Rated Torque, 2000 R/min Rated Speed

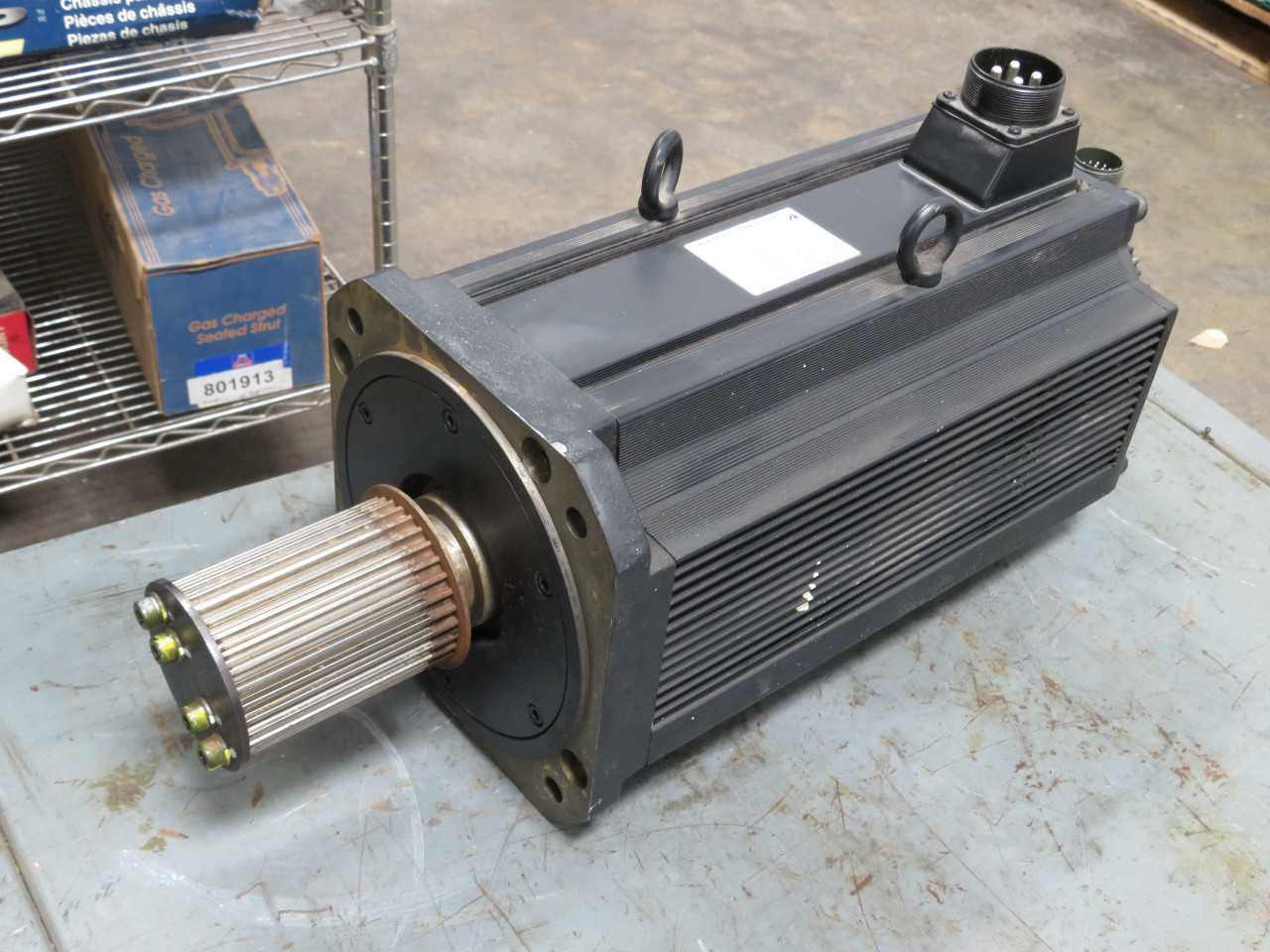

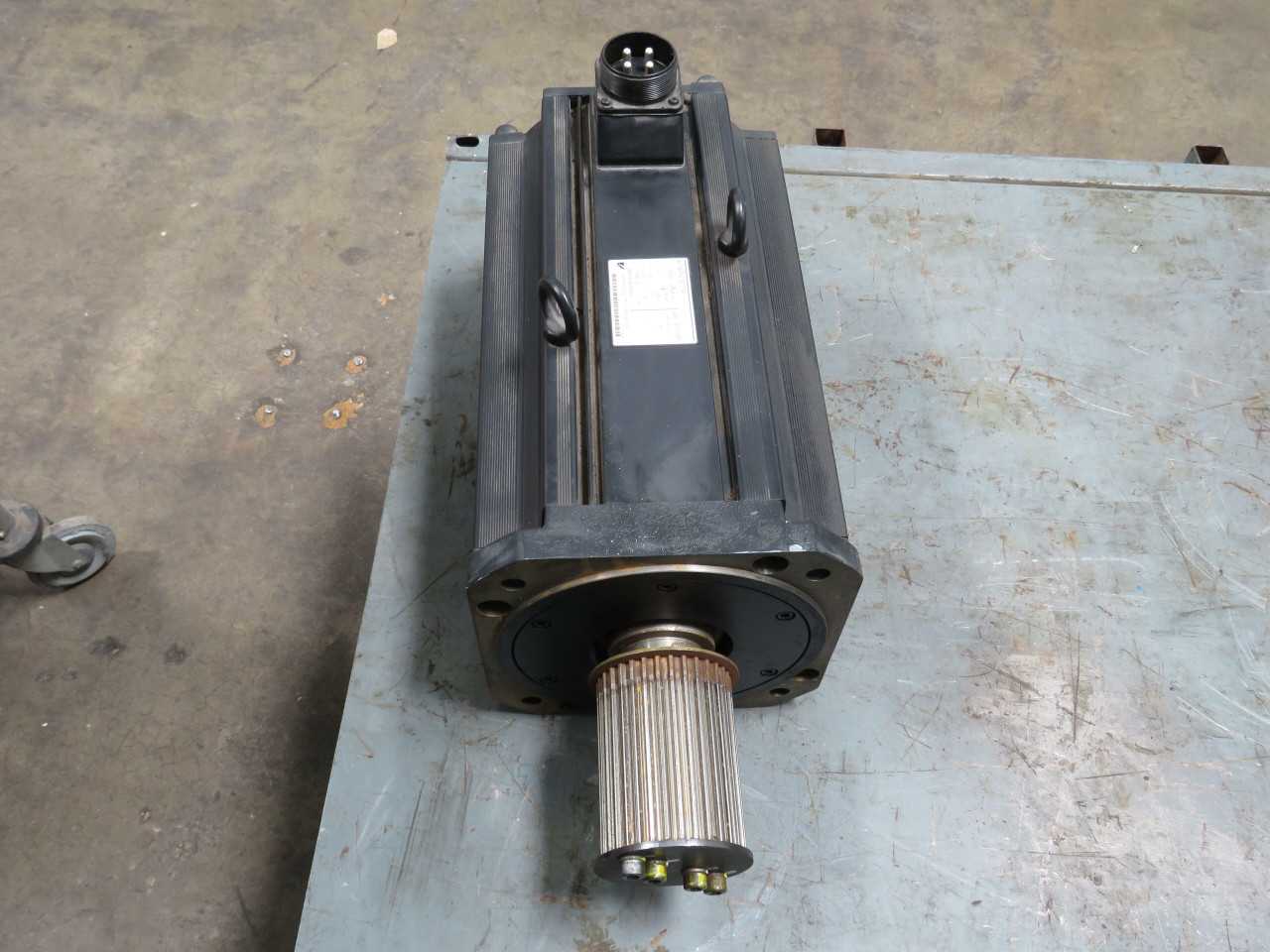

THE YASKAWA SGMG-1EAWW-NJ11 IS A HIGH INERTIA AC SERVO MOTOR WITH A RATED OUTPUT OF 15.0 KW. IT OPERATES ON A 3-PHASE 200 VAC SUPPLY, DELIVERING A RATED CURRENT OF 88.0 A. THE MOTOR PROVIDES A RATED TORQUE OF 71.6 NM AND A MAXIMUM TORQUE OF 215 NM. IT FEATURES A RATED SPEED OF 2000 R/MIN AND A MAXIMUM SPEED OF 2500 R/MIN. THE UNIT IS EQUIPPED WITH A 17-BIT INCREMENTAL ENCODER PROVIDING 131072 PULSES PER REVOLUTION FOR PRECISE POSITION FEEDBACK. IT INCORPORATES A STRAIGHT SHAFT WITH A KEY AND INCLUDES A DC 90V HOLDING BRAKE WITH A STATIC HOLDING TORQUE OF 100 NM. THE MOMENT OF INERTIA FOR THIS MODEL IS 0.176 KG·M².
