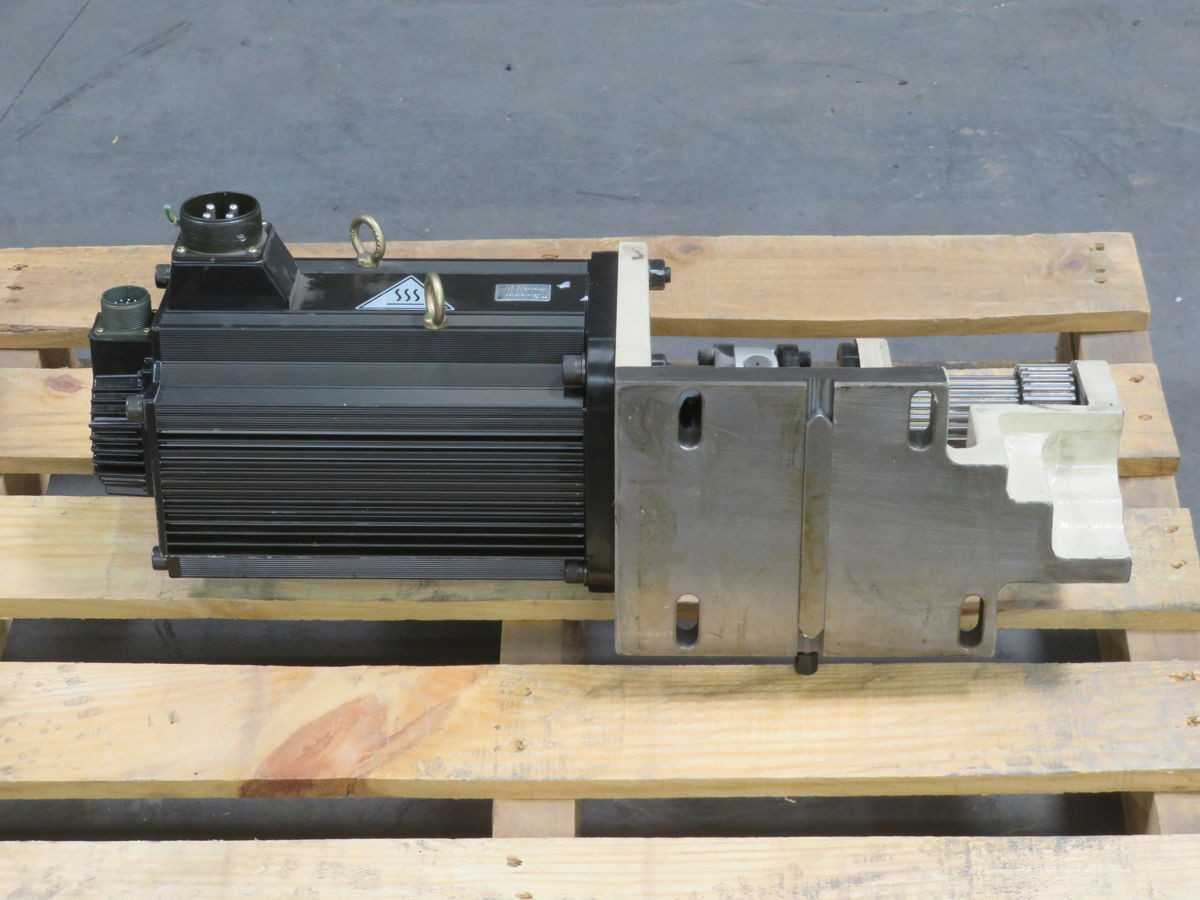

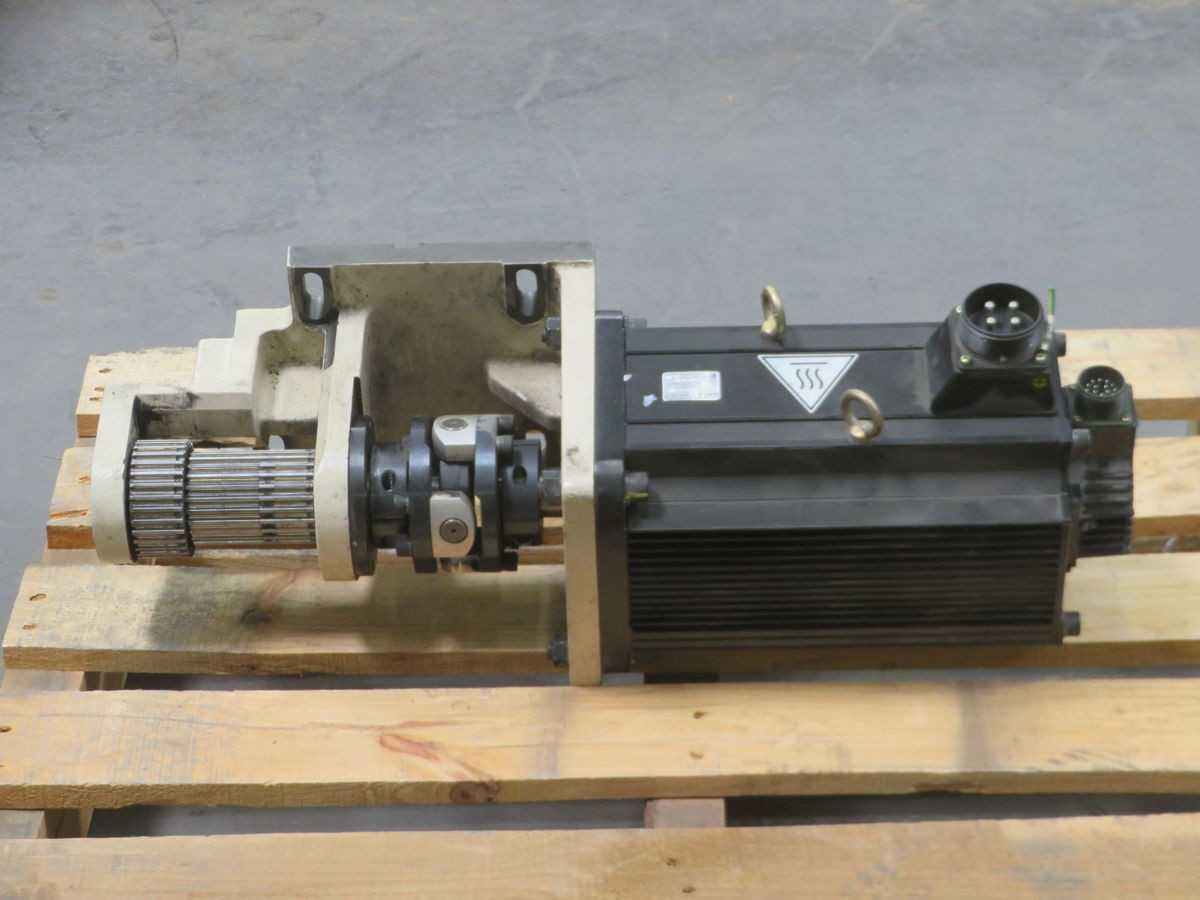

YASKAWA SGMG-75V 6V-FJ11 SERVO, 7.5 KW POWER, 47.7 NM TORQUE, 1500 R/MIN SPEED, 17-BIT ENCODER

THE YASKAWA SGMG-75V 6V-FJ11 IS A THREE-PHASE AC SERVO MOTOR FROM THE SGMG SERIES, ENGINEERED FOR HIGH-PERFORMANCE INDUSTRIAL MOTION CONTROL. IT DELIVERS A RATED OUTPUT POWER OF 7.5 KW AND OPERATES WITH A RATED TORQUE OF 47.7 NM AT A NOMINAL SPEED OF 1500 REVOLUTIONS PER MINUTE. THE MOTOR IS DESIGNED FOR OPERATION WITH A 200 VAC THREE-PHASE POWER SUPPLY. IT PROVIDES A MAXIMUM TORQUE OF 143 NM AND SUPPORTS A MAXIMUM ROTATIONAL SPEED OF 2000 R/MIN. PRECISION FEEDBACK IS ENSURED BY AN INTEGRATED 17-BIT ABSOLUTE ENCODER, FACILITATING ACCURATE POSITION AND SPEED CONTROL. THE MOTOR FEATURES A MOMENT OF INERTIA OF 0.0094 KG⋅M².
