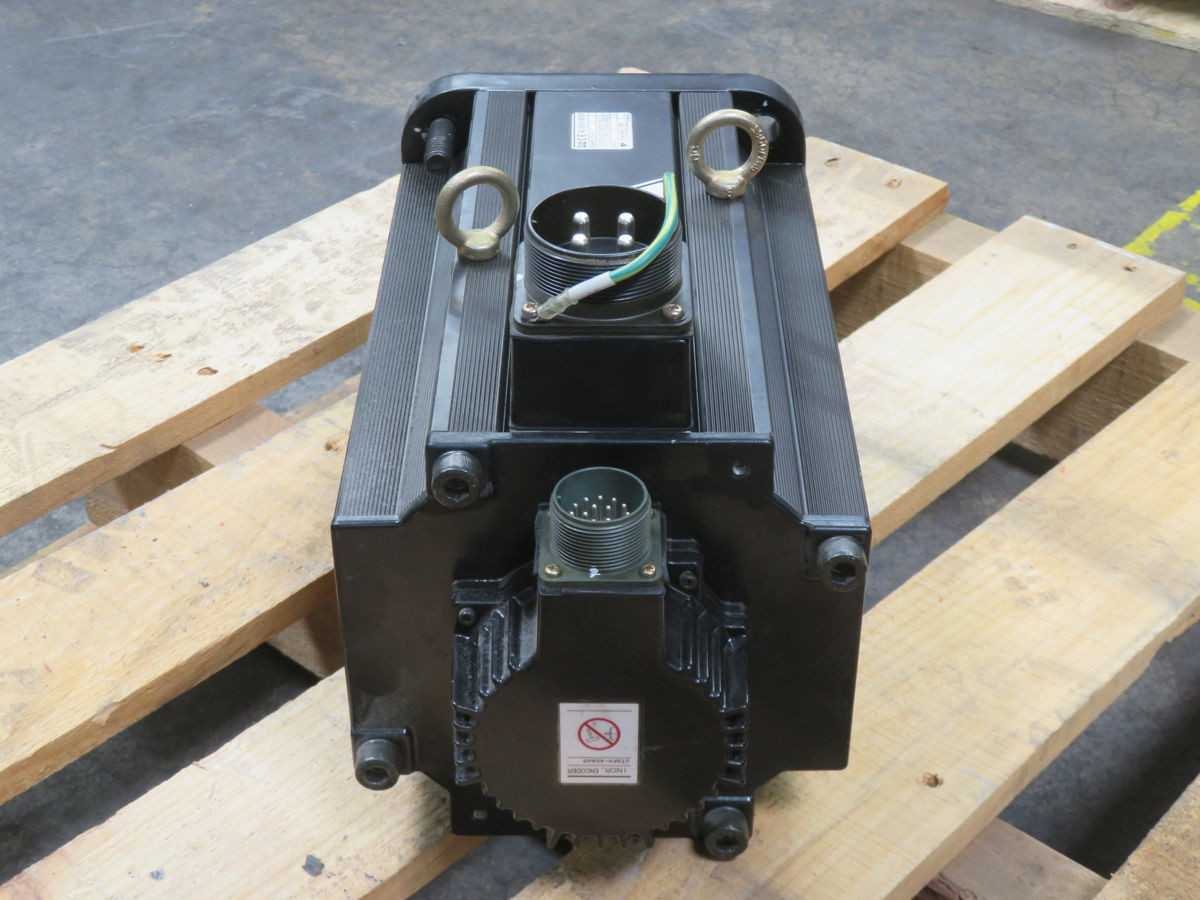

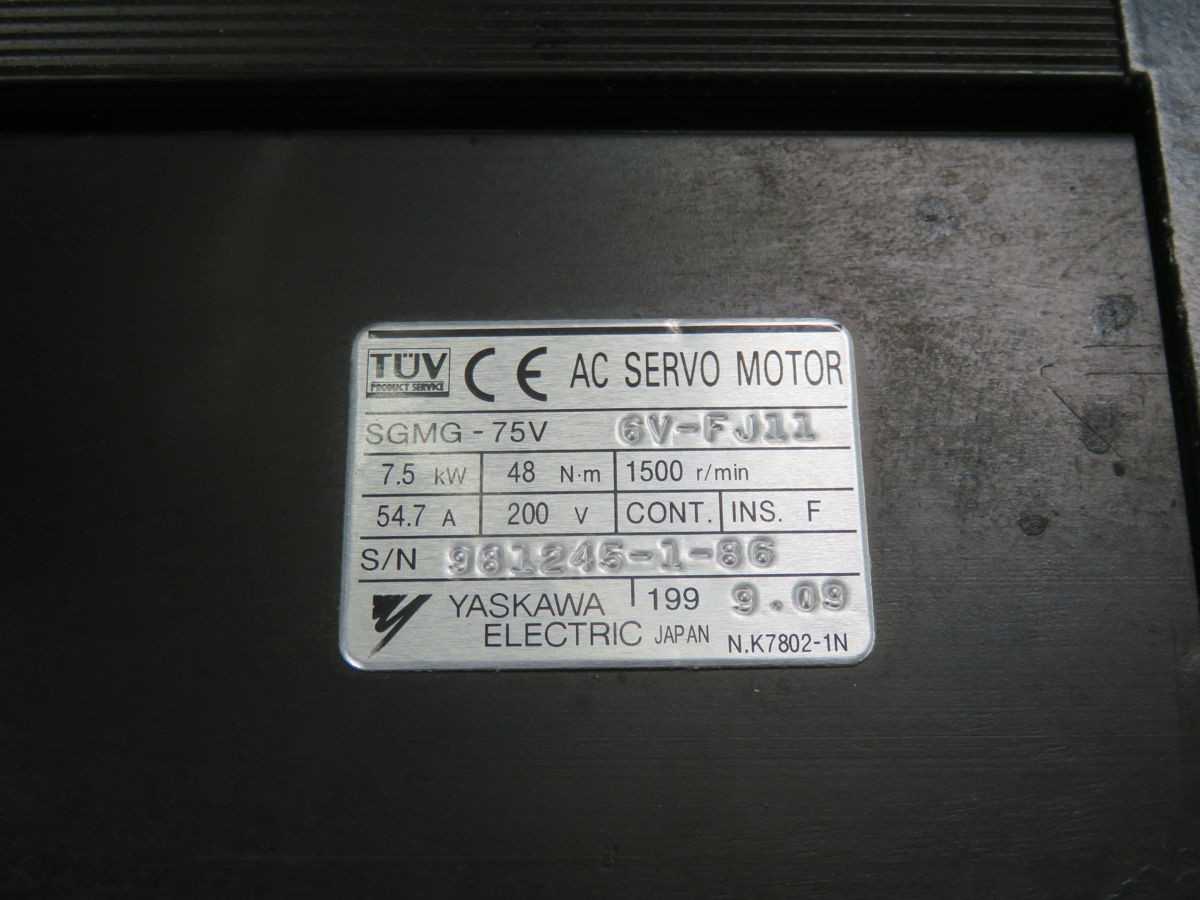

YASKAWA SGMG-75V 6V-FJ11 SERVO MOTORS, 7.5 KW POWER, 47.7 N·M TORQUE, 1500 RPM SPEED

THE YASKAWA SGMG-75V 6V-FJ11 AC SERVO MOTOR, PART OF THE SGM SERIES, FEATURES A RATED OUTPUT OF 7.5 KW (10.06 HP) AND OPERATES AT A RATED VOLTAGE OF 200 V. IT ACHIEVES A RATED SPEED OF 1500 RPM WITH A MAXIMUM SPEED CAPABILITY OF 2000 RPM. THE MOTOR IS EQUIPPED WITH AN 8192 P/R INCREMENTAL ENCODER FOR PRECISE FEEDBACK AND INCORPORATES A STRAIGHT SHAFT WITHOUT A KEY. THIS MODEL DELIVERS A RATED TORQUE OF 47.7 N·M AND A MOMENTARY MAXIMUM TORQUE OF 143.0 N·M. ELECTRICAL SPECIFICATIONS INCLUDE A RATED CURRENT OF 30.0 A AND A MOMENTARY MAXIMUM CURRENT OF 90.0 A. IT HAS A ROTOR INERTIA OF 0.0055 KG·M² AND WEIGHS 36.0 KG. THE ENCLOSURE RATING IS IP67, EXCLUDING THE SHAFT OPENING.
