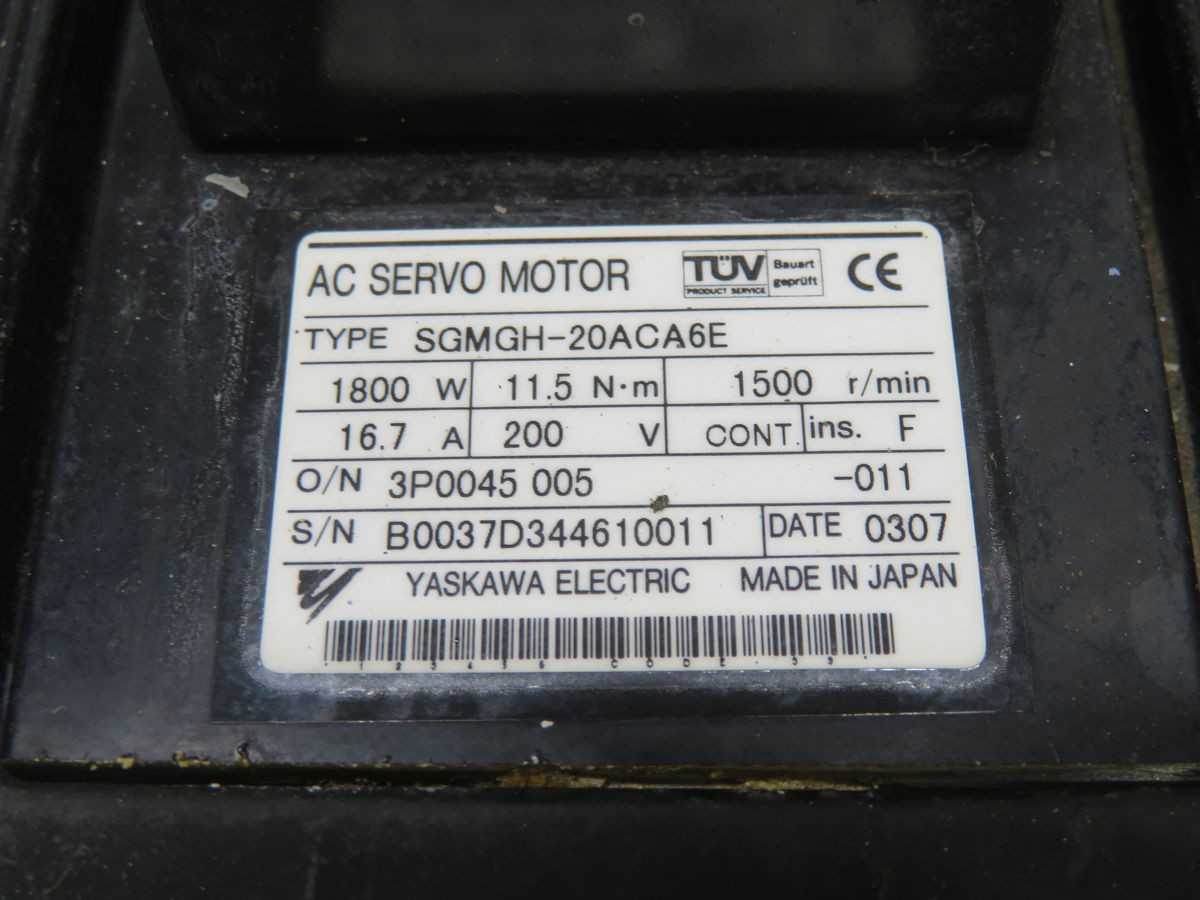

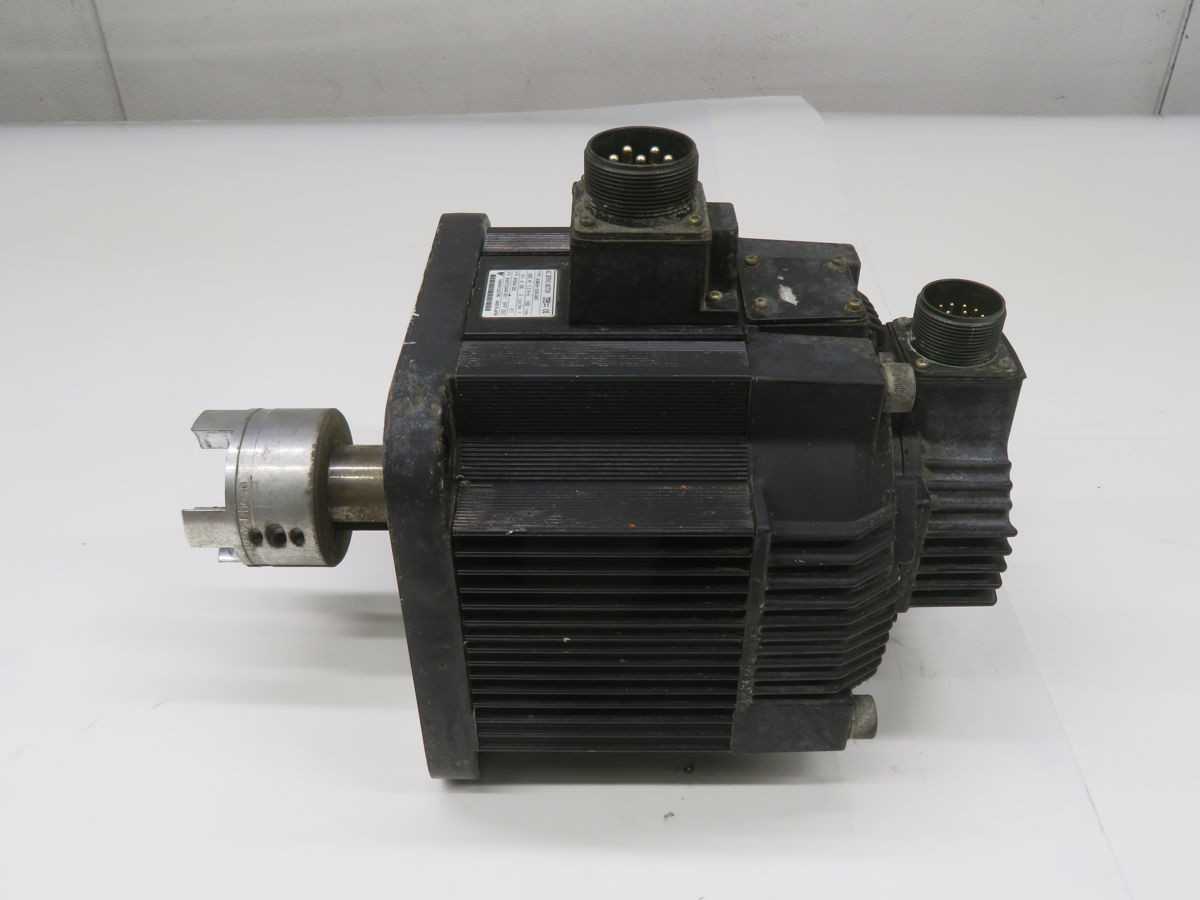

YASKAWA SGMGH-20ACA6E SERVO MOTORS, 1800W POWER, 11.5 N-M TORQUE, 1500 RPM SPEED

THE YASKAWA SGMGH-20ACA6E IS AN AC SYNCHRONOUS SERVO MOTOR WITH MEDIUM INERTIA. IT FEATURES A RATED POWER OUTPUT OF 1800W, A RATED TORQUE OF 11.5 N-M, AND A RATED SPEED OF 1500 RPM. THE MOTOR OPERATES AT A RATED VOLTAGE OF 200V AND DRAWS A RATED CURRENT OF 16.7A. IT INTEGRATES A 13-BIT INCREMENTAL ENCODER PROVIDING 8192 PULSES PER REVOLUTION. THE MOTOR DESIGN INCLUDES AN IP67 PROTECTION RATING FOR THE MOTOR BODY, WITH THE SHAFT SEAL RATED AT IP65.
