YASKAWA SGMGH-44A2A-YR12 SERVO MOTORS, 4.4 KW POWER, 27.9 NM TORQUE, 17-BIT ENCODER

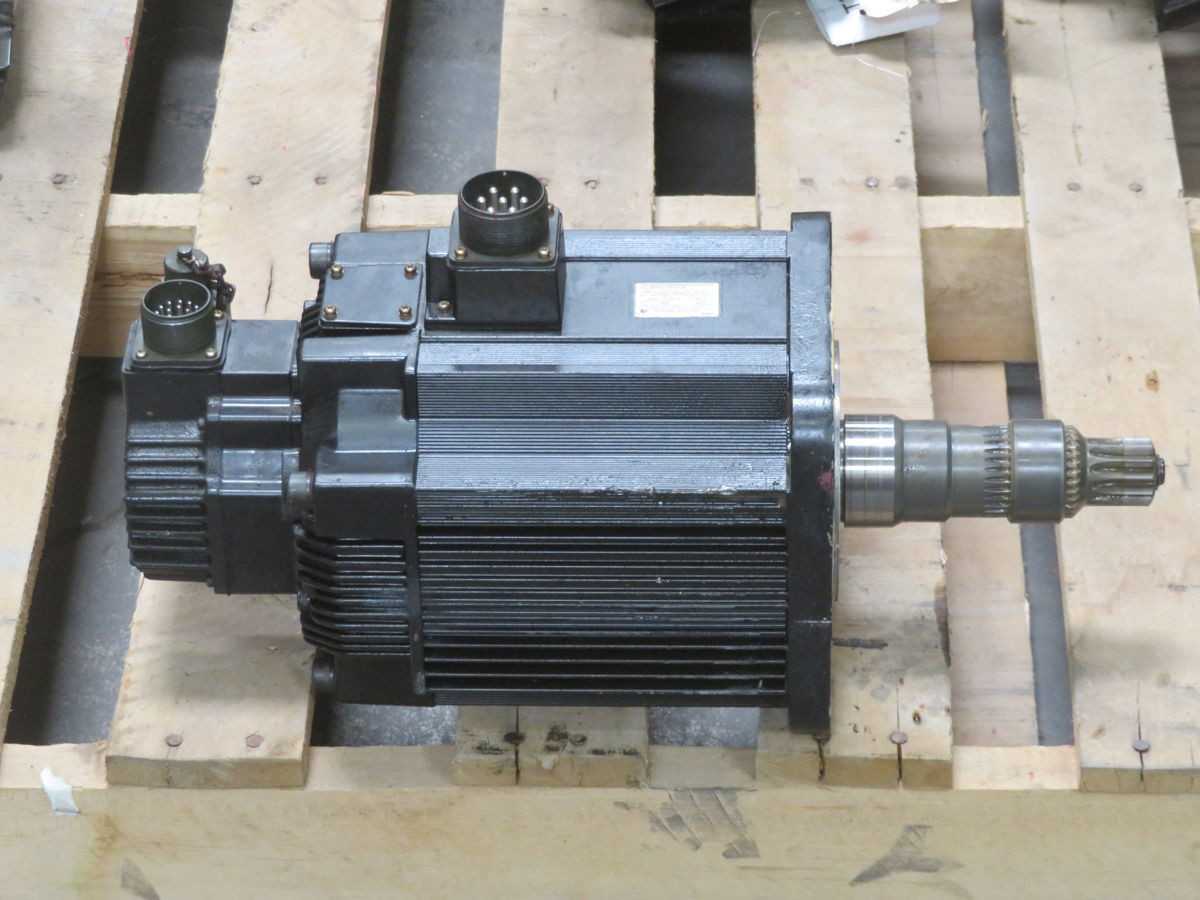

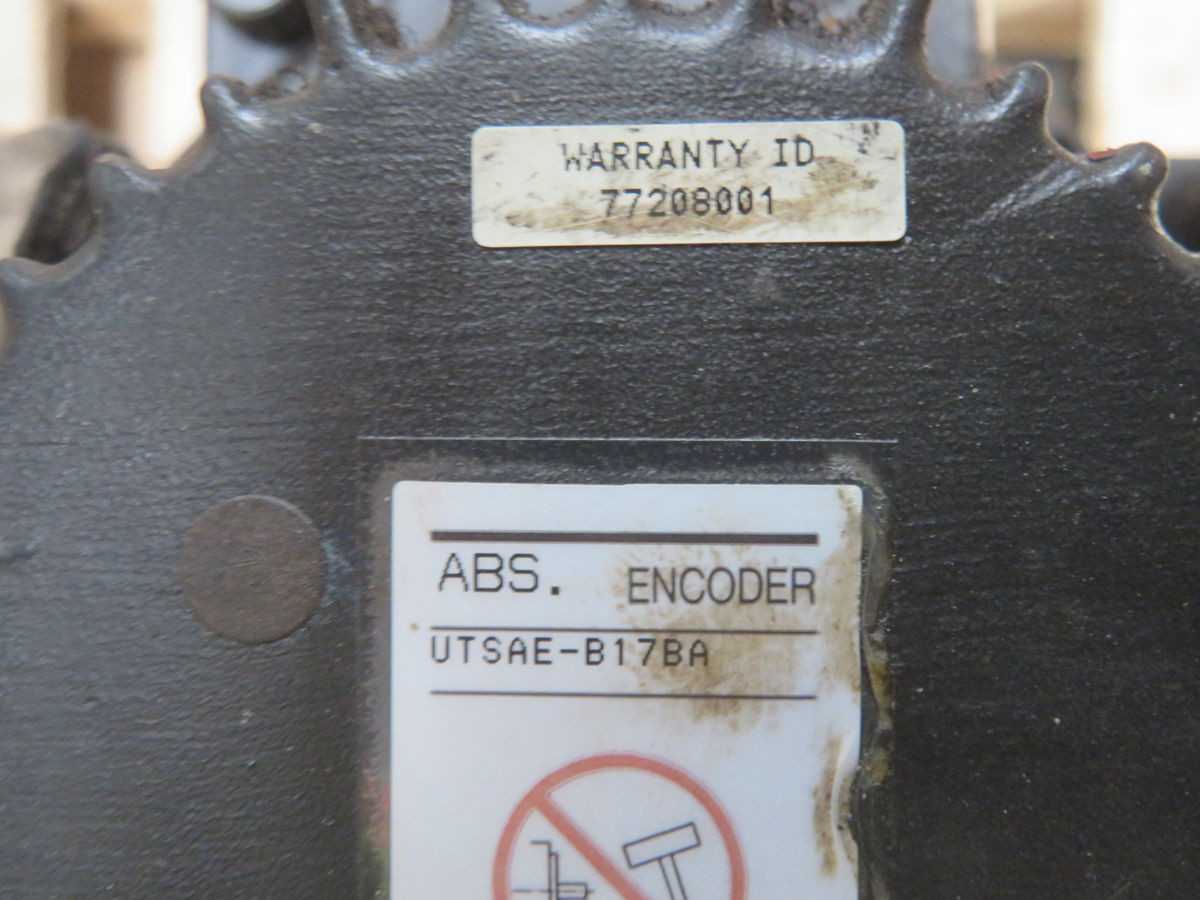

THE YASKAWA SGMGH-44A2A-YR12 IS A SIGMA-II SERIES AC SERVO MOTOR, IDENTIFIED AS A HIGH-SPEED FEED TYPE. IT DELIVERS A RATED POWER OUTPUT OF 4.4 KW AT 230 VAC, OPERATING AT A RATED SPEED OF 1500 RPM. THE MOTOR INTEGRATES A 17-BIT ABSOLUTE ENCODER FOR PRECISE POSITION FEEDBACK. IT FEATURES A STANDARD DESIGN WITH A STRAIGHT SHAFT. TECHNICAL SPECIFICATIONS INCLUDE A RATED TORQUE OF 27.9 NM, A PEAK TORQUE OF 83.7 NM, AND A RATED CURRENT OF 24.5 A. THE ROTOR MOMENT OF INERTIA IS 0.000305 KG·M², AND THE MOTOR HAS A 130MM SQUARE FLANGE, WITH A TOTAL WEIGHT OF 22 KG.
