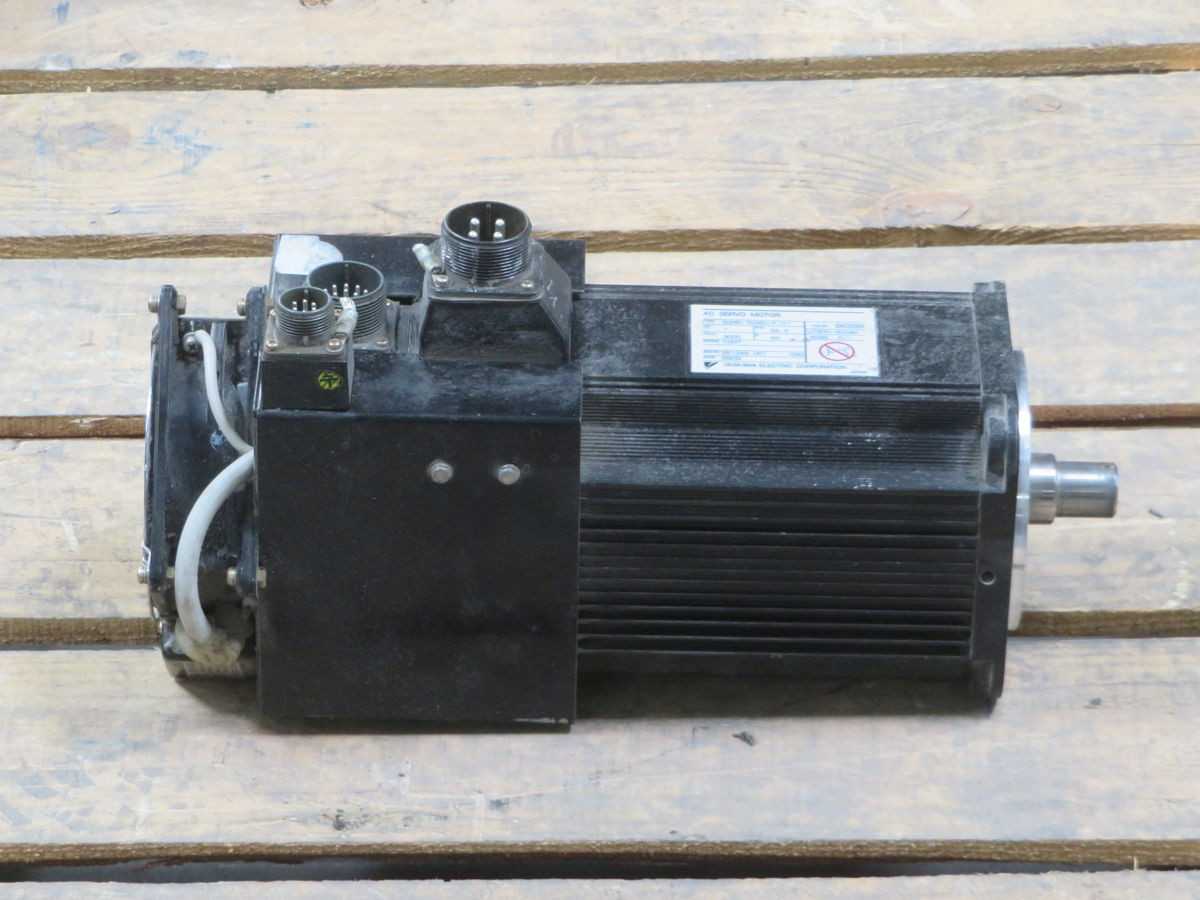

YASKAWA SGMS-70A6V-FJ11 SERVO MOTOR, 7.0 KW POWER, 3000 RPM SPEED, 22.3 NM TORQUE, 17-BIT ENCODER, IP65

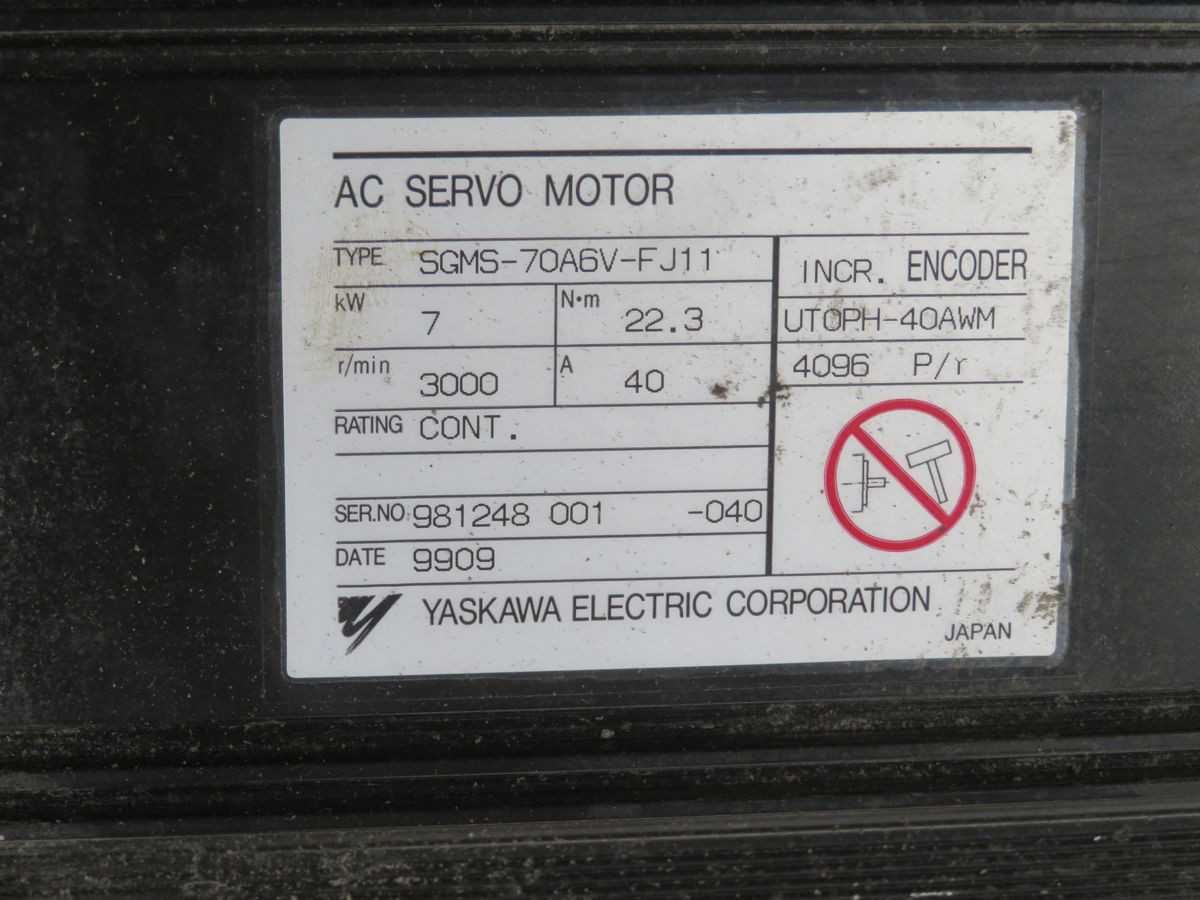

THE YASKAWA SGMS-70A6V-FJ11 AC SERVO MOTOR IS A SYNCHRONOUS MOTOR FROM THE SIGMA II SERIES, FEATURING A RATED OUTPUT POWER OF 7.0 KW. IT ACHIEVES A RATED SPEED OF 3000 REVOLUTIONS PER MINUTE WITH A RATED CURRENT DRAW OF 40.0 AMPERES. THE MOTOR IS EQUIPPED WITH A 17-BIT INCREMENTAL ENCODER, PROVIDING 131072 PULSES PER REVOLUTION FOR PRECISE POSITIONAL FEEDBACK. IT OFFERS A RATED TORQUE OF 22.3 NM AND CAN DELIVER A MAXIMUM TORQUE OF 64.7 NM. THE MAXIMUM OPERATING SPEED EXTENDS TO 4000 REVOLUTIONS PER MINUTE, WITH A PEAK CURRENT CAPABILITY OF 122 AMPERES. DESIGNED FOR OPERATION WITH A 200V AC POWER SUPPLY, THE MOTOR EXHIBITS A ROTOR INERTIA OF 0.00164 KG·M² AND CARRIES AN IP65 INGRESS PROTECTION RATING.
