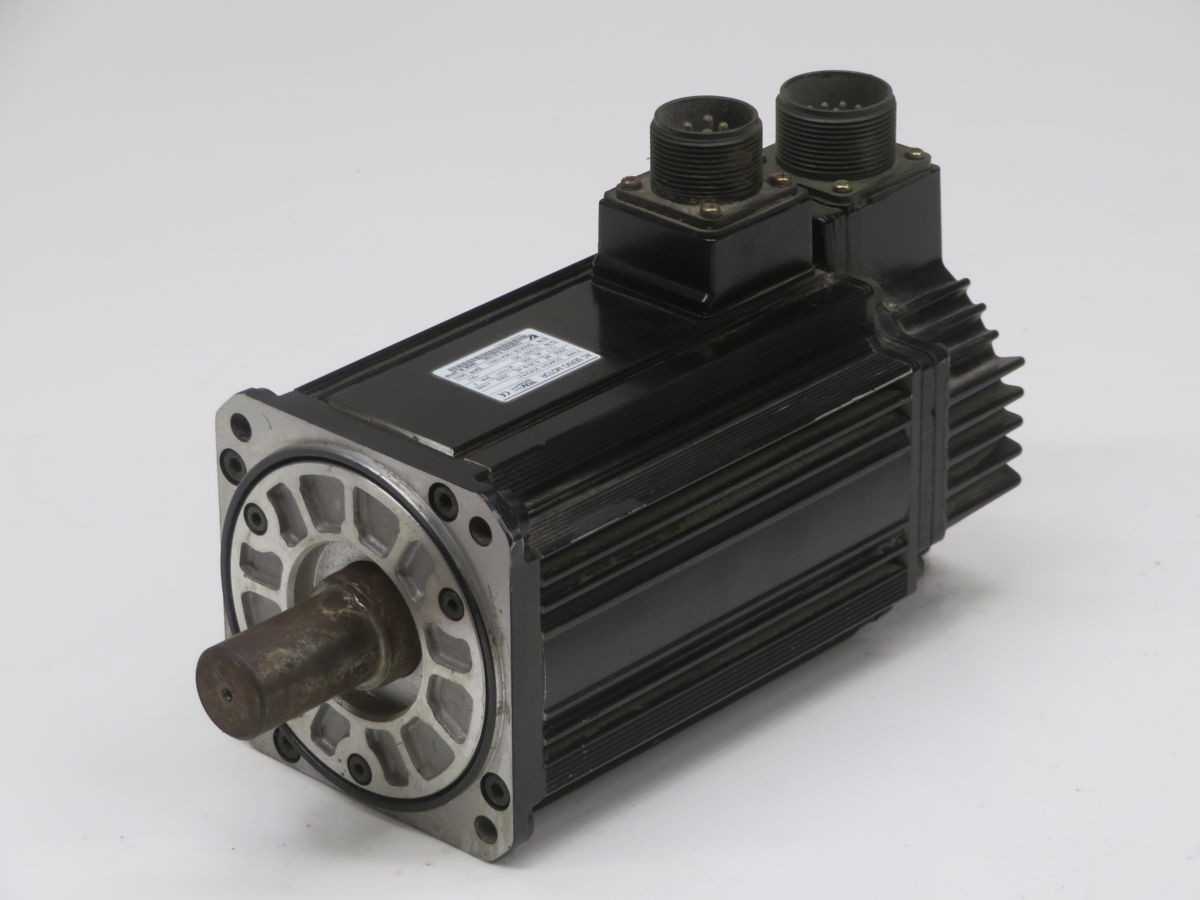

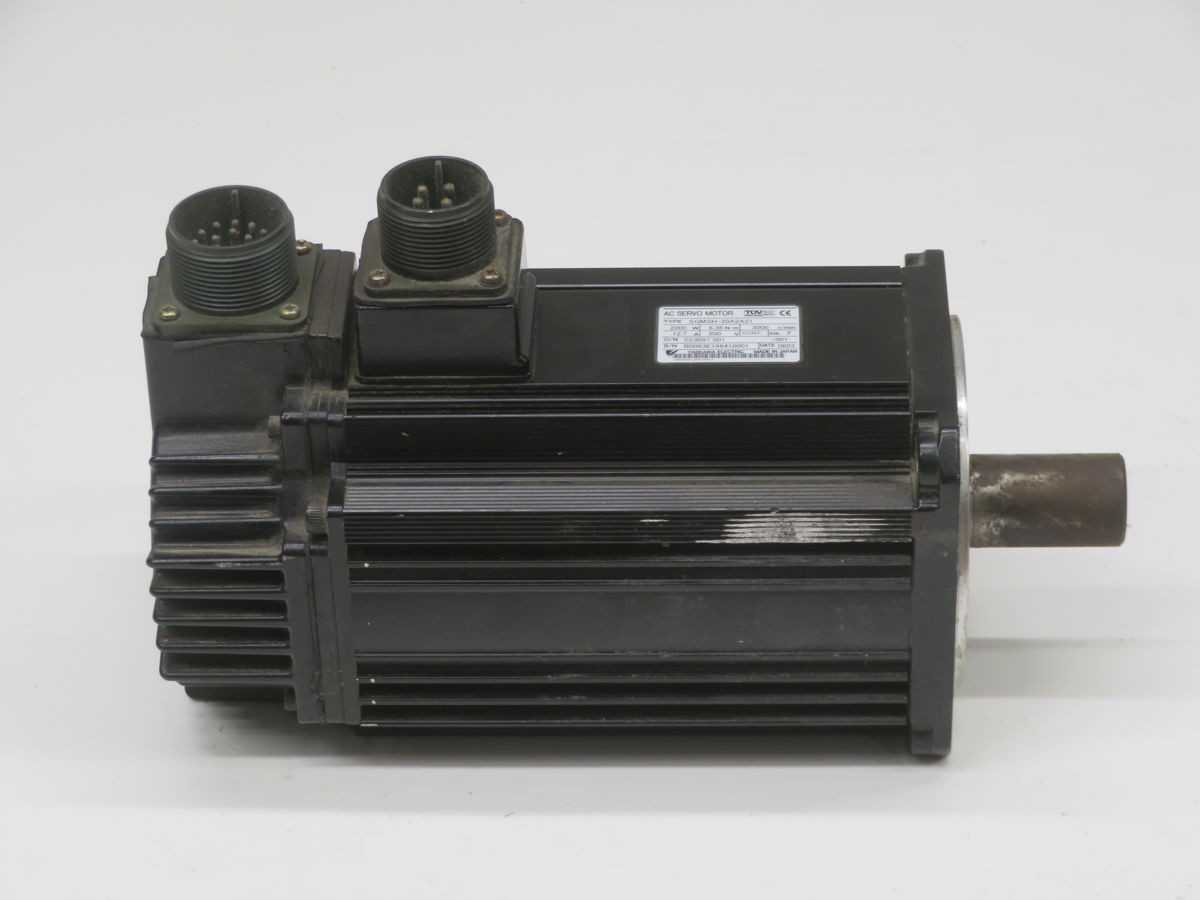

YASKAWA SGMSH-20A2A21 SERVO MOTOR, 2000W POWER, 6.36 N-M TORQUE, 3000 RPM SPEED, 17-BIT ENCODER, IP67/IP65 PROTECTION

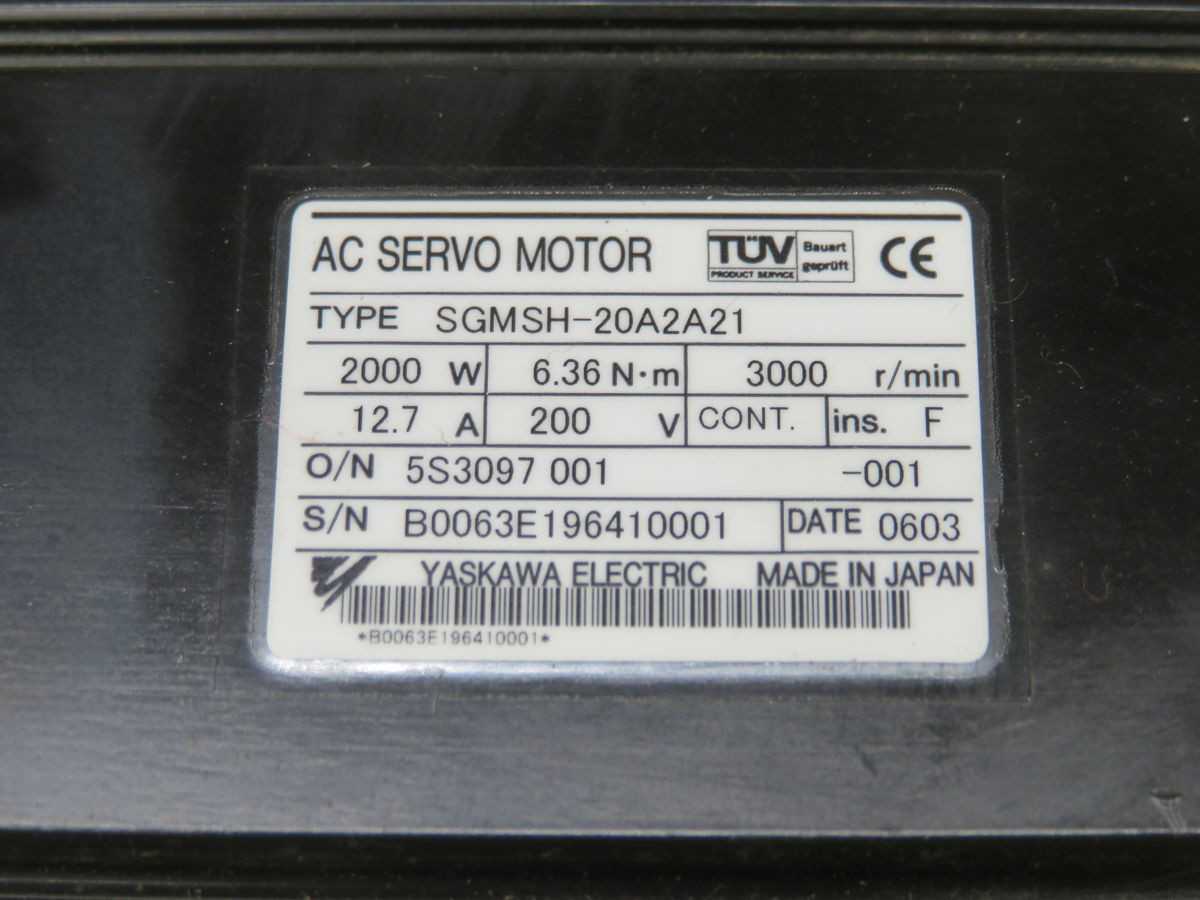

THE YASKAWA SGMSH-20A2A21 IS AN AC SERVO MOTOR FROM THE SIGMA-II SUPER HIGH POWER RATE SERIES. IT FEATURES A RATED POWER OF 2000 W, A RATED TORQUE OF 6.36 N-M, AND A RATED SPEED OF 3000 RPM. THE MOTOR OPERATES AT A RATED VOLTAGE OF 200 V WITH A RATED CURRENT OF 12.7 A. THIS MODEL INCORPORATES A 17-BIT ABSOLUTE ENCODER FOR PRECISE POSITION FEEDBACK AND IS EQUIPPED WITH A STRAIGHT SHAFT WITH A KEY, WITHOUT AN INTEGRATED BRAKE. THE MOTOR'S FLANGE MEASURES 130MM X 130MM, AND IT FEATURES CLASS F INSULATION. IT OFFERS AN IP67 RATED SHAFT EXTENSION AND AN IP65 RATED MOTOR HOUSING FOR ENVIRONMENTAL PROTECTION.
