This auction lot has ended, but we have similar assets in our marketplace.
YEONG CHIN YCM-16VS SUPERMAX KNEE-TYPE MILLING MACHINE
Aucto ID: #10027
3708199
12944
ended
ListingHippo Selling Industrial Machines, Power Gear, and Surplus MRO from Manufacturing Facilities
Tender Lot Ended
Location:
Logistics:
Rigging:
Buyer
Loading:
Buyer
Shipping:
Buyer
Verified Seller: ListingHippo.com
Selling since 2018.2432
Product Description
Condition: Good

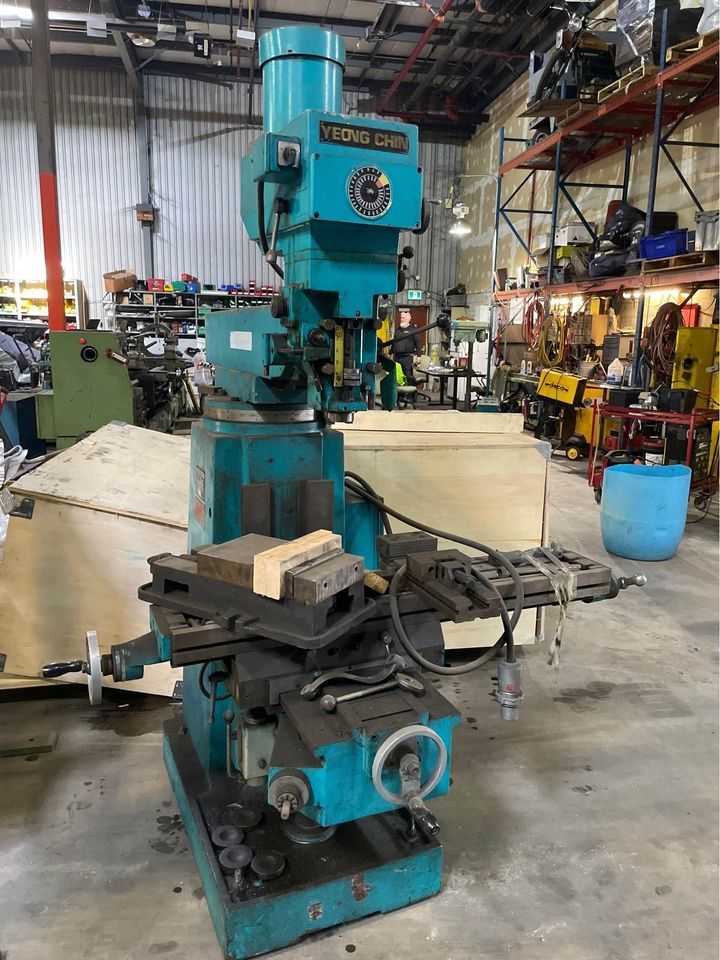

YEONG CHIN YCM-16VS SUPERMAX KNEE-TYPE MILLING MACHINE
LARGE VISE SITTING ON THE MILLING MACHINE TABLE IS NOT INCLUDED.
SPECIFICATIONS:
SPINDLE MOTOR: 3HP
SPINDLE RPM: 0-3500 (50HZ) 60-4200 (60HZ
POWER FEED PER REVOLUTION: 0.0432MM, 0.0813MM, 0.1346MM
T-SLOTS (WIDTH X NUMBER X DISTANCE); 15.87MM X 3 X 63.5MM
MAX. LOADING CAPACITY: 350KGS
TABLE SIZE (WIDTH X LENGTH): STANDARD (42") 230MM X 1067MM
LONGITUDINAL TRAVEL (X): 787MM
LONGITUDINAL TRAVEL WITH POWER FEED (X):692MM
CROSS TRAVEL (Y): 406MM
KNEE TRAVEL: 406MM
RAM TRAVEL: 457MM
QUILL TRAVEL: 127MM
OVERALL HEIGHT: 2200MM
OVERALL DEPTH: 1870MM
OVERALL WIDTH: 2480MM
SPINDLE CENTER TO COLUMN: 163MM-620MM
TABLE TO SPINDLE NOSE: 0-183MM
TABLE CENTER TO COLUMN: 134MM-540MM
Core Specifications
Manufacturer: YEONG CHIN
Model: YCM-16VS
Category:
 MACHINING > MILLING MACHINESLogistics
