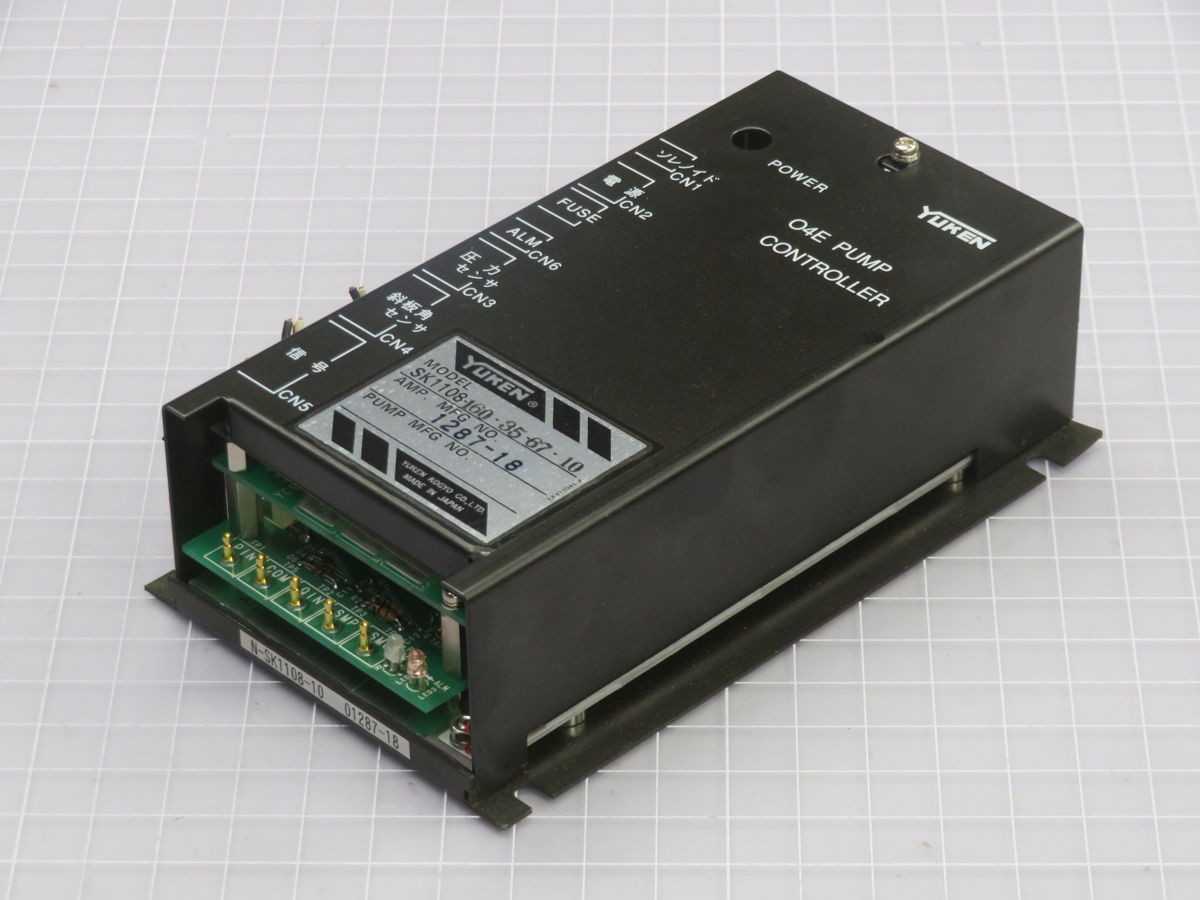

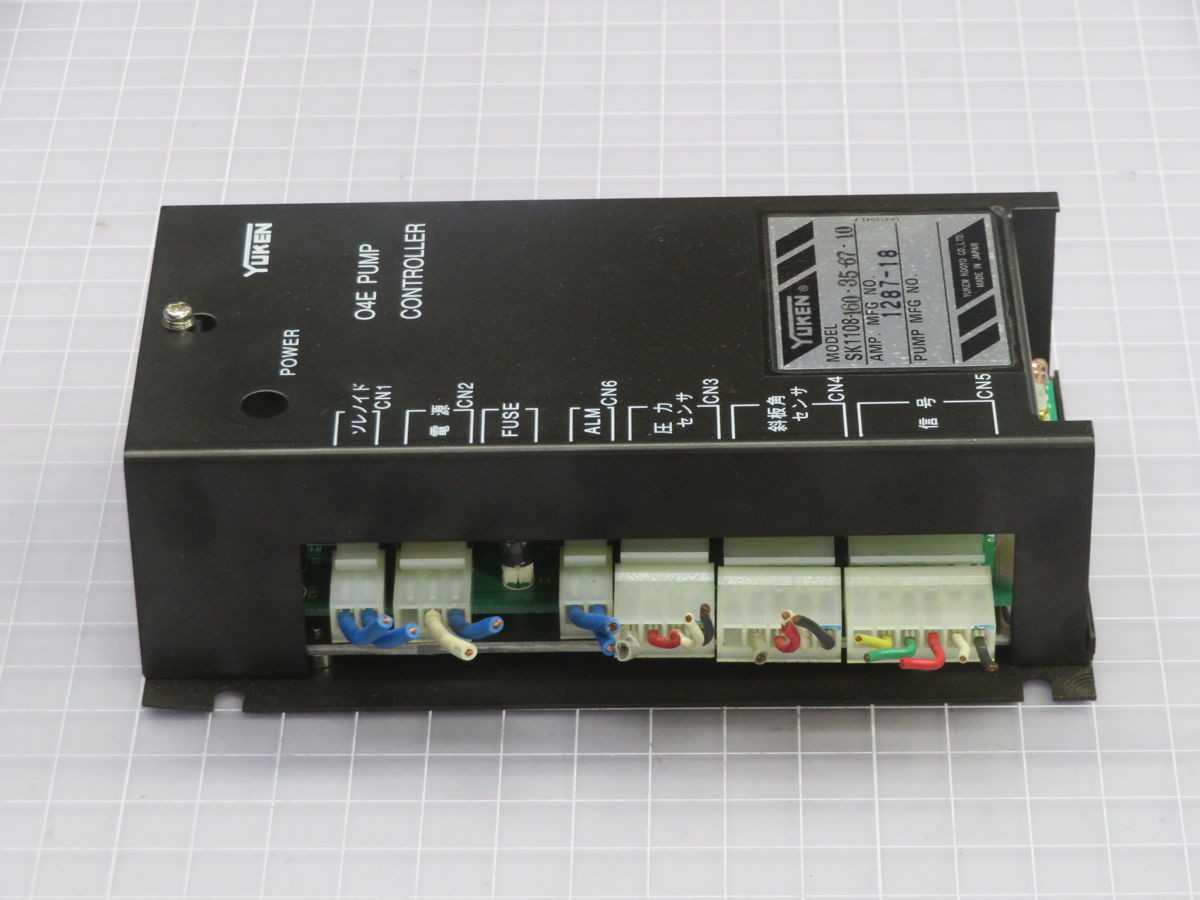

Yuken SK1108-160-35-67-10 Pressure Amplifier, 160 Bar Pressure, 35 Ma Output, 24V Power

The Yuken SK1108-160-35-67-10 is a pressure amplifier designed for controlling proportional pressure relief valves in hydraulic systems. It is configured to manage operations with a maximum pressure of 160 bar (16 MPA) and provides a proportional output current up to 35 MA for driving a solenoid. The unit typically operates on a 24V DC power supply. It accepts various command signals, including voltage (0-10V), current (4-20MA), or input from an external potentiometer. Key functionalities include adjustable gain, offset, and ramp time settings for precise acceleration and deceleration control. The amplifier also incorporates dither frequency and amplitude adjustments, optimizing valve response and mitigating stick-slip effects. This model is designed for panel mounting.
