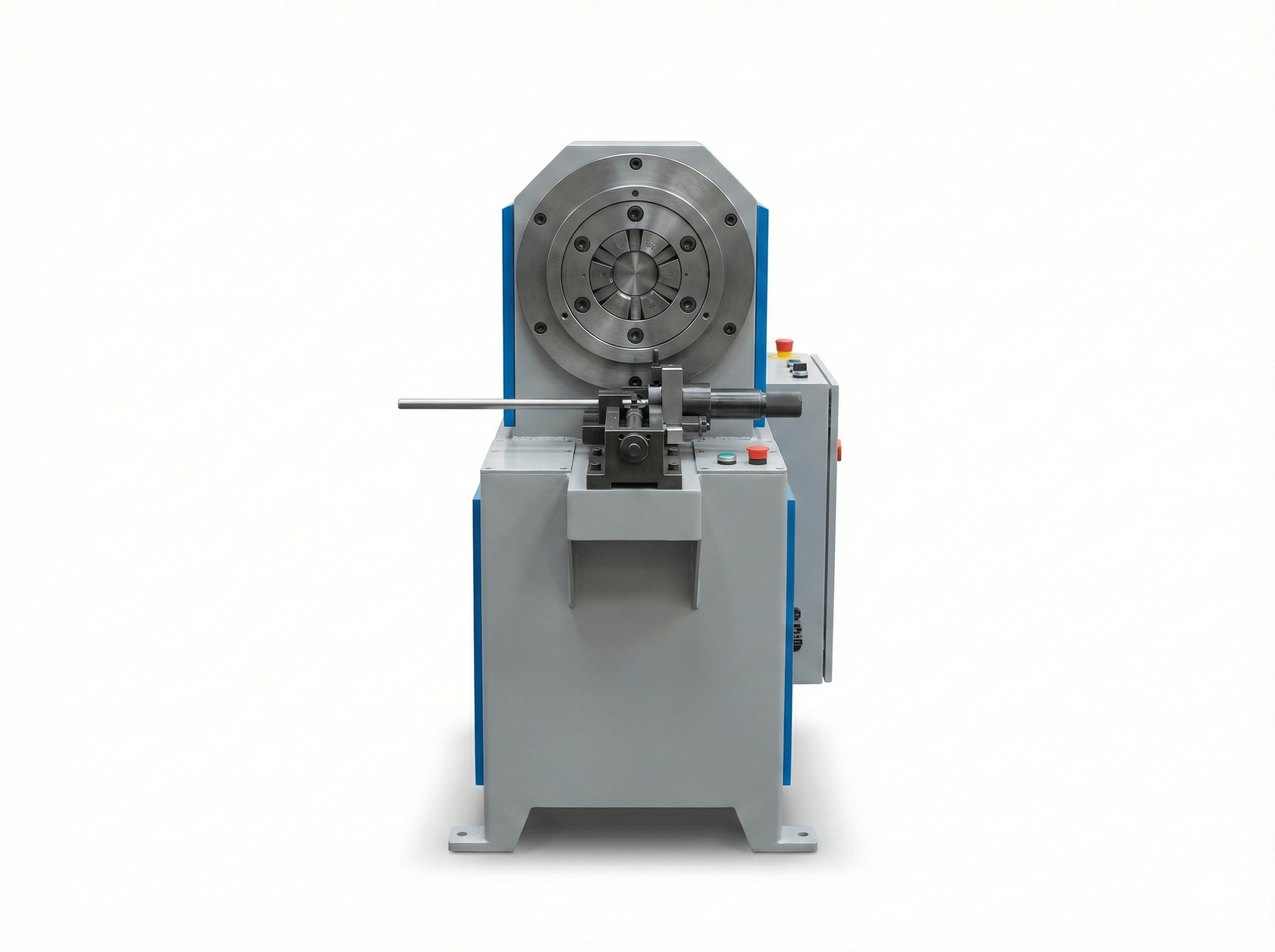

FENN 4F 4-DIE ROTARY SWAGER, 2.25IN TUBE, 0.938IN BAR, 3450 LBS

Technical Description

THE FENN MODEL 4F 4-DIE ROTARY SWAGER IS A HIGH-PRECISION METALWORKING MACHINE DESIGNED TO REDUCE THE DIAMETER OF CYLINDRICAL METALLIC RODS, TUBES, AND WIRE THROUGH RAPID, REPEATED RADIAL IMPACTS. THIS FOUR-DIE CONFIGURATION IS SPECIFICALLY ENGINEERED FOR POINTING AND SIGNIFICANT INITIAL REDUCTIONS ON LARGER WORKPIECES. THE MACHINE FEATURES A MAXIMUM TUBING CAPACITY OF 2.25 INCHES (57.2 MM) AND A SOLID BAR CAPACITY OF 0.938 INCHES (23.8 MM). ITS STANDARD DIE DIMENSIONS ARE 2.125 INCHES IN WIDTH, 2.25 INCHES IN HEIGHT, AND 3.5 INCHES IN LENGTH. OPERATIONALLY, THE UNIT IS POWERED BY A 10 HP AC DRIVE MOTOR TYPICALLY RUNNING AT 900 RPM. THE MECHANICAL PROCESS UTILIZES CENTRIPETAL FORCE TO MOVE HAMMER BLOCKS OUTWARD UNTIL THEY ARE DRIVEN BACK INWARD BY STATIONARY ROLLERS, DELIVERING THE FORCE NECESSARY FOR COLD OR HOT FORMING. THE MACHINE OCCUPIES A FLOOR SPACE OF APPROXIMATELY 38.5 INCHES IN WIDTH BY 46 INCHES IN LENGTH AND HAS A TOTAL WEIGHT OF APPROXIMATELY 3,450 LBS.
