12' Standard Industrial 200 Ton AB200-12 Hydraulic Press Brake - 1 Axis, 6" Stroke

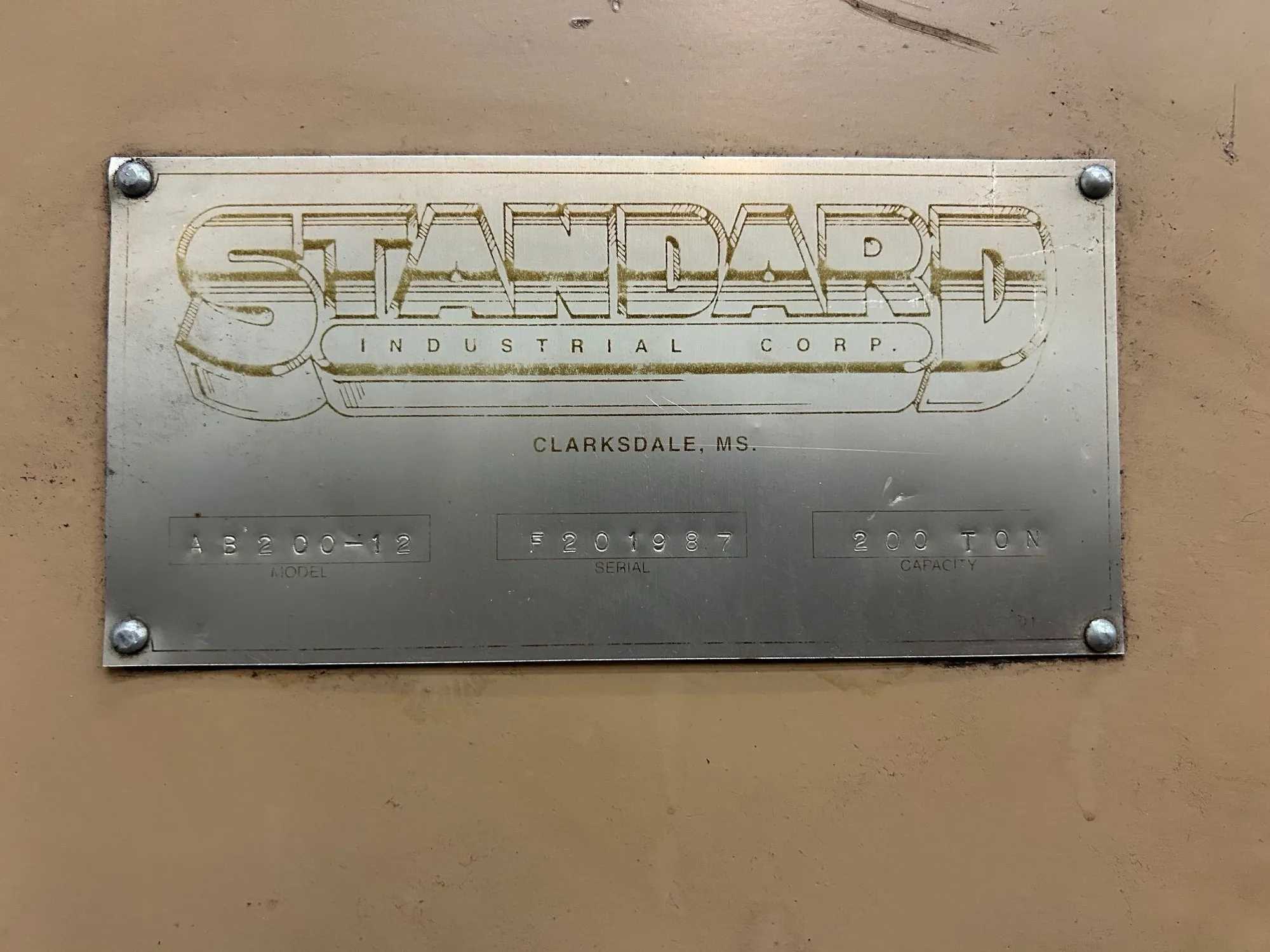

The Standard Industrial AB200-12 is a 200-ton hydraulic press brake (Serial No. F201987) featuring a 12-foot overall bed and ram length with 10 feet 6 inches between upright housings. Powered by a 25 HP motor with a hydraulic/mechanical drive system, this unit delivers a forming tonnage capacity of 200 tons and a punching capacity of 135 tons. It operates with a 6-inch stroke length, an open height of 13 inches, a closed height of 7 inches, and a throat depth of 6 inches. Operational ram speeds reach 92 IPM approach, 25 IPM pressing, and 120 IPM return. Designed for foundation-free setup with no pit required, the press brake includes a 5-inch bed width and approximate bed height of 36 inches. Standard control features comprise a rear-operated manual back gauge with digital readouts, hydraulic pressure tonnage control, a fully adjustable stroke length, a four-position in-line depth stop, and foot pedal operation. The machine comes equipped with a lower die holder and set of dies. Overall physical dimensions measure 12 feet in length and 113 inches in height, with an approximate total weight of 30,000 lbs.
