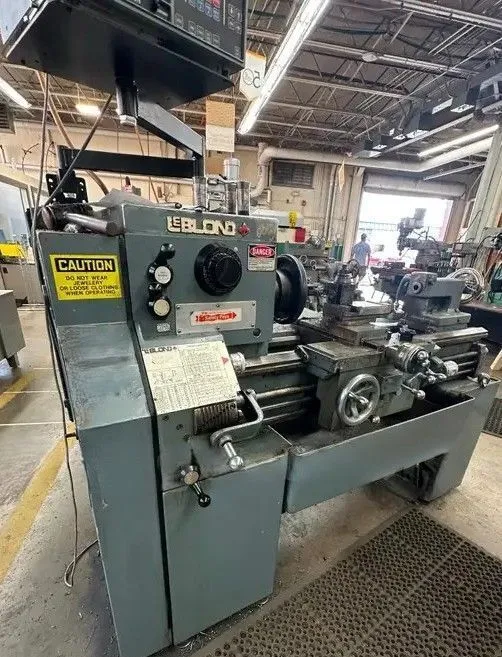

19" X 54" Leblond Regal 19 Servo Shift Engine Lathe W/DRO & Inch/Metric

Asking Price:
$9,450.00

Financing From: $157/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

Swing - 15" Centers - 30" Spindle Bore - 1.625" Power - 7.5 hp RPM - 45 RPM Swing Over Cross Slide - 9.5" The LeBlond Regal 19" x 30" Servo Shift Engine Lathe featuring inch/metric threading 15-inch swing over the bed, 30 inches of distance between centers, a hydraulic servo-shift dial for changing speeds. It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box. Key Machine Specifications Swing Over Bed: 15" (actual approx. 16-1/4") Swing Over Cross-Slide: 10-1/4" Distance Between Centers: 30" Hole Through Spindle: 1 5/8" Spindle Nose: L2 Spindle Speeds: 45 to 1800 RPM Tailstock Taper: #4 Morse Taper (MT) Threading and Feed Capabilities Inch Threads (TPI): 2 to 112 TPI (48 changes) Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box) Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution) Footprint (approx dimensions) Weight: 3300 lbs Dimensions: 80" x 40" x 54" The LeBlond Regal 19" x 30" Servo Shift Engine Lathe featuring inch/metric threading 15-inch swing over the bed, 30 inches of distance between centers, a hydraulic servo-shift dial for changing speeds. It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box. Key Machine Specifications Swing Over Bed: 15" (actual approx. 16-1/4") Swing Over Cross-Slide: 10-1/4" Distance Between Centers: 30" Hole Through Spindle: 1 5/8" Spindle Nose: L2 Spindle Speeds: 45 to 1800 RPM Tailstock Taper: #4 Morse Taper (MT) Threading and Feed Capabilities Inch Threads (TPI): 2 to 112 TPI (48 changes) Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box) Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution) Footprint (approx dimensions) Weight: 3300 lbs Dimensions: 80" x 40" x 54" The LeBlond Regal 19" x 30" Servo Shift Engine Lathe featuring inch/metric threading 15-inch swing over the bed, 30 inches of distance between centers, a hydraulic servo-shift dial for changing speeds. It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box. Key Machine Specifications Swing Over Bed: 15" (actual approx. 16-1/4") Swing Over Cross-Slide: 10-1/4" Distance Between Centers: 30" Hole Through Spindle: 1 5/8" Spindle Nose: L2 Spindle Speeds: 45 to 1800 RPM Tailstock Taper: #4 Morse Taper (MT) Threading and Feed Capabilities Inch Threads (TPI): 2 to 112 TPI (48 changes) Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box) Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution) Footprint (approx dimensions) Weight: 3300 lbs Dimensions: 80" x 40" x 54"

Core Specifications

Manufacturer: LEBLOND

Model: REGAL 10C

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
