1983 Mubea KL-350 Single End Punch, 38T, 8 Inch Throat, 2 HP, 72 Spm

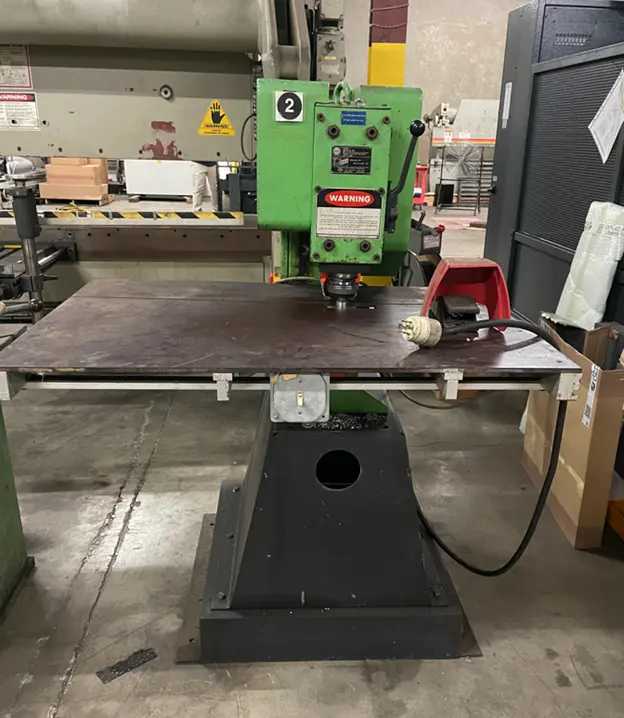

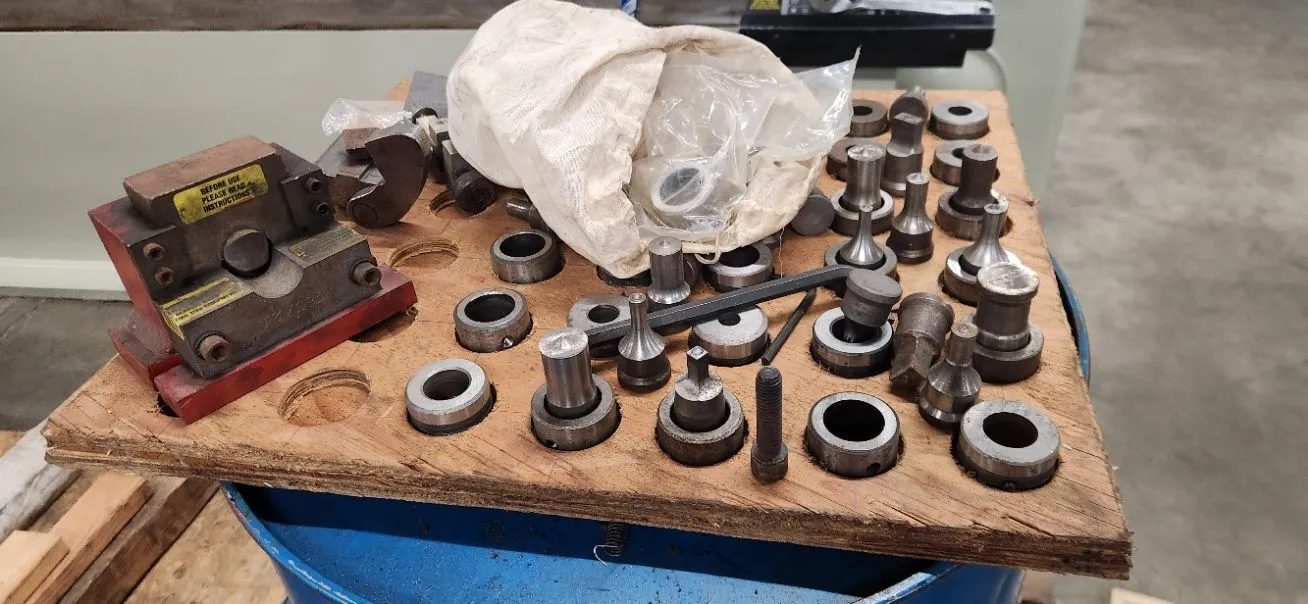

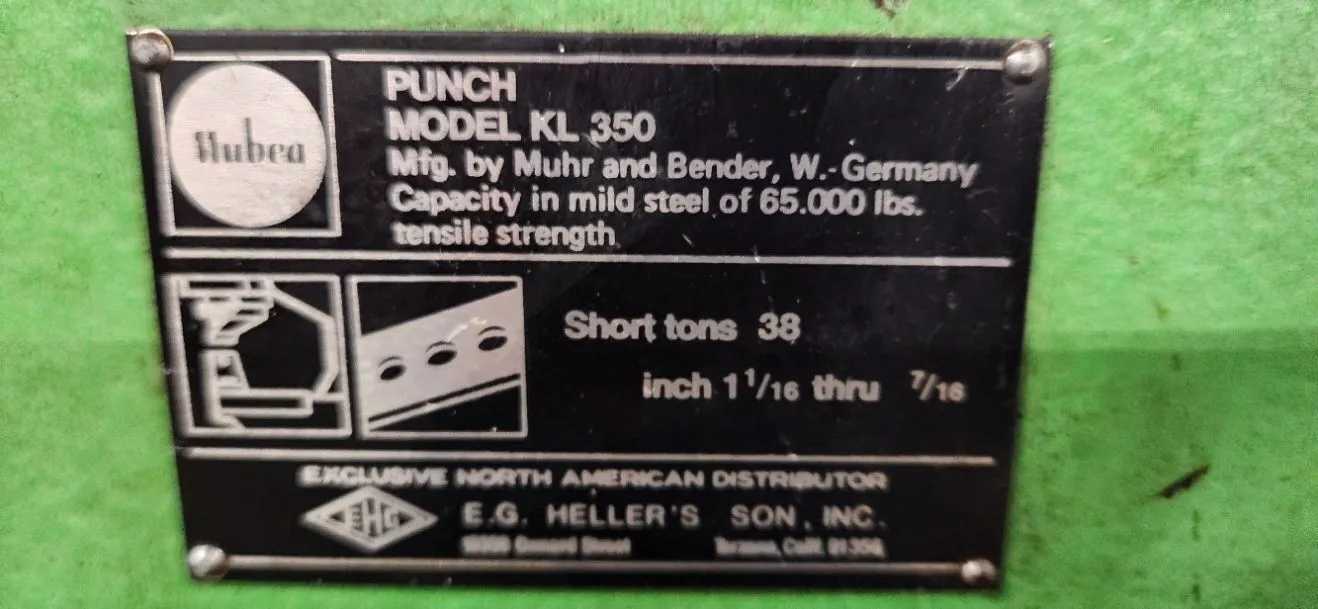

THE MUBEA KL-350 IS A MECHANICAL SINGLE END PUNCHING MACHINE ENGINEERED FOR METALWORKING APPLICATIONS. IT FEATURES A MAXIMUM PUNCHING FORCE OF 35 TO 38 TONS (350 KN) AND IS DESIGNED TO ACCOMMODATE A VARIETY OF PUNCHES AND DIES. THE MACHINE HAS AN 8-INCH (203 MM) THROAT DEPTH, ALLOWING FOR VERSATILE MATERIAL POSITIONING, AND A STROKE LENGTH OF 15/16 INCHES (24 MM). IT OPERATES AT AN APPROXIMATE SPEED OF 72 STROKES PER MINUTE. THE PUNCH IS POWERED BY A 2 HP (1.5 KW) DRIVE MOTOR CONFIGURED FOR THREE-PHASE ELECTRICAL SYSTEMS (TYPICALLY 380V/400V AT 50HZ). THE PHYSICAL CONFIGURATION OF THE UNIT INCLUDES A WORKTABLE WITH SCALES AND FOLDING STOPS FOR PRECISION MATERIAL ALIGNMENT, AS WELL AS A QUICK-CHANGE DEVICE FOR EFFICIENT DIE ADJUSTMENTS. OPERATION IS CONTROLLED VIA AN ELECTRIC FOOT PEDAL. THE MACHINE HAS A WORKING HEIGHT OF APPROXIMATELY 37-1/4 INCHES WITH A STEEL BASE (OR 11-15/16 INCHES WITHOUT A BASE). THE PHYSICAL DIMENSIONS OF THE MACHINE BODY ARE APPROXIMATELY 30 INCHES IN LENGTH, 14 INCHES IN WIDTH, AND 31 INCHES IN HEIGHT, WITH A NET WEIGHT OF APPROXIMATELY 640 TO 880 POUNDS DEPENDING ON THE CONFIGURATION AND ATTACHED ACCESSORIES.
