1990 ROTOFLO MODEL 250 SPLINE ROLLER, 36IN RACK, 25 HP, FANUC 35I CONTROL, M-10IA ROBOT LOADER

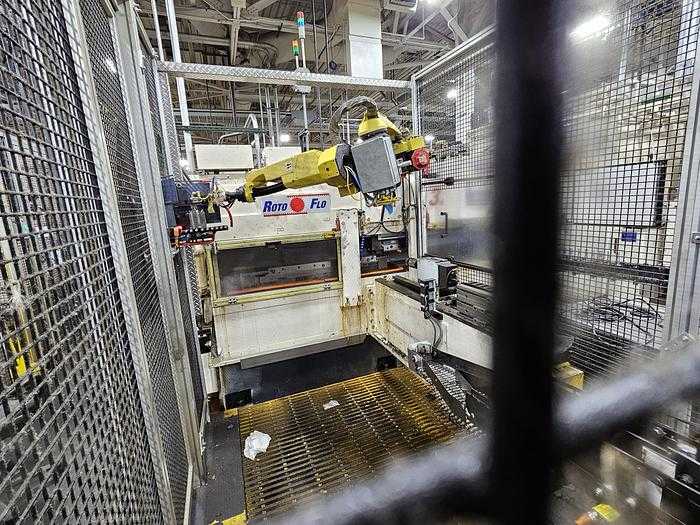

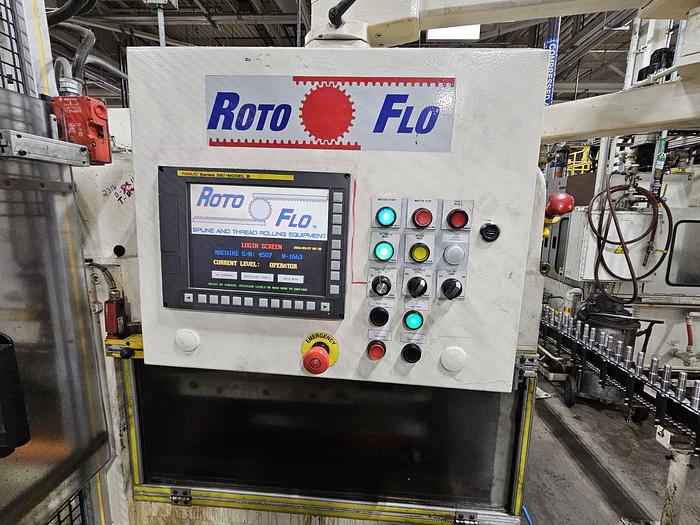

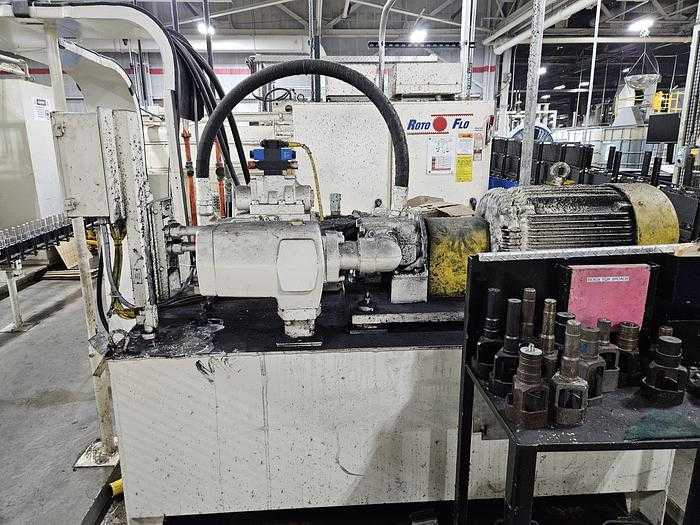

THE 1990 ROTOFLO (ANDERSON COOK) 36" SPLINE ROLLER IS A HYDRAULIC 200 SERIES MACHINE, SPECIFICALLY MODEL 250, DESIGNED FOR HIGH-PRECISION SPLINE ROLLING APPLICATIONS. THIS UNIT FEATURES A MAXIMUM RACK LENGTH OF 36", A FIXTURE WIDTH OF 3.63", AND A STANDARD DAYLIGHT OPENING OF 6". IT OFFERS A MAXIMUM SLIDE STROKE OF 45" AND CAN ACCOMMODATE WORK PARTS WITH A MAXIMUM OUTER DIAMETER OF 2.5". THE MACHINE IS POWERED BY A 25 HP STANDARD MAIN MOTOR AND IS EQUIPPED WITH ADVANCED AUTOMATION COMPONENTS, INCLUDING A FANUC 35I MODEL B HMI CONTROL SYSTEM, A SERVO HEADSTOCK, AND A SERVO TAILSTOCK. ADDITIONALLY, THE SYSTEM INTEGRATES A FANUC M-10IA ROBOT LOADER FOR ROBOTIC LOADING CAPABILITIES AND INCLUDES AN UNDER-ARM SUPPORT. THE EQUIPMENT WEIGHS APPROXIMATELY 25,800 LBS WITH PHYSICAL DIMENSIONS OF 73" IN HEIGHT, 170" IN LENGTH, AND A DEPTH OF 174" WITH THE UNDER-ARM SUPPORT (REDUCING TO 112" IF THE ARM IS REMOVED).
