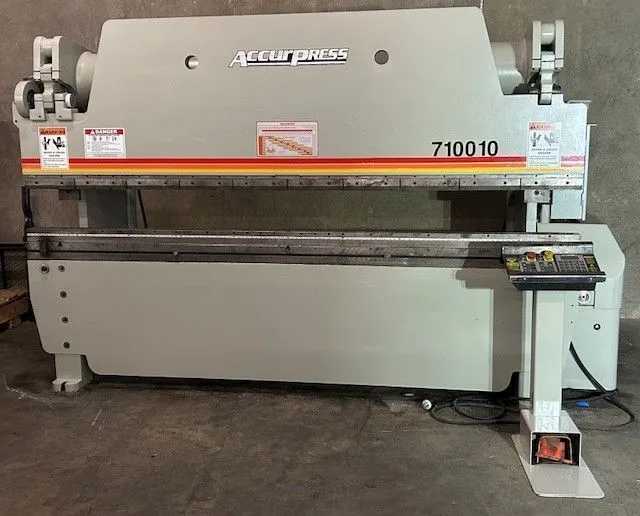

1998 ACCURPRESS 710010 HYDRAULIC PRESS BRAKE, 100 TON, 10' 8" STROKE, CNC ETS100

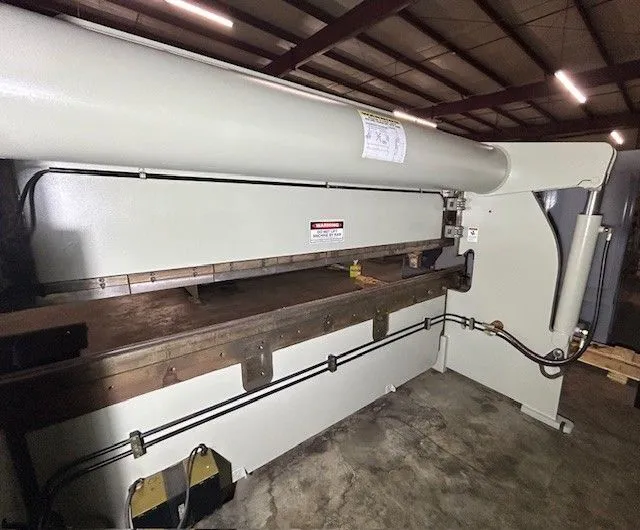

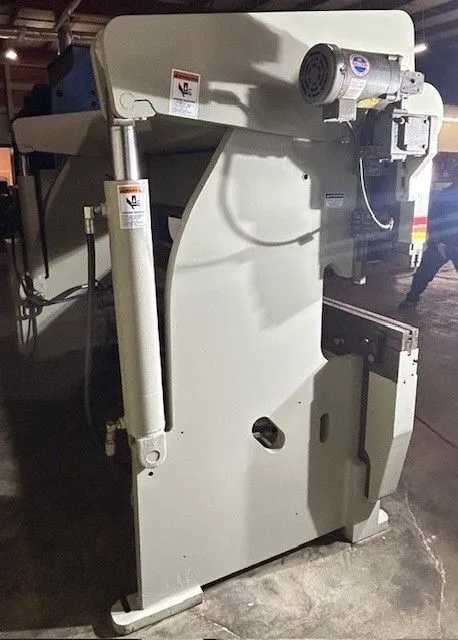

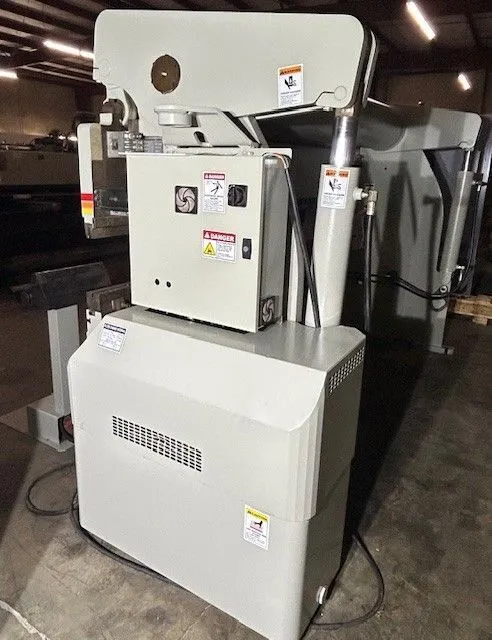

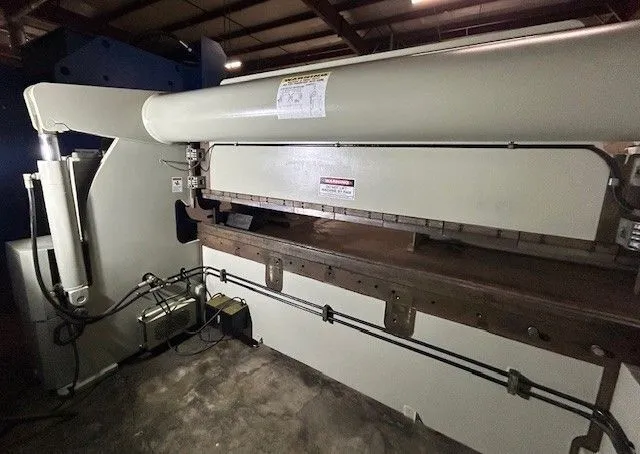

THE ACCURPRESS 710010 IS A HYDRAULIC PRESS BRAKE ENGINEERED FOR HIGH-PRECISION, HEAVY-DUTY METAL BENDING APPLICATIONS. IT FEATURES A 100-TON CAPACITY AND AN OVERALL BED LENGTH OF 10 FEET (120 INCHES). DEPENDING ON THE CONFIGURATION, THE DISTANCE BETWEEN THE HOUSINGS RANGES FROM 8 FEET TO 8 FEET 6 INCHES. THE MACHINE IS BUILT WITH A ROCKER ARM DESIGN AND UTILIZES A TORQUE TUBE MECHANICAL LINK TO MAINTAIN RAM AND BED PARALLELISM. IT PROVIDES A RAM STROKE OF 8 INCHES, AN OPEN HEIGHT OF 14 TO 16 INCHES, A CLOSED HEIGHT OF 6 TO 8 INCHES, AND A THROAT DEPTH OF 10 INCHES. OPERATING SPEEDS FOR THE RAM INCLUDE A FAST APPROACH SPEED OF 115 INCHES PER MINUTE (IPM), A SLOW BENDING SPEED OF 24 IPM, AND A FAST RETURN SPEED OF 200 TO 230 IPM. THE PRESS BRAKE IS POWERED BY A 10 HP TO 20 HP MAIN MOTOR AND IS TYPICALLY WIRED FOR 220V/440V THREE-PHASE ELECTRICAL SYSTEMS. IT COMES EQUIPPED WITH AN ETS CONTROL SYSTEM, SUCH AS THE ETS100, WHICH FEATURES PROGRAMMABLE LOGIC CONTROL FOR RAM DEPTH, TONNAGE LIMITS, RAM TILT ADJUSTMENT, AND MEMORY SETTINGS. THE SYSTEM INCLUDES A 2-AXIS CNC BACKGAUGE ALONGSIDE AN ELECTRIC FOOT PEDAL OR PEDESTAL CONTROL. CONSTRUCTED WITH A SIDE-MOUNTED HYDRAULIC CONFIGURATION AND SELF-LUBRICATING RAM GIBS, THE UNIT HAS APPROXIMATE PHYSICAL DIMENSIONS OF 136 INCHES LONG BY 52 INCHES WIDE BY 84 TO 96 INCHES HIGH, AND CARRIES A SHIPPING WEIGHT OF APPROXIMATELY 14,000 TO 15,000 POUNDS.
