1999 FMB TRITON HORIZONTAL BAND SAW, 1.5 HP, 106"X1" BLADE

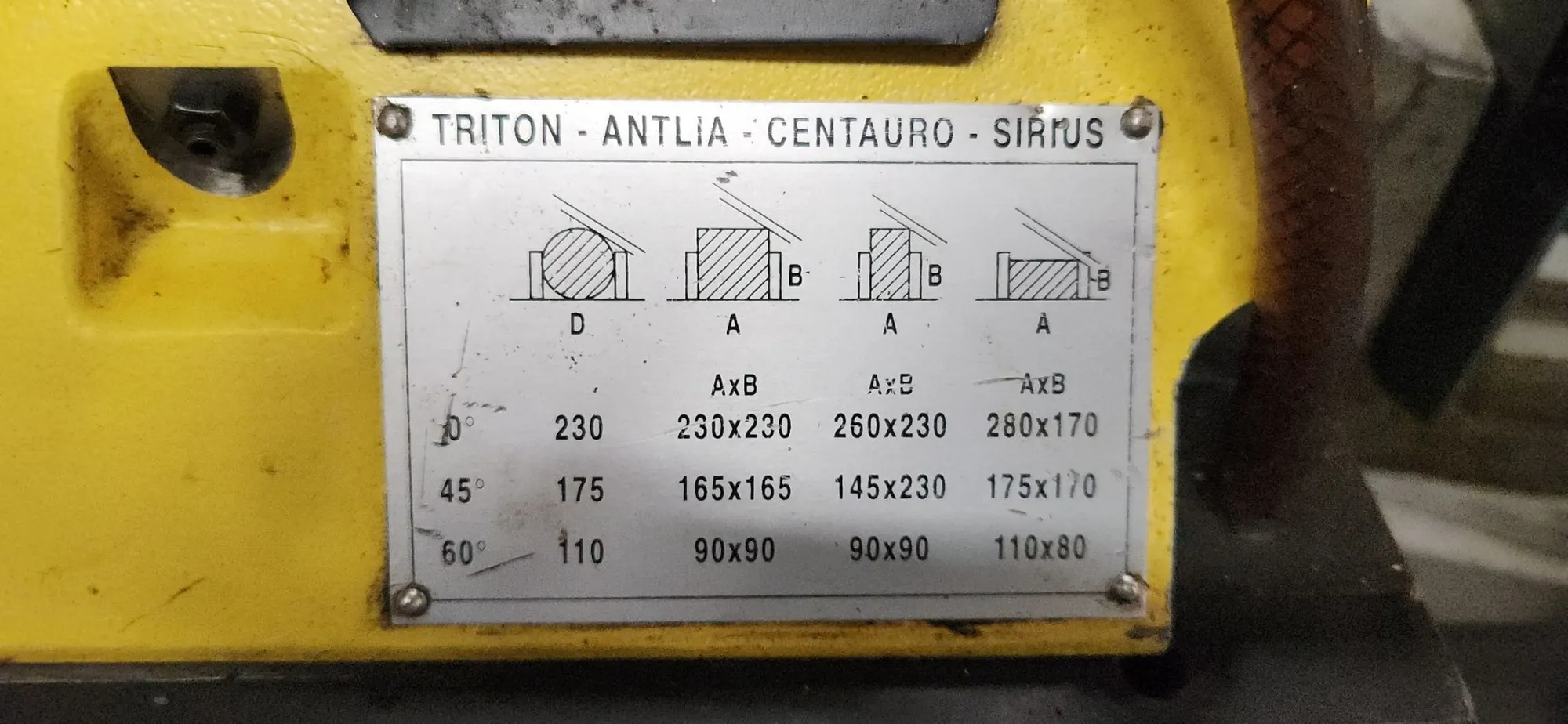

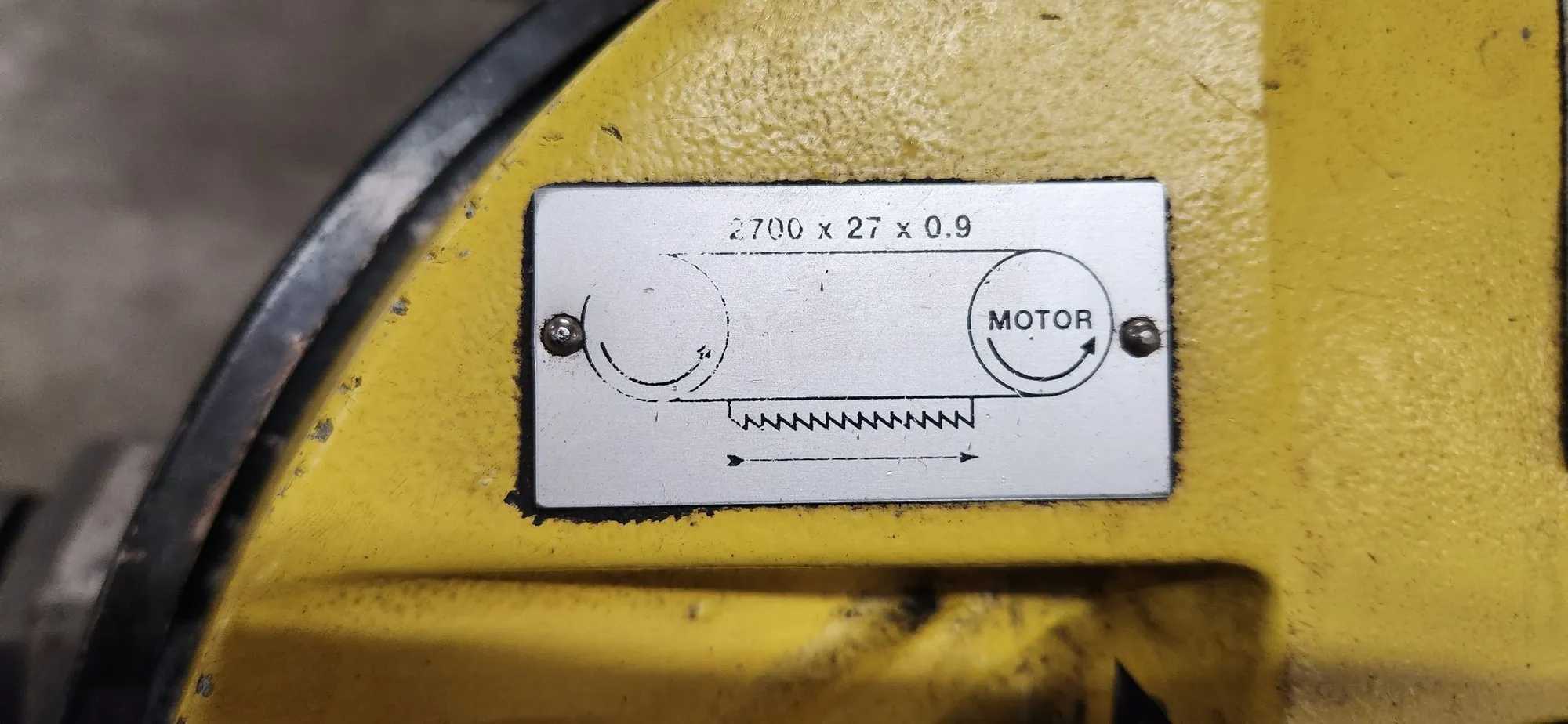

THE FMB TRITON IS A HORIZONTAL MITERING UTILITY BAND SAW ENGINEERED FOR PRECISION CUTTING APPLICATIONS IN FABRICATION AND MACHINE SHOPS. DRIVEN BY A 1.5 HP MOTOR, IT FEATURES A 106" X 1" X 0.035" BLADE AND UTILIZES A PRECISION GEAR DRIVE REDUCER WITH CASE-HARDENED, GROUND HELICAL GEARS. THE PIVOTING SAW HEAD ALLOWS FOR MITER CUTTING UP TO 60 DEGREES, FEATURING MECHANICAL STOPS AT 0°, 45°, AND 60°, ALONG WITH A GRADUATED SCALE. AT 0 DEGREES, THE MACHINE DELIVERS A ROUND CUTTING CAPACITY OF 9.5 INCHES, A SQUARE CAPACITY OF 9.5 INCHES, AND A RECTANGULAR CAPACITY OF 8.25 INCHES HIGH BY 11 INCHES WIDE. AT 45 DEGREES, THE CAPACITY ADJUSTS TO 7.25 INCHES ROUND, 6.75 INCHES SQUARE, AND 5.5 INCHES BY 7 INCHES RECTANGULAR. AT 60 DEGREES, IT HANDLES 4.5 INCHES ROUND, 4.33 INCHES SQUARE, AND 4.33 INCHES BY 4.33 INCHES RECTANGULAR. STANDARD FEATURES INCLUDE A MECHANICAL BLADE TENSION DEVICE WITH A VISIBLE YELLOW NOTCH INDICATOR, CARBIDE BLADE GUIDES WITH ROLLER GUIDES, A SOLID CAST IRON VICE WITH A FAST CLAMPING SYSTEM, AND AN INTEGRATED FLOOD COOLANT SYSTEM. THE CONTROL PANEL IS POSITIONED AT THE FRONT FOR OPERATOR ERGONOMICS AND RUNS ON A 24V AUXILIARY CONTROL VOLTAGE SYSTEM. THE MACHINE OPERATES ON A COMPACT 32" X 55" FOOTPRINT AND HAS A SHIPPING WEIGHT OF APPROXIMATELY 700 LBS.
