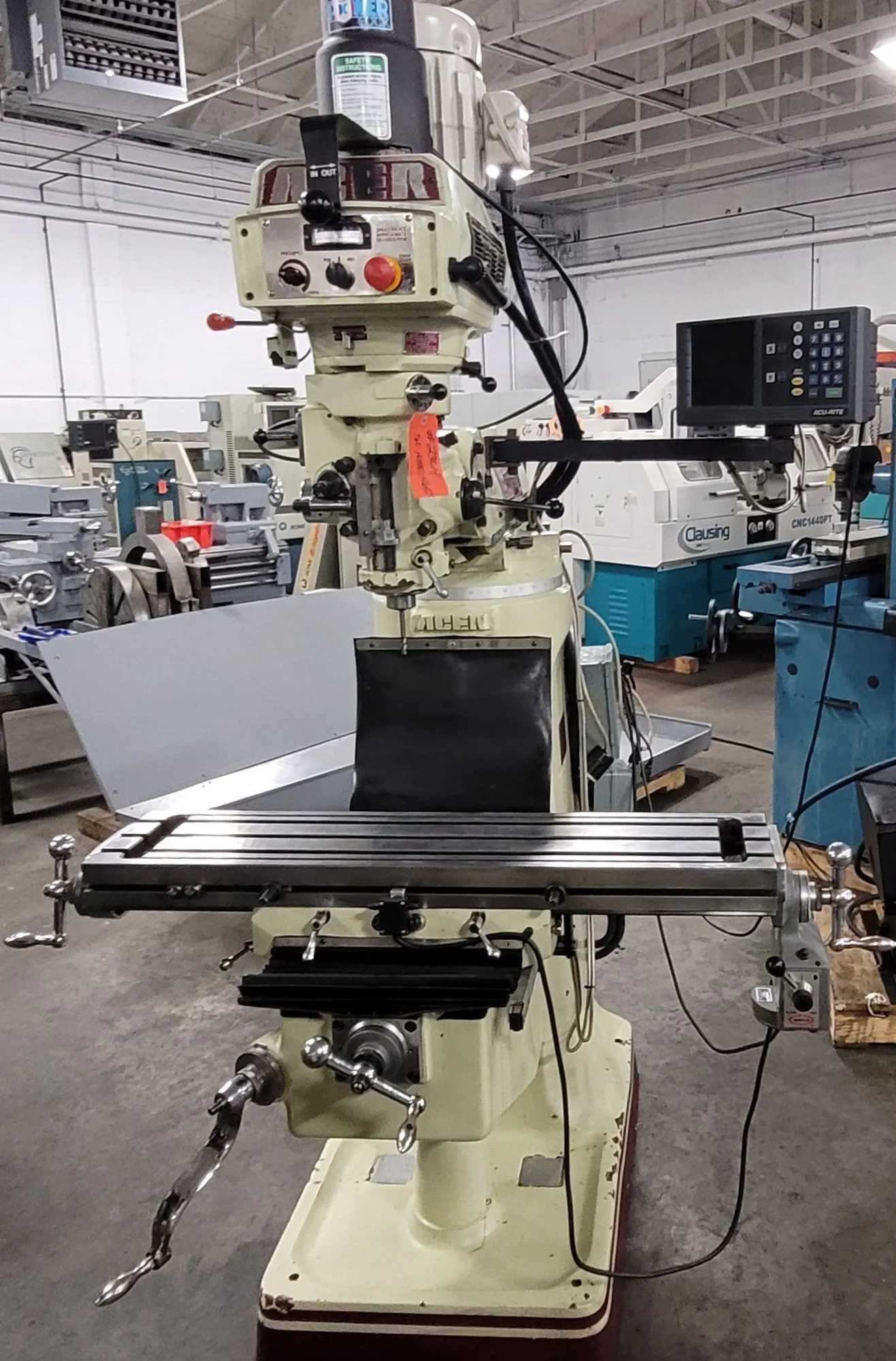

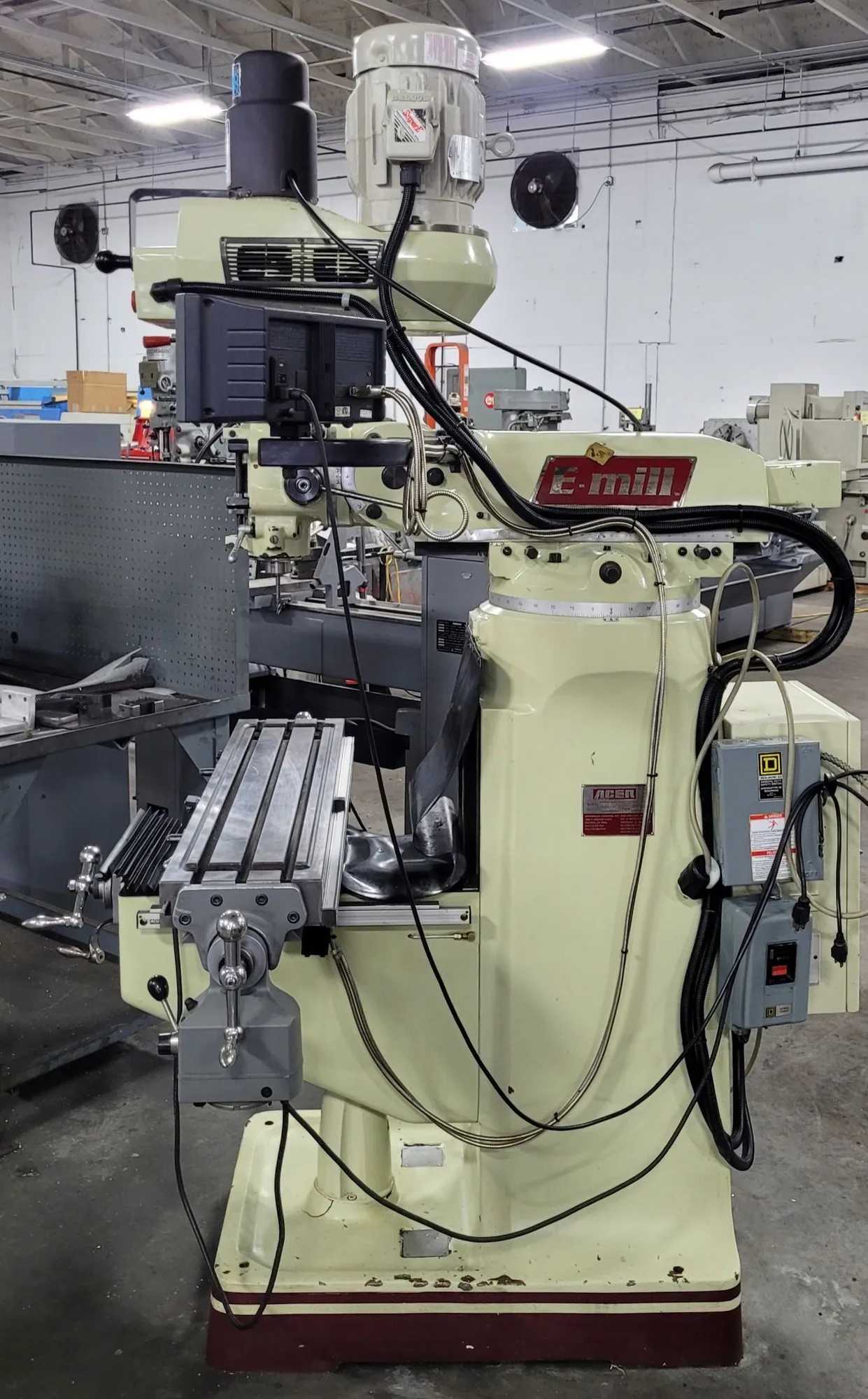

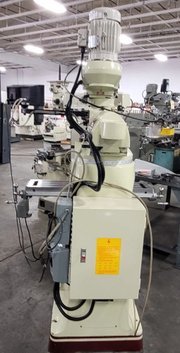

2001 Acer E-Mill EVS-3VS Vertical Milling Machine, 3 HP, 9" x 42" Table, Acurite 2-Axis DRO

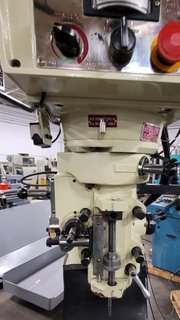

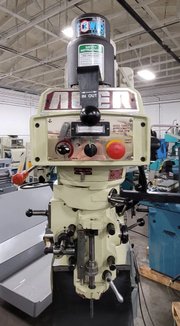

The 2001 Acer E-Mill EVS-3VS is a 3 HP vertical milling machine featuring a 9" x 42" table and a variable-speed spindle operating between 60 and 4,500 RPM. The spindle utilizes an R-8 taper with 5" of quill travel and a 3-3/8" quill diameter. This model is equipped with a Baldor motor and an inverter drive for variable frequency speed control. Operational travels include approximately 28" to 34" longitudinal (X-axis), 12" cross (Y-axis), and 16" knee (Z-axis). Structural features include Meehanite casting for enhanced rigidity and hardened and ground dovetail ways with a hardness of HRC 52°. The machine includes an Acurite 2-axis Digital Readout (DRO), a Servo X-axis power feed, and a Kurt power draw bar. Additional standard features comprise a one-shot lubrication system and a 220V three-phase power requirement. The physical dimensions are approximately 6' x 5' x 7' with an estimated weight of 2,500 lbs.
