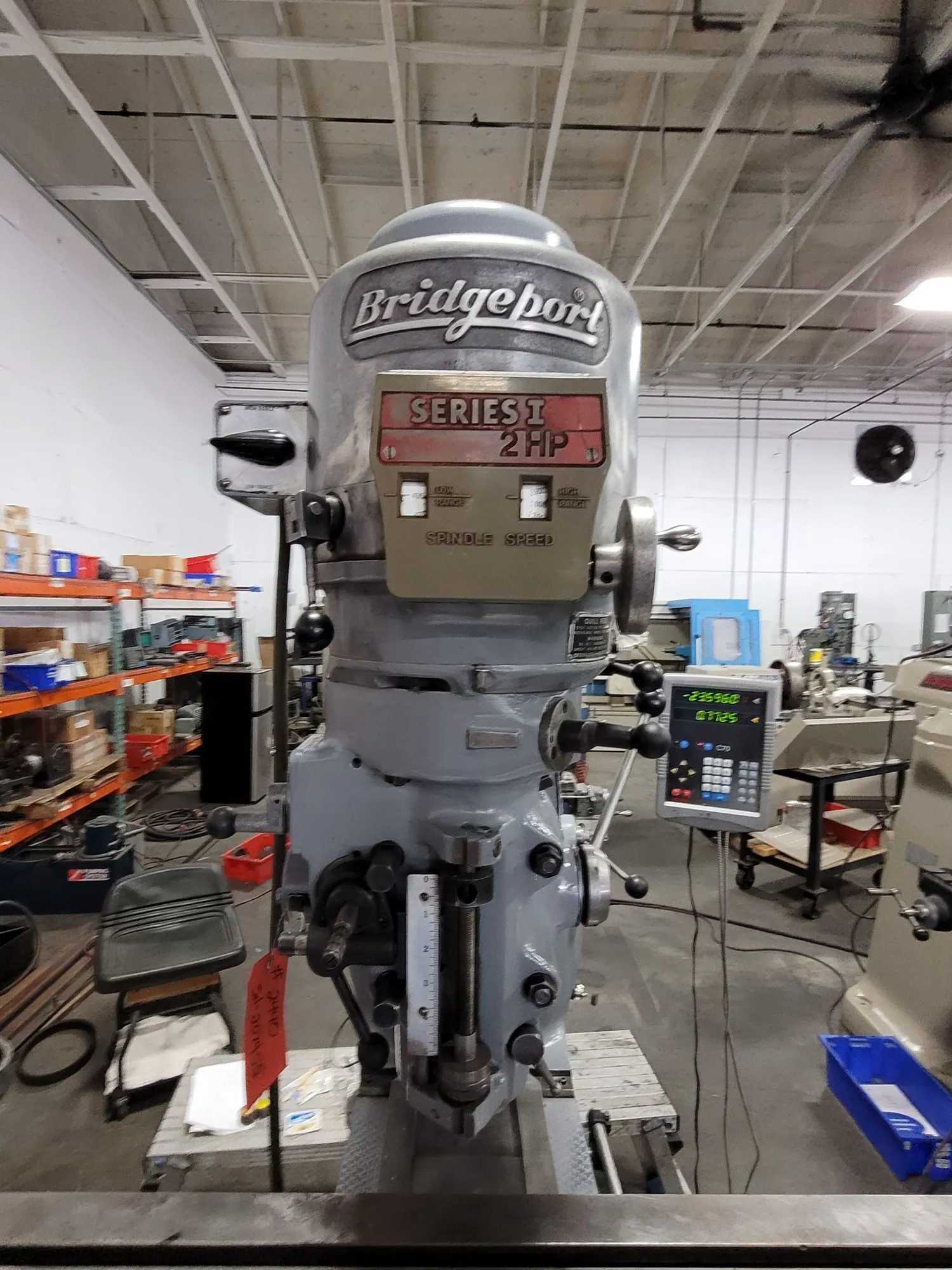

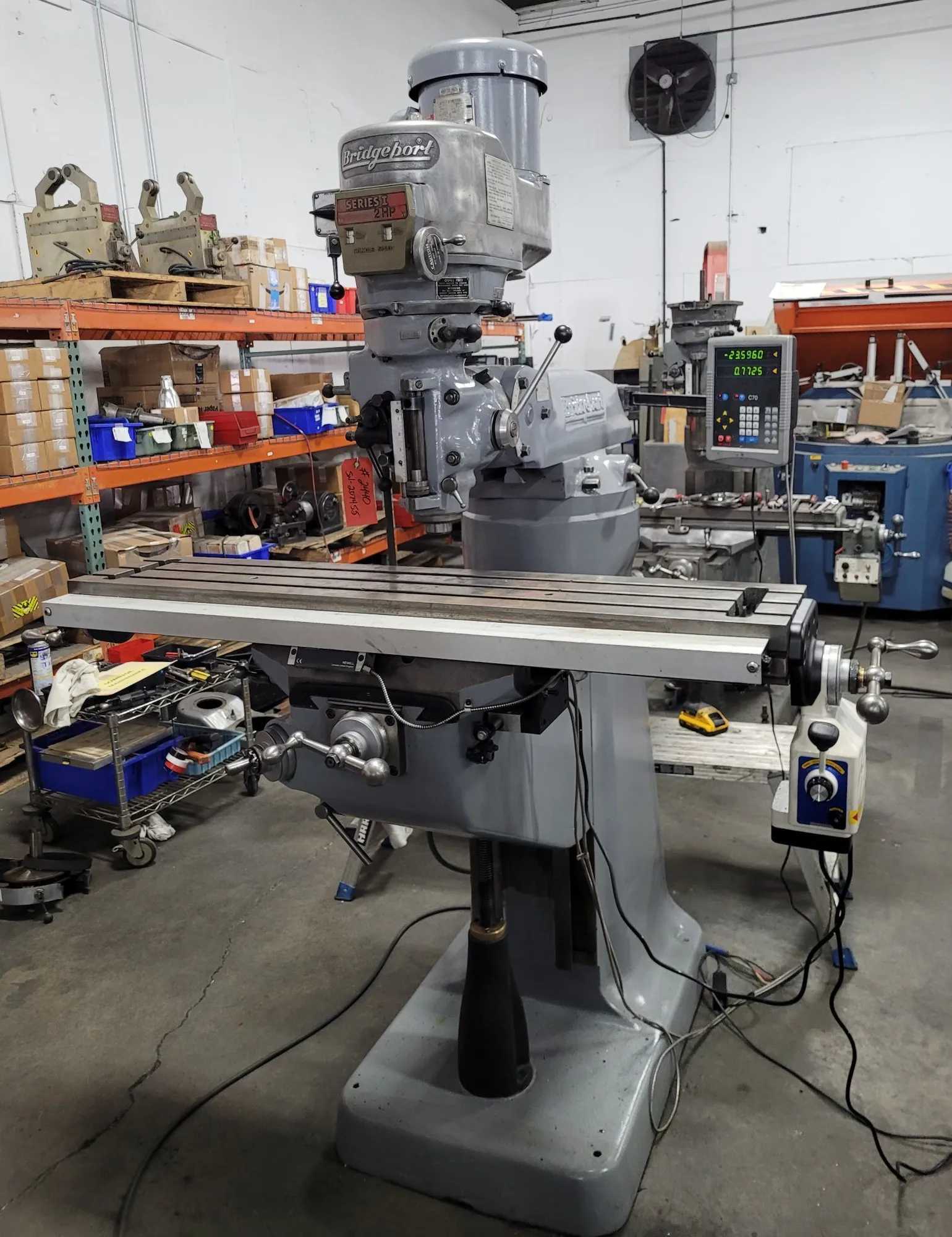

Bridgeport Series 1 2 HP Vertical Knee Mill, 9"x48" Table, Newall DRO, Power Feed

THE BRIDGEPORT SERIES 1 VERTICAL KNEE MILL FEATURES A 2 HP VARIABLE SPEED 2J HEAD OPERATING ON 230V, 3-PHASE POWER, WITH AN INFINITELY VARIABLE SPINDLE SPEED RANGE FROM 60 TO 4,200 RPM. BUILT WITH A STANDARD R8 SPINDLE TAPER, THE MACHINE HAS A 3.375-INCH QUILL DIAMETER AND 5 INCHES OF QUILL TRAVEL. THE MILLING MACHINE IS EQUIPPED WITH A 9-INCH BY 48-INCH T-SLOTTED TABLE, PROVIDING A MAXIMUM WORKPIECE WEIGHT CAPACITY OF 750 LBS AND A MAXIMUM TABLE-TO-FLOOR HEIGHT OF 47.25 INCHES. AXIS TRAVELS INCLUDE 12 INCHES OF SADDLE TRAVEL (Y-AXIS), 16 INCHES OF KNEE TRAVEL (Z-AXIS), 12 INCHES OF RAM TRAVEL, AND AN X-AXIS TABLE TRAVEL RANGING FROM 31 INCHES UP TO 36 INCHES WITH THE INTEGRATED POWER FEED. FOR PRECISION OPERATION AND DURABILITY, THIS MILL FEATURES HAND-SCRAPED CHROME-PLATED WAYS, A NEWALL DIGITAL READOUT, A CENTRALIZED ONE-SHOT LUBRICATION SYSTEM, A 6-INCH VISE, A DRILL CHUCK, AND A 2,200 LBS OVERALL WEIGHT WITH PHYSICAL DIMENSIONS OF 6 FEET BY 5 FEET BY 7 FEET.
