2002 MITUTOYO B241 MANUAL BRIDGE CMM, 700X1000X450MM, RENISHAW PH8/TP2 PROBE

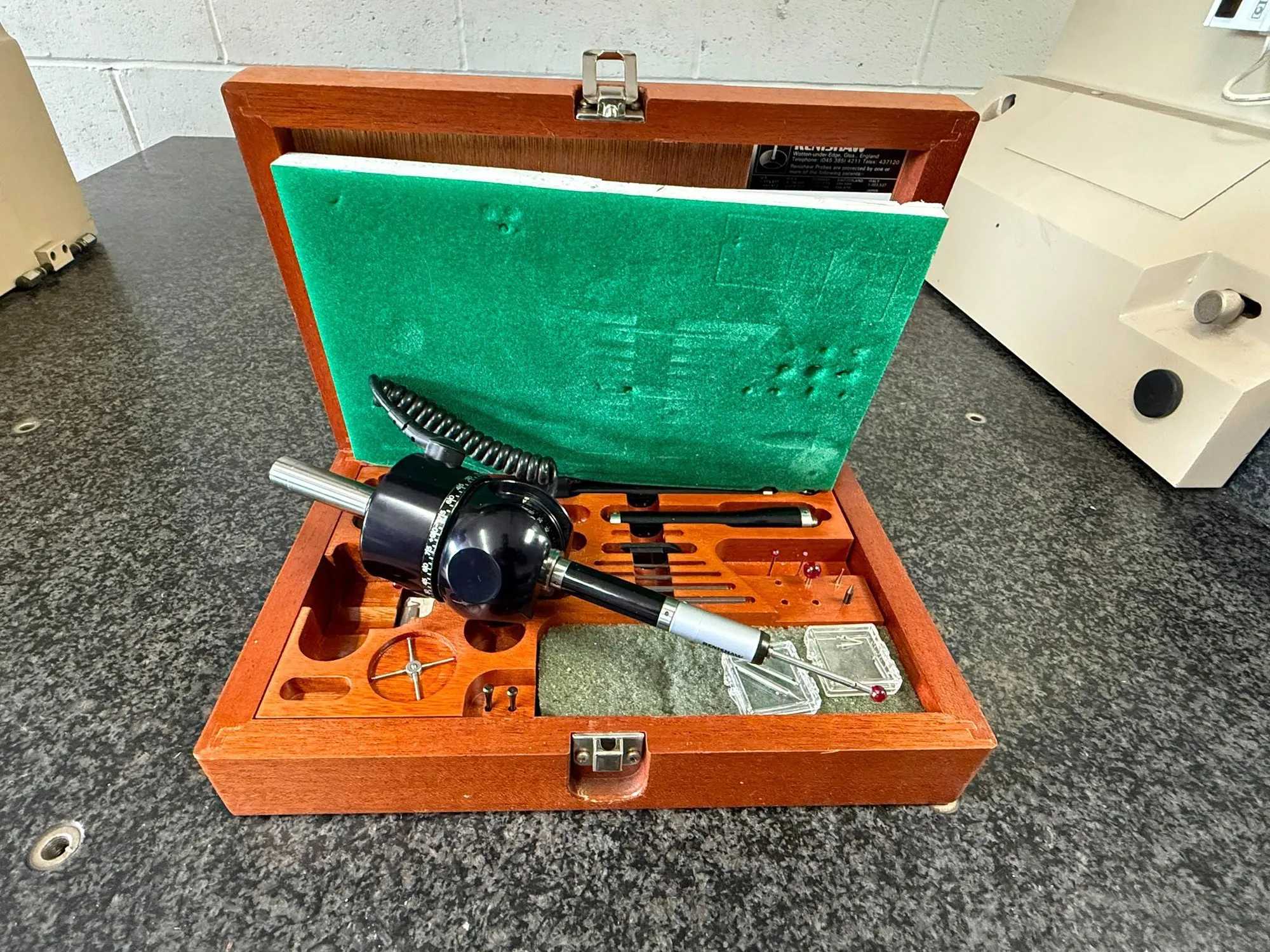

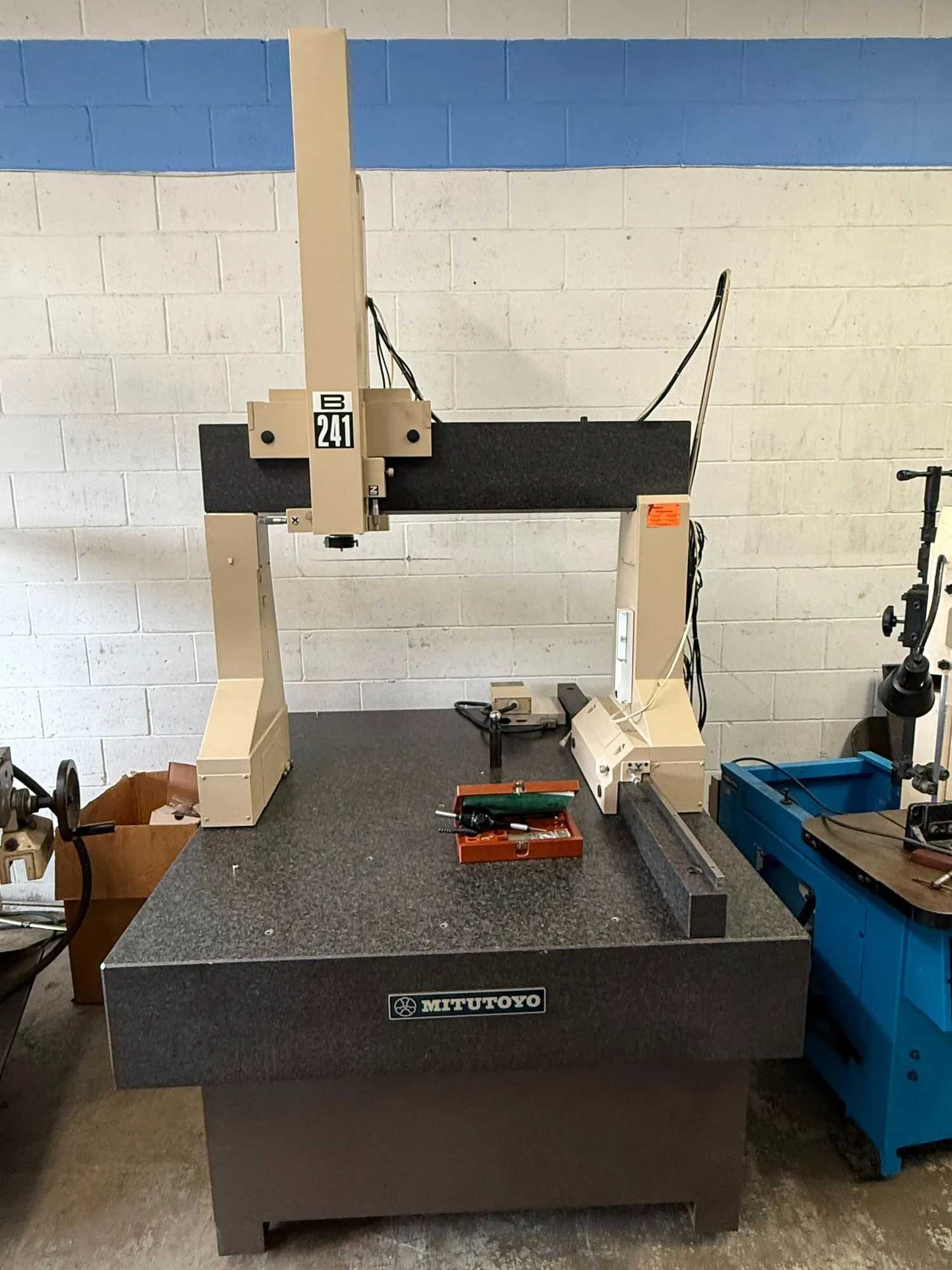

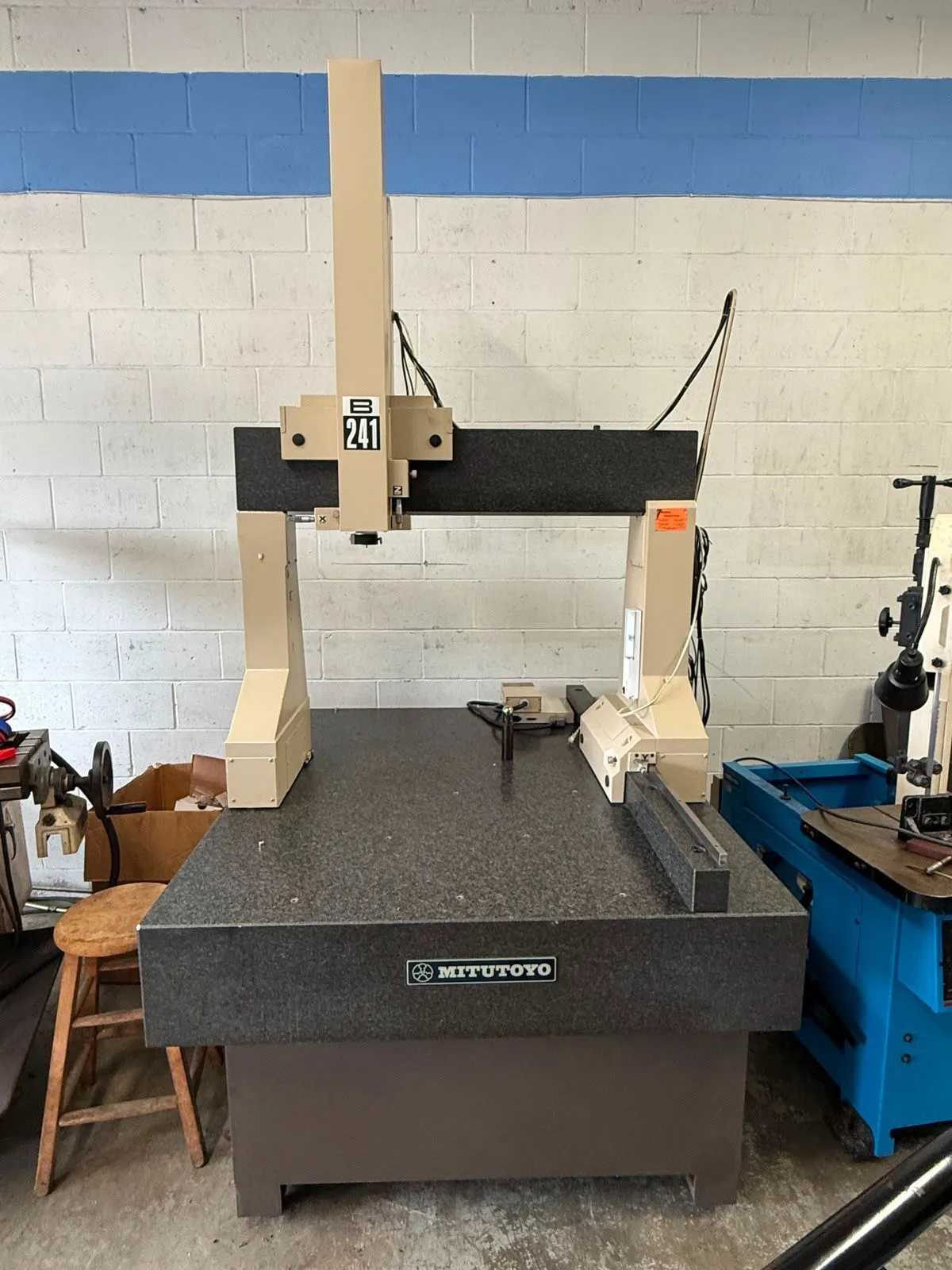

2002 MITUTOYO B241 MANUAL BRIDGE COORDINATE MEASURING MACHINE MANUFACTURED IN JAPAN WITH X/Y/Z TRAVELS OF 28 IN (700 MM), 40 IN (1,000 MM), AND 18 IN (450 MM). THE SYSTEM IS EQUIPPED WITH A GRANITE SURFACE TABLE MEASURING 60 IN X 51 IN (1,520 X 1,300 MM) AND A RENISHAW PROBE SYSTEM FEATURING A RENISHAW PH8 PROBE HEAD AND TP2 TOUCH TRIGGER PROBE WITH RUBY BALL STYLUS. INCLUDED ACCESSORIES COMPRISE ADDITIONAL STYLI, EXTENSION BARS, AND A STORAGE CASE. PERFORMANCE SPECIFICATIONS INCLUDE 2.5 ΜM REPEATABILITY AND LINEAR ACCURACY OF 4 + 3L/1000 ΜM. OVERALL DIMENSIONS ARE 60 X 52 X 97 IN, AND THE MACHINE WEIGHT IS 4,050 LB.
