2007 SWI TRAK DPM SX3 5HP Mill With 10" X 50" Table, NMTB 40, 5000 RPM

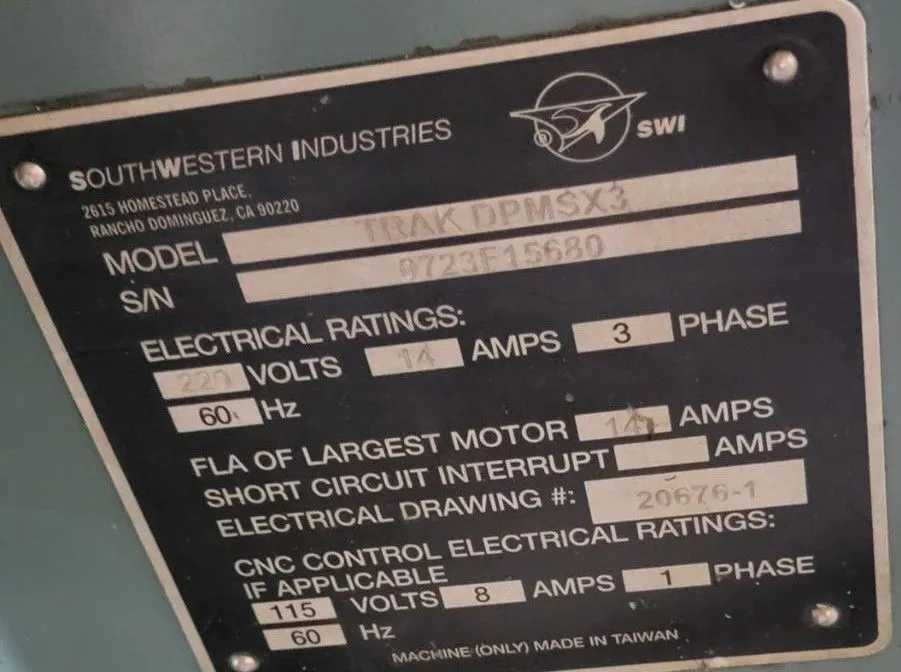

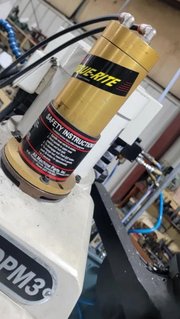

Table Size-W - 10" Table Size-L - 50" Control - CNC (ProtoTRAK SMX CNC Controller) Dimensions - 73" x 66" x 95" Weight - 4400 2007 SWI TRAK DPM SX3 VISES ARE NOT INCLUDED ProtoTRAK SMX CNC Controller Power Draw Bar Table & Travel Specifications Table Size: 50" x 10" T-Slots: 3 x 0.63" x 2.48" Travel (X, Y, Z Axis): 31" x 17" x 23.5” Maximum Weight of Workpiece: 1,320 lbs Spindle & Head Specifications Spindle Taper: NMTB 40 Spindle Speed Range: Varispeed drive, typically ~70 to 4,200 RPM (or 40–5,000 RPM depending on head/inverter setup) Spindle Motor Power: 5 HP (30-min rating) Quill Diameter: 3 15/16" Maximum Quill Travel: 5" Head Swivel: Manual swivel head - up to 90° or limited to ~30° clockwise Controller & Electronics (ProtoTRAK SMX) Control Unit: ProtoTRAK SMX CNC Display: 10.4" color active-matrix screen with built-in LED status lights Processor / RAM: Industrial Celeron® processor with 256 MB RAM Operation: Can be used manually with real handwheels, 2-axis CNC, or 3-axis CNC, plus a 3-axis DRO mode. Storage / Ports: TEAC floppy drive, PS/2 keyboard connector, 2 USB connectors, and optional RJ45/Ethernet card. Physical Dimensions & Power Power Requirements: 220V, 3-phase, ~17.5A (with optional head) Machine Width (including table): 73" (108" overall width including full table traverse) Length (with electric box door closed): 66" Machine Height Range: Min height ~85", max height ~95" (max spindle nose to table: 23.5") This CNC Mill is on the way in. 2007 SWI TRAK DPM SX3 VISES ARE NOT INCLUDED ProtoTRAK SMX CNC Controller Power Draw Bar Table & Travel Specifications Table Size: 50" x 10" T-Slots: 3 x 0.63" x 2.48" Travel (X, Y, Z Axis): 31" x 17" x 23.5” Maximum Weight of Workpiece: 1,320 lbs Spindle & Head Specifications Spindle Taper: NMTB 40 Spindle Speed Range: Varispeed drive, typically ~70 to 4,200 RPM (or 40–5,000 RPM depending on head/inverter setup) Spindle Motor Power: 5 HP (30-min rating) Quill Diameter: 3 15/16" Maximum Quill Travel: 5" Head Swivel: Manual swivel head - up to 90° or limited to ~30° clockwise Controller & Electronics (ProtoTRAK SMX) Control Unit: ProtoTRAK SMX CNC Display: 10.4" color active-matrix screen with built-in LED status lights Processor / RAM: Industrial Celeron® processor with 256 MB RAM Operation: Can be used manually with real handwheels, 2-axis CNC, or 3-axis CNC, plus a 3-axis DRO mode. Storage / Ports: TEAC floppy drive, PS/2 keyboard connector, 2 USB connectors, and optional RJ45/Ethernet card. Physical Dimensions & Power Power Requirements: 220V, 3-phase, ~17.5A (with optional head) Machine Width (including table): 73" (108" overall width including full table traverse) Length (with electric box door closed): 66" Machine Height Range: Min height ~85", max height ~95" (max spindle nose to table: 23.5") This CNC Mill is on the way in. 2007 SWI TRAK DPM SX3 VISES ARE NOT INCLUDED ProtoTRAK SMX CNC Controller Power Draw Bar Table & Travel Specifications Table Size: 50" x 10" T-Slots: 3 x 0.63" x 2.48" Travel (X, Y, Z Axis): 31" x 17" x 23.5” Maximum Weight of Workpiece: 1,320 lbs Spindle & Head Specifications Spindle Taper: NMTB 40 Spindle Speed Range: Varispeed drive, typically ~70 to 4,200 RPM (or 40–5,000 RPM depending on head/inverter setup) Spindle Motor Power: 5 HP (30-min rating) Quill Diameter: 3 15/16" Maximum Quill Travel: 5" Head Swivel: Manual swivel head - up to 90° or limited to ~30° clockwise Controller & Electronics (ProtoTRAK SMX) Control Unit: ProtoTRAK SMX CNC Display: 10.4" color active-matrix screen with built-in LED status lights Processor / RAM: Industrial Celeron® processor with 256 MB RAM Operation: Can be used manually with real handwheels, 2-axis CNC, or 3-axis CNC, plus a 3-axis DRO mode. Storage / Ports: TEAC floppy drive, PS/2 keyboard connector, 2 USB connectors, and optional RJ45/Ethernet card. Physical Dimensions & Power Power Requirements: 220V, 3-phase, ~17.5A (with optional head) Machine Width (including table): 73" (108" overall width including full table traverse) Length (with electric box door closed): 66" Machine Height Range: Min height ~85", max height ~95" (max spindle nose to table: 23.5") This CNC Mill is on the way in.
