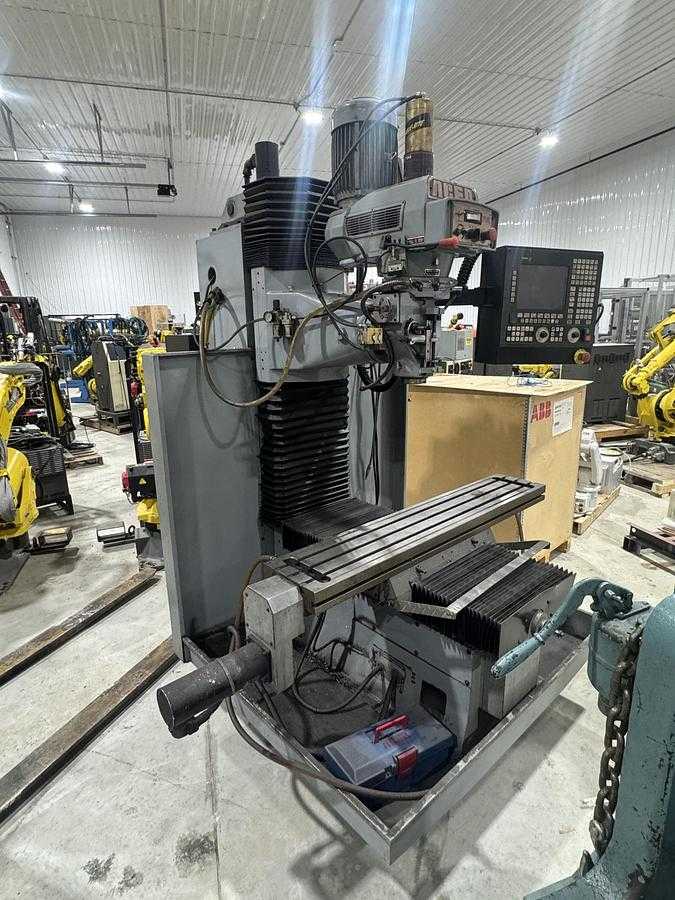

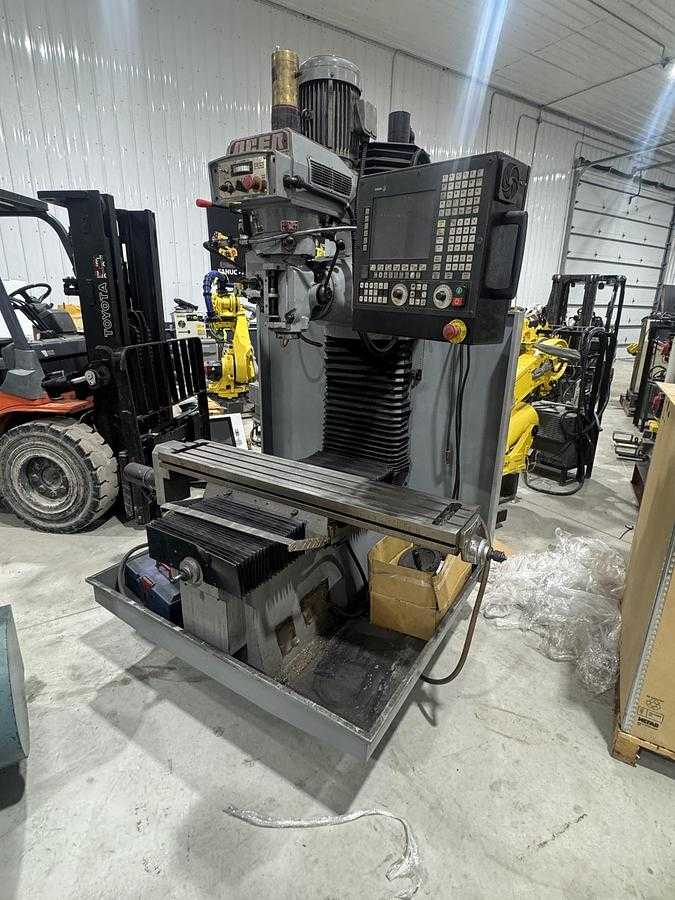

2013 Acer BED-1054 CNC Bed Mill, 10X54 Table, 5HP, Fagor Control, 50-3750 RPM, 480V 3PH

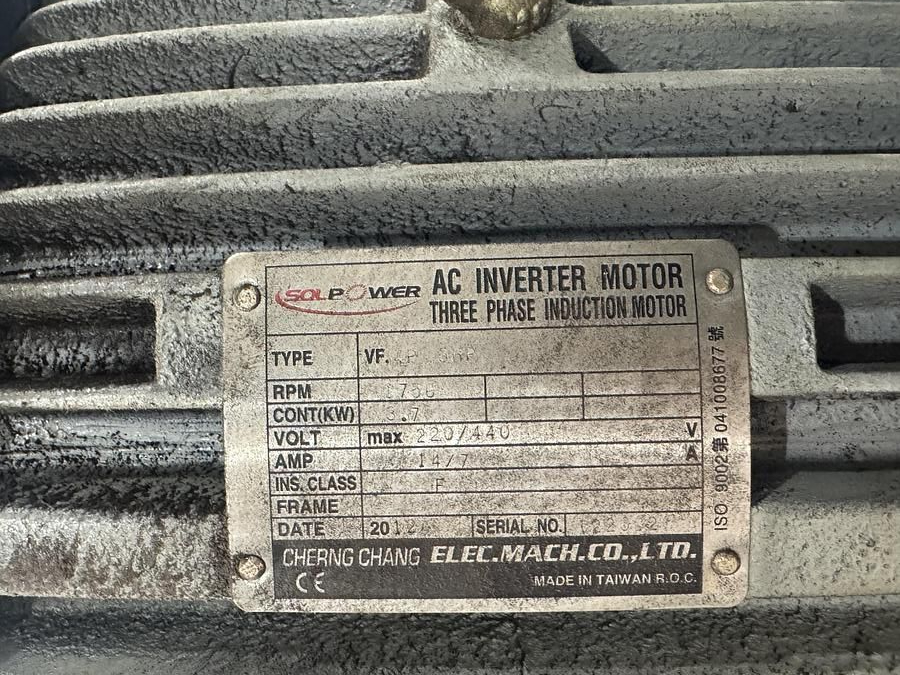

The 2013 Acer BED-1054 is a 3-axis CNC bed-type milling machine featuring a 10 inch x 54 inch table and a 5 HP inverter spindle motor. This machine provides a spindle speed range of 50 to 3,750 RPM and travels of 21.5 inches on the X-axis, 20 inches on the Y-axis, and 20.87 inches on the Z-axis. It supports a maximum table load of 1,320 lbs and features a 5-inch quill travel with a 4-inch diameter. Constructed with Meehanite castings and hardened and ground ways, the machine has an approximate weight of 5,100 lbs. Technical equipment includes a Fagor controller, an automatic lubrication system, a chip pan, hand wheels, and a multitap transformer currently configured for 480V 3-phase power.
