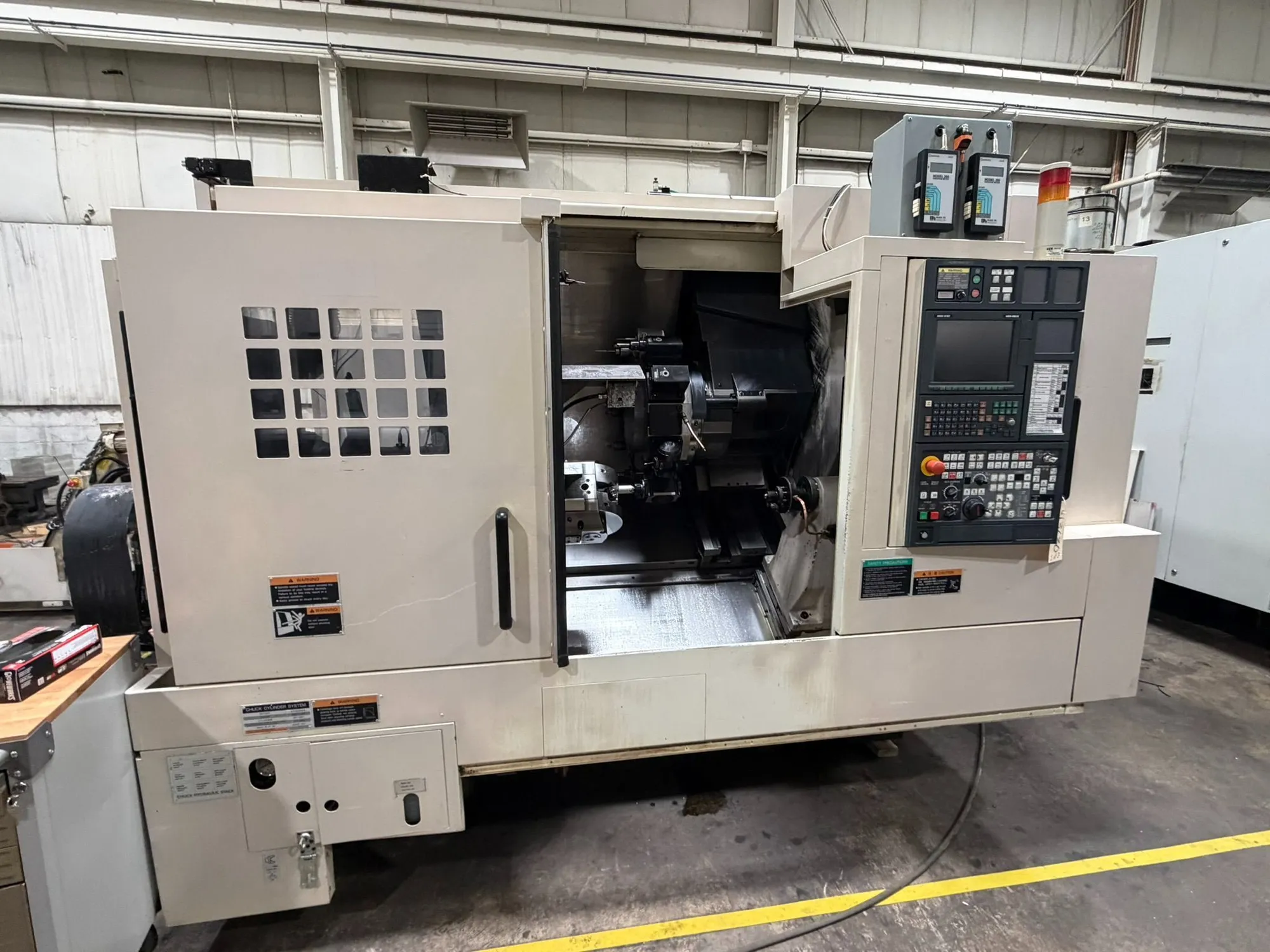

2008 Mori Seiki NL2500Y/700 CNC Lathe, 4000 RPM, 25 HP, Live Tooling, 12 Station Turret

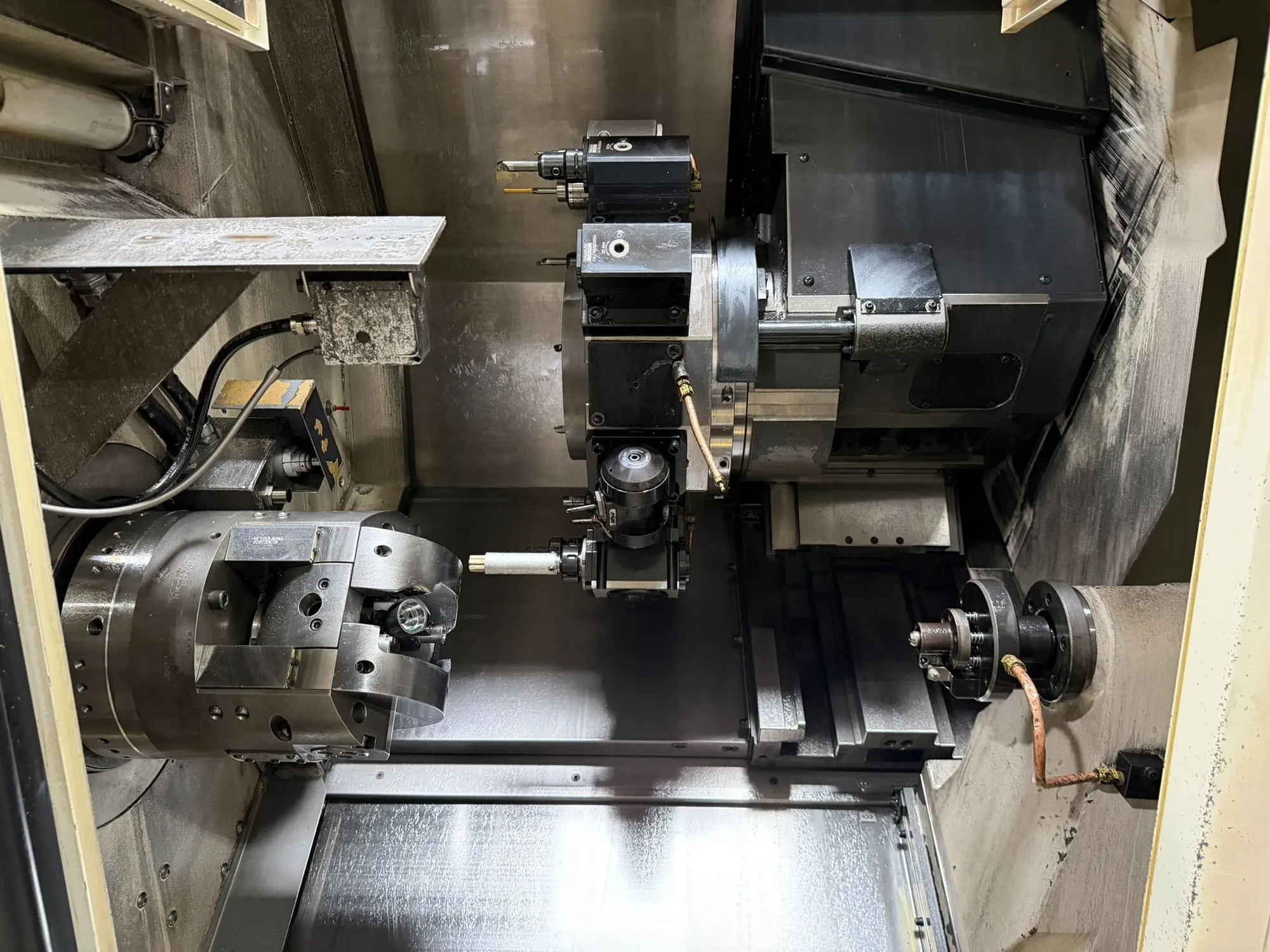

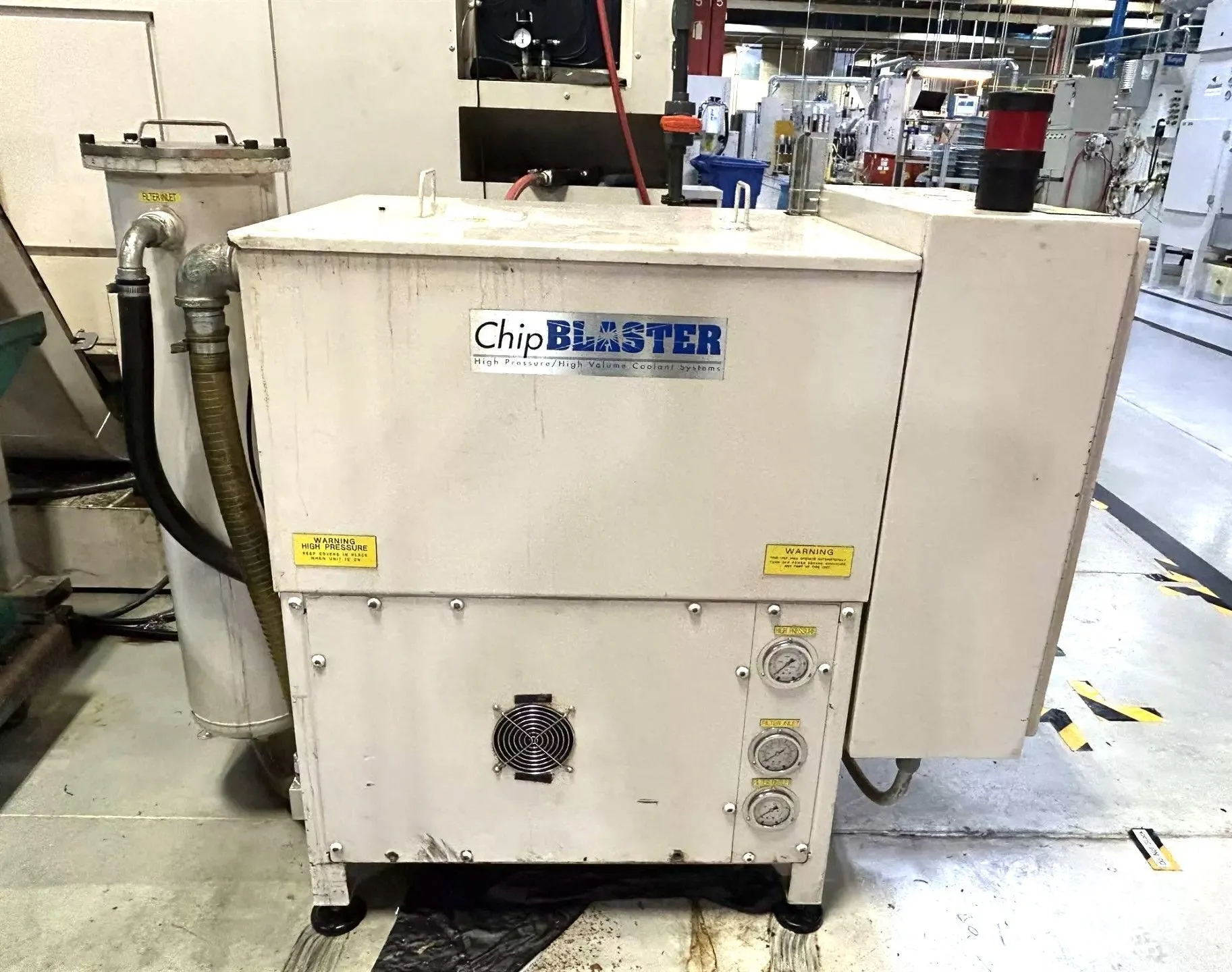

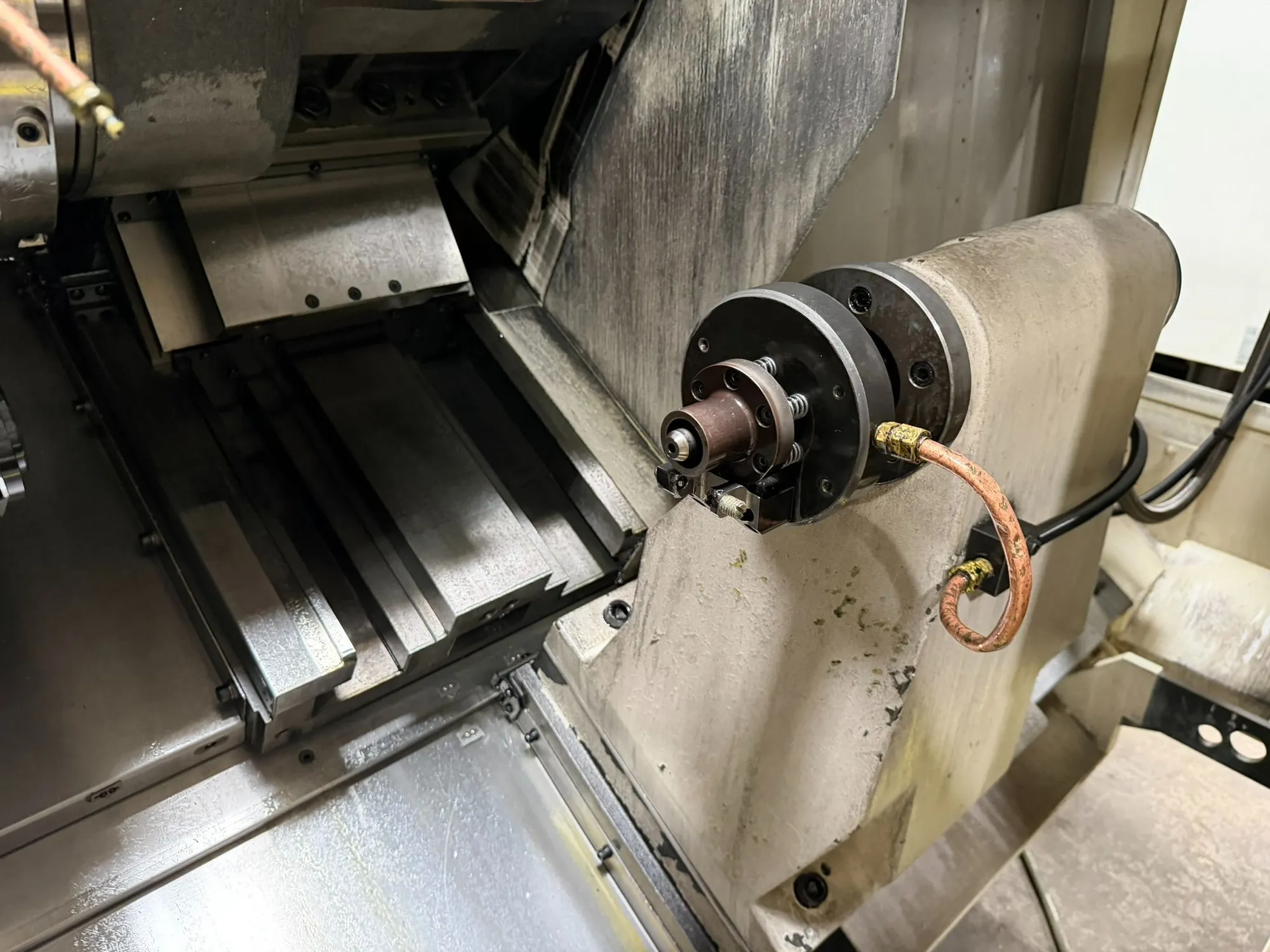

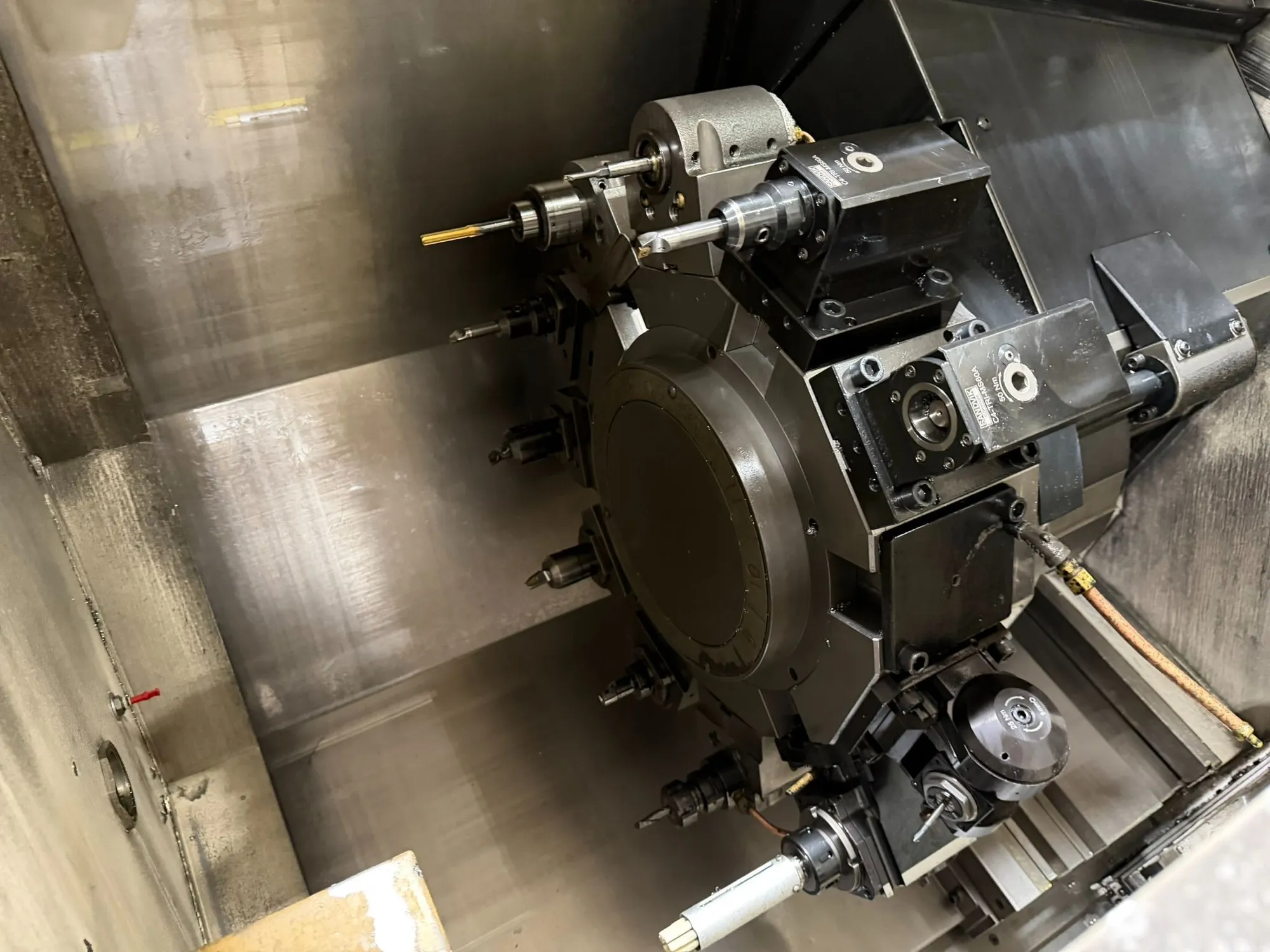

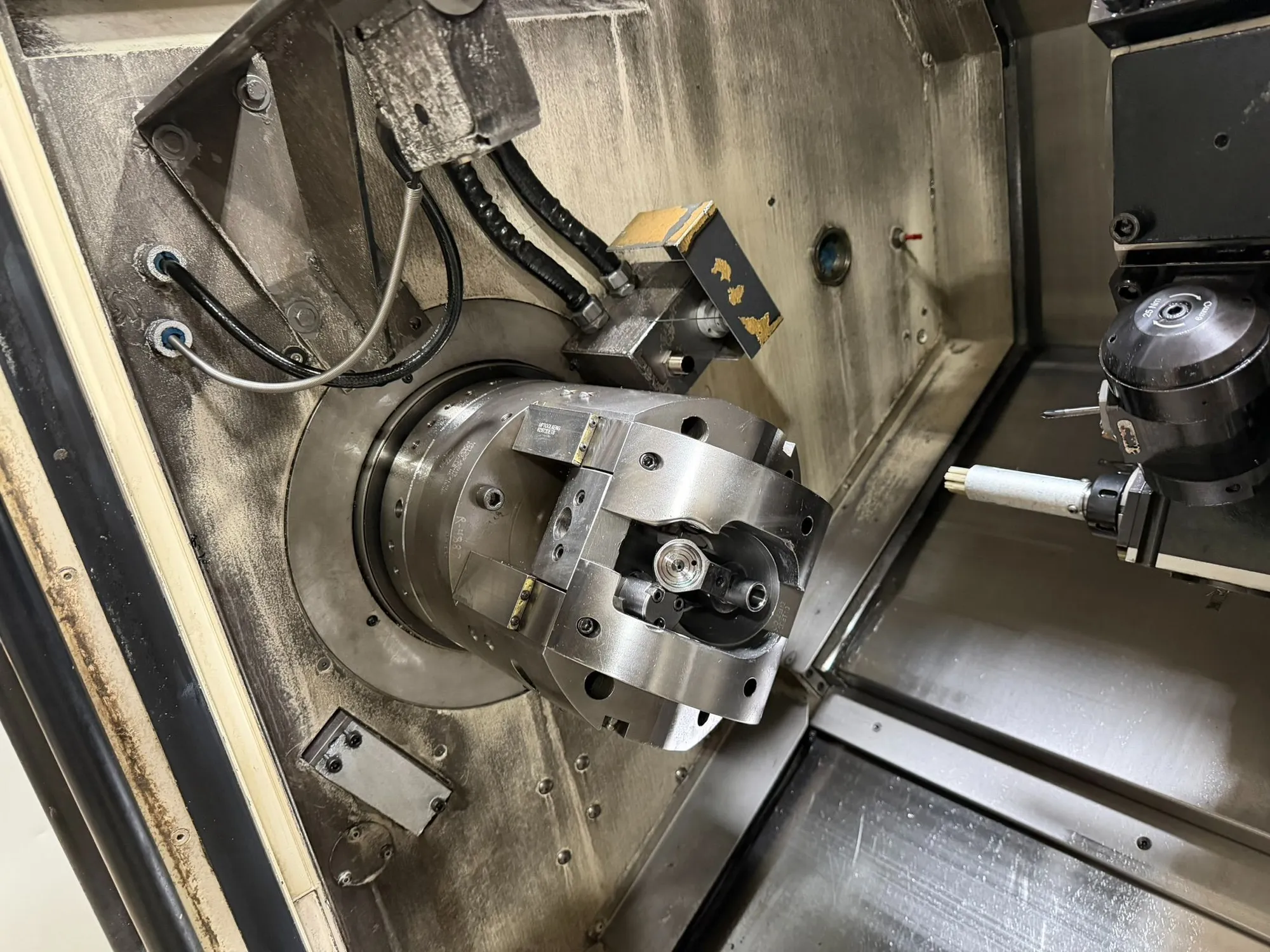

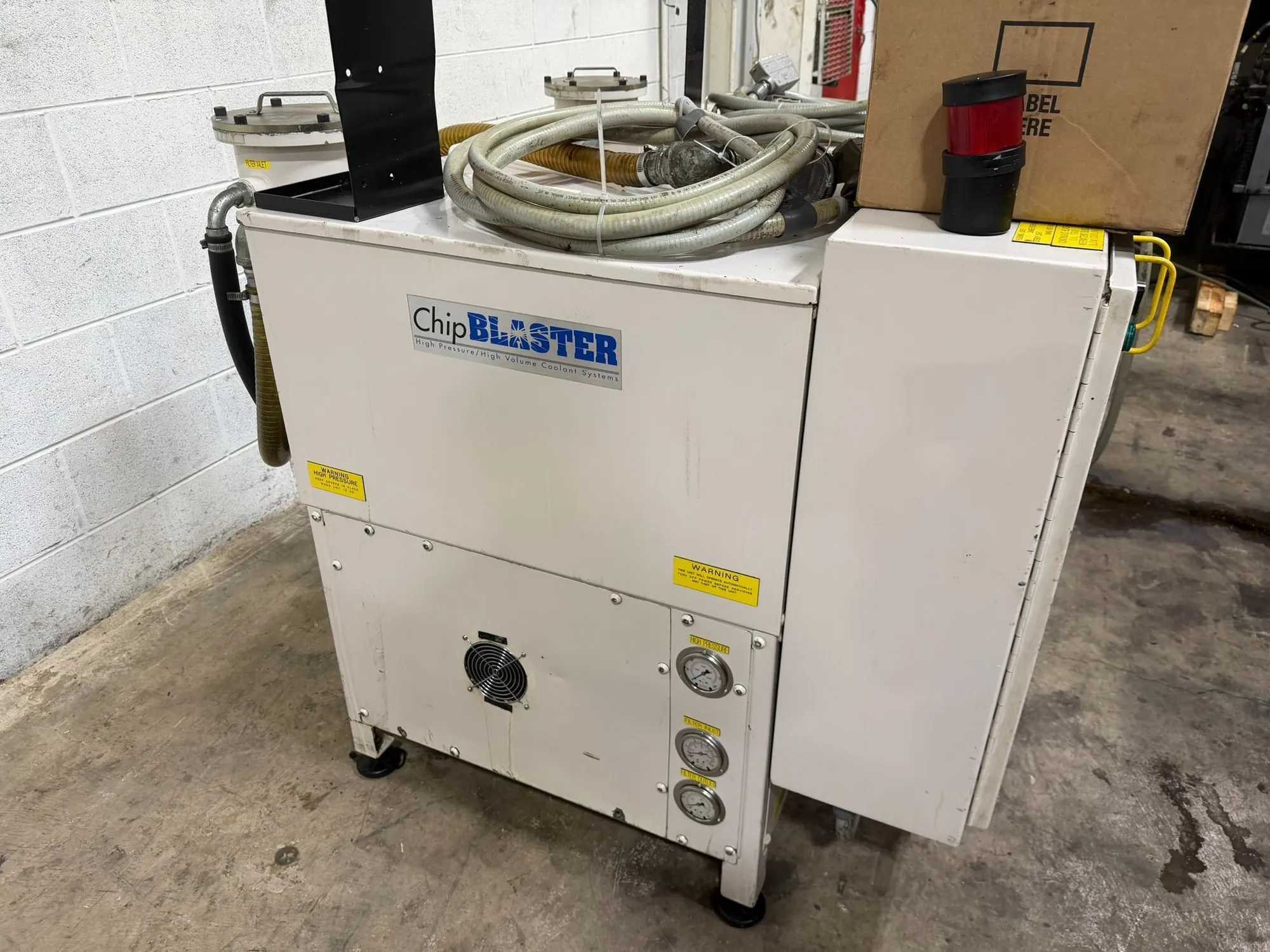

The Mori Seiki NL2500Y/700 is a CNC lathe turning center equipped with live tooling, Y-axis, coolant system, and chip conveyor. It features a max turning diameter of 14.5″, max turning length of 27.55″, and max bar capacity of 3.1″, with a swing over bed of 36.4″ and distance between centers of 34.6″. The machine provides X-axis travel of 10.2″, Z-axis travel of 31.3″, Y-axis travel of 3.9″, and C-axis increment of 0.001°, with rapid traverse rates of 1181 IPM on X and Z axes and 394 IPM on Y axis. The spindle features an A2-8 nose, 3.1″ bore, 4000 RPM max speed, and 25 HP motor. The turret has 12 stations with 0.1 second index time and includes live tooling with 6000 RPM speed and 7.5 HP motor. The tailstock has an MT-4 taper.
