DMG CTX620X1000 CNC Turning Center W/ Y-Axis, Live Milling, and 44.2 HP Main Drive

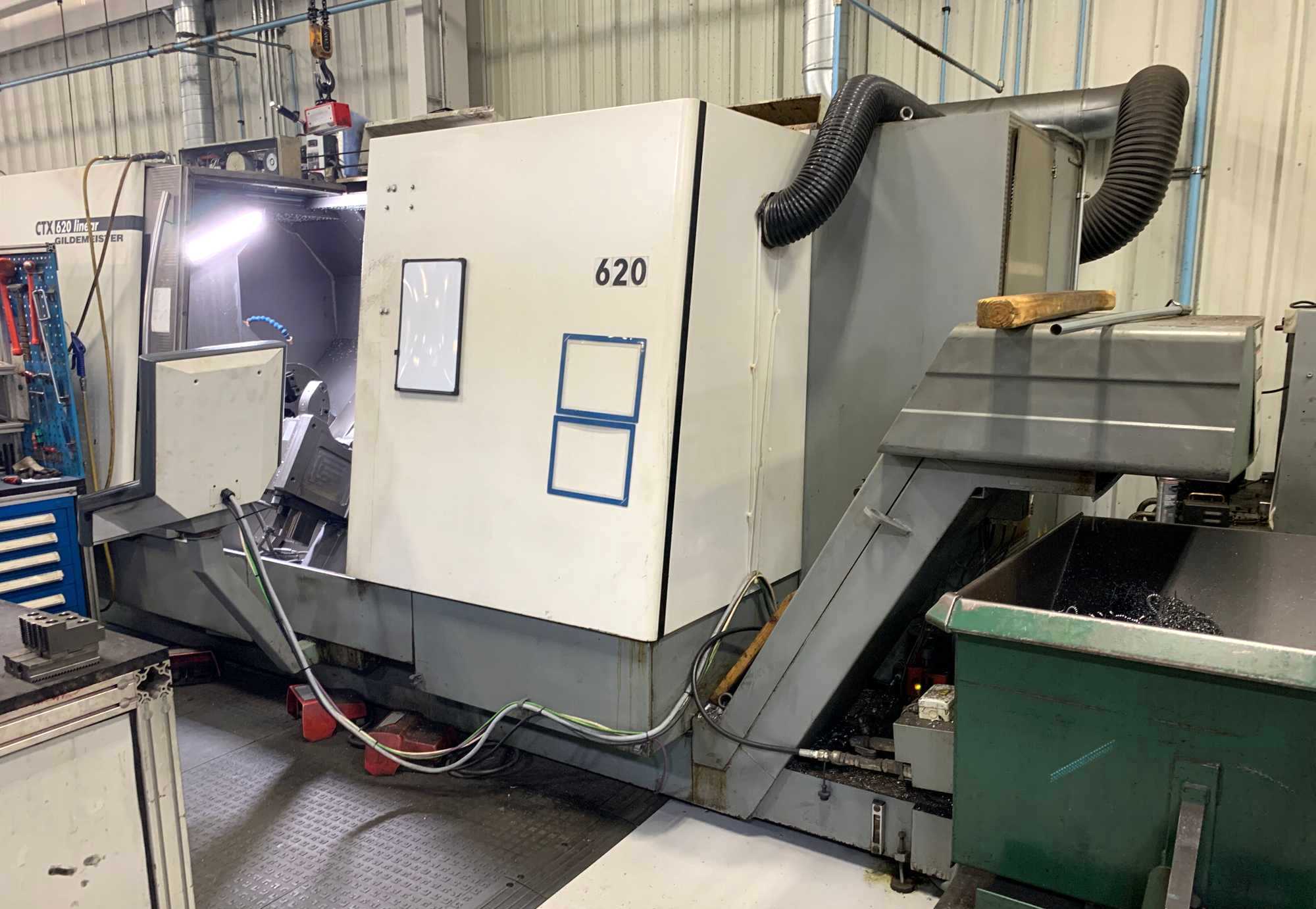

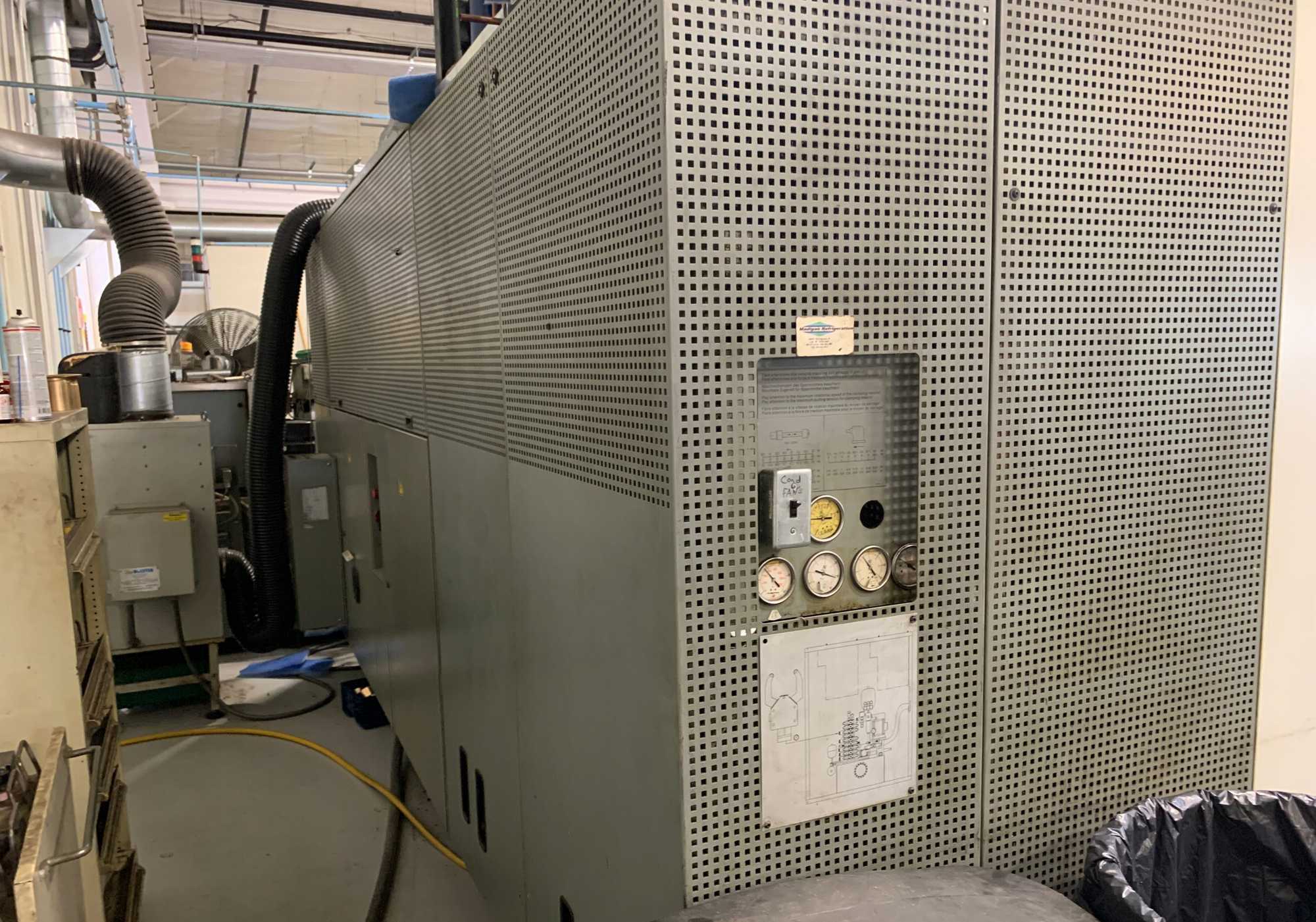

The CTX620X1000 DMG Gildemeister CNC turning center features a Siemens 840D CNC control and a 12(+4) position VDI 50 turret with live milling capability and Y-axis functionality. Key specifications include a maximum turning length of 42.52" and a maximum swing diameter of 31.5". The machine is equipped with a 15" 3-jaw chuck, a hydraulic tailstock, and an SMW-Autoblok BHD hydraulic self-centering steady rest. The main drive motor delivers 44.2 HP, supporting a spindle speed range of 20 to 2500 RPM. Bar capacity is a maximum of 4.75" with a spindle hole diameter of 5.3". The Y-axis stroke is 2.55". Rapid traverse rates are 1771 IPM for X and Z axes, and 32.8 IPM for the Y-axis. The machine includes a BMF heavy-duty chip conveyor, a Chipblaster high-pressure coolant filtration system with a Mistblaster mist collector, and a Pedia coolant filtration system. Approximate dimensions with the chip conveyor are 205" L x 83" W x 90" H, with a weight of approximately 22,000 lbs.
