2008 Mori Seiki NL2500Y/700 CNC Lathe, 4,000 RPM, 25 HP, Y-Axis, MSX-850

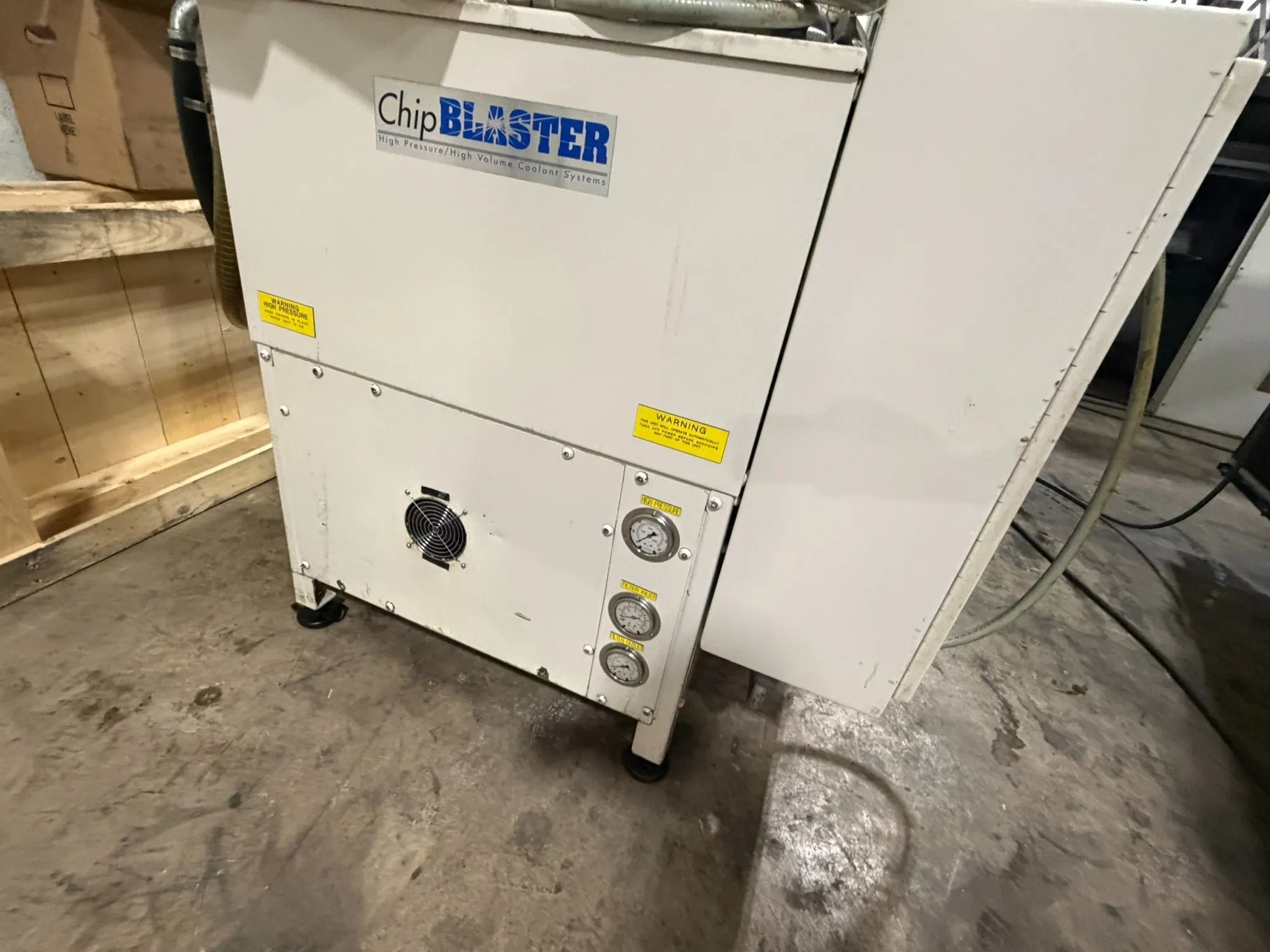

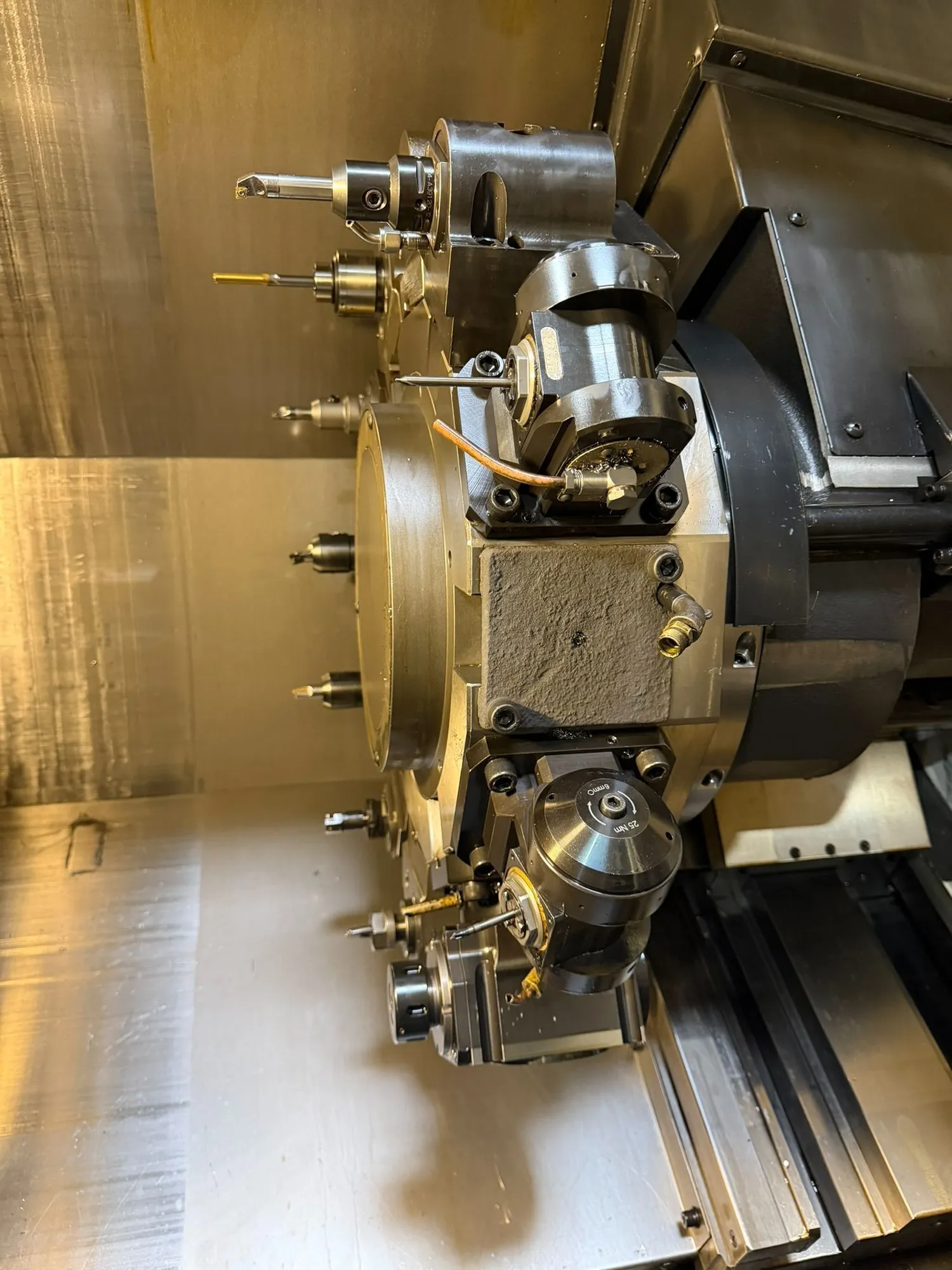

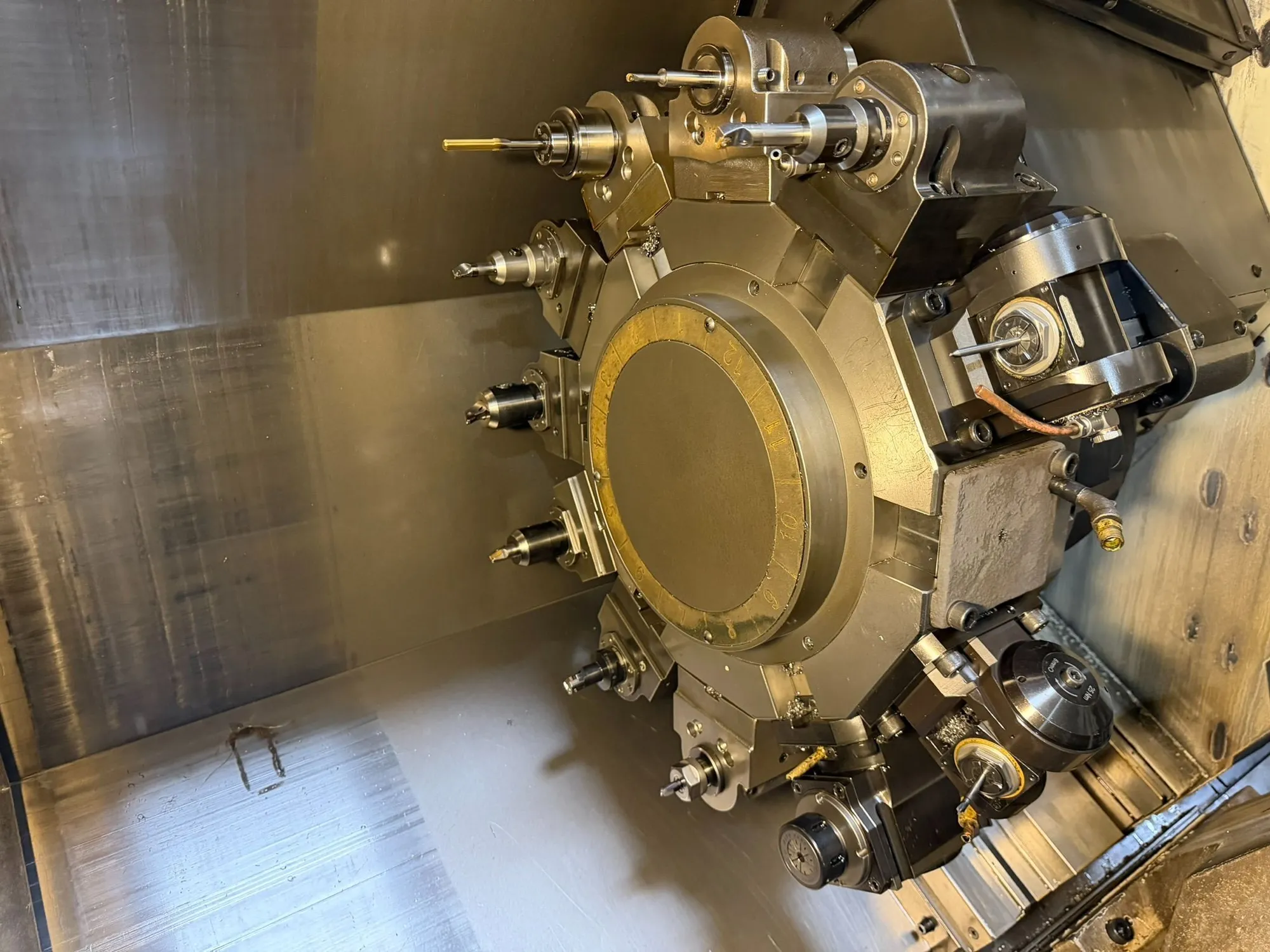

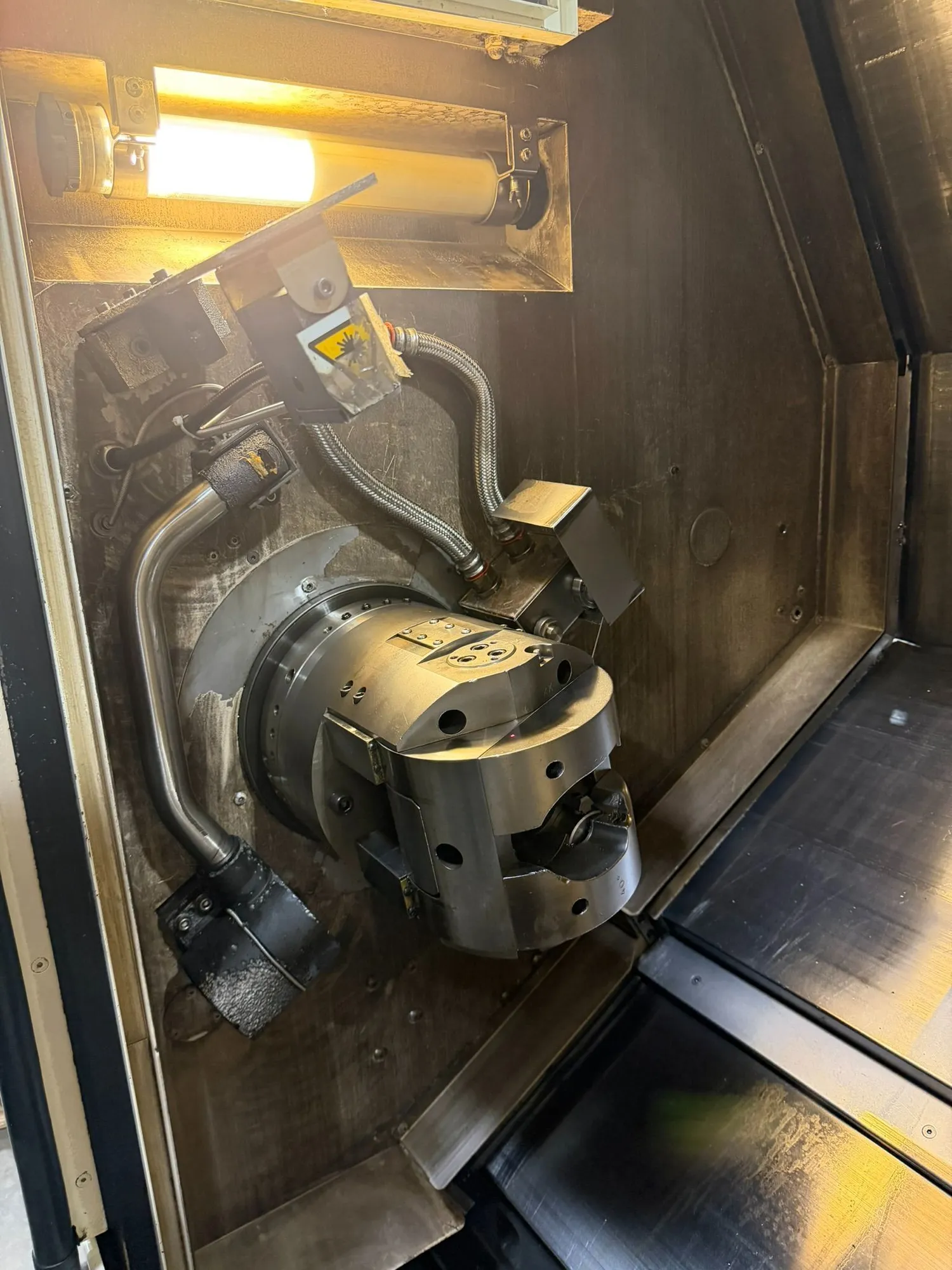

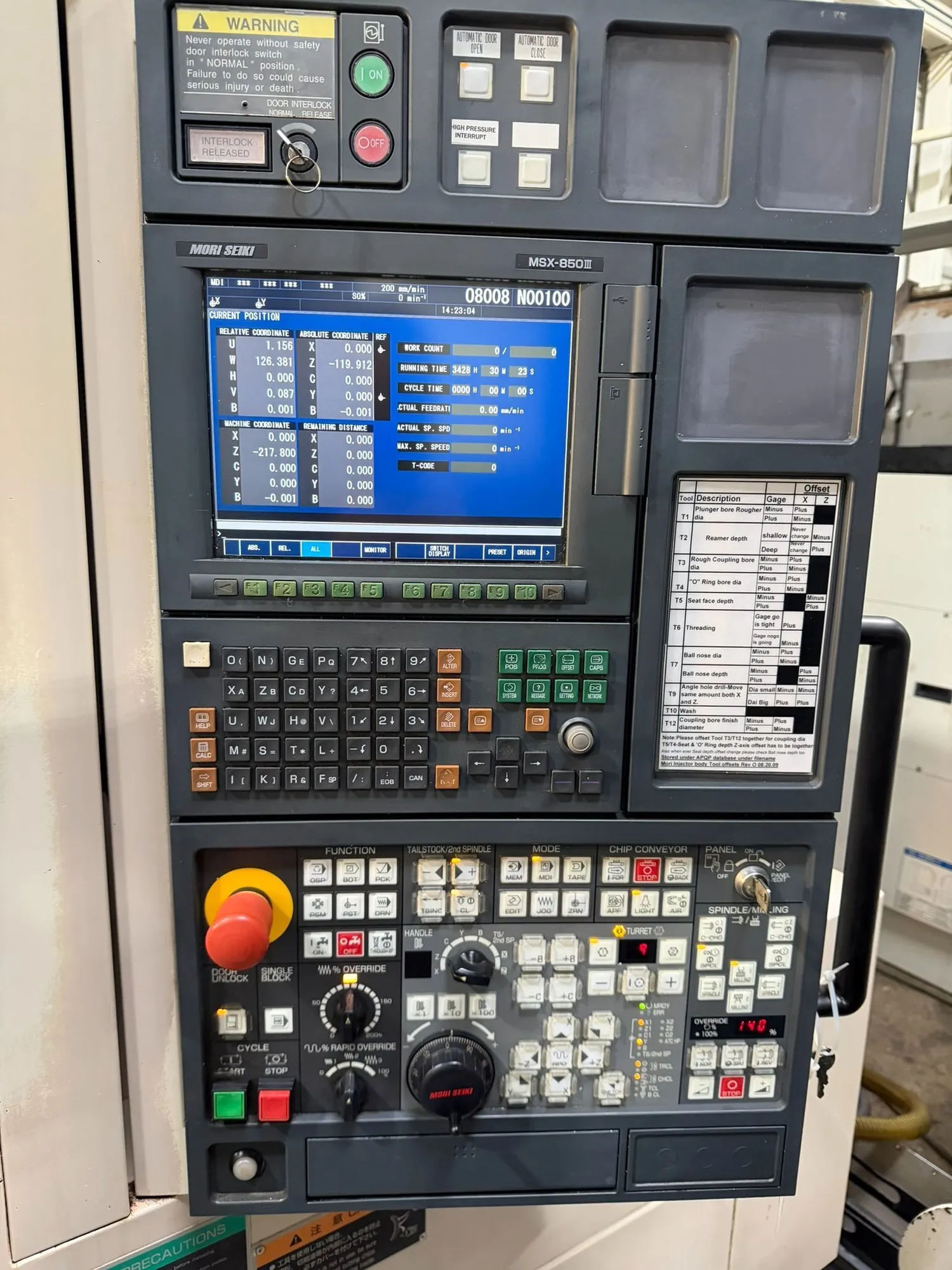

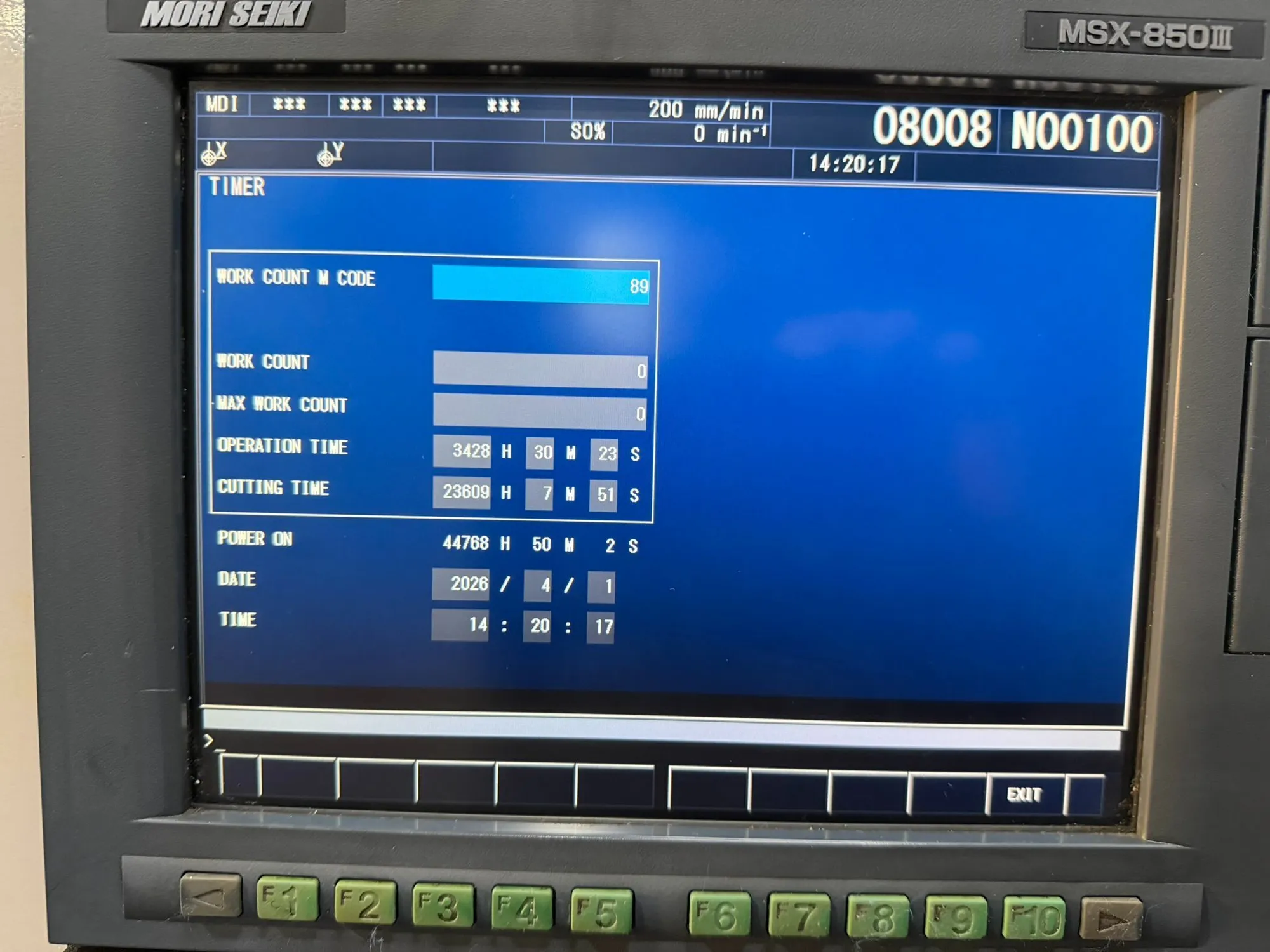

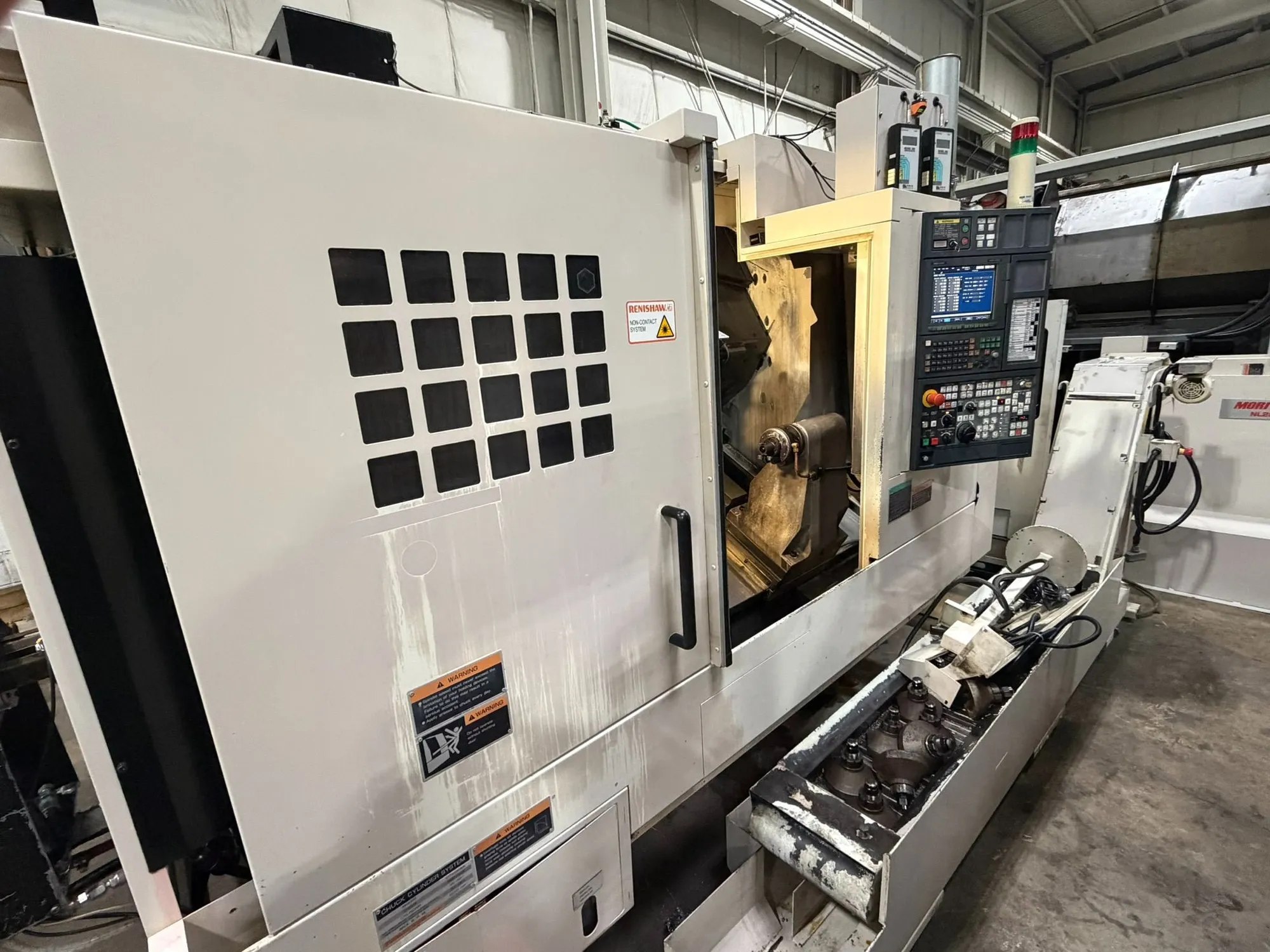

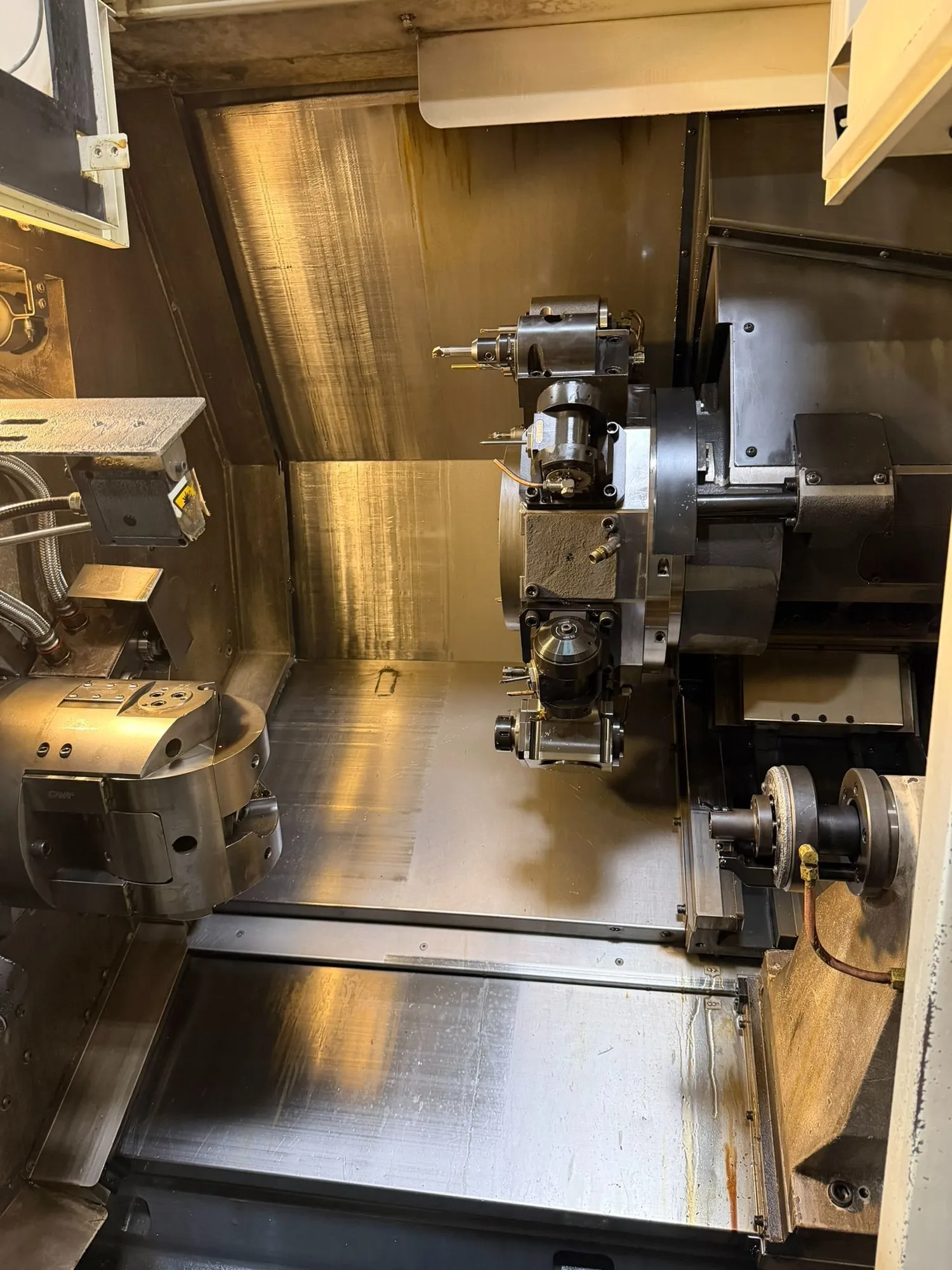

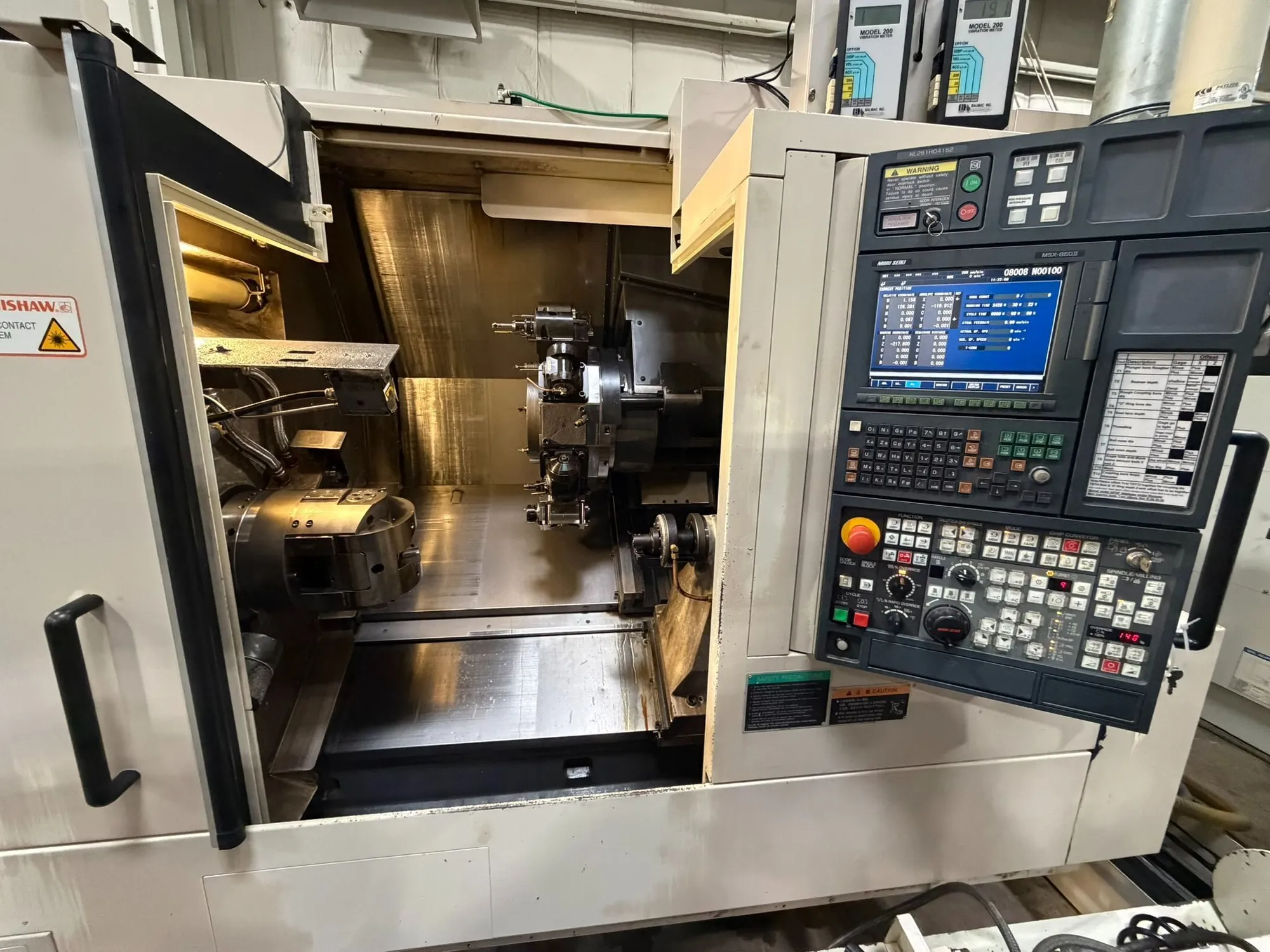

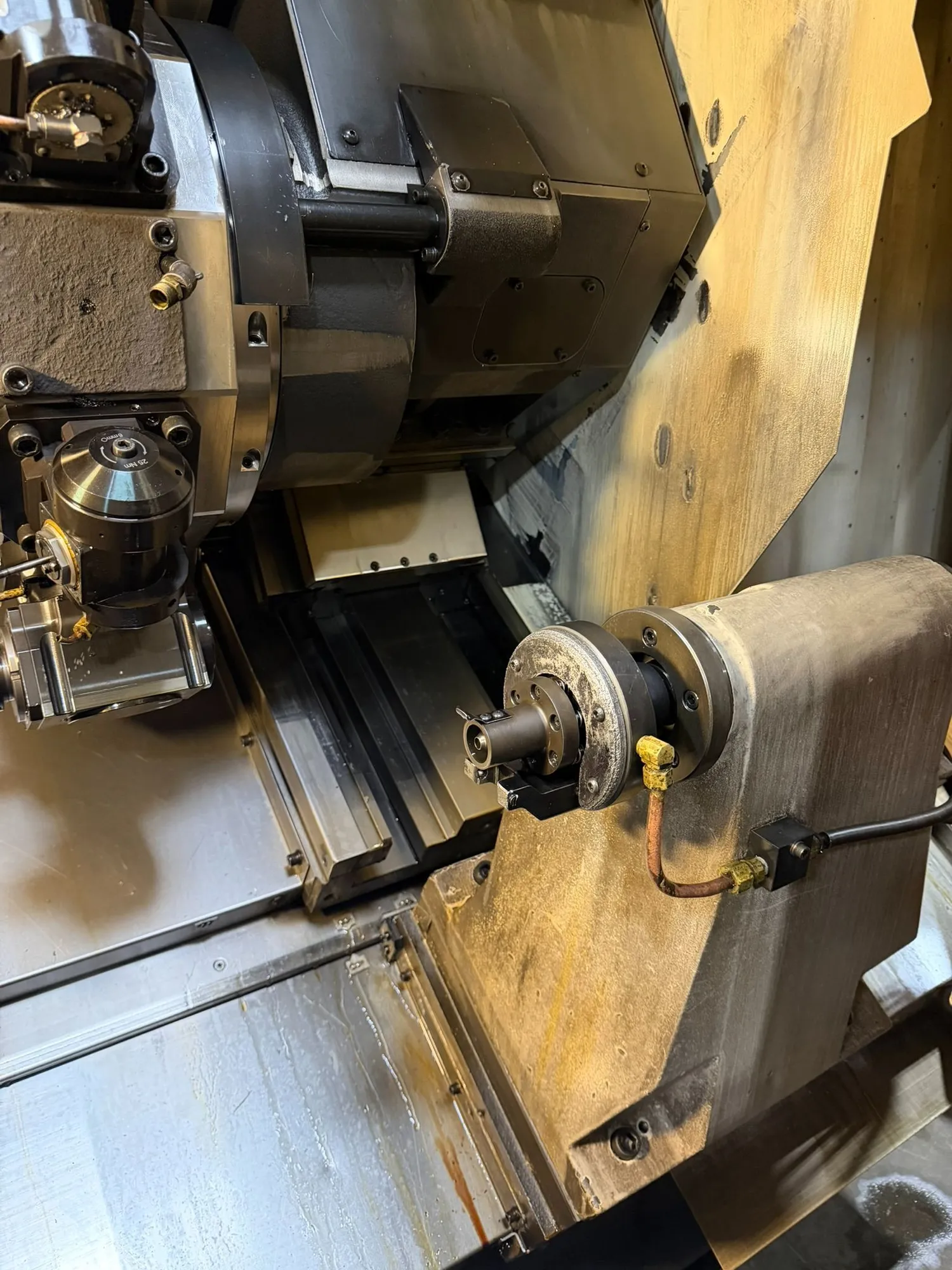

The Mori Seiki NL2500Y/700 is a CNC lathe turning center manufactured in 2008, equipped with live tooling and Y-axis capability, and controlled by an MSX-850 CNC system; the machine offers a maximum turning diameter of 14.5 inches, maximum turning length of 27.55 inches, and bar capacity of 3.1 inches, with a swing over bed of 36.4 inches and distance between centers of 34.6 inches; axis travels include 10.2 inches in X, 31.3 inches in Z, and 3.9 inches in Y, with C-axis indexing at 0.001 degrees; rapid traverse rates reach 1181 IPM on X and Z axes and 394 IPM on Y axis; the spindle features an A2-8 nose, 3.1-inch bore, maximum speed of 4,000 RPM, and a 25 HP motor; the turret has a 12-station capacity with an indexing time of 0.1 seconds and supports live tooling with speeds up to 6,000 RPM driven by a 7.5 HP motor; the machine also includes a tailstock with MT-4 taper, coolant system, and chip conveyor.
