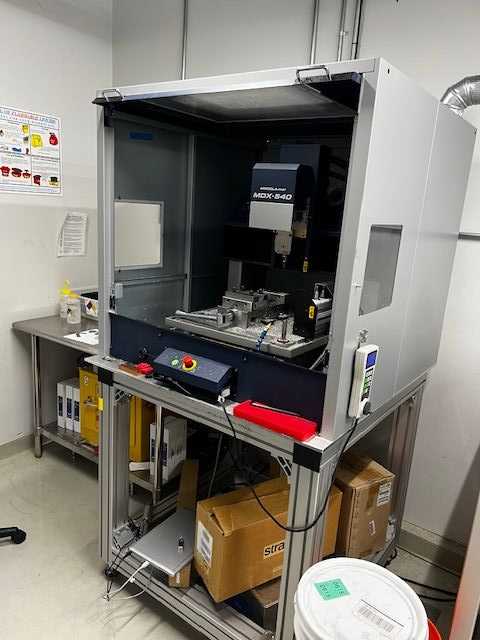

2013 ROLAND MDX-540S VERTICAL MILLING MACHINE

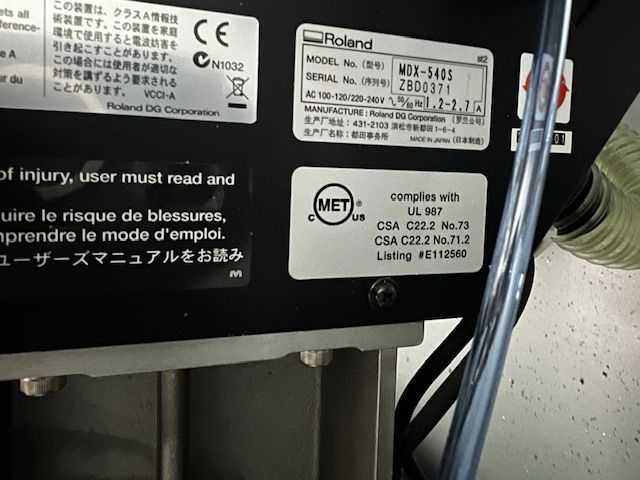

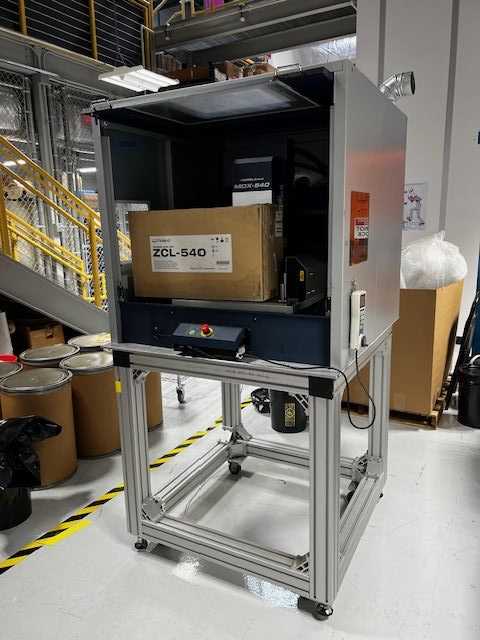

Serial / VIN number: ZBD0371 Condition: Good UNIT COMES AS SHOWN WITH THE STAND AND THE BOX SITTING INSIDE, WHICH IS THE 4TH ROTARY AXIS UNIT USABLE MATERIALS PLASTIC, RESIN, WOOD AND NON-FERROUS METALS XYZ-AXIS TRAVEL 19.6"(X) X 15.7"(Y) X 6.1"(Z) 500 (X) X 400 (Y) X 155 MM (Z) MILLING AREA WITH OPTIONAL ROTARY AXIS (ZCL-540) 7.0" DIAMETER X 14.6" LENGTH 177.8MM DIAMETER X 370.8MM LENGTH DISTANCE FROM SPINDLE NOSE TO TABLE MAXIMUM 10" (254MM) TABLE SIZE 21.7"(W) X 16.5"(D) 550(W) X 420MM (D) LOADABLE WORKPIECE WEIGHT AT ACCELERATION OF 0.2G: MAXIMUM 26LB (12KG), 0.1G: 44LB (20KG), 0.05G: 44LB (20KG) XYZ-AXIS DRIVE SYSTEM AC SERVO MOTOR MDX-540 60W MDX-540S 80W OPERATING SPEED MAXIMUM 295 IPM (7.5M/MIN) ACCELERATION 0.2G, 0.1G, 0.05G SOFTWARE RESOLUTION RML-1 MODE: 0.0004"(0.01MM ) NC-CODE MODE: 0.00004" (0.001MM) MECHANICAL RESOLUTION 0.00004" (0.001MM) POSITIONING ACCURACY +/-0.004"/12"(+/-0.1MM/300MM) UNDER NO-LOAD CONDITIONS REPEAT ACCURACY MDX-540 +/-0.0019"(+/-0.05MM) MDX-540S +/-0.0008"(+/-0.02MM) UNDER NO-LOAD CONDITIONS ORIGIN REPRODUCIBILITY (WHEN THE POWER IS SWITCHED ON/OFF) MDX-540 +/-0.0019" (+/-0.05MM) MDX-540S +/-0.0008" (+/-0.02M) SPINDLE MOTOR DC BRUSHLESS MOTOR, MAXIMUM 400W SPINDLE SPEED 400 TO 12,000 RPM; 400 TO 3,000 RPM FOR POSITIONING AND CENTERING TOOL CHUCK COLLET METHOD, MAXIMUM TOOL DIAMETER: 0.4" (10MM) CONTROL COMMAND SETS RML-1 AND NC CODES INTERFACE USB (COMPLIANT WITH UNIVERSAL SERIAL BUS SPECIFICATION REVISION 1.1) POWER SUPPLY VOLTAGE AND FREQUENCY: AC 100 TO 120 V/220 TO 240 V +/-10%, 50/60 HZ REQUIRED POWER CAPACITY: 7A (100 TO 120V)/4A (220 TO 240V) POWER CONSUMPTION APPROX. 700W ACOUSTIC NOISE LEVEL DURING OPERATION (NO CUTTING): 65DB (A) OR LESS, DURING STANDBY: 40DB (A) OR LESS (ACCORDING TO ISO 7779) OPERATING TEMPERATURE 41 TO 104F (5 TO 40C) OPERATING HUMIDITY 35 TO 80% (NO CONDENSATION)
