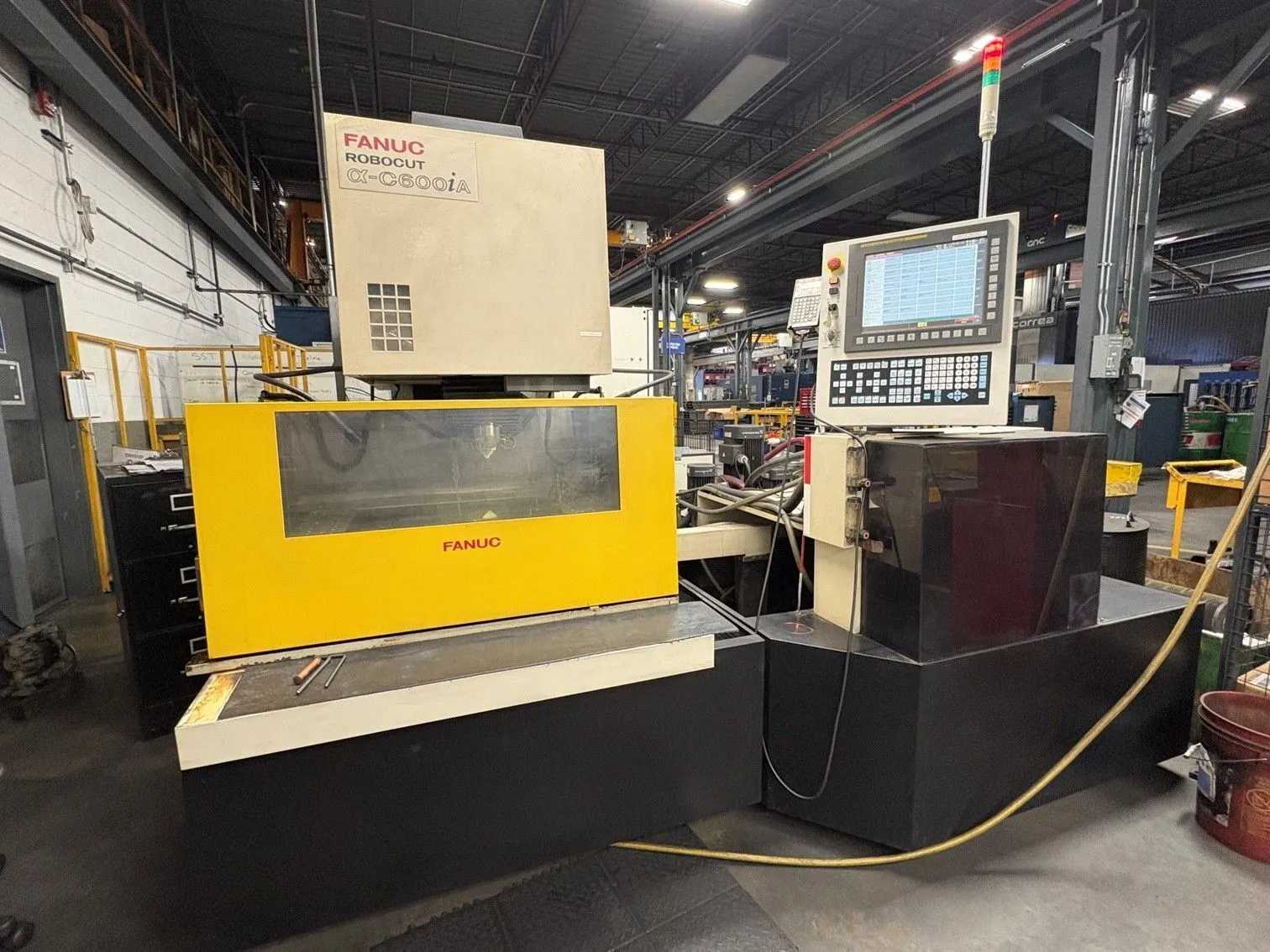

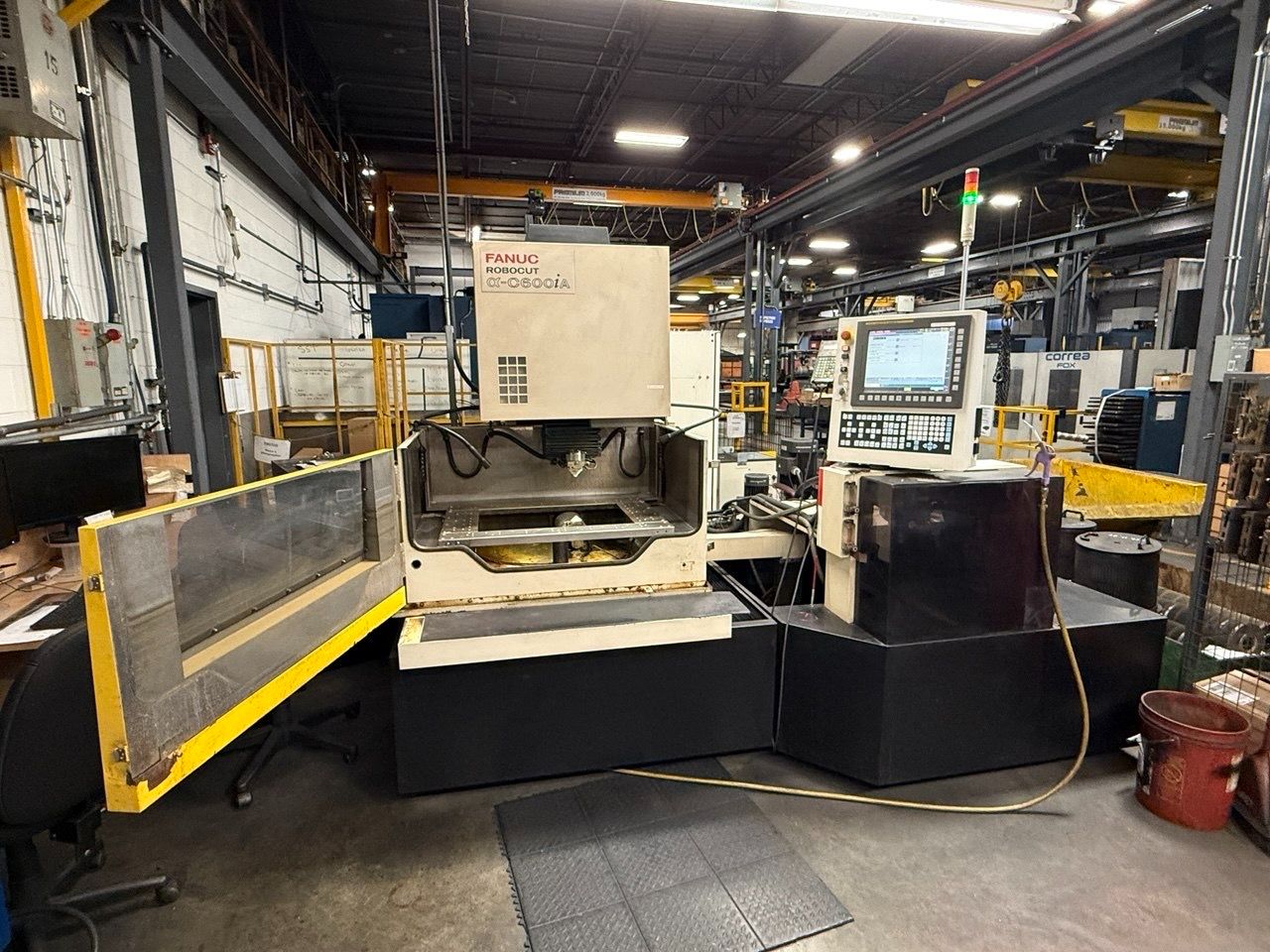

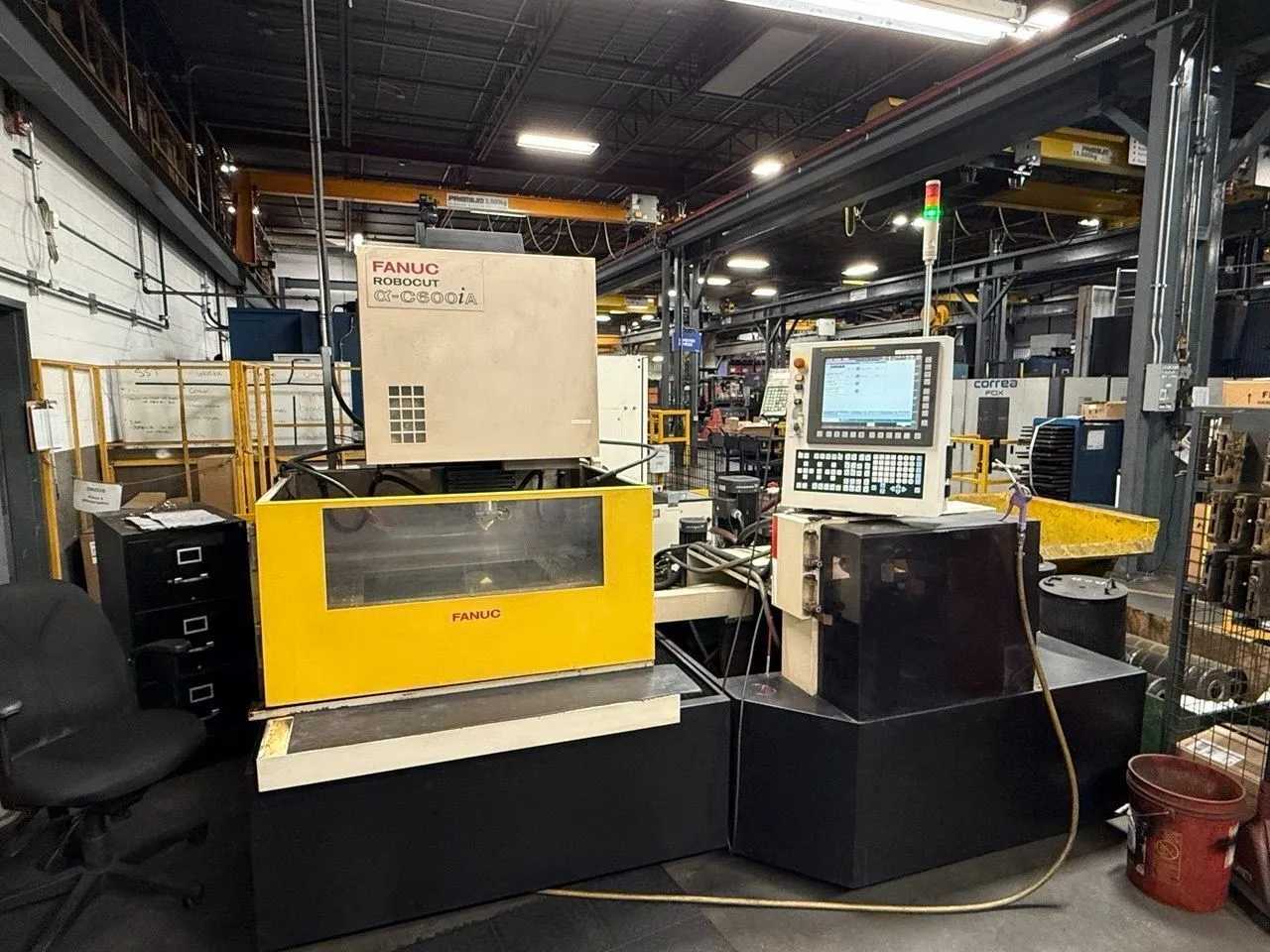

2014 FANUC ROBOCUT Α-C600IA WIRE EDM, 31I-WB, 600X400X310MM, AUTO WIRE THREADING

2014 FANUC ROBOCUT Α-C600IA WIRE EDM WITH FANUC SERIES 31I-WB CONTROL, 200V/220V 3-PHASE 50/60 HZ POWER INPUT, AND AUTOMATIC WIRE THREADING. IT PROVIDES X/Y/Z TRAVELS OF 23.6 X 15.7 X 12.2 IN (600 X 400 X 310 MM) AND U/V TRAVEL OF 23.6 X 15.7 IN (600 X 400 MM). THE WORK TANK MEASURES 44.0 X 32.3 X 12.1 IN (1,117 X 820 X 307 MM) AND SUPPORTS A TABLE CAPACITY OF 3,527 LB (1,600 KG). MAXIMUM TAPER IS ±30° OVER 3.9 IN (100 MM), WITH WIRE DIAMETER RANGE FROM 0.004 TO 0.012 IN (0.10 TO 0.30 MM). ADDITIONAL FEATURES INCLUDE SUBMERGED MACHINING AND AN AUTOMATIC RISE-AND-FALL TANK. APPROXIMATE MACHINE DIMENSIONS ARE 88 X 87 X 87 IN, WITH AN APPROXIMATE WEIGHT OF 7,700 LB.
