2014 Koike Aronson 61000705 Welding Carriage, 120-220V, 6-60 in/Min, 66 lbs Pulling Power

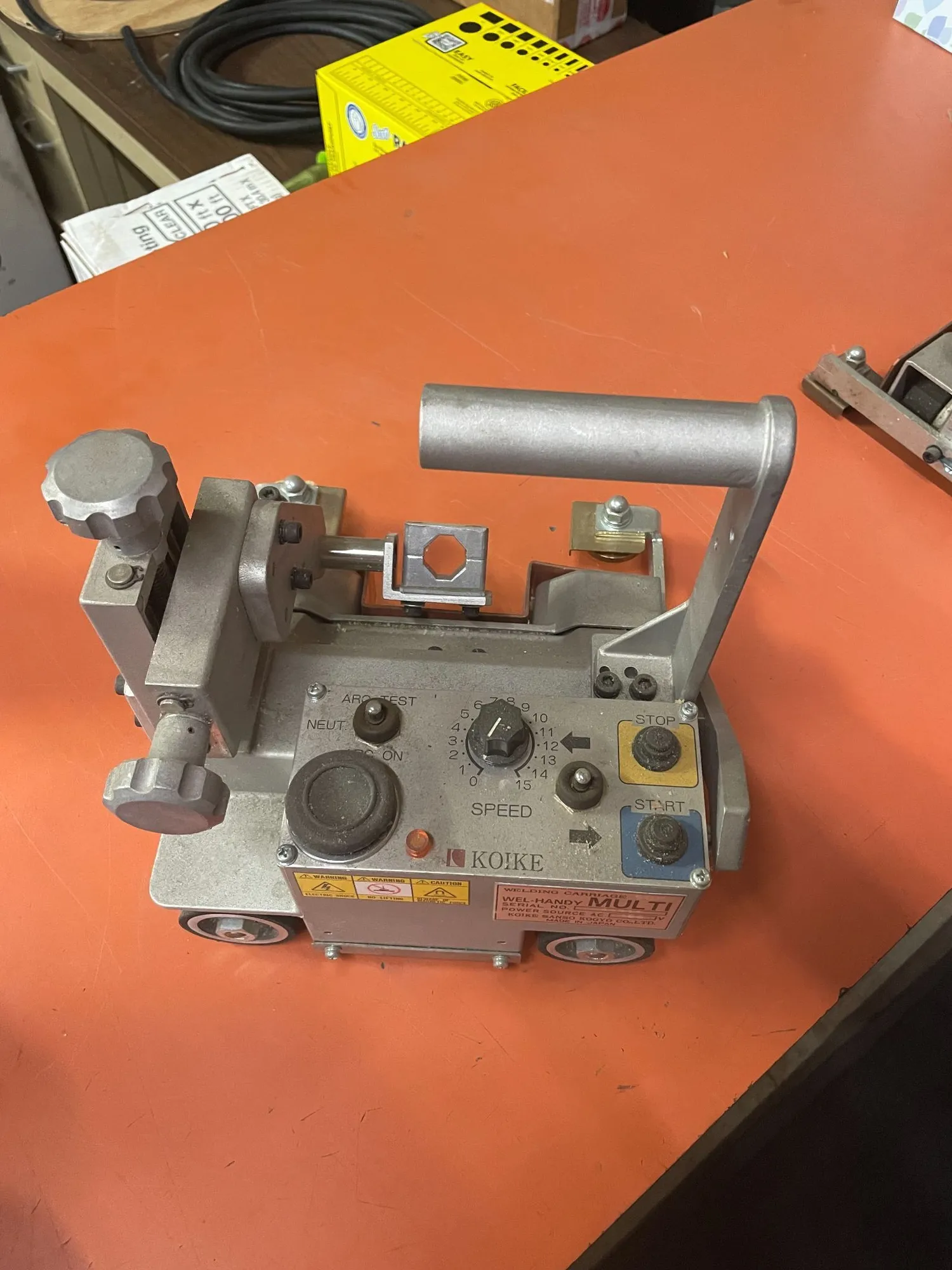

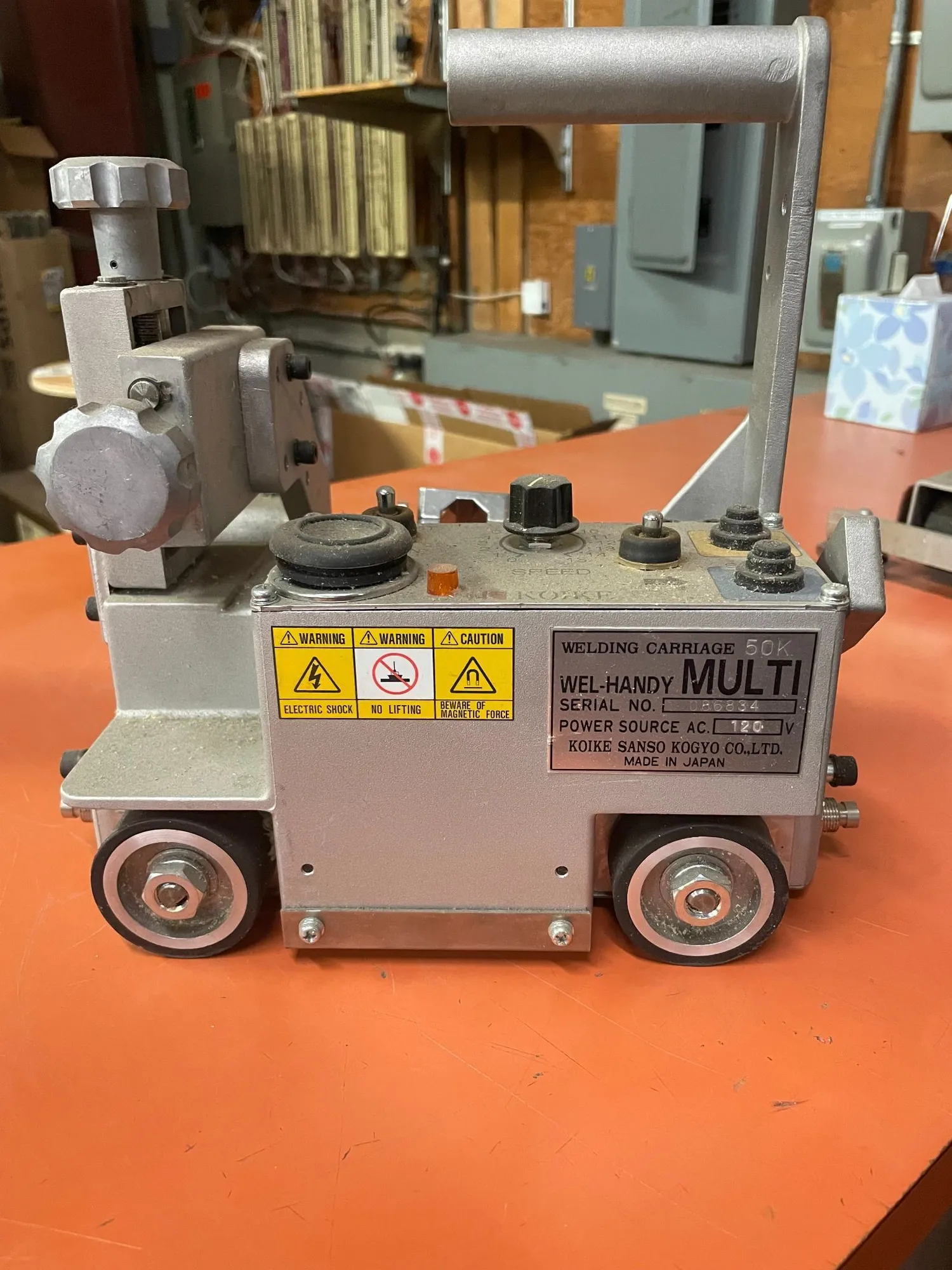

The Koike Aronson Wel-Handy model 61000705 Multi-Standard is a compact, trackless portable welding carriage designed for semi-automated continuous fillet welding applications. It features a robust all-wheel-drive system powered by an encoder drive motor to ensure precise speed control, offering a travel speed range of 6 to 60 inches per minute (50 to 1500 mm/min) in both left and right directions. To provide stability and constant motion on both horizontal and vertical surfaces, the unit utilizes a powerful integrated permanent rare earth magnet that delivers up to 66 lbs (50 kg) of pulling power and traction control. The magnet mechanism is equipped with a light-action detachment lever on the side of the body for easy setup and positioning. Built with a maintenance-free, lightweight aluminum die-cast body, the carriage has approximate physical dimensions of 10.2 inches wide by 10.2 inches deep by 10.4 inches high (280 x 280 x 250 mm) and weighs approximately 15.2 lbs (7.6 kg). It is engineered to operate on a single-phase input power supply spanning 120 to 220 volts. For precise operation and automation, the machine includes an automatic stop function via limit switches located at each end of the carriage to handle predetermined shut points with electric arc interruption. Its tracking system utilizes a guide roller to allow accurate vertical, flat, and edge tracking directly on the workpiece.
