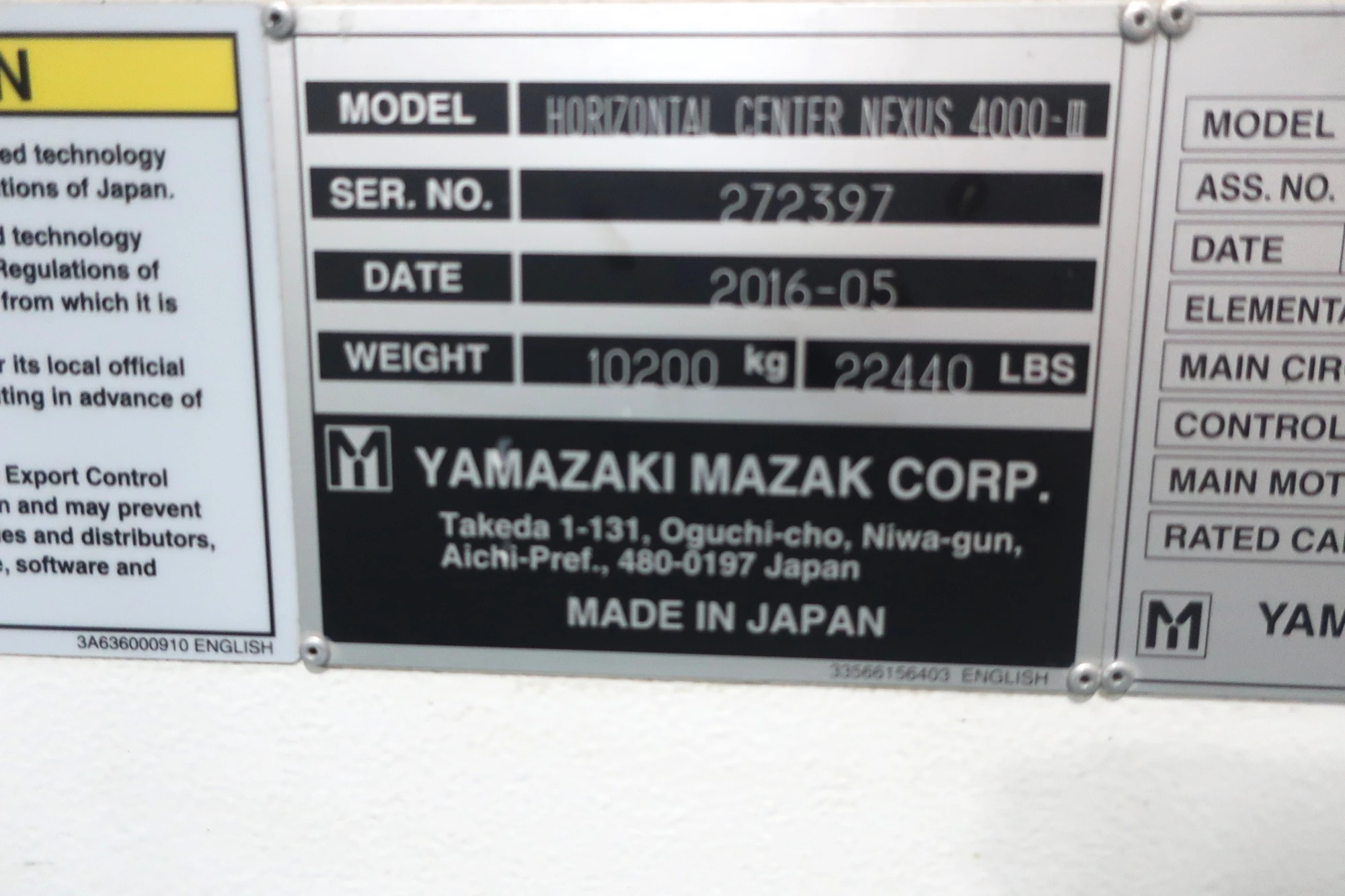

2016 Mazak Hcn Nexus 4000-III 4-Axis Hmc, 18K RPM, 47 HP, 400mm Pallet, 60-120 ATC

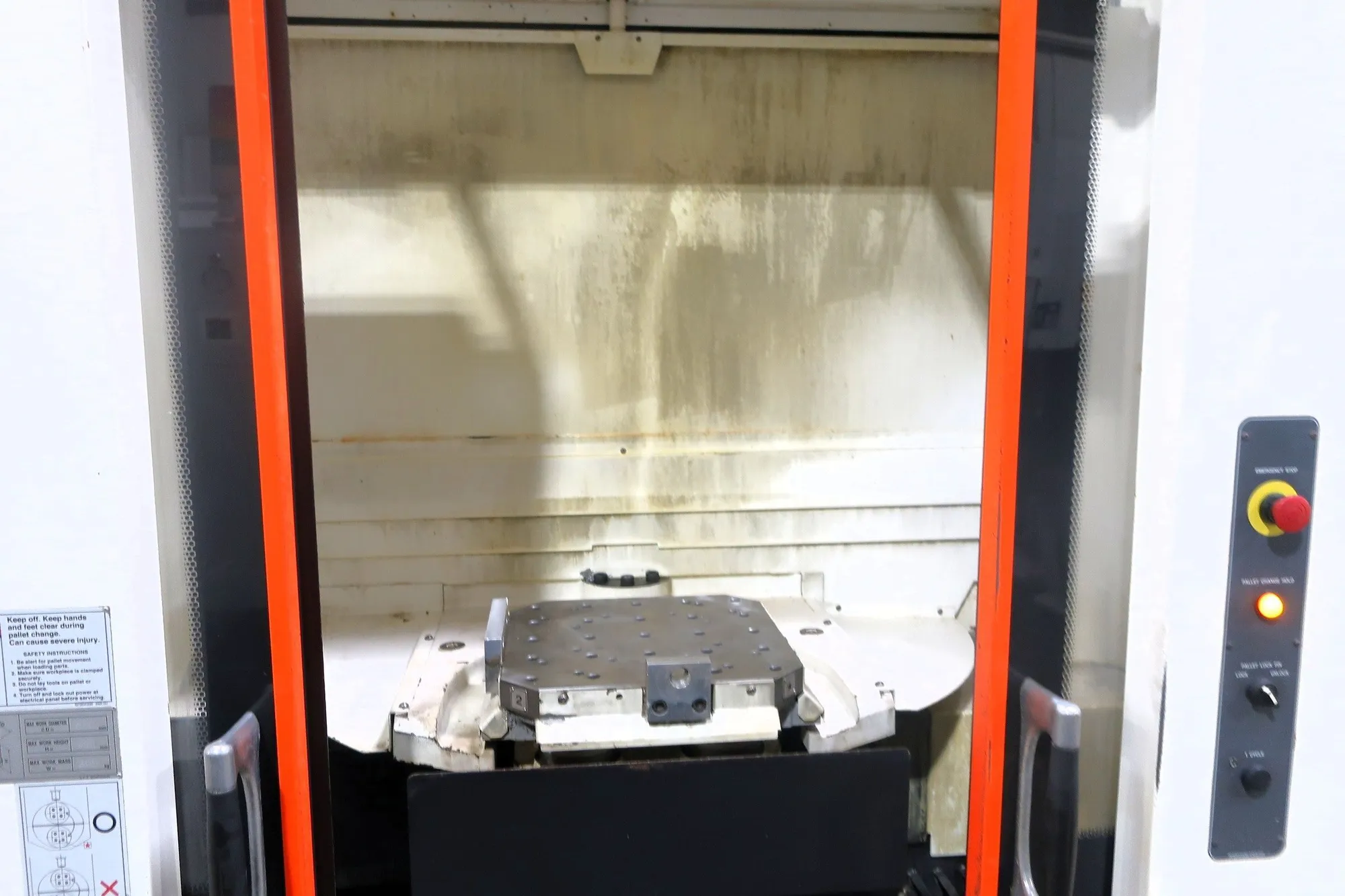

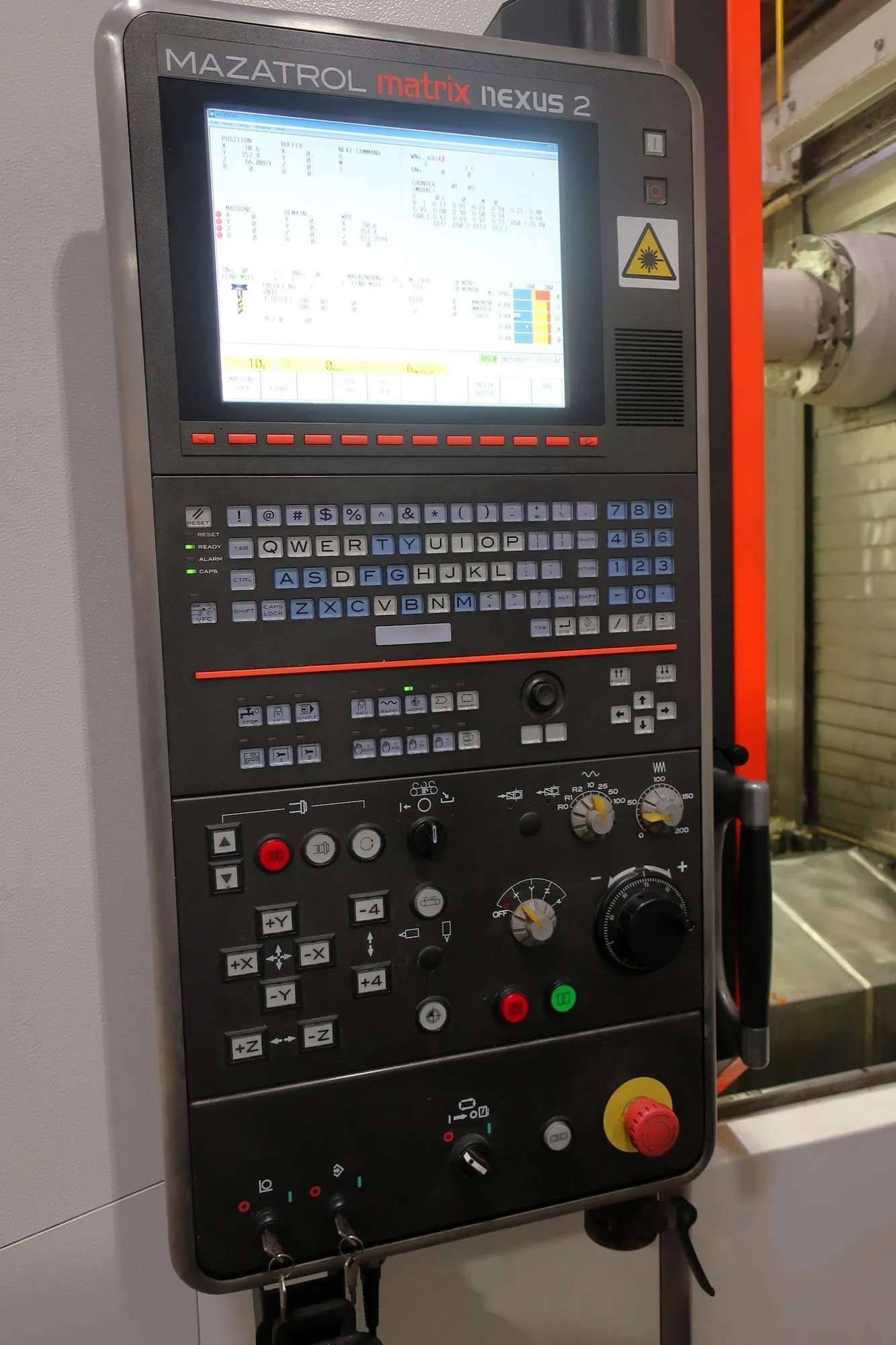

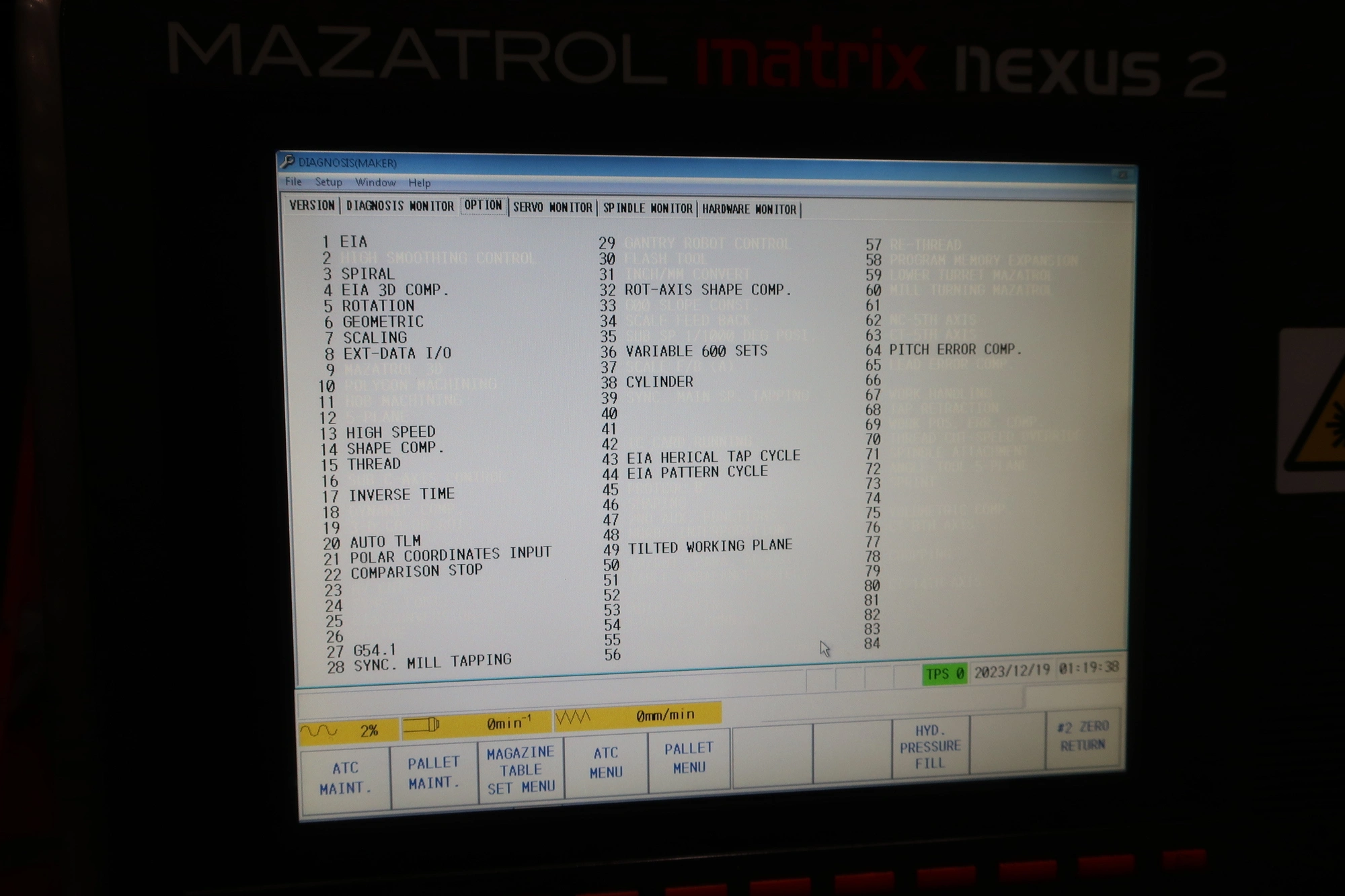

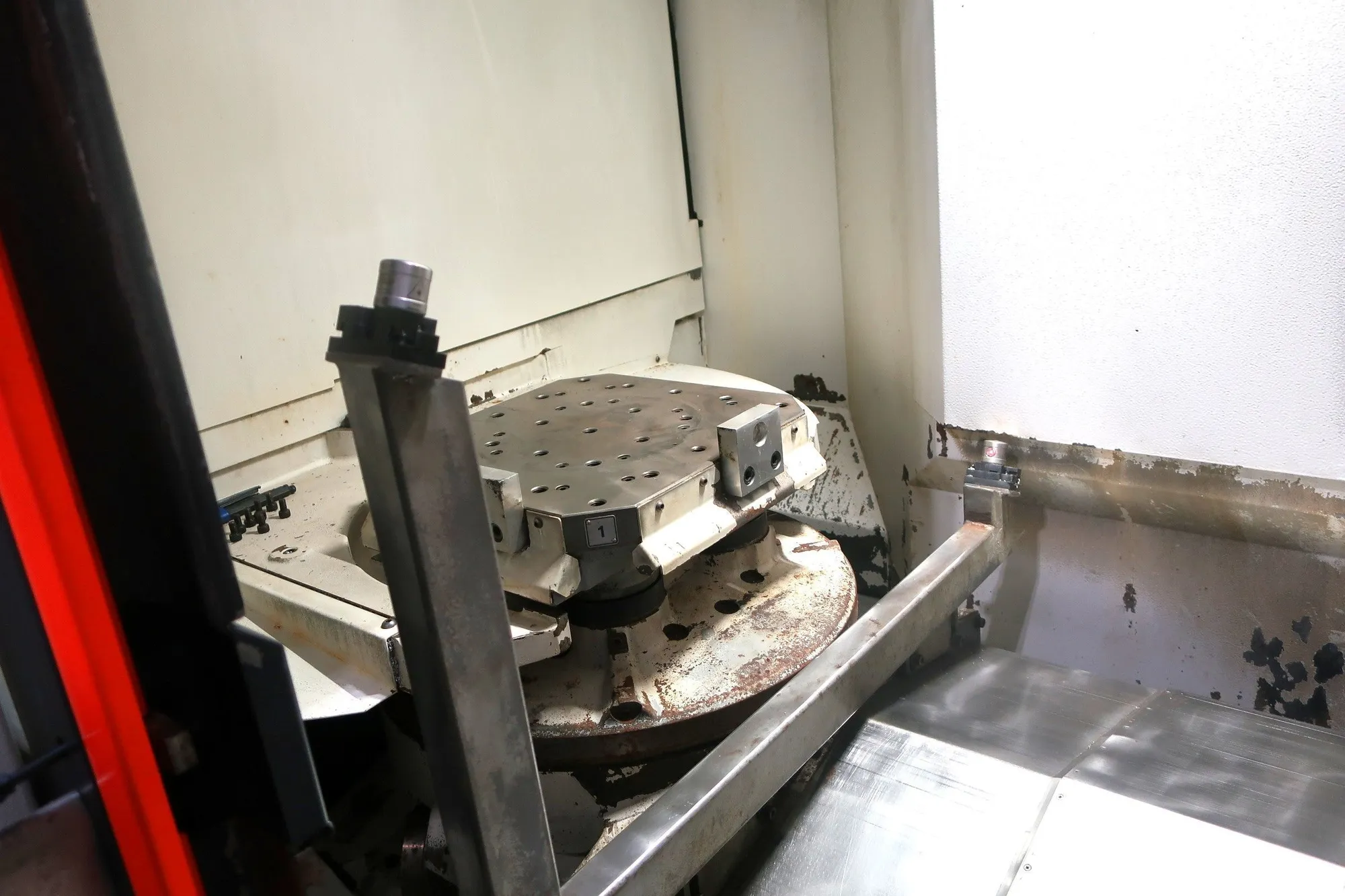

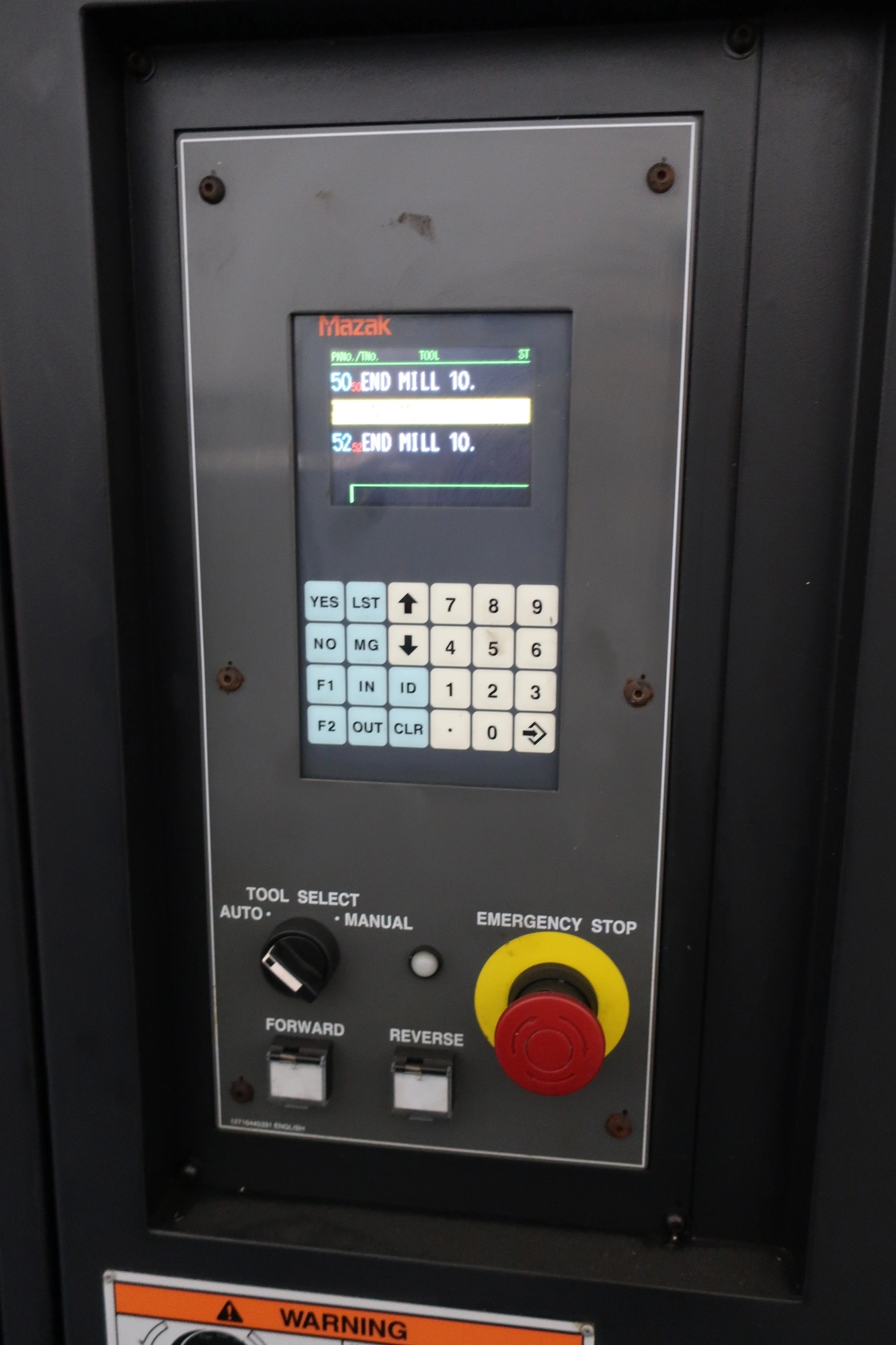

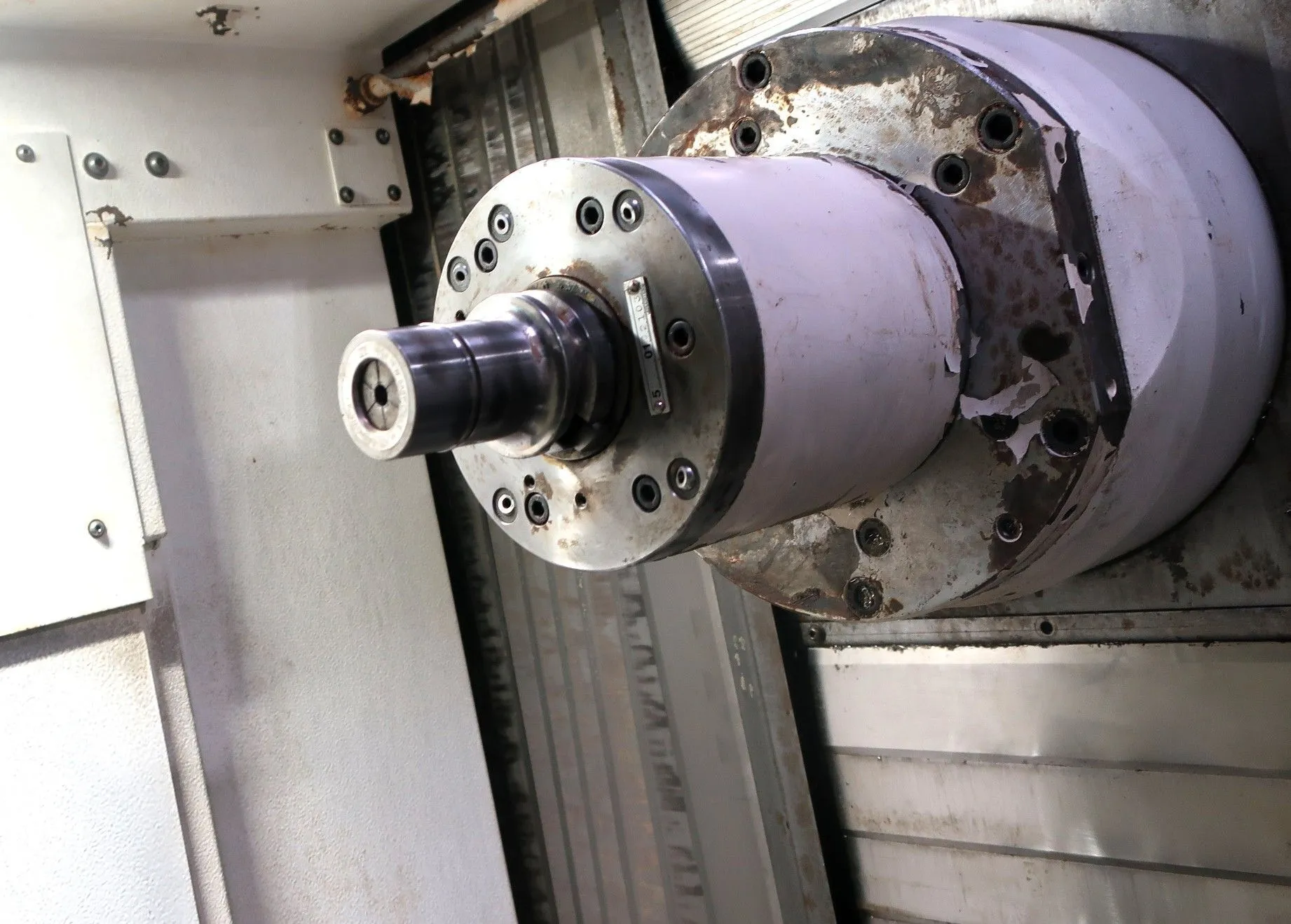

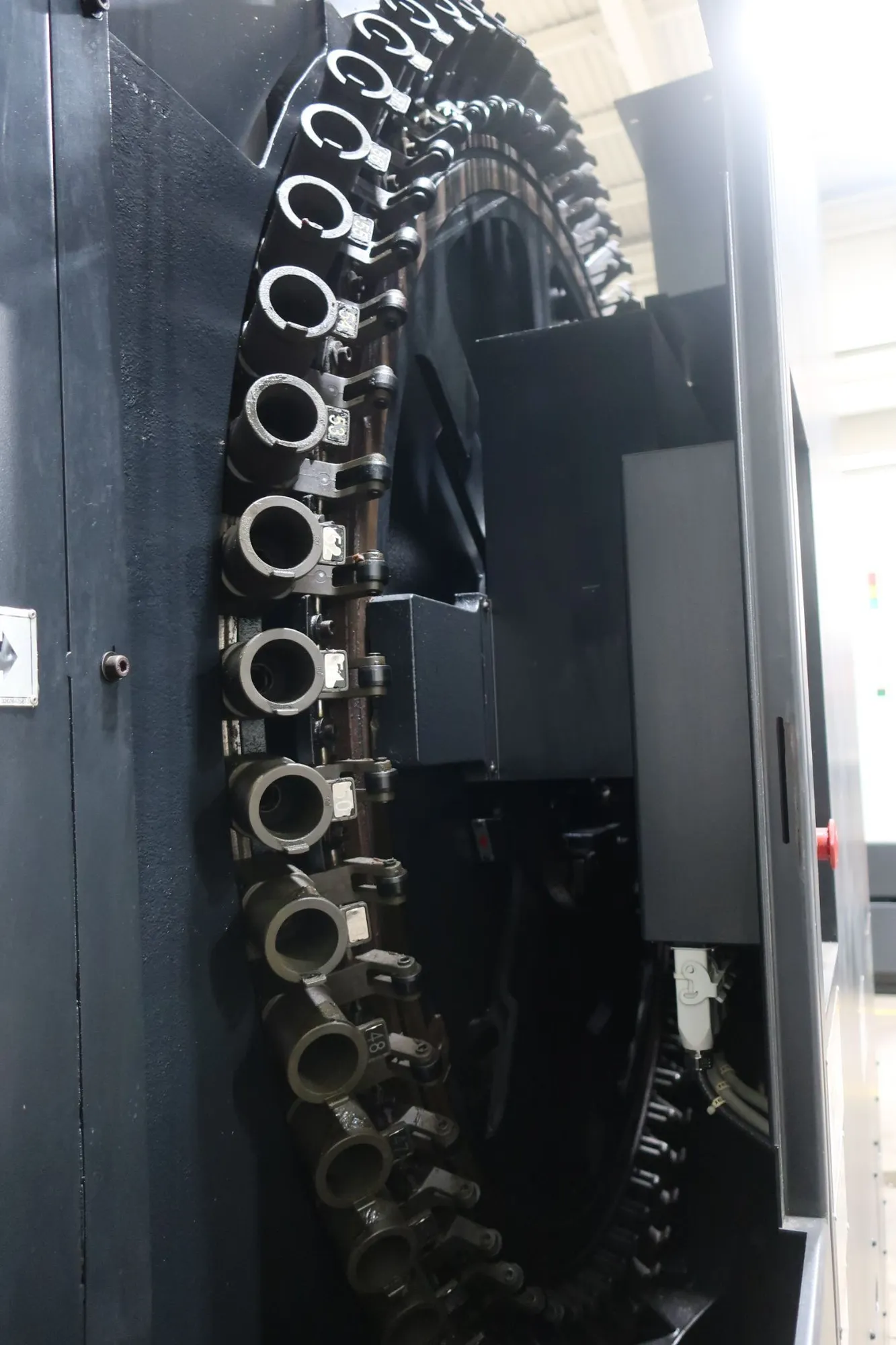

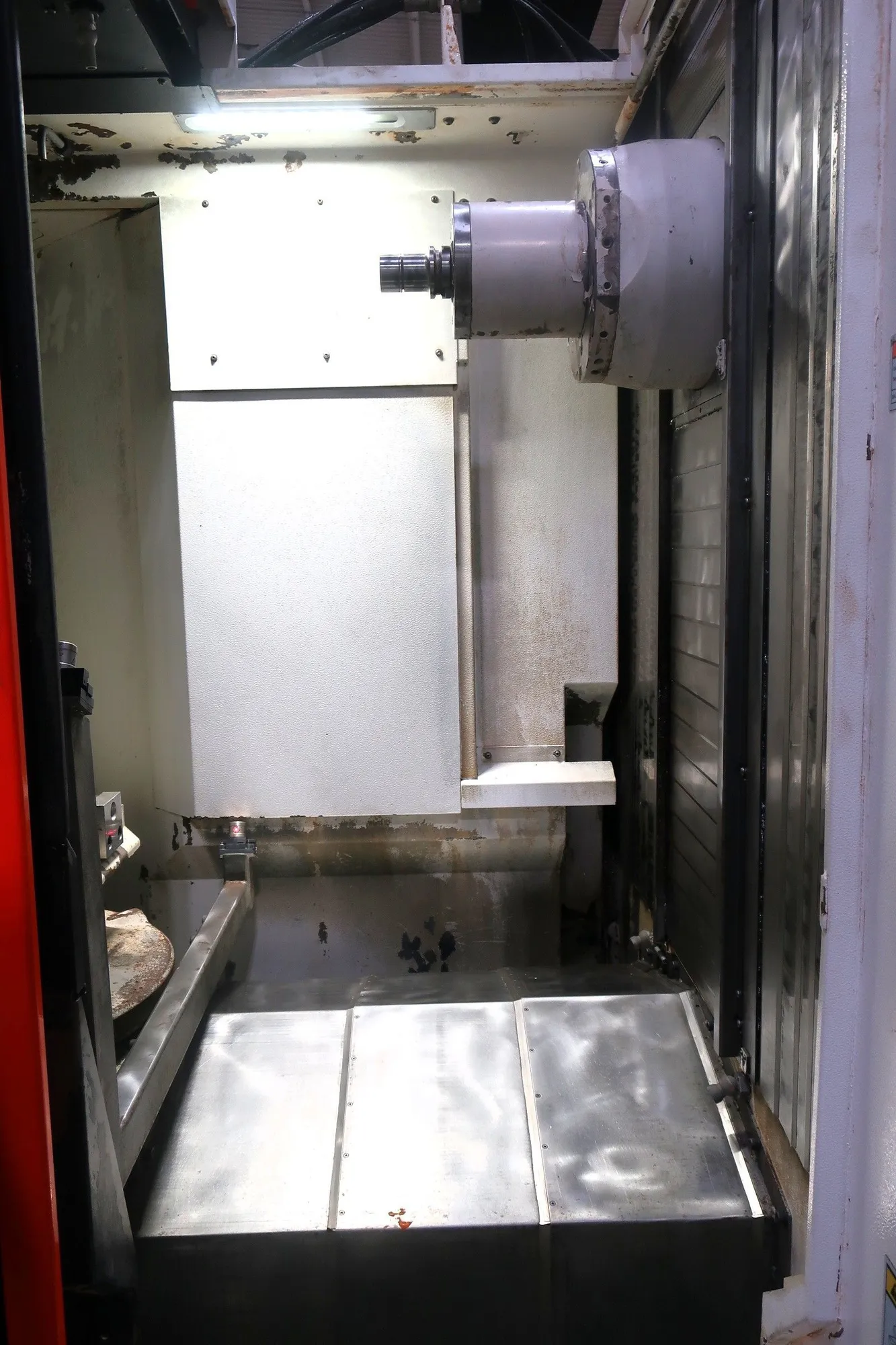

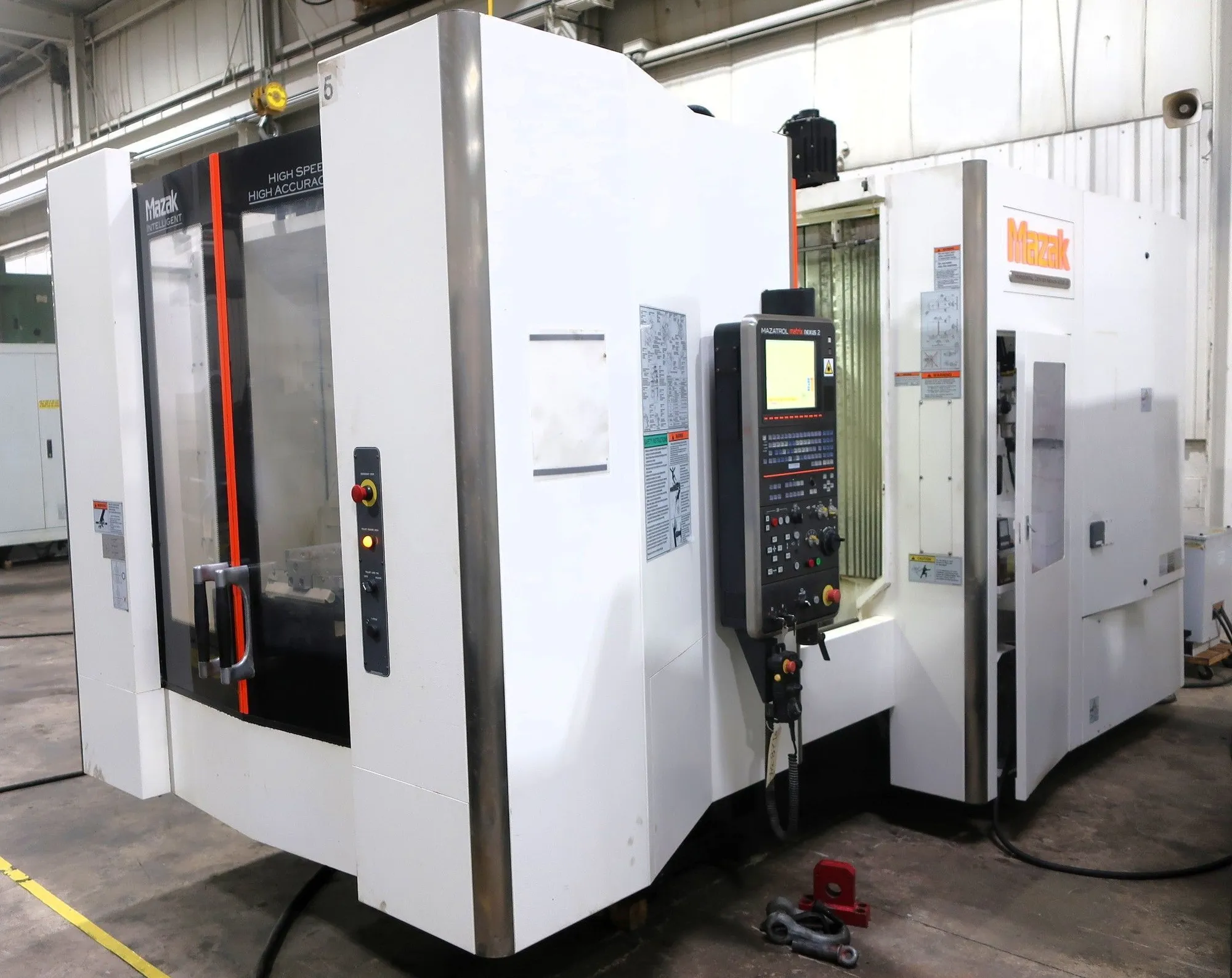

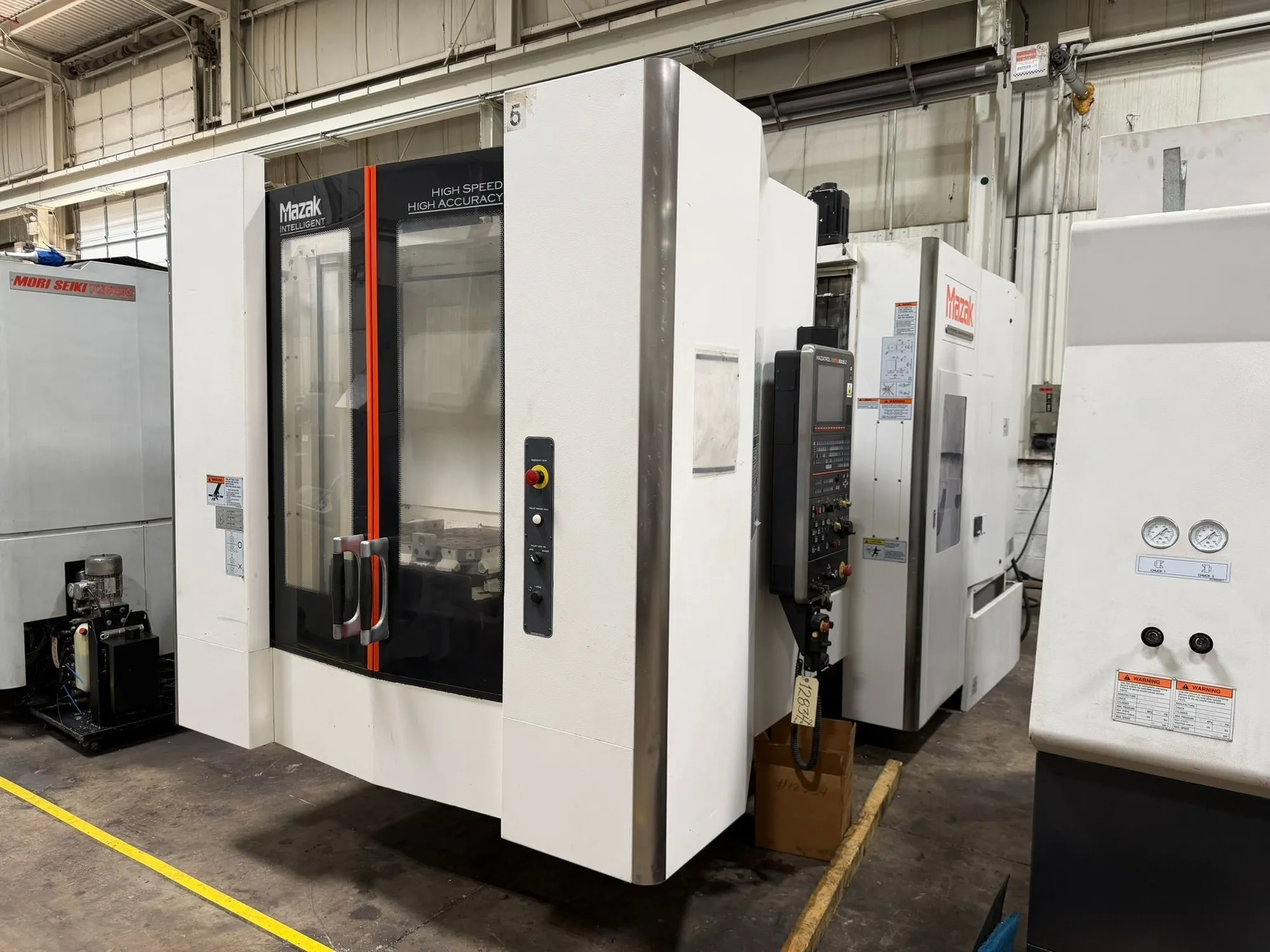

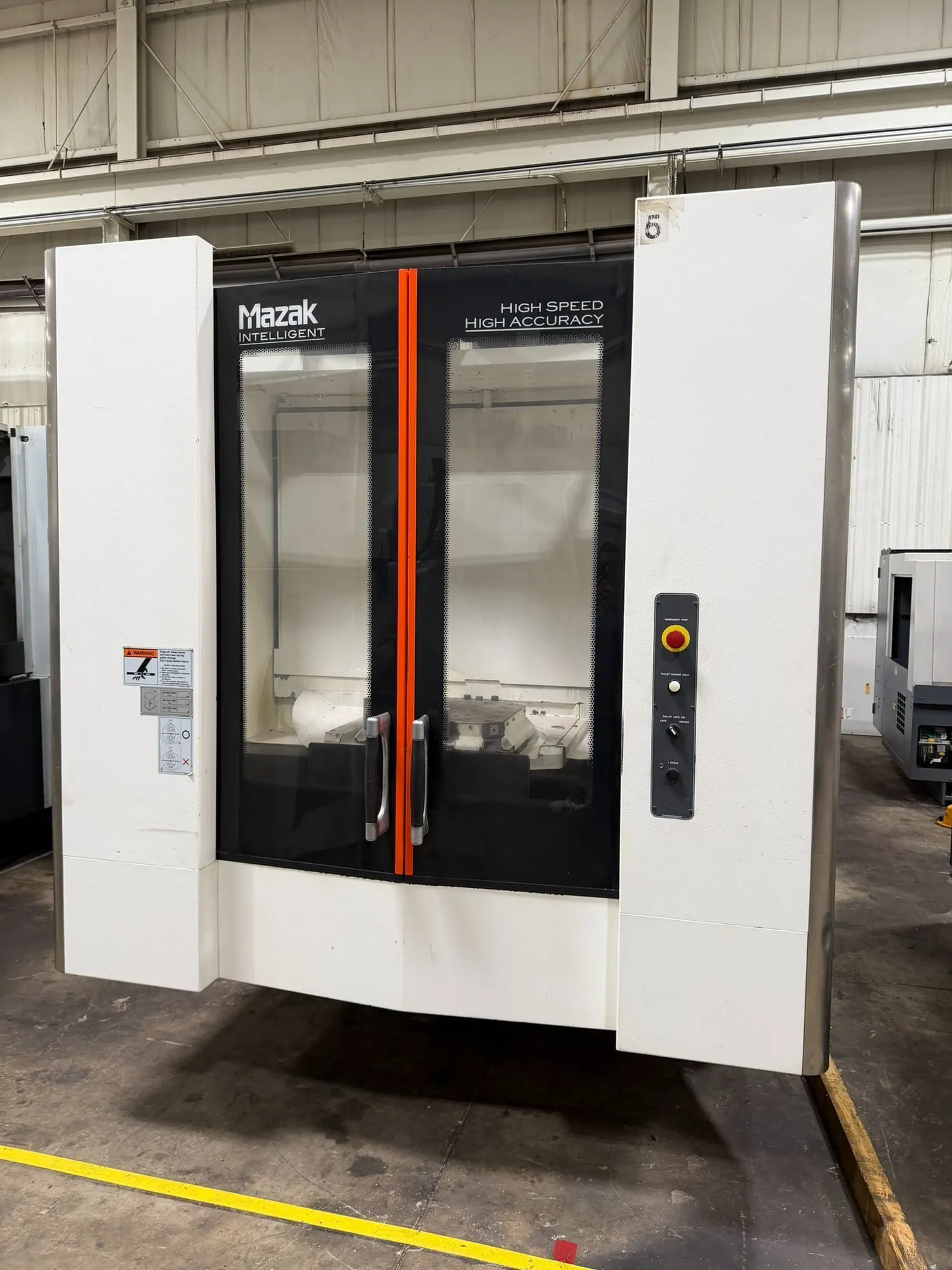

The Mazak Nexus HCN-4000-III is a 4-axis horizontal machining center manufactured in 2016, featuring a 16" x 16" pallet size. It provides axis travels of 22.05" in X, 24.8" in Y, and 25.2" in Z. The spindle delivers a maximum speed of 18,000 RPM with a 70mm bearing size and is powered by a 25 HP main drive motor. Feedrate performance includes a rapid traverse rate of 2,362 IPM and axis acceleration/deceleration of 1G. The machine is equipped with a Mazatrol Matrix Nexus 2 CNC control and an automatic tool changer with a 60-tool storage capacity for 40 taper tooling. Tool change specifications include a maximum tool diameter of 6.7", random shortest path selection, and a chip-to-chip time of 2.4 seconds. Additional technical features include a 1.3-second table indexing time for each 90 degrees, a distance from pallet center to spindle nose of 2.8" to 28.0", and a flood coolant pump motor. The machine's physical dimensions are 87" x 207" x 106.8" H, with a total weight of 23,584 lbs.
