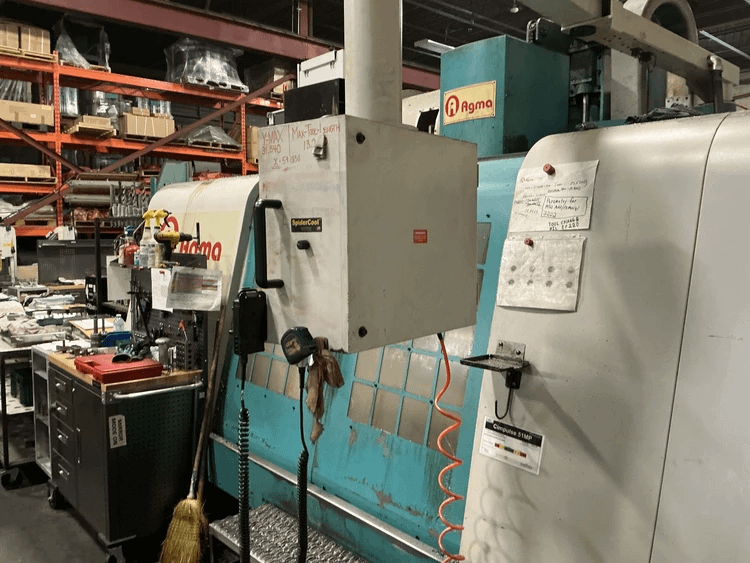

2007 Agma VMC-158 Vertical Machining Center 10000 RPM CAT40 15/20 HP FANUC 18I-Mb

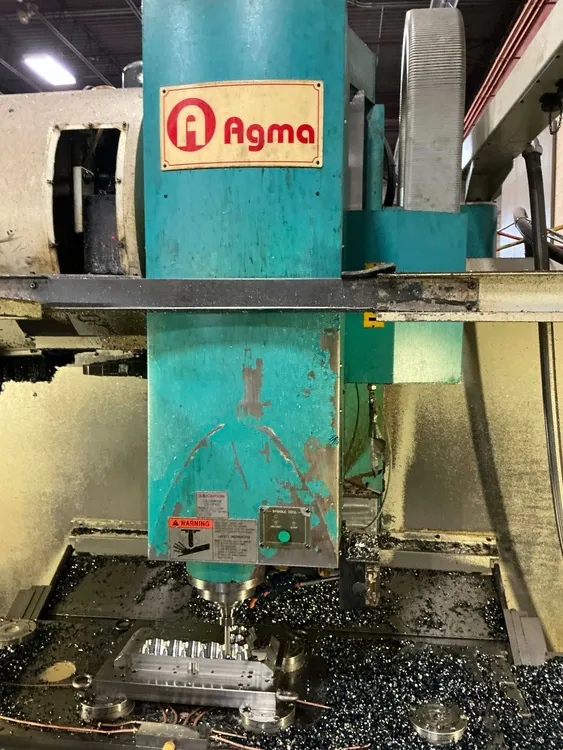

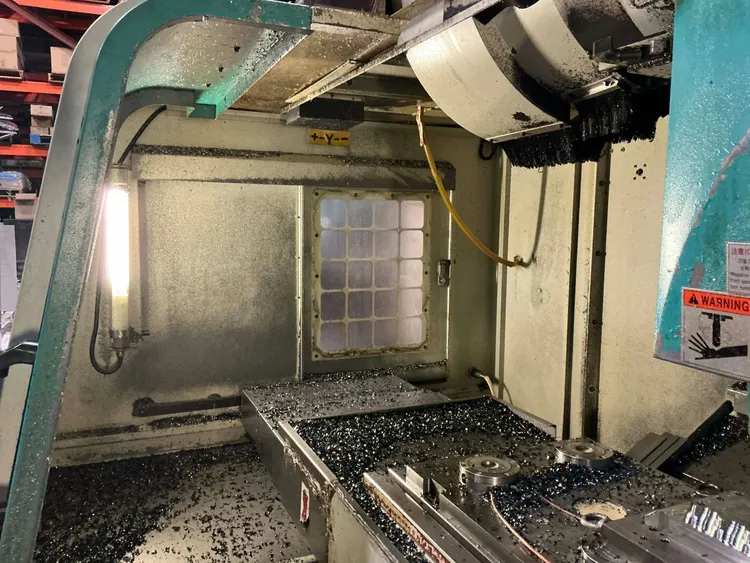

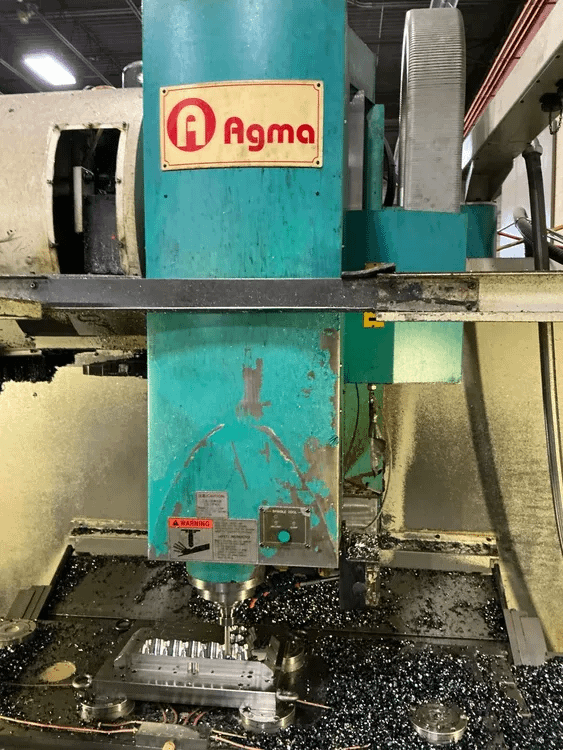

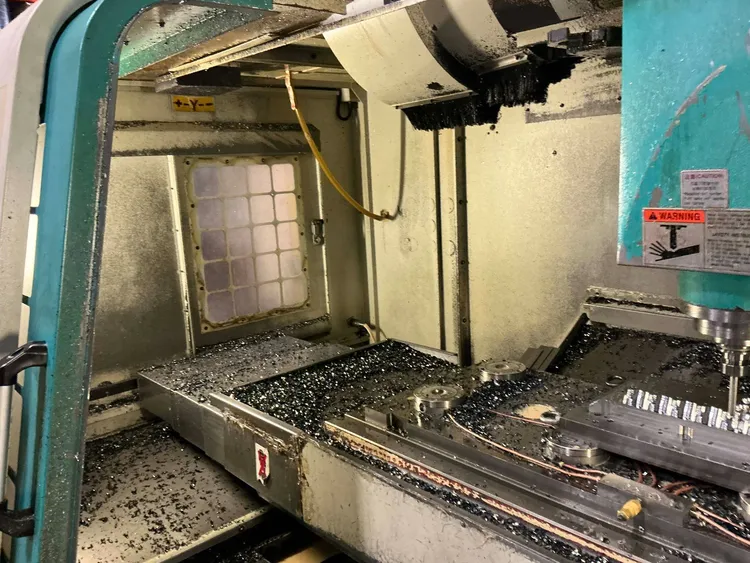

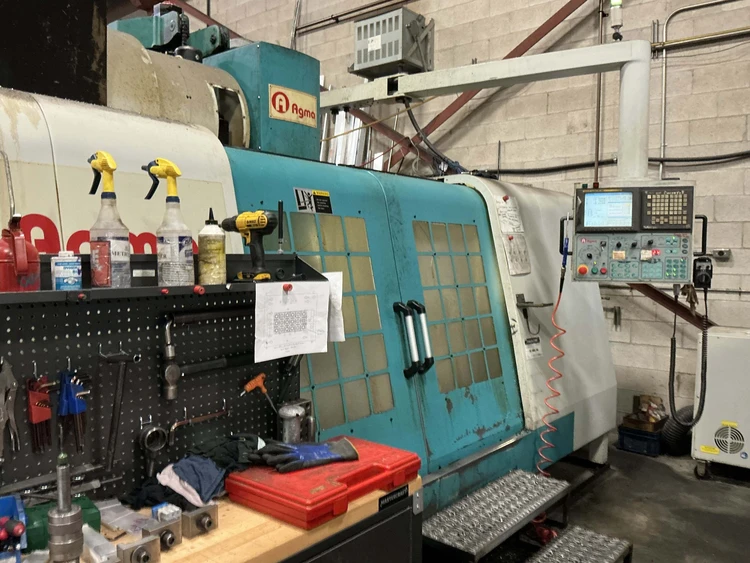

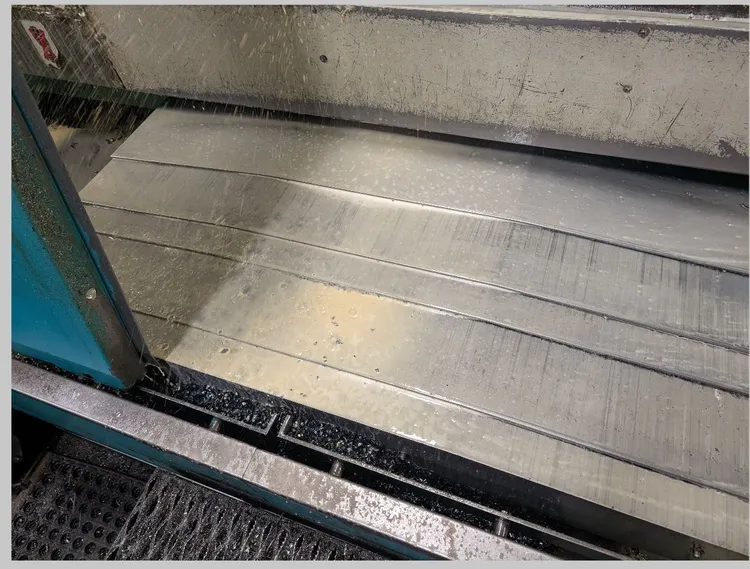

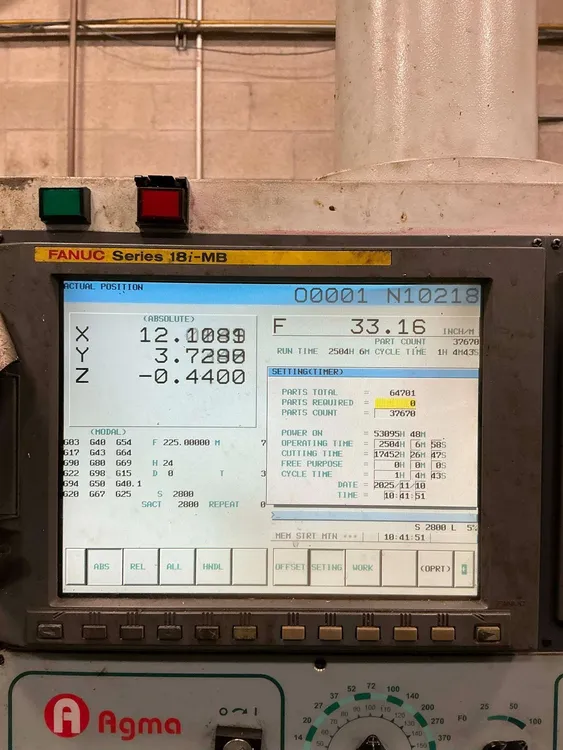

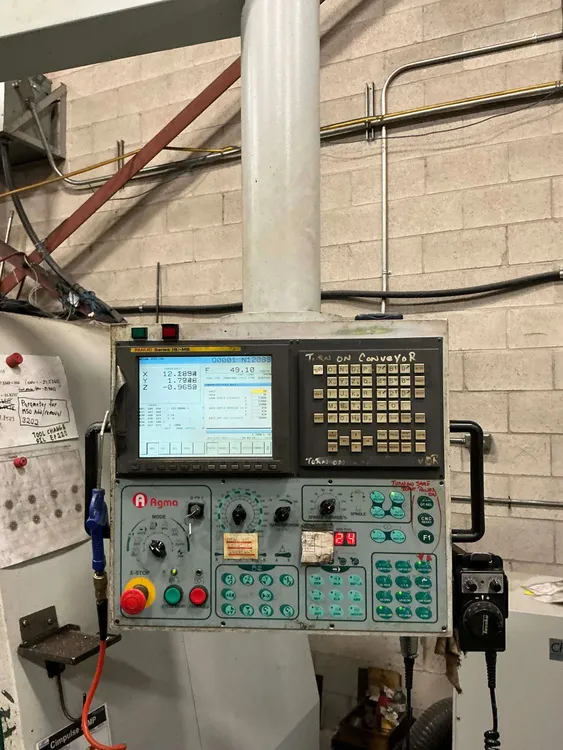

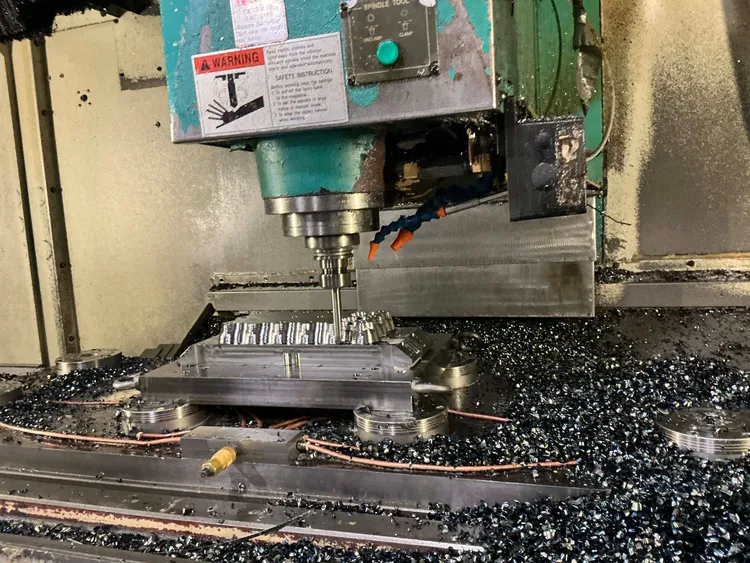

The 2007 Agma VMC-158 is a vertical machining center featuring box ways on the x, y, and z axes. It operates on 220V, 60Hz, 3ph power. Travel specifications include 59.06 inches (1500 mm) in x, 31.50 inches (800 mm) in y, and 34.5 inches (700 mm) in z. The machine is equipped with a 66.93 × 32.09 inch (1700 × 815 mm) table capable of supporting a maximum load of 4400 lb (2000 kg). The spindle system features a 10,000 RPM belt drive, a CAT40 taper, and a 15/20 HP motor, with the spindle nose to table distance ranging from 7.87–35.43 inches (200–900 mm). Rapid traverse rates are 590 IPM (15 m/min) for x/y and 472 IPM (12 m/min) for z. The machine utilizes an arm-type tool changer with a 24-tool magazine capacity and is controlled by a FANUC Series 18I-MB. It has a max cut feedrate of 10000 and weighs 33,000 lbs with machine dimensions of 179'' x 150'' x 131'' inches.
