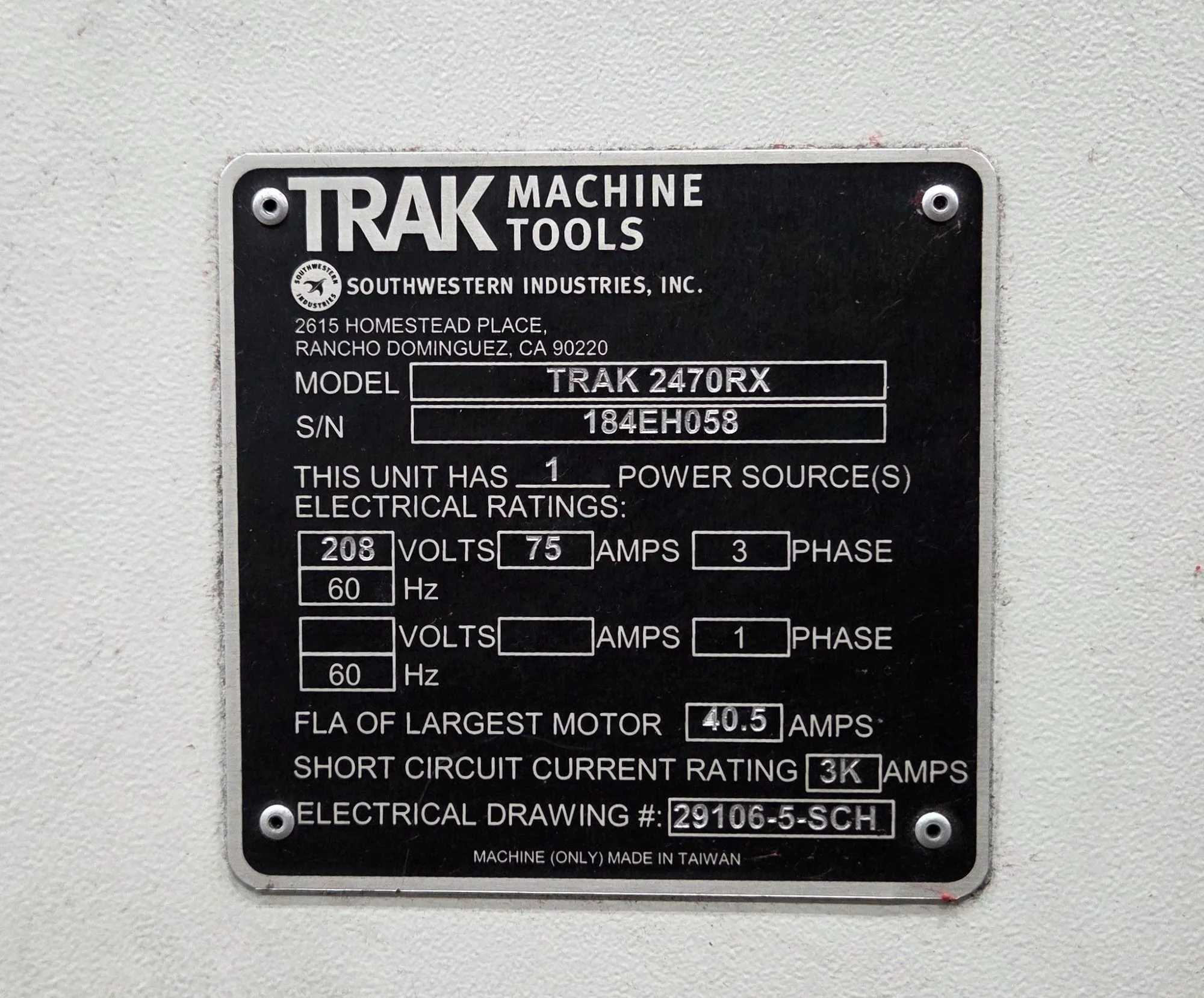

2018 SWI TRAK 2470RX Precision CNC/Manual Toolroom Lathe

24" x 70" SOUTHWESTERN INDUSTRIES TRAK 2470RX PRECISION CNC LATHE WITH PROTOTRAK RLX CONTROL, 4 Station Turret, TRAKing Software option Swing - 24" Machining Length - 70" # Axis - 2 Chuck Size - 12" Bar Capacity - 4.09" Power - 15 hp Max RPM - 1,800 RPM Tailstock - 'Yes' Live Tooling - 'No' Sub Spindle - 'No' Control - CNC (PROTOTRAK RLX CONTROL) Dimensions - 129” x 60” x 77” Weight - 6900 24" x 70" Southwestern Industries TRAK TRL 2470RX Toolroom Lathe Machine Specifications • Height of Centers – 12” • Distance between centers – 70” • Swing over bed – 24” • Swing over saddle wings – 24” • Swing over cross slide – 14.5” • Cross slide travel – 12.5” 4 Station Turret with 1" Tools • Tool section max – 1” • Coolant Reservoir – 15 gallons • Coolant pump motor – 1/8 HP (O) • Bed Width – 14.57” • Bed Height – 15” • Spindle Nose – D1-8 • Spindle through hole – 4.09” • Spindle Taper – MT #8 • Spindle diameter front bearing – 5.51” • Number of bearings – 2 • Number of Spindle Speed Ranges – 2 • Spindle Speed Range (RPM) – 40-670, 100-1800 • Spindle HP – 15 • Voltage – 200-240 • Amps/Full Load – 54.7A • Machine – 200V/3P/60Hz • Dimensions net (LxWxH) – 129” x 60” x 77” • Dimensions ship (LxWxH) – 134” x 64” x 77” • Weight net – 6500 lbs. • Weight ship – 6900 lbs. • Tail stock quill travel – 8.5" • Quill diameter – 3.5" • Quill taper hole – MT #5 • Dynamic spindle motor brake • Way surface hardness – 480-560 HB • Quiet operation • Dual sliding doors to control chips and coolant with one removable door • Meehanite cast monolithic base • Heavy ribbed base construction • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs • Maximum rapid – 400 ipm on z-axis ProtoTRAK RLX System Specifications Pendant Control Hardware • Two-axis CNC, two-axis DRO • Electronic Handwheels for manual operation • 15.6” LCD with Touchscreen • Intel® 2.0 GHz processor • 4 GB Ram • At least 32GB of mSATA SSD • 5 USB connectors • 2 Ethernet Ports (1 for user and 1 for control system) • Override of program feedrate • Override of spindle speed • LED status lights built into run panel • E-stop • Spindle Control (FWD, REV, OFF) • Feed STOP and GO • Fine vs Course EHW resolution control • Accessory button to control coolant and AUTO mode in RUN mode • Power Reset Button • Jogstick for convenient jog Computer Module Control Hardware • 2 axis motor control – X and Z axis, Axis to control CNC Turret • 14 inputs • 9 outputs Software Features – General Operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys – change within context • Windows® operating system • Color graphics with adjustable views • Gestures for pan, zoom, rotate • Inch/mm selectable • Convenient modes of operation • Networking Info Softkeys • Status • Tool Table • EPA • Math Help • Warnings • Defaults • Keyboard • Calculator DRO Mode Features for Manual Machining • Incremental and absolute dimensions • Powerfeed X or Z • GO TO • Do One – Tapers for any angle • Do One – Radius • Do One – Fillet • Thread Repair (O) • MAX RPM – set maximum RPM for spindle to run • Servo motion to return to home • Tool offsets from library • Spindle speed setting with override Program Mode Features TRAKing software option • Geometry-based programming • Incremental and absolute dimensions • Automatic tool nose radius cutter compensation • Circular interpolation • Linear interpolation • Look – graphics at all times • List step – graphics with programmed events displayed • Alphanumeric program names • Canned Cycles • Program data editing • Options within events • Math helps with graphical interface • Subroutine repeat of programmed events • Nesting • Programmable spindle speeds Canned Cycles • Position • Drill • Bore • Turn • Arc • Cycle • Thread • Groove • Tap (O) • Cut Off Edit Mode Features • Delete events • Search Edit (O) • Erase program • G Code Editor (O) • Clip Board (O) Set Up Mode Features • Program Diagnostics • Software travel limits • Tool path graphics with adjustable views • Verify Software • Service Codes • CNC Turret Homing • Advanced Diagnostics routines Run Mode Features • CAM file program run • G code file run with tool comp • Real time run graphics with tool icon Program In/Out Mode Features • Simple program storage to USB device or Network • CAM program converter • Converter for prior-generation ProtoTRAK programs • Open and Save Temp Feature • Cut, Copy, Delete, Paste of program(s) • Creating folders • Program Look preview of files Advanced Features Option – Lathes • Gang tool operation • Custom thread • Tap • Event comments • Thread repair • Verify – Make Part feature • Clipboard • G Code Edit • Search Edit 24" x 70" Southwestern Industries TRAK TRL 2470RX Toolroom Lathe Machine Specifications • Height of Centers – 12” • Distance between centers – 70” • Swing over bed – 24” • Swing over saddle wings – 24” • Swing over cross slide – 14.5” • Cross slide travel – 12.5” 4 Station Turret with 1" Tools • Tool section max – 1” • Coolant Reservoir – 15 gallons • Coolant pump motor – 1/8 HP (O) • Bed Width – 14.57” • Bed Height – 15” • Spindle Nose – D1-8 • Spindle through hole – 4.09” • Spindle Taper – MT #8 • Spindle diameter front bearing – 5.51” • Number of bearings – 2 • Number of Spindle Speed Ranges – 2 • Spindle Speed Range (RPM) – 40-670, 100-1800 • Spindle HP – 15 • Voltage – 200-240 • Amps/Full Load – 54.7A • Machine – 200V/3P/60Hz • Dimensions net (LxWxH) – 129” x 60” x 77” • Dimensions ship (LxWxH) – 134” x 64” x 77” • Weight net – 6500 lbs. • Weight ship – 6900 lbs. • Tail stock quill travel – 8.5" • Quill diameter – 3.5" • Quill taper hole – MT #5 • Dynamic spindle motor brake • Way surface hardness – 480-560 HB • Quiet operation • Dual sliding doors to control chips and coolant with one removable door • Meehanite cast monolithic base • Heavy ribbed base construction • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs • Maximum rapid – 400 ipm on z-axis ProtoTRAK RLX System Specifications Pendant Control Hardware • Two-axis CNC, two-axis DRO • Electronic Handwheels for manual operation • 15.6” LCD with Touchscreen • Intel® 2.0 GHz processor • 4 GB Ram • At least 32GB of mSATA SSD • 5 USB connectors • 2 Ethernet Ports (1 for user and 1 for control system) • Override of program feedrate • Override of spindle speed • LED status lights built into run panel • E-stop • Spindle Control (FWD, REV, OFF) • Feed STOP and GO • Fine vs Course EHW resolution control • Accessory button to control coolant and AUTO mode in RUN mode • Power Reset Button • Jogstick for convenient jog Computer Module Control Hardware • 2 axis motor control – X and Z axis, Axis to control CNC Turret • 14 inputs • 9 outputs Software Features – General Operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys – change within context • Windows® operating system • Color graphics with adjustable views • Gestures for pan, zoom, rotate • Inch/mm selectable • Convenient modes of operation • Networking Info Softkeys • Status • Tool Table • EPA • Math Help • Warnings • Defaults • Keyboard • Calculator DRO Mode Features for Manual Machining • Incremental and absolute dimensions • Powerfeed X or Z • GO TO • Do One – Tapers for any angle • Do One – Radius • Do One – Fillet • Thread Repair (O) • MAX RPM – set maximum RPM for spindle to run • Servo motion to return to home • Tool offsets from library • Spindle speed setting with override Program Mode Features TRAKing software option • Geometry-based programming • Incremental and absolute dimensions • Automatic tool nose radius cutter compensation • Circular interpolation • Linear interpolation • Look – graphics at all times • List step – graphics with programmed events displayed • Alphanumeric program names • Canned Cycles • Program data editing • Options within events • Math helps with graphical interface • Subroutine repeat of programmed events • Nesting • Programmable spindle speeds Canned Cycles • Position • Drill • Bore • Turn • Arc • Cycle • Thread • Groove • Tap (O) • Cut Off Edit Mode Features • Delete events • Search Edit (O) • Erase program • G Code Editor (O) • Clip Board (O) Set Up Mode Features • Program Diagnostics • Software travel limits • Tool path graphics with adjustable views • Verify Software • Service Codes • CNC Turret Homing • Advanced Diagnostics routines Run Mode Features • CAM file program run • G code file run with tool comp • Real time run graphics with tool icon Program In/Out Mode Features • Simple program storage to USB device or Network • CAM program converter • Converter for prior-generation ProtoTRAK programs • Open and Save Temp Feature • Cut, Copy, Delete, Paste of program(s) • Creating folders • Program Look preview of files Advanced Features Option – Lathes • Gang tool operation • Custom thread • Tap • Event comments • Thread repair • Verify – Make Part feature • Clipboard • G Code Edit • Search Edit 24" x 70" Southwestern Industries TRAK TRL 2470RX Toolroom Lathe Machine Specifications • Height of Centers – 12” • Distance between centers – 70” • Swing over bed – 24” • Swing over saddle wings – 24” • Swing over cross slide – 14.5” • Cross slide travel – 12.5” 4 Station Turret with 1" Tools • Tool section max – 1” • Coolant Reservoir – 15 gallons • Coolant pump motor – 1/8 HP (O) • Bed Width – 14.57” • Bed Height – 15” • Spindle Nose – D1-8 • Spindle through hole – 4.09” • Spindle Taper – MT #8 • Spindle diameter front bearing – 5.51” • Number of bearings – 2 • Number of Spindle Speed Ranges – 2 • Spindle Speed Range (RPM) – 40-670, 100-1800 • Spindle HP – 15 • Voltage – 200-240 • Amps/Full Load – 54.7A • Machine – 200V/3P/60Hz • Dimensions net (LxWxH) – 129” x 60” x 77” • Dimensions ship (LxWxH) – 134” x 64” x 77” • Weight net – 6500 lbs. • Weight ship – 6900 lbs. • Tail stock quill travel – 8.5" • Quill diameter – 3.5" • Quill taper hole – MT #5 • Dynamic spindle motor brake • Way surface hardness – 480-560 HB • Quiet operation • Dual sliding doors to control chips and coolant with one removable door • Meehanite cast monolithic base • Heavy ribbed base construction • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs • Maximum rapid – 400 ipm on z-axis ProtoTRAK RLX System Specifications Pendant Control Hardware • Two-axis CNC, two-axis DRO • Electronic Handwheels for manual operation • 15.6” LCD with Touchscreen • Intel® 2.0 GHz processor • 4 GB Ram • At least 32GB of mSATA SSD • 5 USB connectors • 2 Ethernet Ports (1 for user and 1 for control system) • Override of program feedrate • Override of spindle speed • LED status lights built into run panel • E-stop • Spindle Control (FWD, REV, OFF) • Feed STOP and GO • Fine vs Course EHW resolution control • Accessory button to control coolant and AUTO mode in RUN mode • Power Reset Button • Jogstick for convenient jog Computer Module Control Hardware • 2 axis motor control – X and Z axis, Axis to control CNC Turret • 14 inputs • 9 outputs Software Features – General Operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys – change within context • Windows® operating system • Color graphics with adjustable views • Gestures for pan, zoom, rotate • Inch/mm selectable • Convenient modes of operation • Networking Info Softkeys • Status • Tool Table • EPA • Math Help • Warnings • Defaults • Keyboard • Calculator DRO Mode Features for Manual Machining • Incremental and absolute dimensions • Powerfeed X or Z • GO TO • Do One – Tapers for any angle • Do One – Radius • Do One – Fillet • Thread Repair (O) • MAX RPM – set maximum RPM for spindle to run • Servo motion to return to home • Tool offsets from library • Spindle speed setting with override Program Mode Features TRAKing software option • Geometry-based programming • Incremental and absolute dimensions • Automatic tool nose radius cutter compensation • Circular interpolation • Linear interpolation • Look – graphics at all times • List step – graphics with programmed events displayed • Alphanumeric program names • Canned Cycles • Program data editing • Options within events • Math helps with graphical interface • Subroutine repeat of programmed events • Nesting • Programmable spindle speeds Canned Cycles • Position • Drill • Bore • Turn • Arc • Cycle • Thread • Groove • Tap (O) • Cut Off Edit Mode Features • Delete events • Search Edit (O) • Erase program • G Code Editor (O) • Clip Board (O) Set Up Mode Features • Program Diagnostics • Software travel limits • Tool path graphics with adjustable views • Verify Software • Service Codes • CNC Turret Homing • Advanced Diagnostics routines Run Mode Features • CAM file program run • G code file run with tool comp • Real time run graphics with tool icon Program In/Out Mode Features • Simple program storage to USB device or Network • CAM program converter • Converter for prior-generation ProtoTRAK programs • Open and Save Temp Feature • Cut, Copy, Delete, Paste of program(s) • Creating folders • Program Look preview of files Advanced Features Option – Lathes • Gang tool operation • Custom thread • Tap • Event comments • Thread repair • Verify – Make Part feature • Clipboard • G Code Edit • Search Edit
