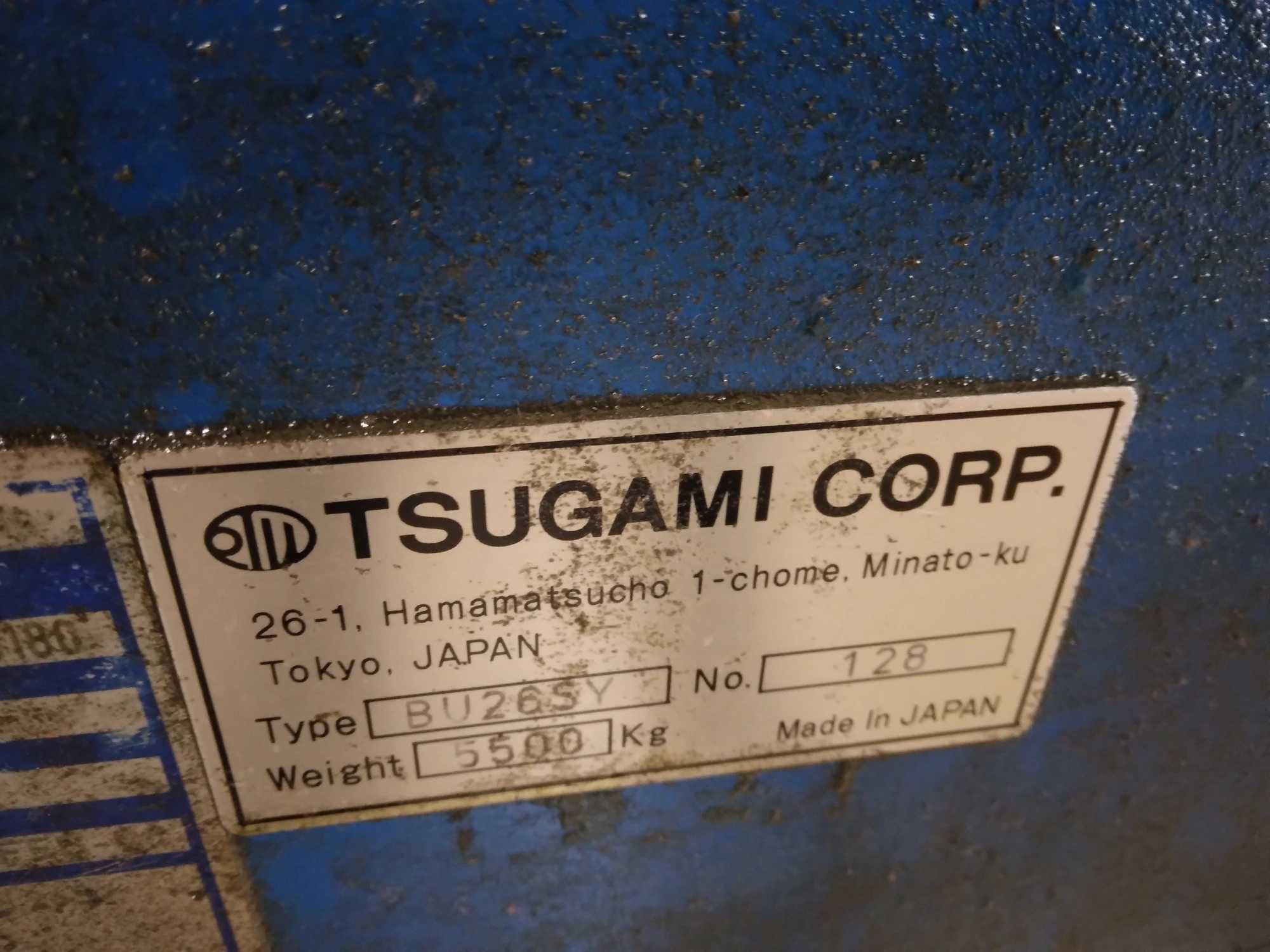

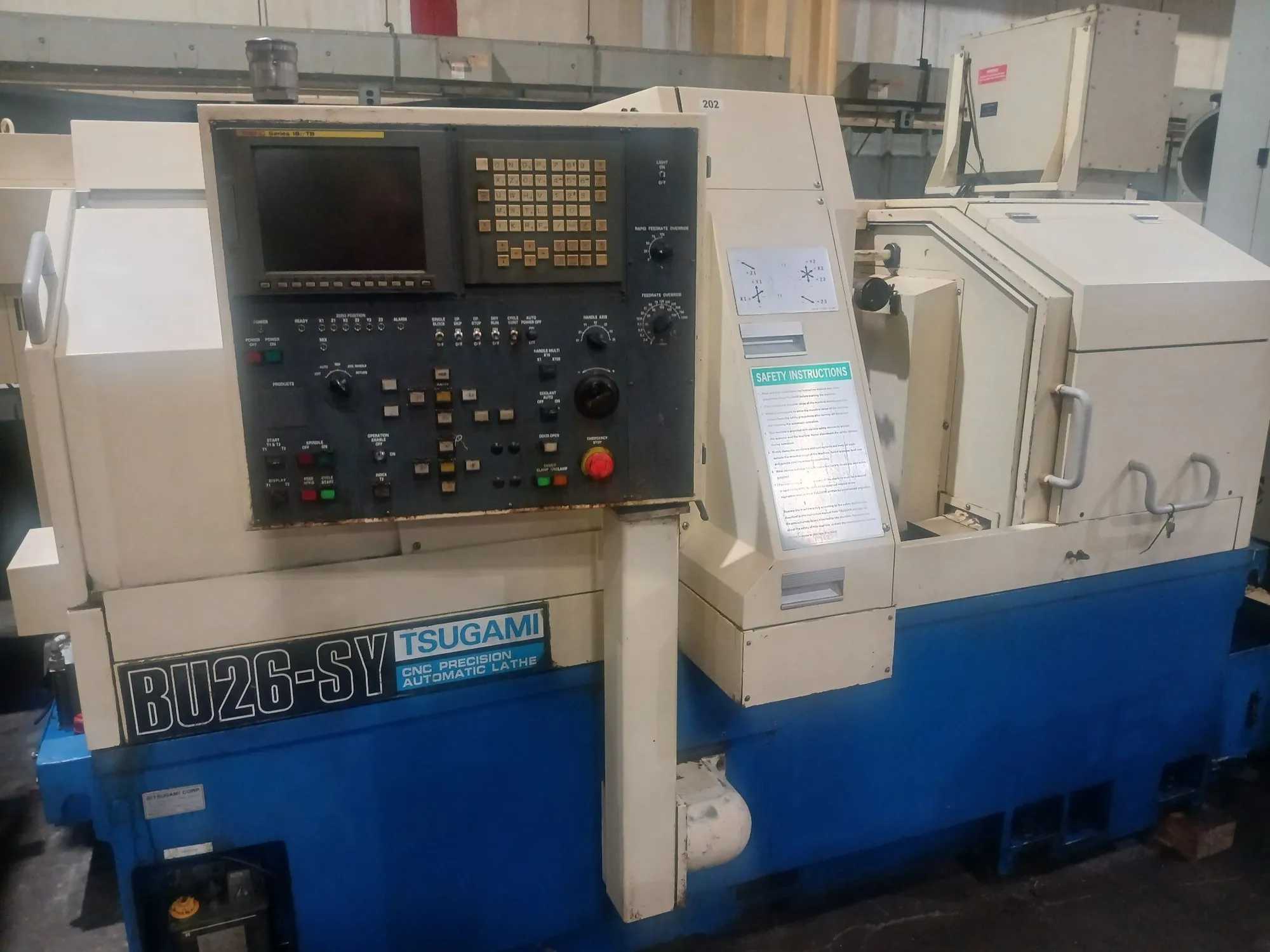

Tsugami BU-26SY CNC Swiss Lathe, 1" Capacity, 8-Axis, Gang Slide/Turret, FANUC 18ITB2

Asking Price:
$39,500.00

Financing From: $655/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

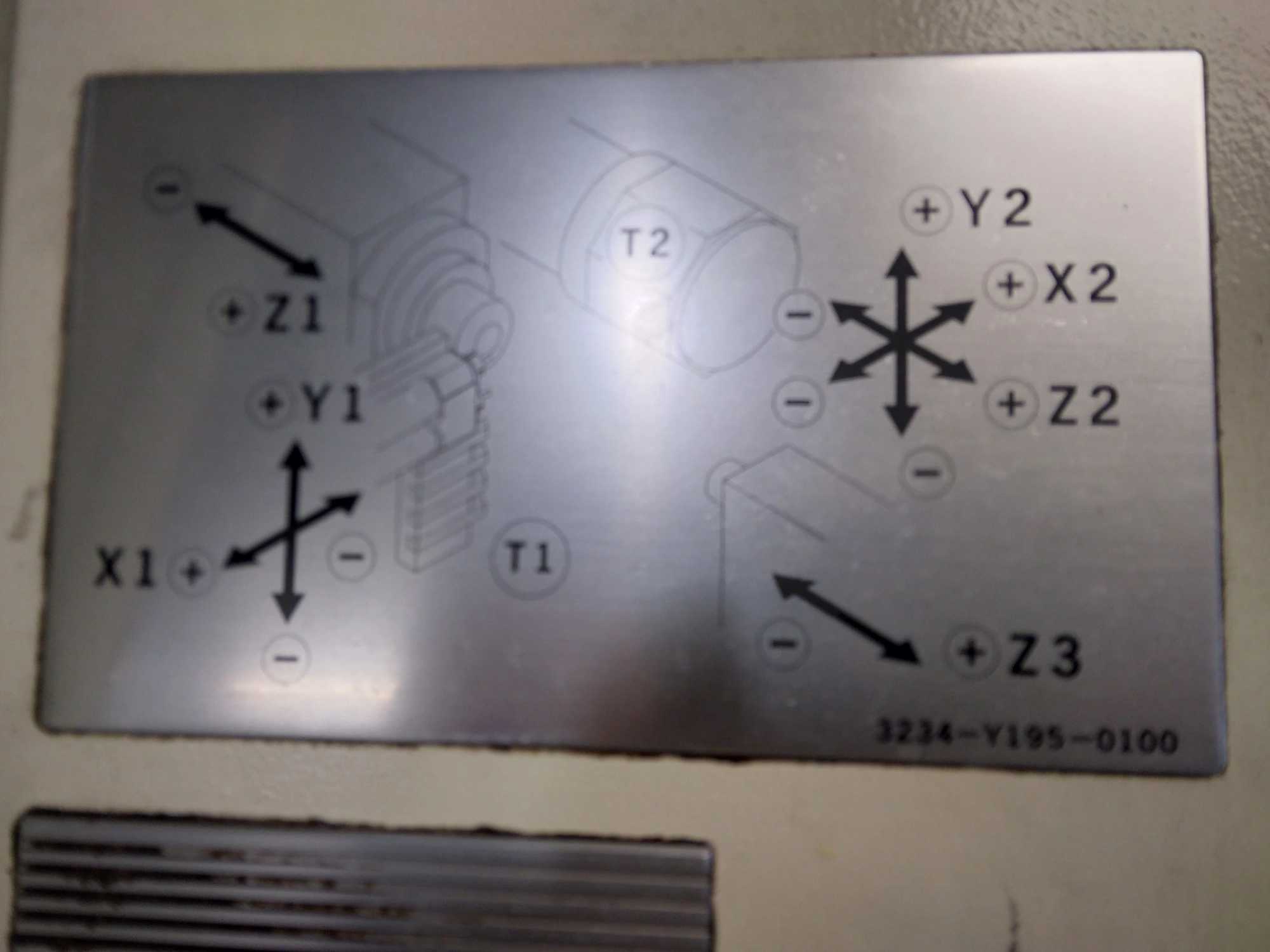

2006 Tsugami BU-26SY CNC Swiss Lathe with LNS Express Bar Feed. Features Fanuc 18iTB2 Control, full C Axis, Chip Blaster, 8-axis capability, and a range of collets/tool holders. Perfect for complex machining. Excellent capacity and power at 1" and 7.3 hp. Spindle Hole Dia - 1" Power - 7.3 hp RPM - 5,000 RPM # Axis - 8 Control - CNC Dimensions - 133 x 83 x 101 Weight - 12100 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe w/LNS Express Bar Feed Overview Type:[Swiss Screw Machines (CNC)](https://automatics.com/types/9535-swiss-screw-machines-cnc) Manufacturer:[Tsugami](https://automatics.com/brands/tsugami) Model:BU26SY Year:2006 Description 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe with LNS Express Bar Feed Equipped With Fanuc 18iTB2 CNC Control Full C Axis Control on Main Spindle C Axis Indexing on Sub Spindle (5 Degree Resolution) Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled) LNS Hydrobar Express 332 Bar Loader Collets and Guide Bushings Included Side Discharge Chip Conveyor Machine Leveling Pads. All Available Books & Manuals. Total Machine & Options Estimated Tool Holders Included: 8 Station Interchangeable Tool Holders QTY 1 - 3233-H040 - 4 Tool Turning Holder QTY 2 - 3233-Y340 - Double Cross Drilling Head ER16 QTY 1 - 3233-Y360 - Powered Cross Drill ER25 QTY 2 - 3233-H060 - Double Axial Drilling Holder QTY 1 - 3231-H010 – Single Axial Drill Holder (2) 29mm Channel Sets for 1” Cap. All Push Rods, Push Rod Channels, Flags, Collet Bearings, Collets. Collet Set 1”, 15/16”, 7/8”, 13/16”, 25/32” 17MM Channel Set All Push Rods & Channels, Collet Bearings ** There is no guarantee on condition of any components or accessories This machine is ready to ship! Specifications Capacity: 1" Power: 7.3 hp RPM: 5,000 RPM # Axis: 8 Swiss, Chucker or Convertible?: Swiss Main Spindle Indexing: Full C Sub Spindle Indexing: 5 degree Live Back Working Tools?: Yes B-Axis?: No Control: CNC (FANUC 18ITB2) Dimensions: 133" x 83" x 101" Weight: 12,100 lbs To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. General Specifications: Main Spindle Bar Capacity: 1.000" Turning Lengths: 9.842 " per Stroke Indexing Increments: Full C-Axis (.001 deg) Speeds: 6000 RPM Sub-Spindle Bar Capacity: 1.000 " Speed: 200 - 5000 Drive Motor: 7.3 hp Index Increment (Degrees): 5° Indexing (C Optional) Axis Specifications STD. Number of Axes: 8 Axis/ Travel/ Traverse rate/ Feed rate X1 (STD.) 1.378 Inch 472 IPM 236 IPM Z1 (STD.) 9.842 Inch 944 IPM 236 IPM C1 (STD.) 360.000 Deg. Y1 (STD.) 9.448 472 IPM 236 IPM X2 (STD.) 4.330 Inch 472 IPM 236 IPM Z2 (STD.) 5.511 Inch 944 IPM 236 IPM Y2 (STD.) 3.149 Inch 393 IPM 236 IPM Z3 (OPT.) 11.220 Inch 944 IPM 236 IPM Live Tool Speed: 5000 RPM Live Tool Motor: (HP): 15.0 Type/ Gang-Slide/ Turret -Max. number of tools Turning 7 8 Rotary 2 4 Square 0.500 " Round 0.750 " 1.000 " Rotary 0.250 " 0.500 " Rotary tooling Horse power .7 1.9 Speed 8000 rpm 5400 rpm There are a number of tools offered that allow for 2 - 4 tools on one holder On-Center Mill Drill Standard with 'C' Axis Off-Center Mill Drill Standard with 'Y' Axis Floor layout: Length: 137 " x Width: 80 " x Height: 69 " The Tsugami BU26Y (1" capacity) is a benchmark that sets the rules for power, rigidity, and longevity; it is the future of the Swiss-type machine technology. * Now, taking advantage of new control technology with Fanuc 18iT control, increased power and drives it's more efficient than ever. * A wide assortment of driven tools for the rear turret driven tool stations is available, also included are driven cross tools on the front slide, making this the most flexible of models. * An 8-station turret (3-axis), plus an independent gang tool slide with driven tools permits many simultaneous functions. Balanced turning, balanced threading, simultaneous front and back working. * Standard are a 15hp main spindle, 7.5hp sub-spindle with through feed capability, 8-axis including x1,x2,z1,z2,z3, and y. Excellent for complex machining. Machine: 133" x 83" x 101" 12,100 lbs Coolant/Chip Pan: 80" x 62" x 23" 250 lbs 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe w/LNS Express Bar Feed Overview Type:[Swiss Screw Machines (CNC)](https://automatics.com/types/9535-swiss-screw-machines-cnc) Manufacturer:[Tsugami](https://automatics.com/brands/tsugami) Model:BU26SY Year:2006 Description 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe with LNS Express Bar Feed Equipped With Fanuc 18iTB2 CNC Control Full C Axis Control on Main Spindle C Axis Indexing on Sub Spindle (5 Degree Resolution) Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled) LNS Hydrobar Express 332 Bar Loader Collets and Guide Bushings Included Side Discharge Chip Conveyor Machine Leveling Pads. All Available Books & Manuals. Total Machine & Options Estimated Tool Holders Included: 8 Station Interchangeable Tool Holders QTY 1 - 3233-H040 - 4 Tool Turning Holder QTY 2 - 3233-Y340 - Double Cross Drilling Head ER16 QTY 1 - 3233-Y360 - Powered Cross Drill ER25 QTY 2 - 3233-H060 - Double Axial Drilling Holder QTY 1 - 3231-H010 – Single Axial Drill Holder (2) 29mm Channel Sets for 1” Cap. All Push Rods, Push Rod Channels, Flags, Collet Bearings, Collets. Collet Set 1”, 15/16”, 7/8”, 13/16”, 25/32” 17MM Channel Set All Push Rods & Channels, Collet Bearings ** There is no guarantee on condition of any components or accessories This machine is ready to ship! Specifications Capacity: 1" Power: 7.3 hp RPM: 5,000 RPM # Axis: 8 Swiss, Chucker or Convertible?: Swiss Main Spindle Indexing: Full C Sub Spindle Indexing: 5 degree Live Back Working Tools?: Yes B-Axis?: No Control: CNC (FANUC 18ITB2) Dimensions: 133" x 83" x 101" Weight: 12,100 lbs To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. General Specifications: Main Spindle Bar Capacity: 1.000" Turning Lengths: 9.842 " per Stroke Indexing Increments: Full C-Axis (.001 deg) Speeds: 6000 RPM Sub-Spindle Bar Capacity: 1.000 " Speed: 200 - 5000 Drive Motor: 7.3 hp Index Increment (Degrees): 5° Indexing (C Optional) Axis Specifications STD. Number of Axes: 8 Axis/ Travel/ Traverse rate/ Feed rate X1 (STD.) 1.378 Inch 472 IPM 236 IPM Z1 (STD.) 9.842 Inch 944 IPM 236 IPM C1 (STD.) 360.000 Deg. Y1 (STD.) 9.448 472 IPM 236 IPM X2 (STD.) 4.330 Inch 472 IPM 236 IPM Z2 (STD.) 5.511 Inch 944 IPM 236 IPM Y2 (STD.) 3.149 Inch 393 IPM 236 IPM Z3 (OPT.) 11.220 Inch 944 IPM 236 IPM Live Tool Speed: 5000 RPM Live Tool Motor: (HP): 15.0 Type/ Gang-Slide/ Turret -Max. number of tools Turning 7 8 Rotary 2 4 Square 0.500 " Round 0.750 " 1.000 " Rotary 0.250 " 0.500 " Rotary tooling Horse power .7 1.9 Speed 8000 rpm 5400 rpm There are a number of tools offered that allow for 2 - 4 tools on one holder On-Center Mill Drill Standard with 'C' Axis Off-Center Mill Drill Standard with 'Y' Axis Floor layout: Length: 137 " x Width: 80 " x Height: 69 " The Tsugami BU26Y (1" capacity) is a benchmark that sets the rules for power, rigidity, and longevity; it is the future of the Swiss-type machine technology. * Now, taking advantage of new control technology with Fanuc 18iT control, increased power and drives it's more efficient than ever. * A wide assortment of driven tools for the rear turret driven tool stations is available, also included are driven cross tools on the front slide, making this the most flexible of models. * An 8-station turret (3-axis), plus an independent gang tool slide with driven tools permits many simultaneous functions. Balanced turning, balanced threading, simultaneous front and back working. * Standard are a 15hp main spindle, 7.5hp sub-spindle with through feed capability, 8-axis including x1,x2,z1,z2,z3, and y. Excellent for complex machining. Machine: 133" x 83" x 101" 12,100 lbs Coolant/Chip Pan: 80" x 62" x 23" 250 lbs 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe w/LNS Express Bar Feed Overview Type:[Swiss Screw Machines (CNC)](https://automatics.com/types/9535-swiss-screw-machines-cnc) Manufacturer:[Tsugami](https://automatics.com/brands/tsugami) Model:BU26SY Year:2006 Description 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe with LNS Express Bar Feed Equipped With Fanuc 18iTB2 CNC Control Full C Axis Control on Main Spindle C Axis Indexing on Sub Spindle (5 Degree Resolution) Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled) LNS Hydrobar Express 332 Bar Loader Collets and Guide Bushings Included Side Discharge Chip Conveyor Machine Leveling Pads. All Available Books & Manuals. Total Machine & Options Estimated Tool Holders Included: 8 Station Interchangeable Tool Holders QTY 1 - 3233-H040 - 4 Tool Turning Holder QTY 2 - 3233-Y340 - Double Cross Drilling Head ER16 QTY 1 - 3233-Y360 - Powered Cross Drill ER25 QTY 2 - 3233-H060 - Double Axial Drilling Holder QTY 1 - 3231-H010 – Single Axial Drill Holder (2) 29mm Channel Sets for 1” Cap. All Push Rods, Push Rod Channels, Flags, Collet Bearings, Collets. Collet Set 1”, 15/16”, 7/8”, 13/16”, 25/32” 17MM Channel Set All Push Rods & Channels, Collet Bearings ** There is no guarantee on condition of any components or accessories This machine is ready to ship! Specifications Capacity: 1" Power: 7.3 hp RPM: 5,000 RPM # Axis: 8 Swiss, Chucker or Convertible?: Swiss Main Spindle Indexing: Full C Sub Spindle Indexing: 5 degree Live Back Working Tools?: Yes B-Axis?: No Control: CNC (FANUC 18ITB2) Dimensions: 133" x 83" x 101" Weight: 12,100 lbs To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. General Specifications: Main Spindle Bar Capacity: 1.000" Turning Lengths: 9.842 " per Stroke Indexing Increments: Full C-Axis (.001 deg) Speeds: 6000 RPM Sub-Spindle Bar Capacity: 1.000 " Speed: 200 - 5000 Drive Motor: 7.3 hp Index Increment (Degrees): 5° Indexing (C Optional) Axis Specifications STD. Number of Axes: 8 Axis/ Travel/ Traverse rate/ Feed rate X1 (STD.) 1.378 Inch 472 IPM 236 IPM Z1 (STD.) 9.842 Inch 944 IPM 236 IPM C1 (STD.) 360.000 Deg. Y1 (STD.) 9.448 472 IPM 236 IPM X2 (STD.) 4.330 Inch 472 IPM 236 IPM Z2 (STD.) 5.511 Inch 944 IPM 236 IPM Y2 (STD.) 3.149 Inch 393 IPM 236 IPM Z3 (OPT.) 11.220 Inch 944 IPM 236 IPM Live Tool Speed: 5000 RPM Live Tool Motor: (HP): 15.0 Type/ Gang-Slide/ Turret -Max. number of tools Turning 7 8 Rotary 2 4 Square 0.500 " Round 0.750 " 1.000 " Rotary 0.250 " 0.500 " Rotary tooling Horse power .7 1.9 Speed 8000 rpm 5400 rpm There are a number of tools offered that allow for 2 - 4 tools on one holder On-Center Mill Drill Standard with 'C' Axis Off-Center Mill Drill Standard with 'Y' Axis Floor layout: Length: 137 " x Width: 80 " x Height: 69 " The Tsugami BU26Y (1" capacity) is a benchmark that sets the rules for power, rigidity, and longevity; it is the future of the Swiss-type machine technology. * Now, taking advantage of new control technology with Fanuc 18iT control, increased power and drives it's more efficient than ever. * A wide assortment of driven tools for the rear turret driven tool stations is available, also included are driven cross tools on the front slide, making this the most flexible of models. * An 8-station turret (3-axis), plus an independent gang tool slide with driven tools permits many simultaneous functions. Balanced turning, balanced threading, simultaneous front and back working. * Standard are a 15hp main spindle, 7.5hp sub-spindle with through feed capability, 8-axis including x1,x2,z1,z2,z3, and y. Excellent for complex machining. Machine: 133" x 83" x 101" 12,100 lbs Coolant/Chip Pan: 80" x 62" x 23" 250 lbs

Core Specifications

Manufacturer: TSUGAMI

Model: BU-26SY

Year: 2006

Dimensions: 137 in L x 83 in W x 101 in H

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
