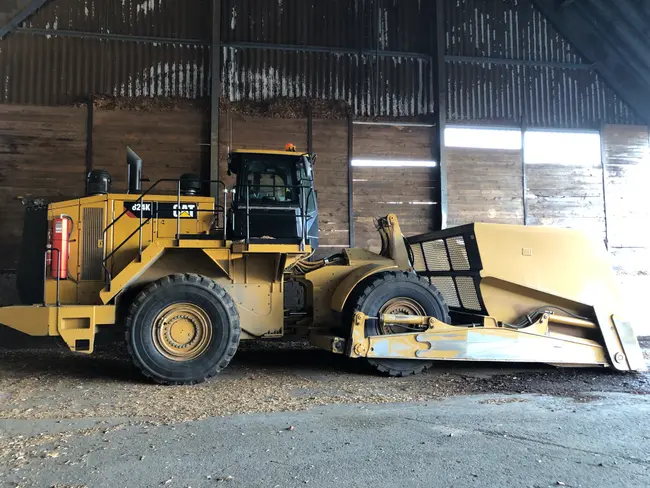

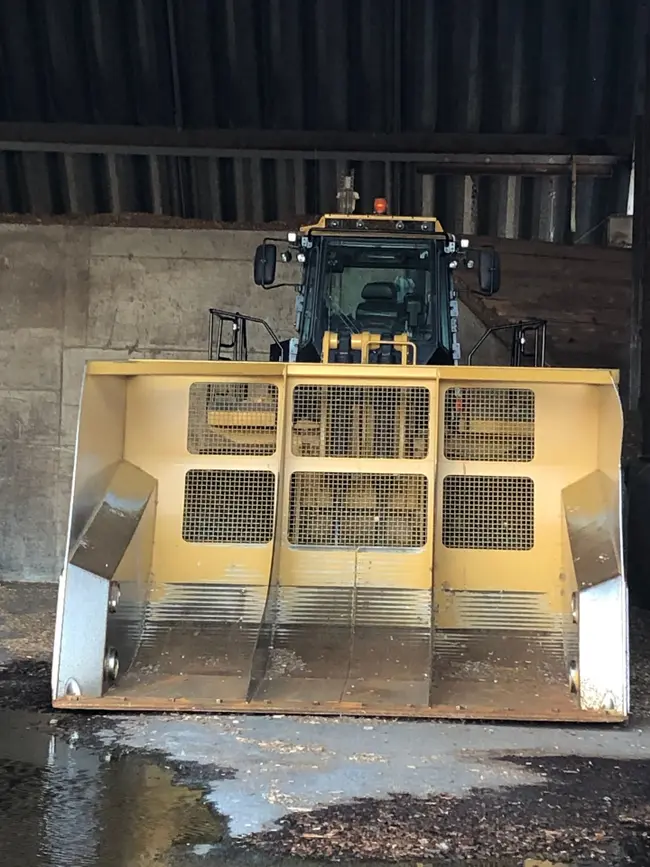

2019 CAT 824K WHEEL DOZER WITH 27 YARD CAPACITY HOURS: 19,157.7 TECHNICAL SPECIFICATIONS ENGINE: - MANUFACTURER: CATERPILLAR - MODEL: C7.1 ACERT - NET HORSEPOWER: 168 KW (225 HP) AT 1700 RPM - DISPLACEMENT: 7.1 LITERS - NUMBER OF CYLINDERS: 6 - BORE AND STROKE: 105 MM X 135 MM - COMPRESSION RATIO: 17.2:1 - FUEL TYPE: DIESEL TRANSMISSION: - TYPE: 4-SPEED POWERSHIFT - TORQUE CONVERTER TYPE: SINGLE STAGE, 3-ELEMENT - SHIFT TYPE: PLANETARY POWER SHIFT WITH ELECTRONIC CONTROL - FORWARD AND REVERSE SPEEDS: 4 HYDRAULIC SYSTEM: - TYPE: OPEN CENTER, LOAD SENSING - SYSTEM PRESSURE: 2812 PSI - PUMP FLOW CAPACITY: 92.1 GAL/MIN - LIFT ARMS: DOUBLE ACTING CYLINDERS - BUCKET: DOUBLE ACTING CYLINDER LIFT AND DUMP PERFORMANCE: - RAISE TIME: 7.1 SEC - DUMP TIME: 1.6 SEC - LOWER TIME: 3.5 SEC STEERING: - TYPE: ARTICULATED - TURNING RADIUS: 19 FT 7 IN. - STEERING MODE: KL BRAKES: - TYPE: WET DISC, MULTIPLE CALIPER - SERVICE BRAKES: ALL FOUR WHEELS - PARKING BRAKE: SPRING APPLIED, HYDRAULICALLY RELEASED TIRES: - SIZE: 23.5R25 CAB: - ROPS/FOPS WITH A/C - SEAT: AIR SUSPENSION - CONTROLS: PILOT OPERATED JOYSTICKS - INSTRUMENTATION: DIGITAL DISPLAY WITH GAUGES FOR ENGINE SPEED, COOLANT TEMPERATURE, HYDRAULIC PRESSURE, FUEL LEVEL, AND TRANSMISSION SPEED DIMENSIONS: - LENGTH: 29 FT 1 IN. - WIDTH: 11 FT 4 IN. - HEIGHT: 19 FT 3 IN. - GROUND CLEARANCE: 15 IN. WEIGHT: - OPERATING WEIGHT: 41644 LBS (18890 KG) BUCKET CAPACITY: - VOLUME: 3.75 - 5.75 CU YDS (2 - 4 M³) MAX BREAKOUT FORCE: - FORCE: 40690 LBF (181 KN) ADDITIONAL SPECIFICATIONS: - MAXIMUM TRAVEL SPEED: 16 MPH - MAXIMUM GRADEABILITY: 30% - MAXIMUM BLADE DOWNFORCE: 50,000 LBS - MAXIMUM BLADE LIFT CAPACITY: 40,000 LBS - TURNING CIRCLE DIAMETER: 37 FT - SOUND PRESSURE LEVEL: 78 DBA - EMISSIONS RATING: TIER 4 FINAL
