2024 Otinus FLC-3015-3000W Enclosed CNC Laser Cutting Machine - 1985 Lb Capacity

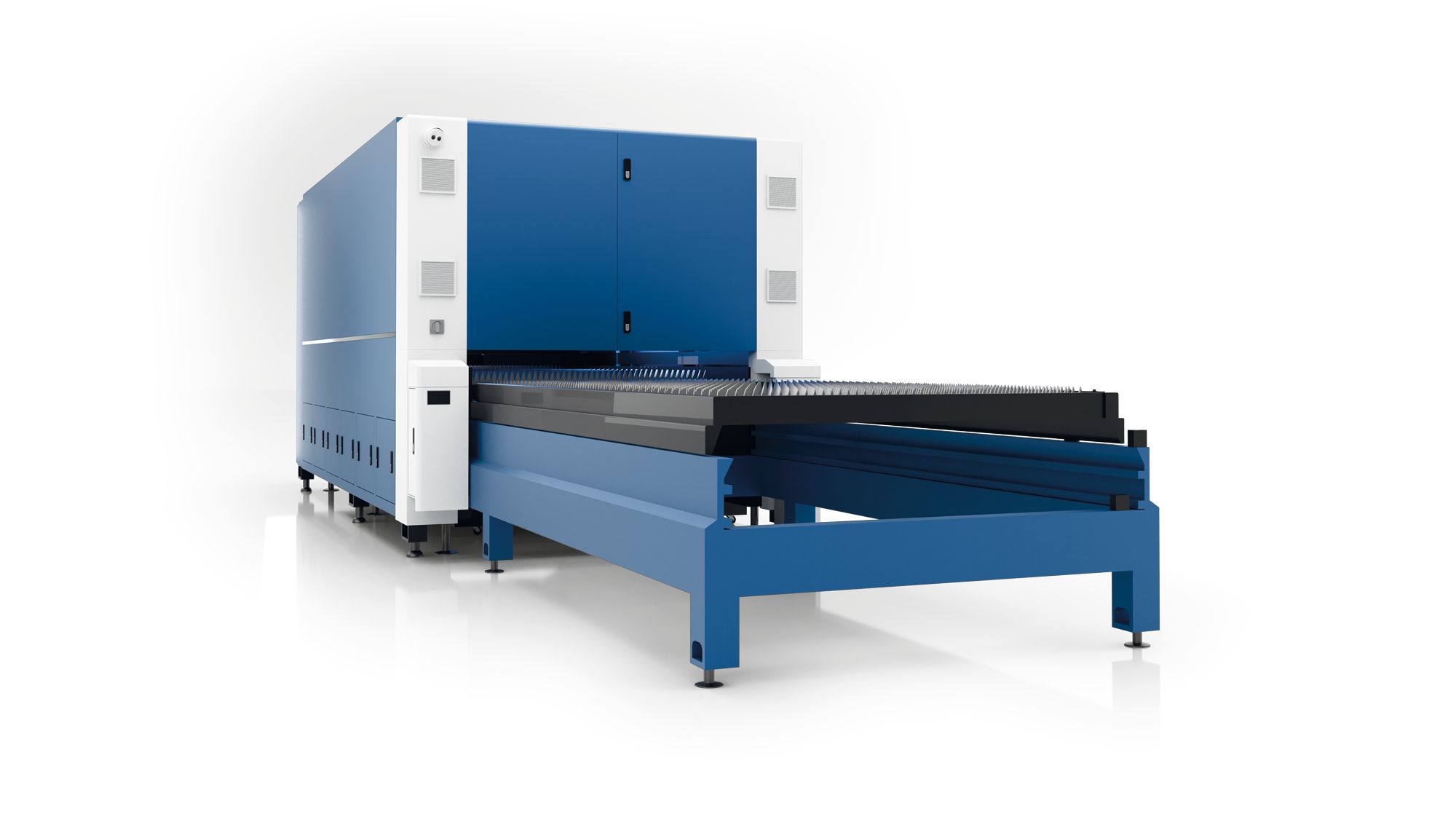

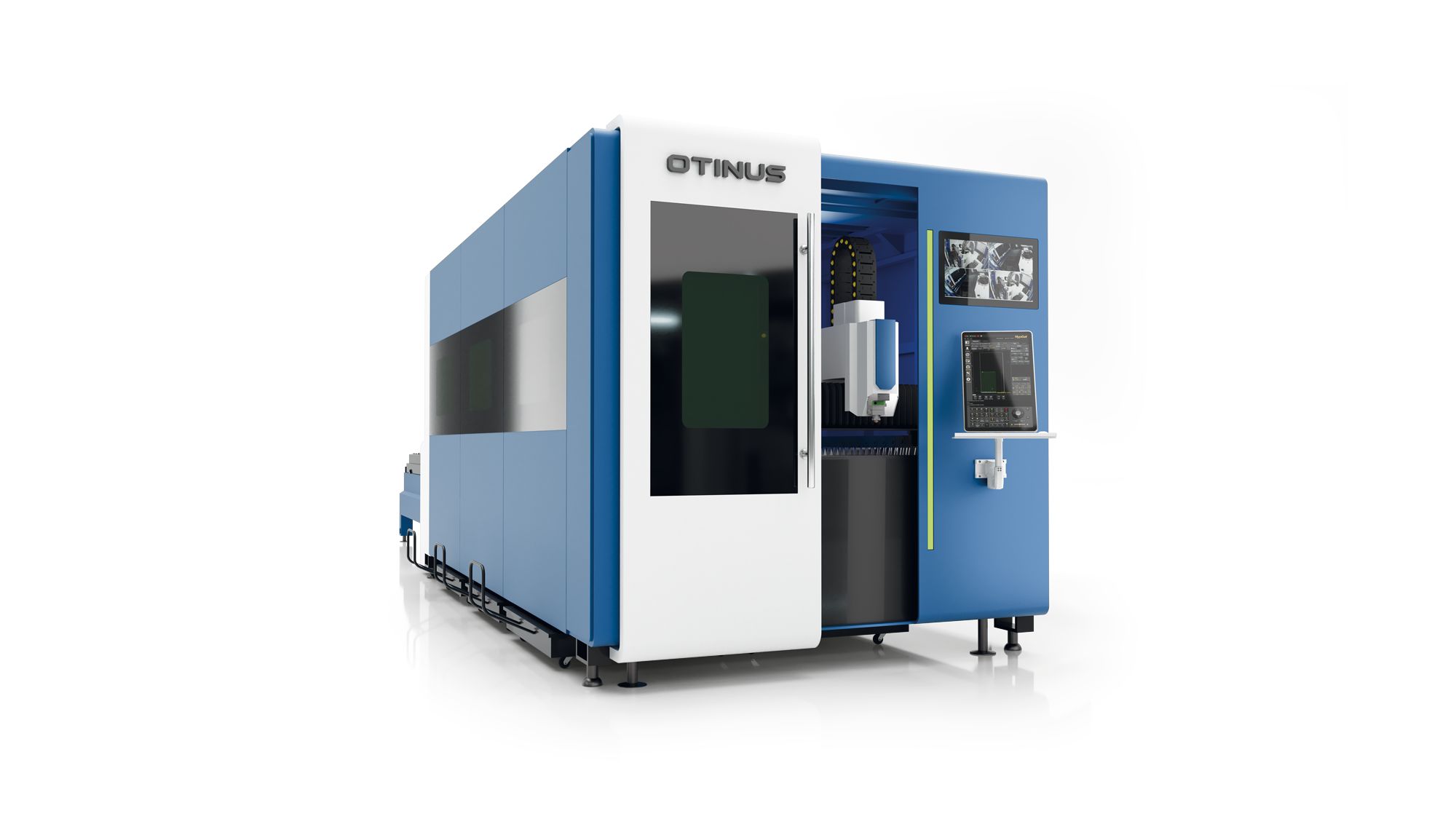

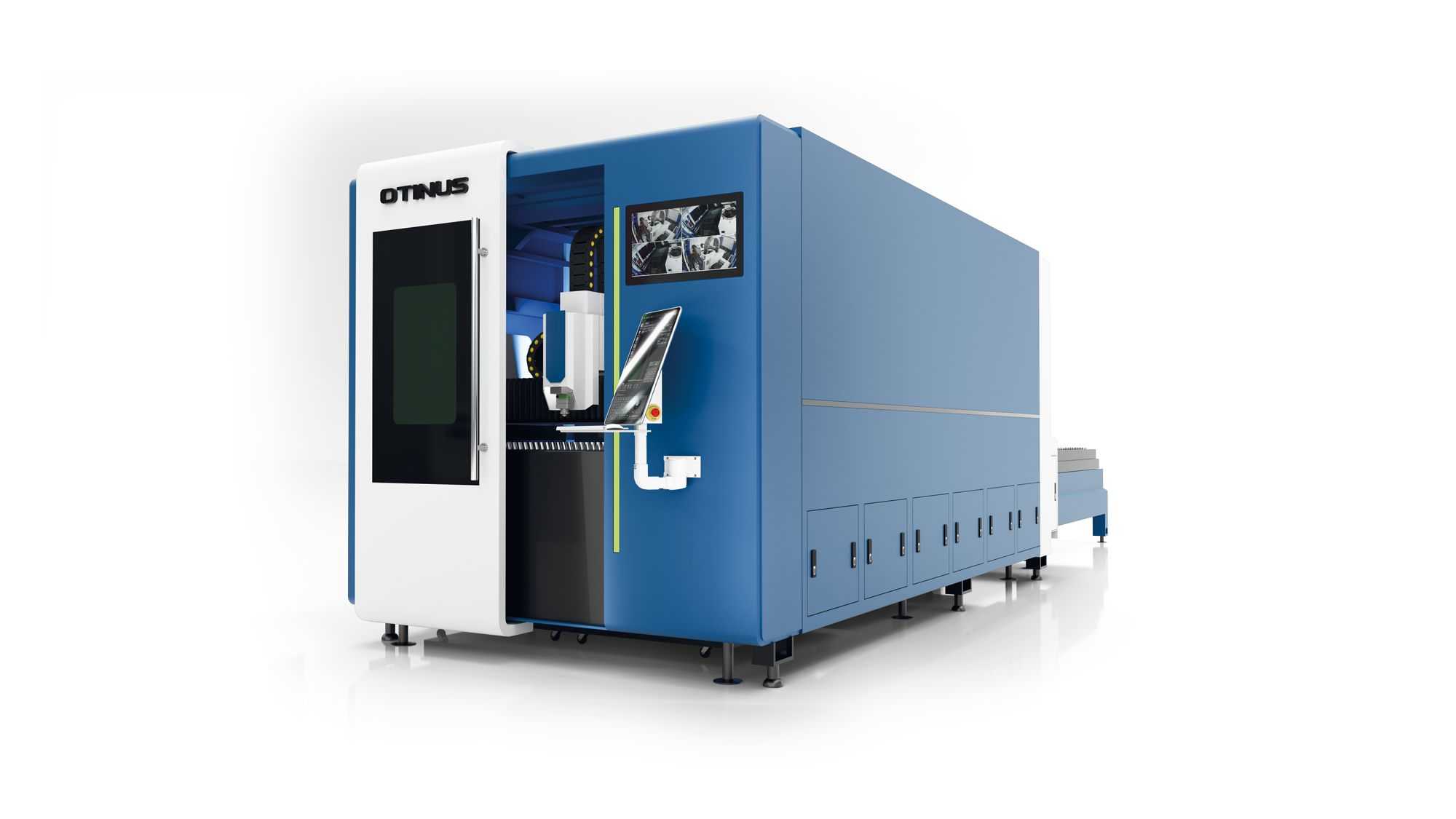

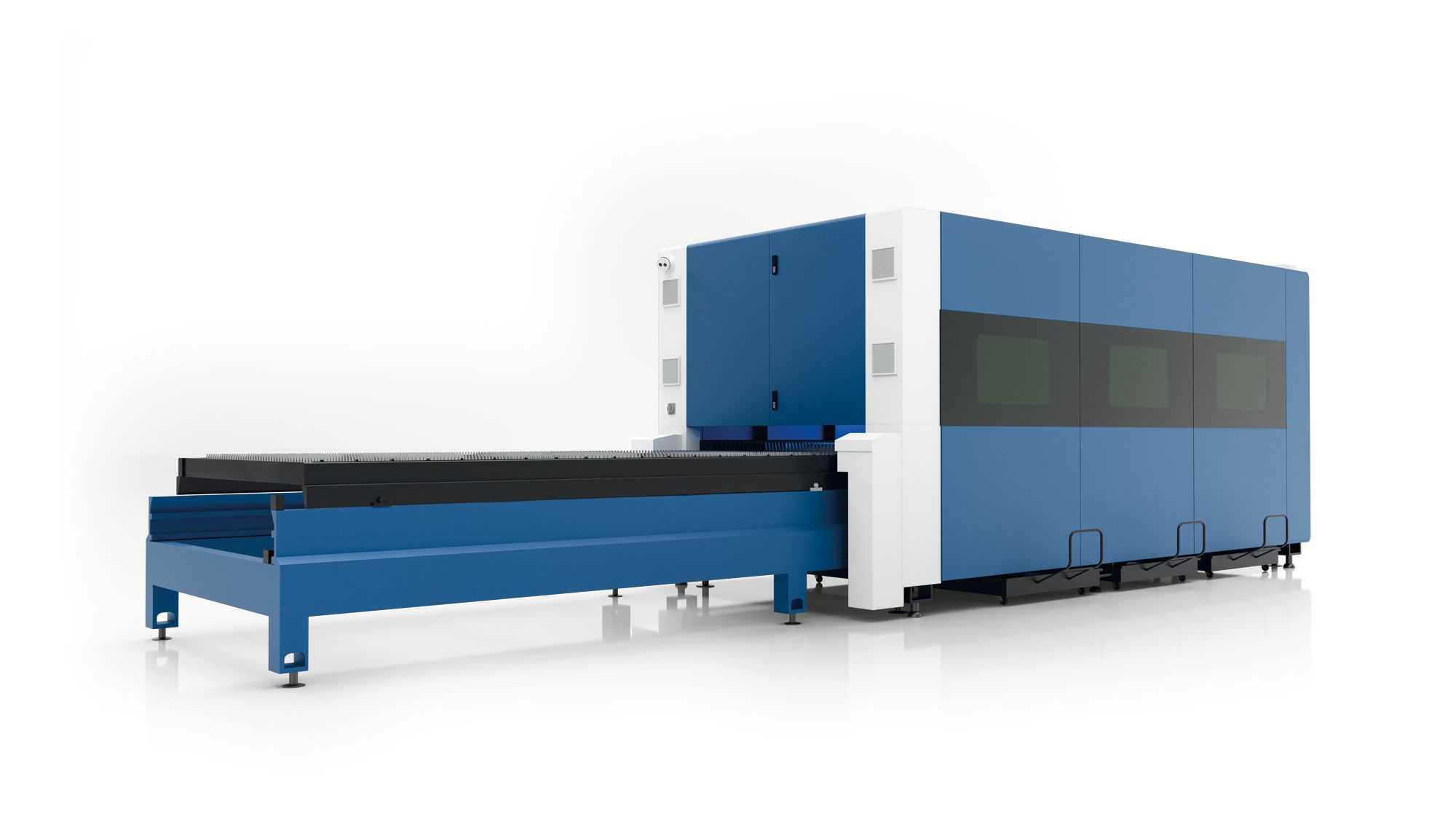

The 2024 Otinus FLC-3015-3000W is an enclosed CNC fiber laser cutting machine powered by a 3 kW Maxphotonics laser source. It features a working area of 120 x 60 in (3000 x 1500 mm) and a Z-axis head travel of 13 in (330 mm), with a table load capacity of 1985 lb (900 kg). Overall machine dimensions are 349 x 89 x 97 in (8865 x 2270 x 2476 mm). Constructed with a monolithic steel frame and an aluminium cross beam, the machine achieves simultaneous X and Y positioning speeds of up to 4528 in/min (115 m/min) with an acceleration of 1.53 G (15 m/s²). The drive system utilizes Yaskawa SGD series or Schneider LXM series drives, featuring helical teeth rack and pinion transmission for the X and Y axes, and a ball screw transmission for the Z axis. Additional specifications include an automatic lubrication system, a built-in sectional collector for dust extraction, manual pull-out trays for scrap and small part sorting, and a 24-month warranty.
