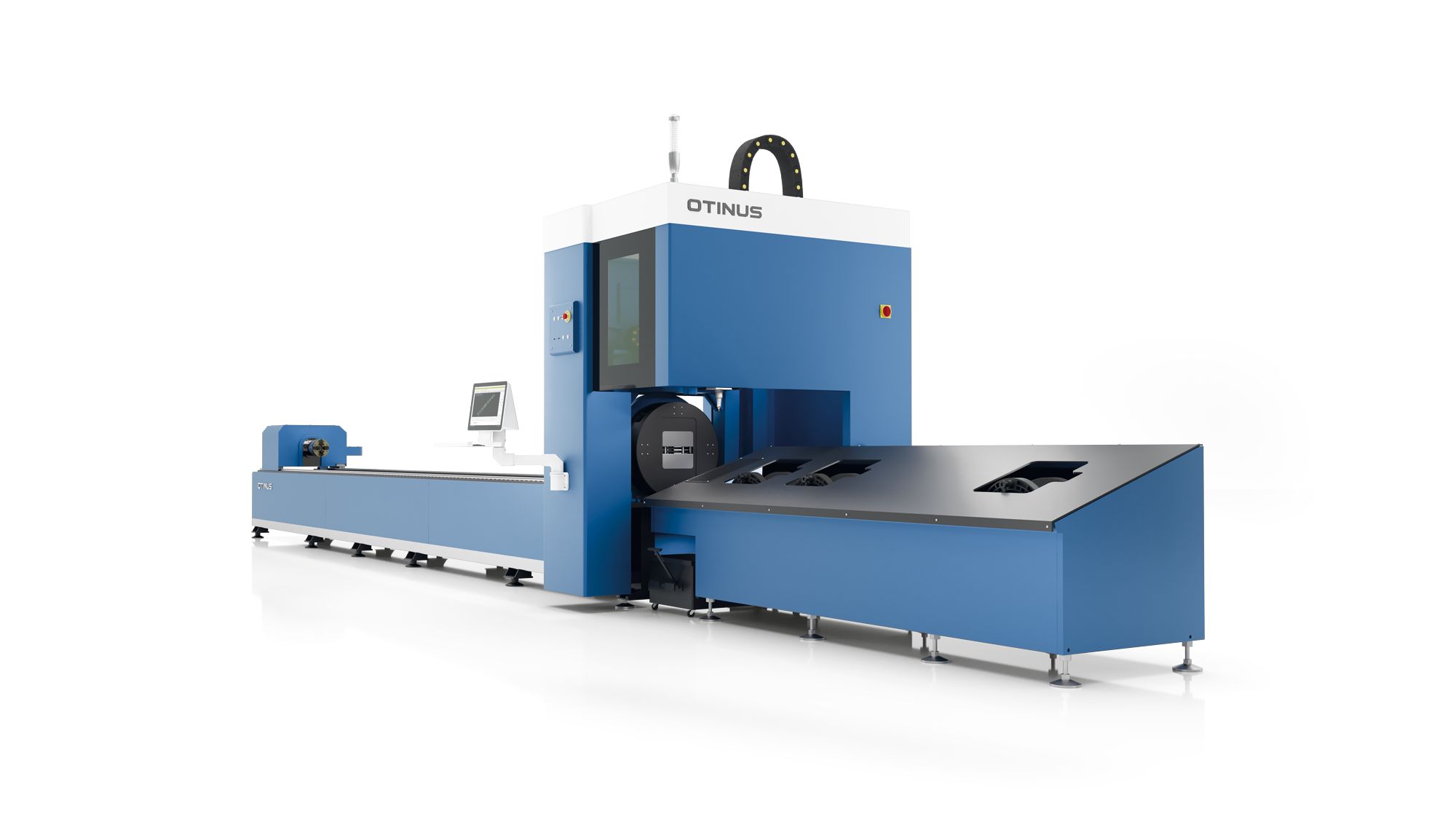

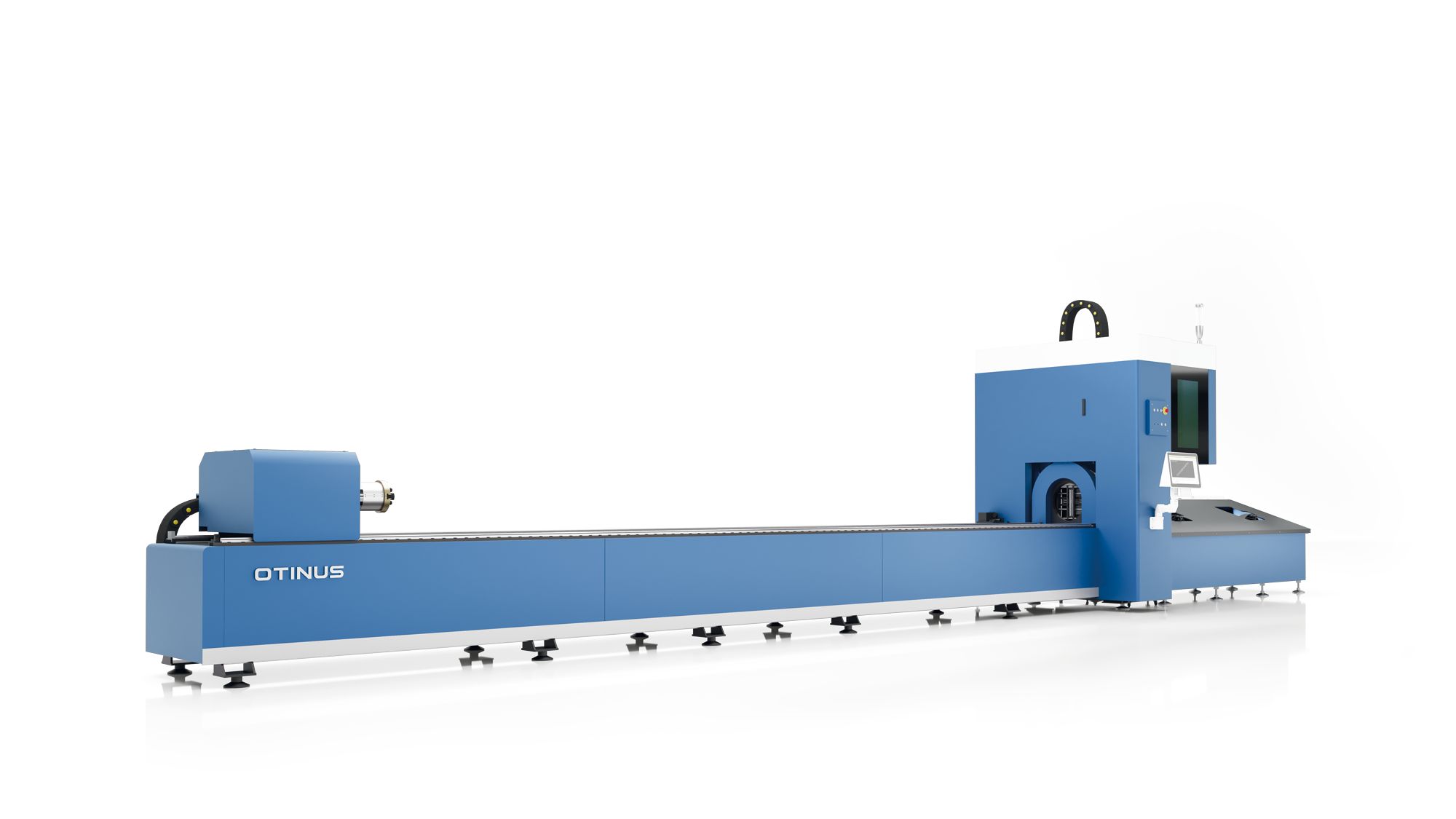

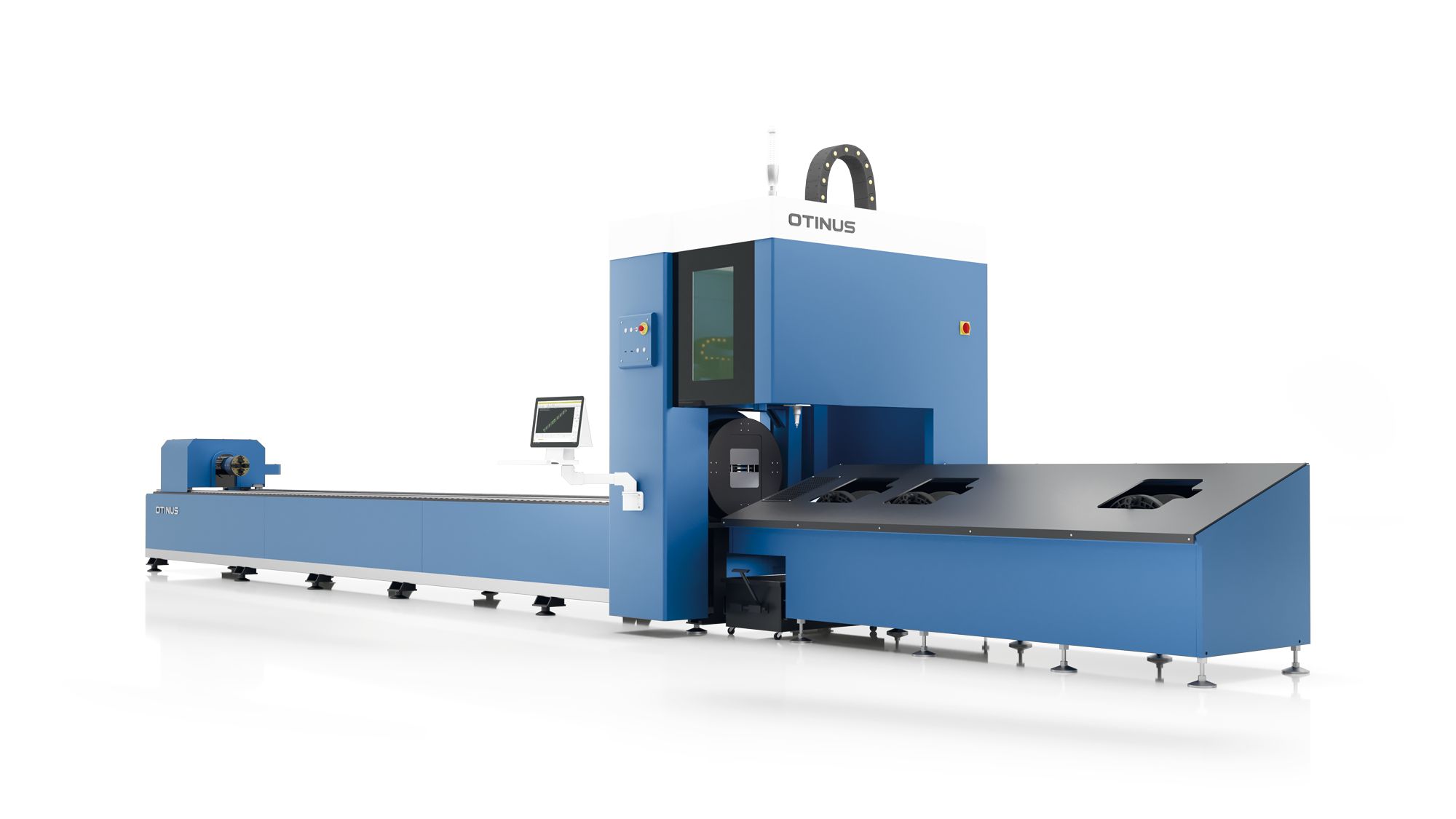

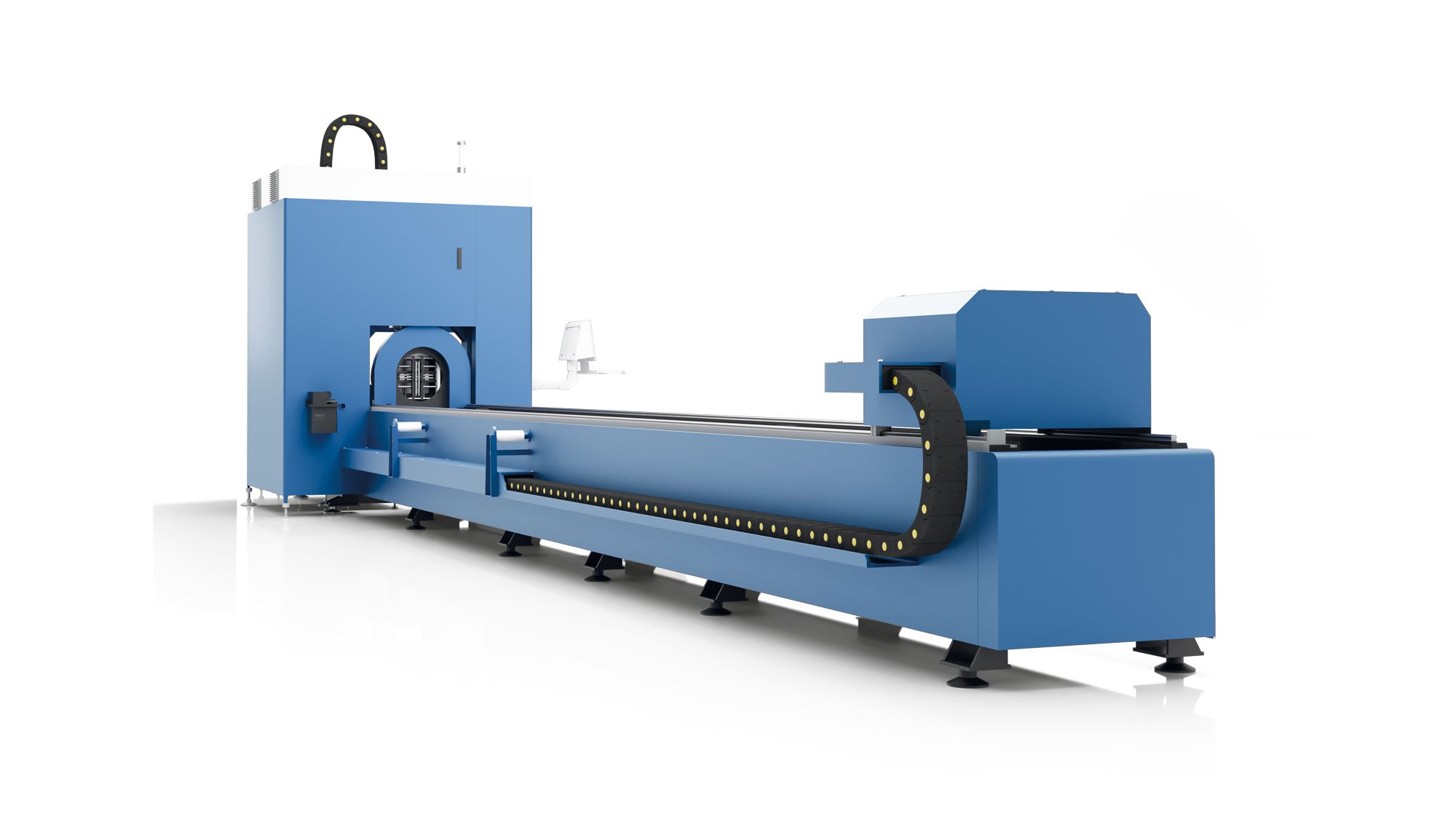

2024 Otinus Flt-6022-3000W Cnc Fiber Laser Cutter - Receiving Table Included

The 2024 Otinus FLT-6022-3000W features full-size dimensions of 452 x 52 x 95 in (11475 x 1330 x 2418 mm) and a total weight of 6200 lb (2800 kg). Powered by a 3 kW Maxphotonics laser, the unit has a power consumption of 24.0 kW and requires a ~3x480 V 60 Hz or equivalent power supply, with an IP54 ingress protection rating. It accommodates maximum section dimensions of 9 in (220 mm) in height and 240 in (6000 mm) in length, supporting a loaded workpiece weight up to 660 lb (300 kg). Axis travel limits are 11 in (270 mm) in X, 272 in (6900 mm) in Y, and 9 in (220 mm) in Z. Performance specifications include positioning and repositioning accuracies of 0.0004 in (0.01 mm) in the X and Y axes, a maximum X/Y speed of 1969 in/min (50 m/min), an acceleration of 1.0 G (10 m/s²), and a maximum W-axis rotation speed of 120 RPM. A 10 ft receiving table is included.
