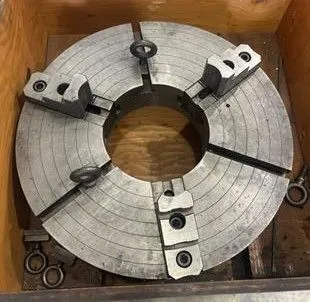

24” - 3 JAW INDEPENDENT OIL COUNTRY STYLE LATHE CHUCK – INTERNAL THREAD MOUNT

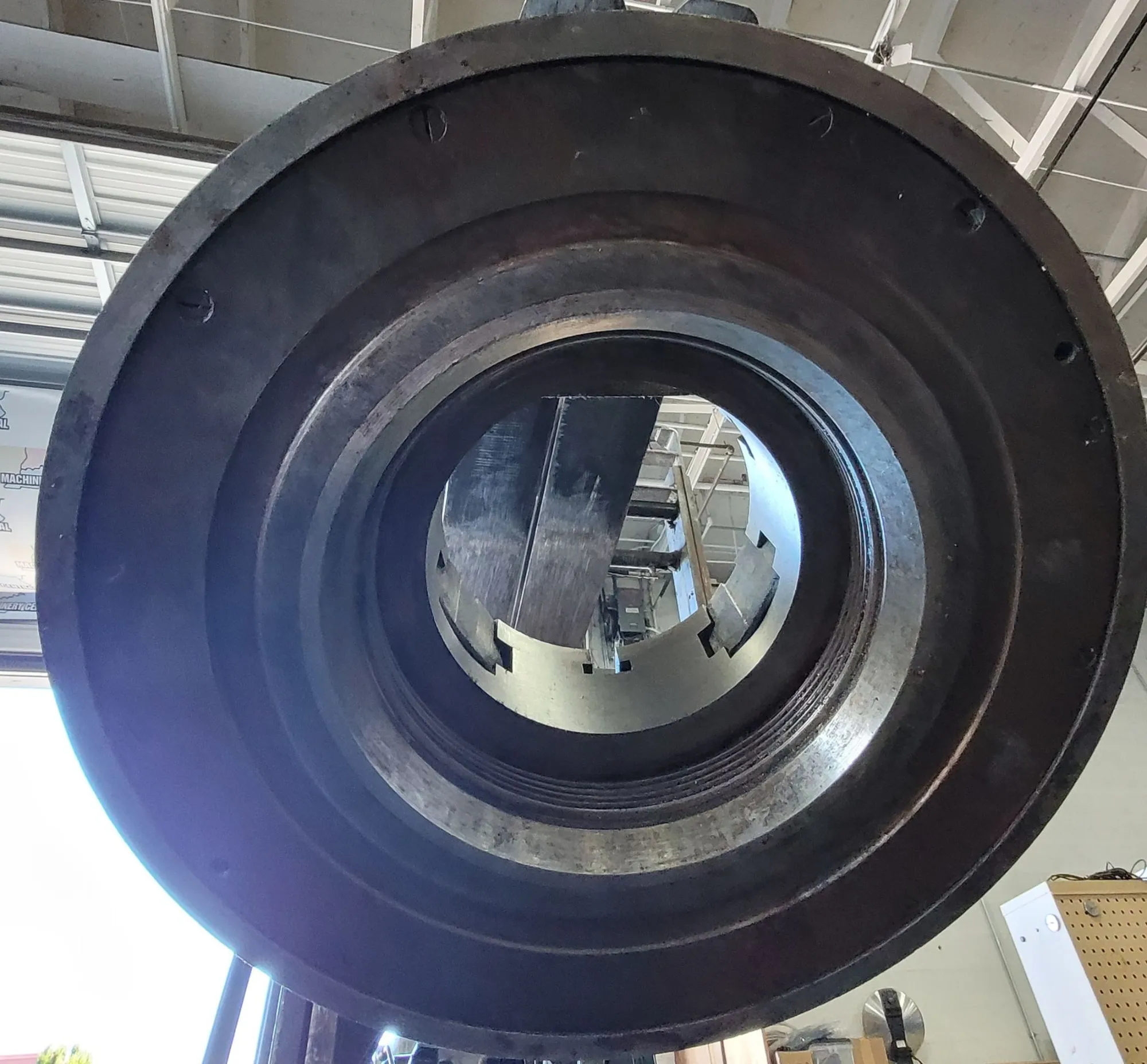

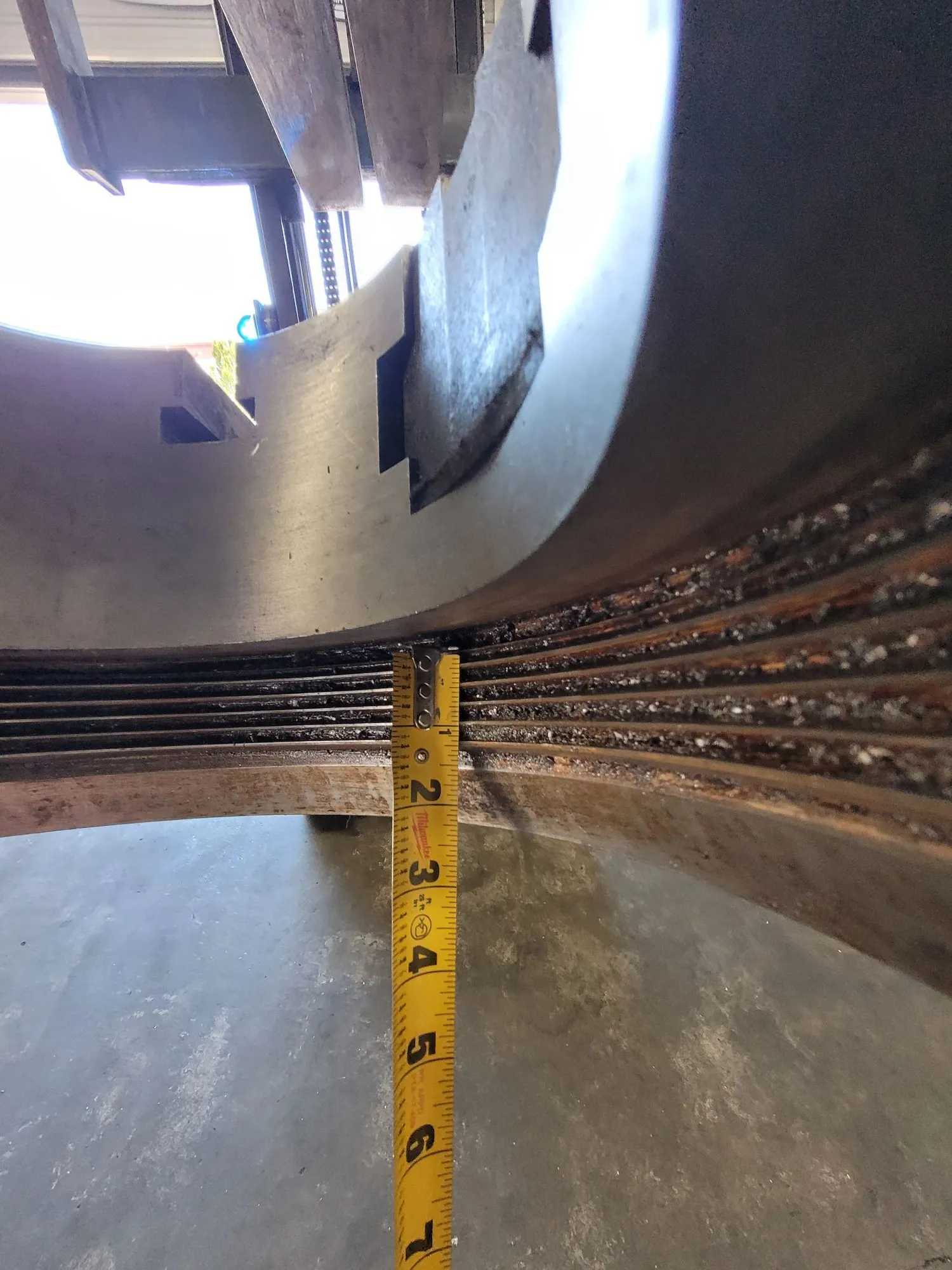

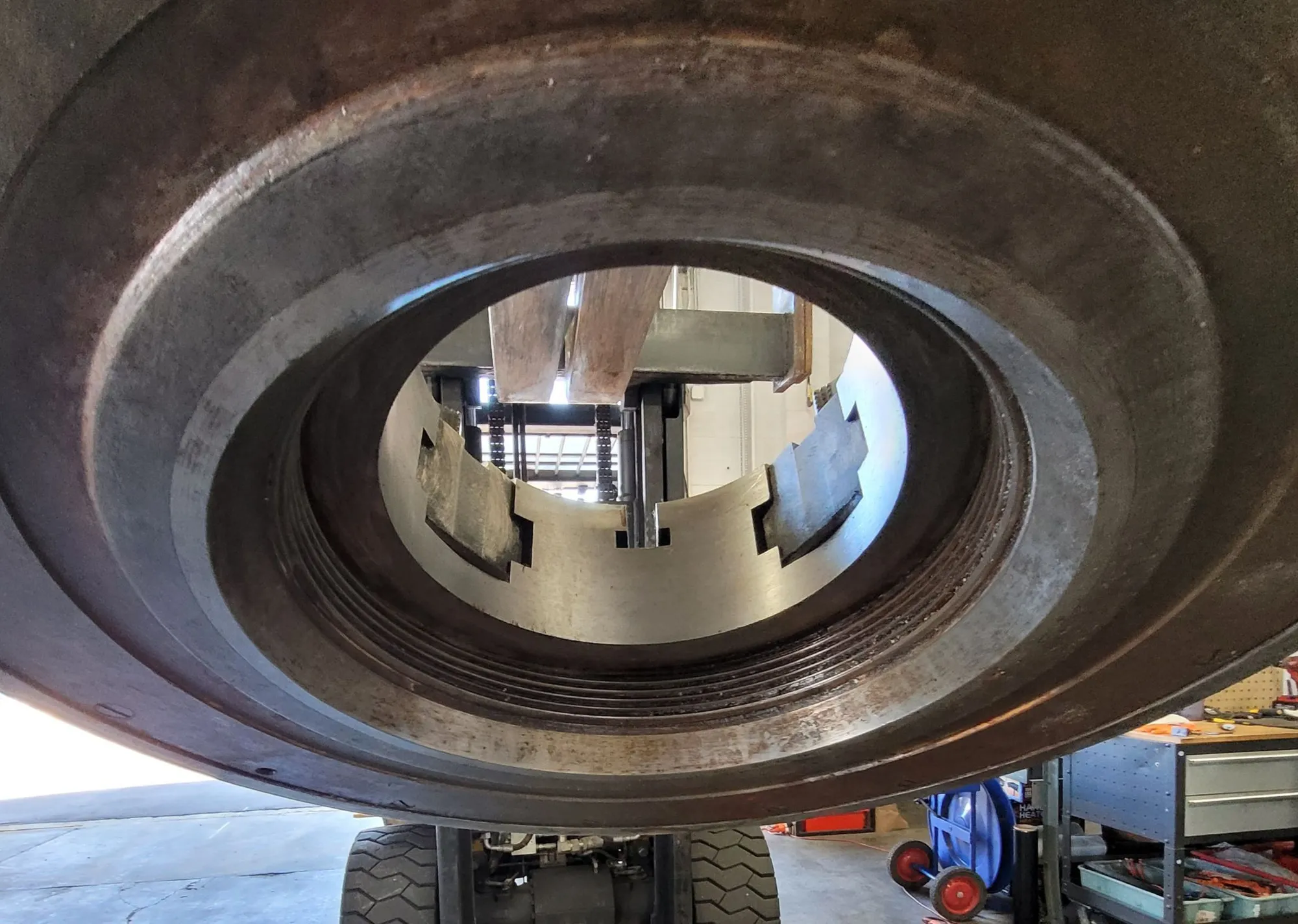

THIS ITEM IS A 24-INCH, 3-JAW INDEPENDENT OIL COUNTRY STYLE LATHE CHUCK FEATURING AN INTERNAL THREAD MOUNT ADAPTER ON THE BACK. IT HAS A MEASURED OVERALL DIAMETER OF 24 INCHES, A 9-3/8 INCH CENTER HOLE, AND 3 T-SLOTS. THE INTERNAL THREADING ON THE BACK FEATURES A 1/4-INCH THREAD PITCH. THE CHUCK COMES EQUIPPED WITH T-SLOTS AND HEAVY EYE BOLTS. THIS STYLE OF LATHE CHUCK IS TYPICALLY UTILIZED IN PIPE THREADING AND OIL FIELD MANUFACTURING APPLICATIONS WHERE LONG, LARGE-DIAMETER PIPING MUST PASS ENTIRELY THROUGH THE HEADSTOCK OF THE LATHE. THE ITEM IS CRATED WITH DIMENSIONS MEASURING 30 BY 30 BY 22 INCHES.
