60 Ton Minster O.b.i. Press, 4" Stroke, 13" Shut Height, 90-180 Spm, 7.5 HP Motor

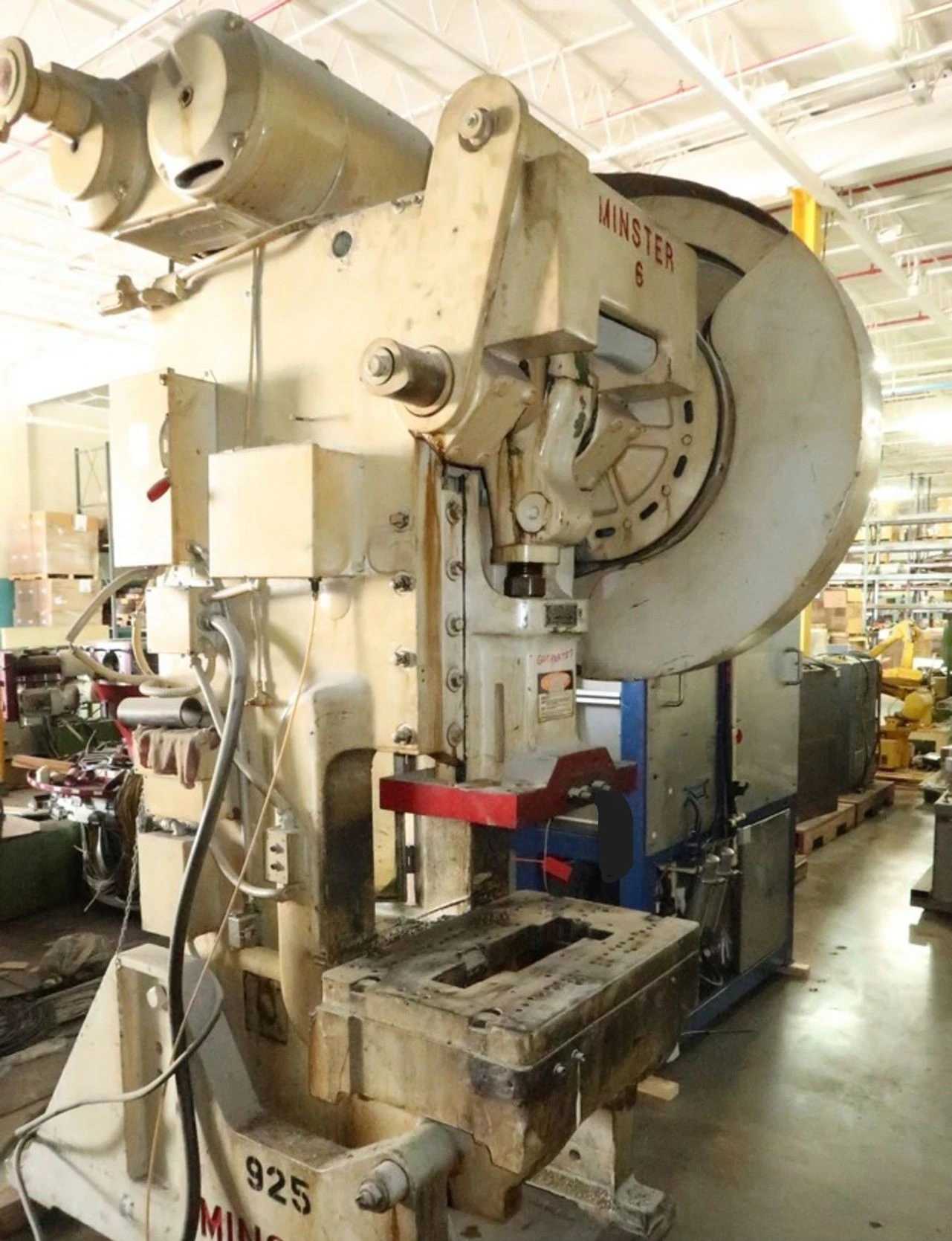

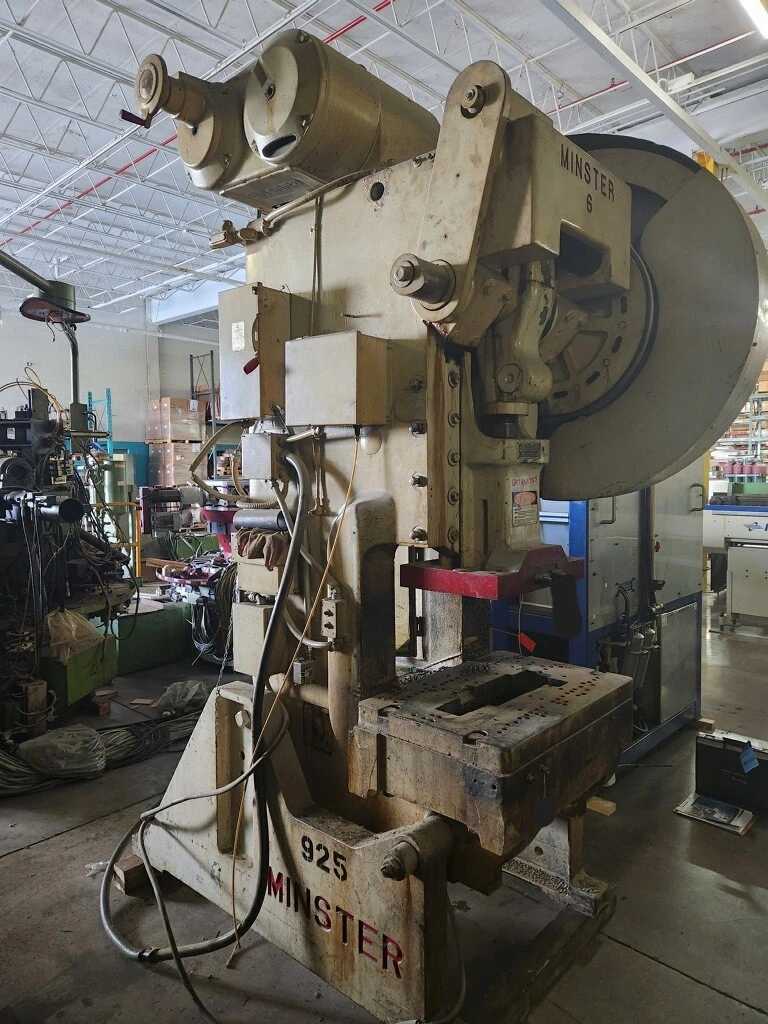

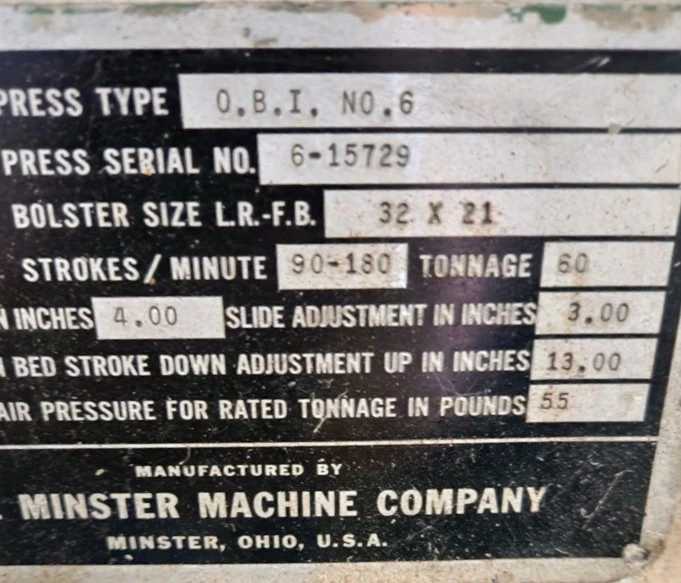

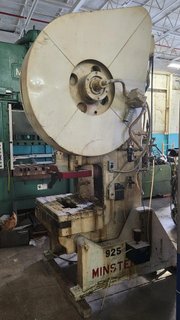

The Minster model 6 Open Back Inclinable (O.B.I.) press is a robust 60-ton capacity machine. Key features include an air clutch and brake system, and a Reeves variable-speed drive, powered by a 7.5 HP motor in a flywheel design. Technical specifications detail a 4-inch stroke length and a 13-inch shut height to the bed (SDAU) with a 3-inch ram adjustment. The press offers variable speeds ranging from 90 to 180 Strokes Per Minute (SPM). Dimensional capacities include a ram area of 21" L-R x 14" F-B, a bed area of 32" L-R x 21" F-B, and a bolster area matching the bed area with a 2.5" bolster thickness. The bed opening measures 18" L-R x 14" F-B, and the throat depth is 11". The overall height of the machine is 114".
