ABB 194111T03 CPL2262-10 CIRCUIT BREAKER OP MECH, SPRING-OPERATING, MV VACUUM CB

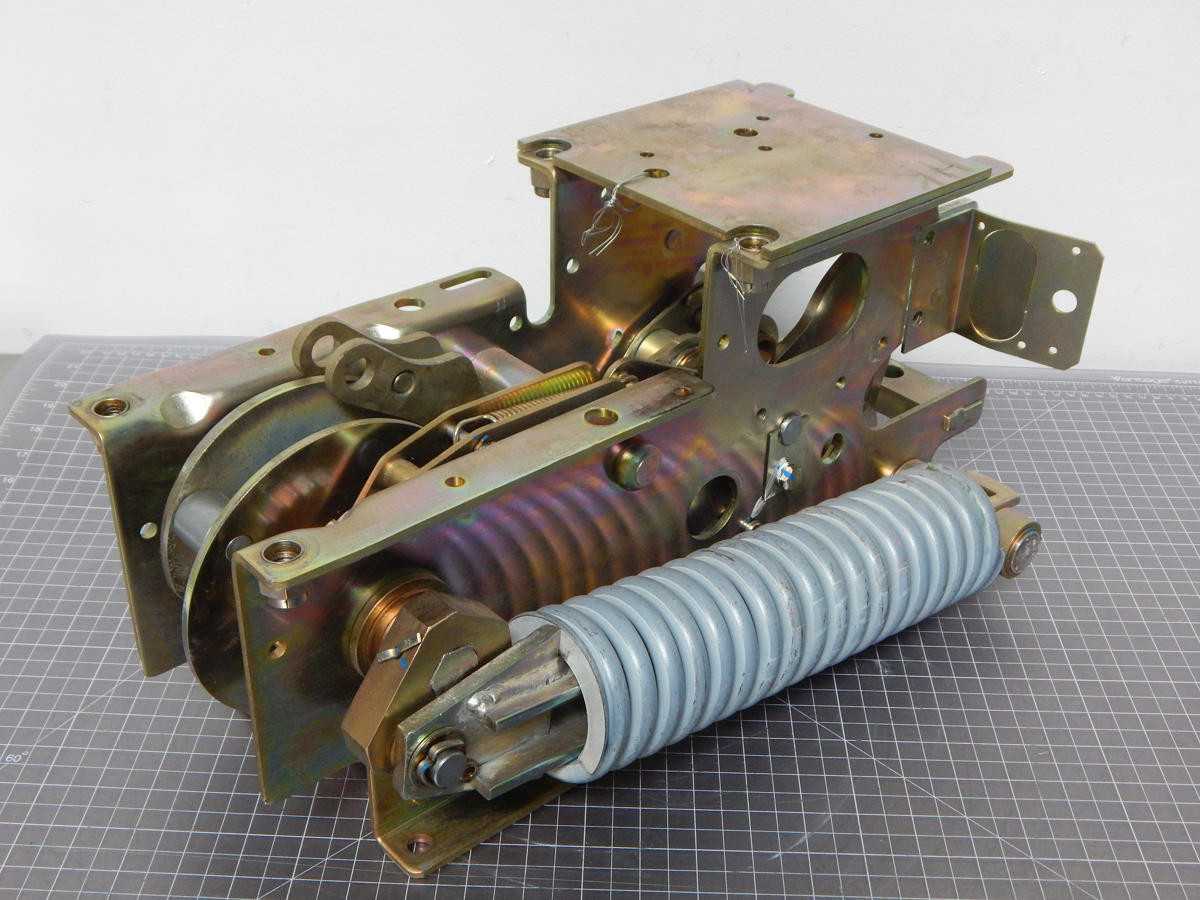

THE ABB 194111T03 CPL2262-10 IS A CIRCUIT BREAKER OPERATING MECHANISM. SPECIFICALLY, IT FUNCTIONS AS A SPRING-OPERATING MECHANISM DESIGNED FOR INTEGRATION WITH ABB VD4 AND VM1 SERIES MEDIUM-VOLTAGE VACUUM CIRCUIT BREAKERS. THIS MECHANISM FACILITATES THE RAPID AND RELIABLE CLOSING AND OPENING OPERATIONS OF THE CONNECTED CIRCUIT BREAKER POLES BY STORING MECHANICAL ENERGY IN SPRINGS. IT PROVIDES THE NECESSARY MECHANICAL LINKAGES TO TRANSMIT FORCE FOR CONTACT OPERATION AND TYPICALLY INCORPORATES INTERFACES FOR CONTROL ELEMENTS SUCH AS CLOSING COILS, OPENING COILS, AND A MOTOR FOR SPRING CHARGING. THE DESIGN ENSURES OPERATIONAL INDEPENDENCE FROM THE CONTROL SUPPLY DURING THE ACTUAL OPENING OR CLOSING SEQUENCE, CONTRIBUTING TO FAST SWITCHING TIMES CHARACTERISTIC OF VACUUM INTERRUPTER TECHNOLOGY.
