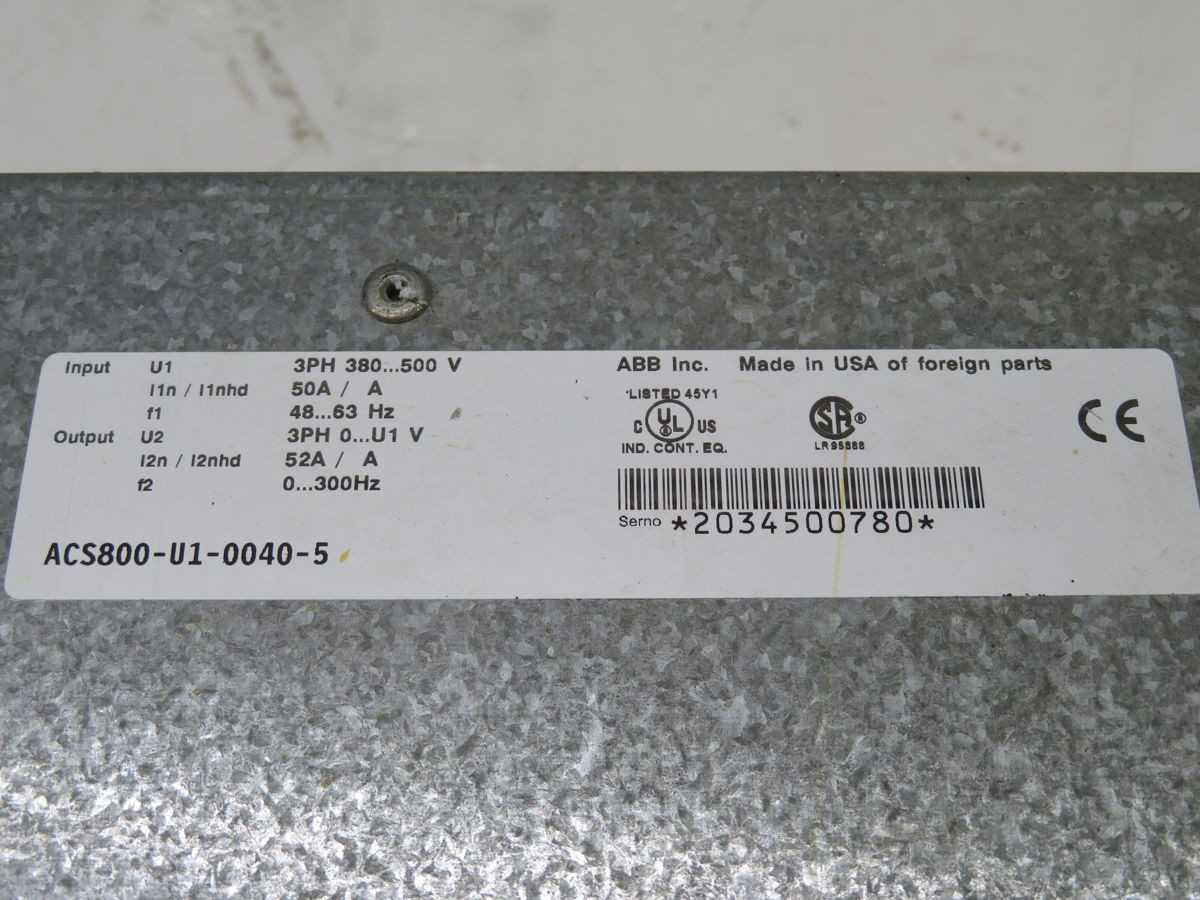

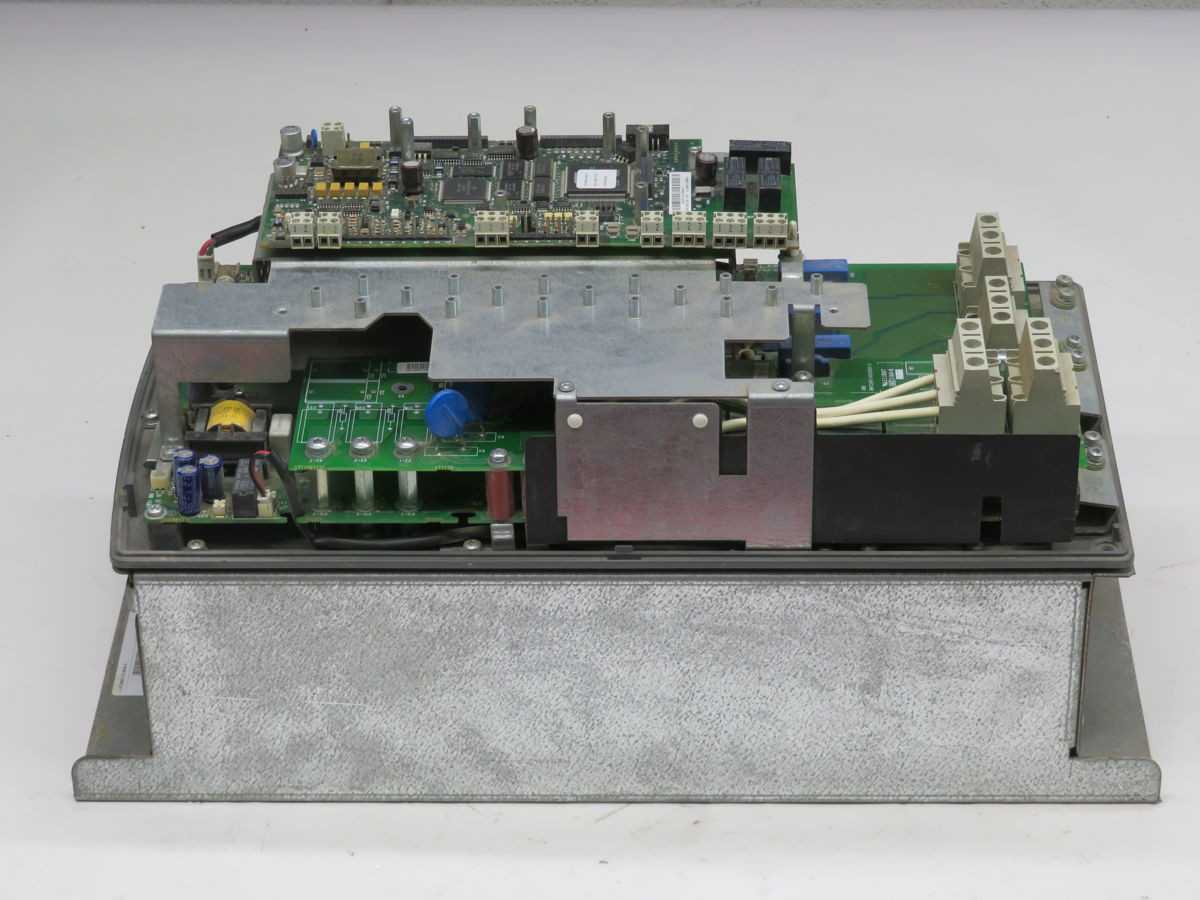

ABB ACS800-U1-0040-5 AC DRIVES, 380-500V INPUT VOLTAGE, 50/60HZ FREQ, 40HP POWER, 55A CURRENT, IP21 RATING

THE ABB ACS800-U1-0040-5 IS A WALL-MOUNTED, INDUSTRIAL SERIES AC DRIVE DESIGNED FOR 3-PHASE APPLICATIONS. IT OPERATES WITH AN INPUT VOLTAGE RANGE OF 380-500 V AC AND A FREQUENCY OF 50/60 HZ. THE DRIVE DELIVERS A NOMINAL OUTPUT POWER OF 40 HP WITH A CORRESPONDING NOMINAL OUTPUT CURRENT OF 55 A (AT 400V AC). ITS ENCLOSURE PROVIDES AN IP21 PROTECTION RATING. THE UNIT UTILIZES DIRECT TORQUE CONTROL (DTC) FOR MOTOR REGULATION. STANDARD COMMUNICATION CAPABILITIES INCLUDE INTEGRATED MODBUS-RTU, WITH PROVISIONS FOR OPTIONAL FIELDBUS ADAPTERS TO SUPPORT VARIOUS INDUSTRIAL NETWORKS.
