Abb Rhd 2500 25, Valve/Flow Control, 2500 Nm Torque, 90-Degree Rotation, Ip67 Rating

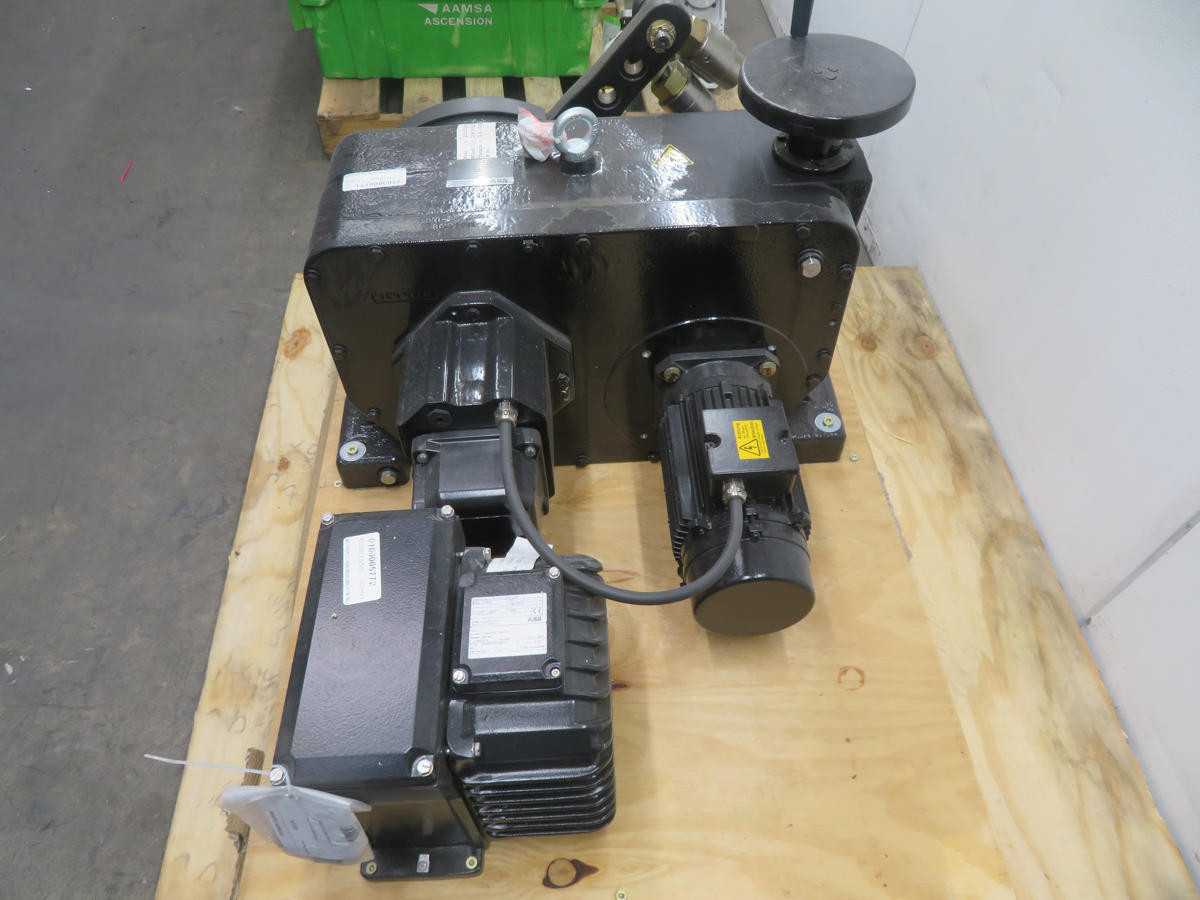

THE ABB RHD 2500 25 IS AN ELECTRIC ROTARY ACTUATOR DESIGNED FOR QUARTER-TURN OPERATION IN VALVE AND FLOW CONTROL APPLICATIONS. IT PROVIDES A NOMINAL OUTPUT TORQUE OF 2500 NM FOR 90-DEGREE ROTATION. THE ACTUATOR TYPICALLY OPERATES ON A THREE-PHASE AC POWER SUPPLY, WITH COMMON VOLTAGE RANGES INCLUDING 380-415V AT 50HZ AND 440-480V AT 60HZ. CONTROL INPUTS CAN BE MODULATING, SUCH AS 4-20MA OR 0-10V SIGNALS, OR DISCRETE FOR ON/OFF FUNCTIONALITY. IT FEATURES AN INGRESS PROTECTION RATING OF IP67, MAKING IT SUITABLE FOR DEMANDING INDUSTRIAL ENVIRONMENTS. THE OPERATIONAL AMBIENT TEMPERATURE RANGE TYPICALLY SPANS FROM -25°C TO +70°C.
