ALLEN-BRADLEY 764574 CONVERTER, DH+/RS-232-C PROTOCOL, 115/230 VAC, 0.3A CURRENT

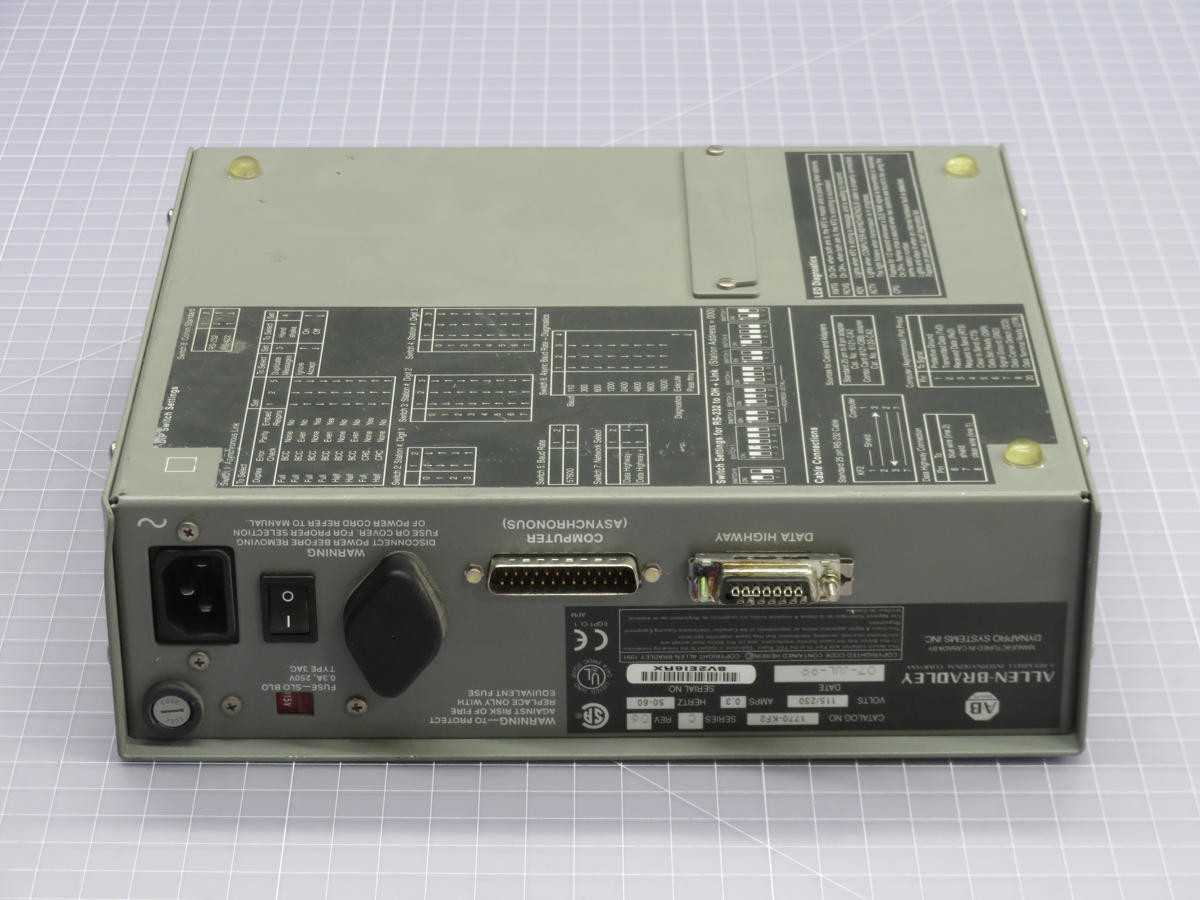

THE ALLEN-BRADLEY 764574, ALTERNATIVELY DESIGNATED AS 1770-KF2, IS A DATA HIGHWAY PLUS (DH+) AND DATA HIGHWAY (DH) COMMUNICATION INTERFACE MODULE. THIS DEVICE SERVES AS A PROTOCOL CONVERTER, FACILITATING DATA EXCHANGE BETWEEN A SERIAL HOST SYSTEM AND AN ALLEN-BRADLEY DATA HIGHWAY PLUS NETWORK. IT INTEGRATES AN RS-232-C SERIAL PORT FOR HOST COMMUNICATION AND AN 8-PIN MINI-DIN CONNECTOR FOR THE DH+ NETWORK. THE MODULE OPERATES ON A POWER INPUT OF 115/230 VAC AT 50/60 HZ, WITH A NOMINAL CURRENT DRAW OF 0.3 A. IT ENABLES ASCII-BASED DEVICES TO COMMUNICATE WITH DH+ COMPATIBLE PROGRAMMABLE CONTROLLERS, INCLUDING THE PLC-5 AND SLC 5/04 SERIES, BY CONVERTING SERIAL DATA TO THE DATA HIGHWAY PLUS PROTOCOL.
