ALLEN BRADLEY N-3412-2-H00AA 193528, SERVO MOTORS, 230 VAC, 0.35 KW POWER, 5500 RPM SPEED
Aucto ID: #110045
Ends in:
3a5bf463-087c-46c6-8a8c-e288aaeb92e1
Location: El Paso, Texas, United States
Logistics:
Rigging:
Included
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description

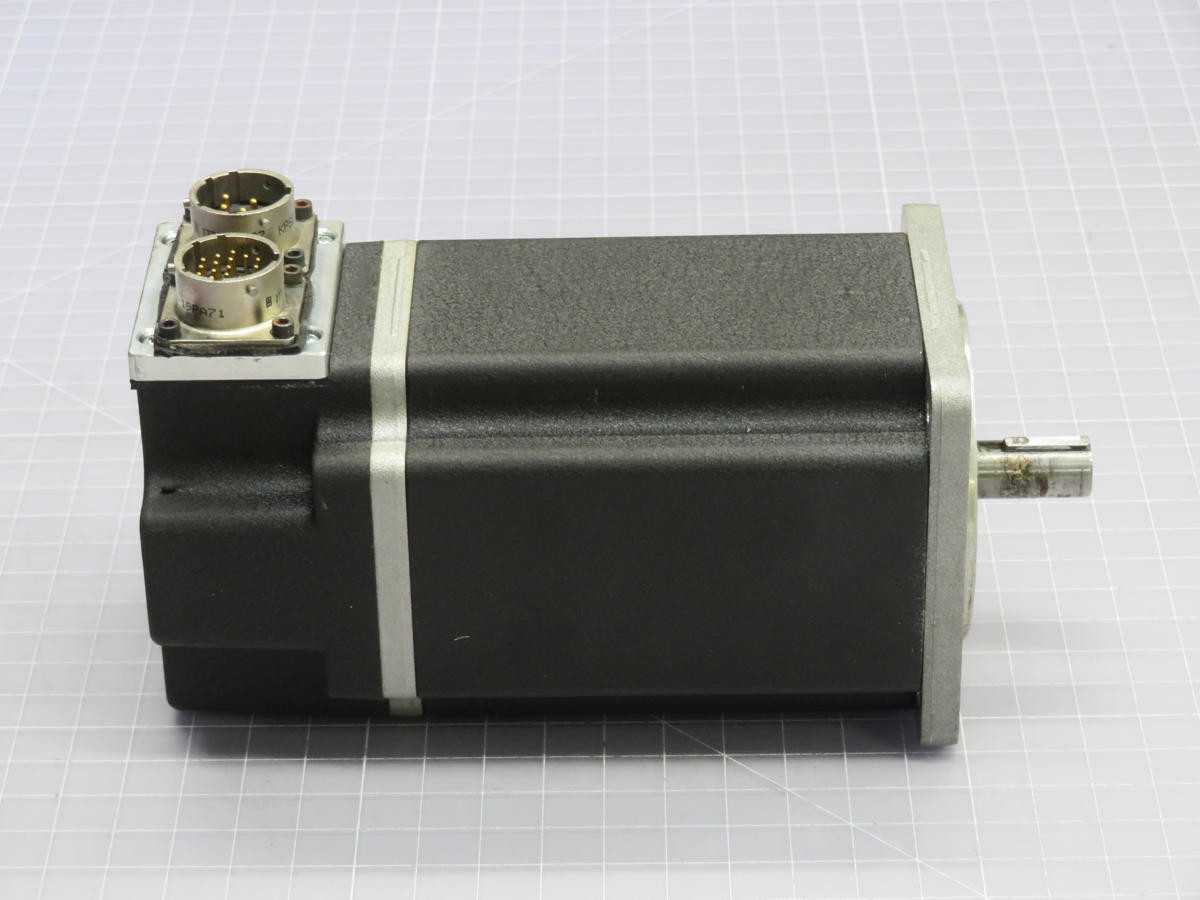

THE ALLEN BRADLEY N-3412-2-H00AA 193528 IS A 3-PHASE SERVO MOTOR RATED FOR 230 VAC OPERATION. IT DELIVERS A MAXIMUM SPEED OF 5500 RPM AND INTEGRATES A 2000 LINE COUNT OPTICAL ENCODER FOR FEEDBACK. THIS MODEL TYPICALLY PROVIDES A CONTINUOUS STALL TORQUE OF 0.65 NM (5.75 LB-IN) AND A PEAK STALL TORQUE OF 1.95 NM (17.25 LB-IN). ITS CONTINUOUS STALL CURRENT IS 1.5 A, WITH A PEAK CURRENT CAPABILITY OF 4.5 A. THE MOTOR HAS A RATED OUTPUT POWER OF 0.35 KW (0.47 HP) AND FEATURES CLASS B INSULATION. IT IS DESIGNED WITH A 30 MM FRAME.
Core Specifications
Manufacturer: ALLEN BRADLEY

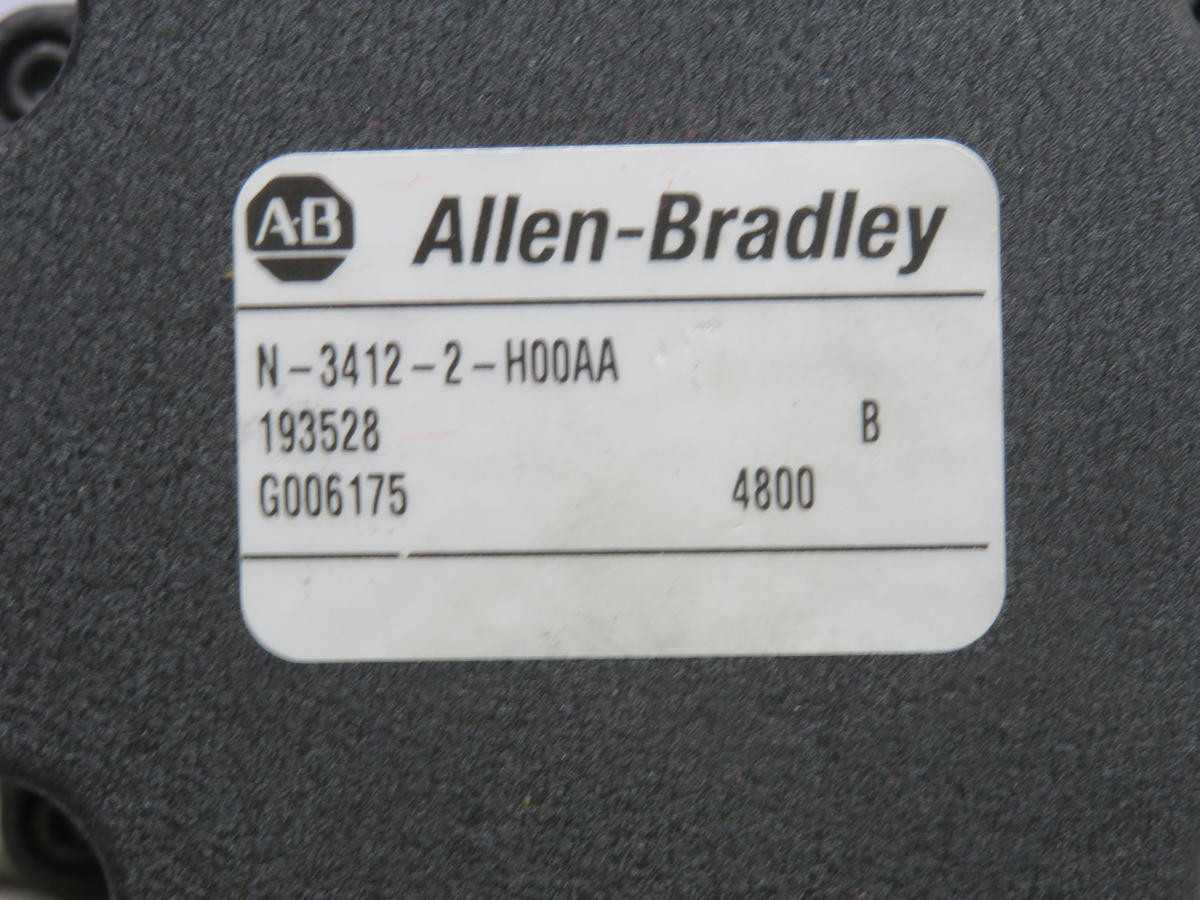

Model: N-3412-2-H00AA 193528
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category:
INDUSTRIAL PARTS > AUTOMATION & CONTROLS > SERVO > SERVO DRIVESLogistics
Rigging Responsibility:
Included
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
