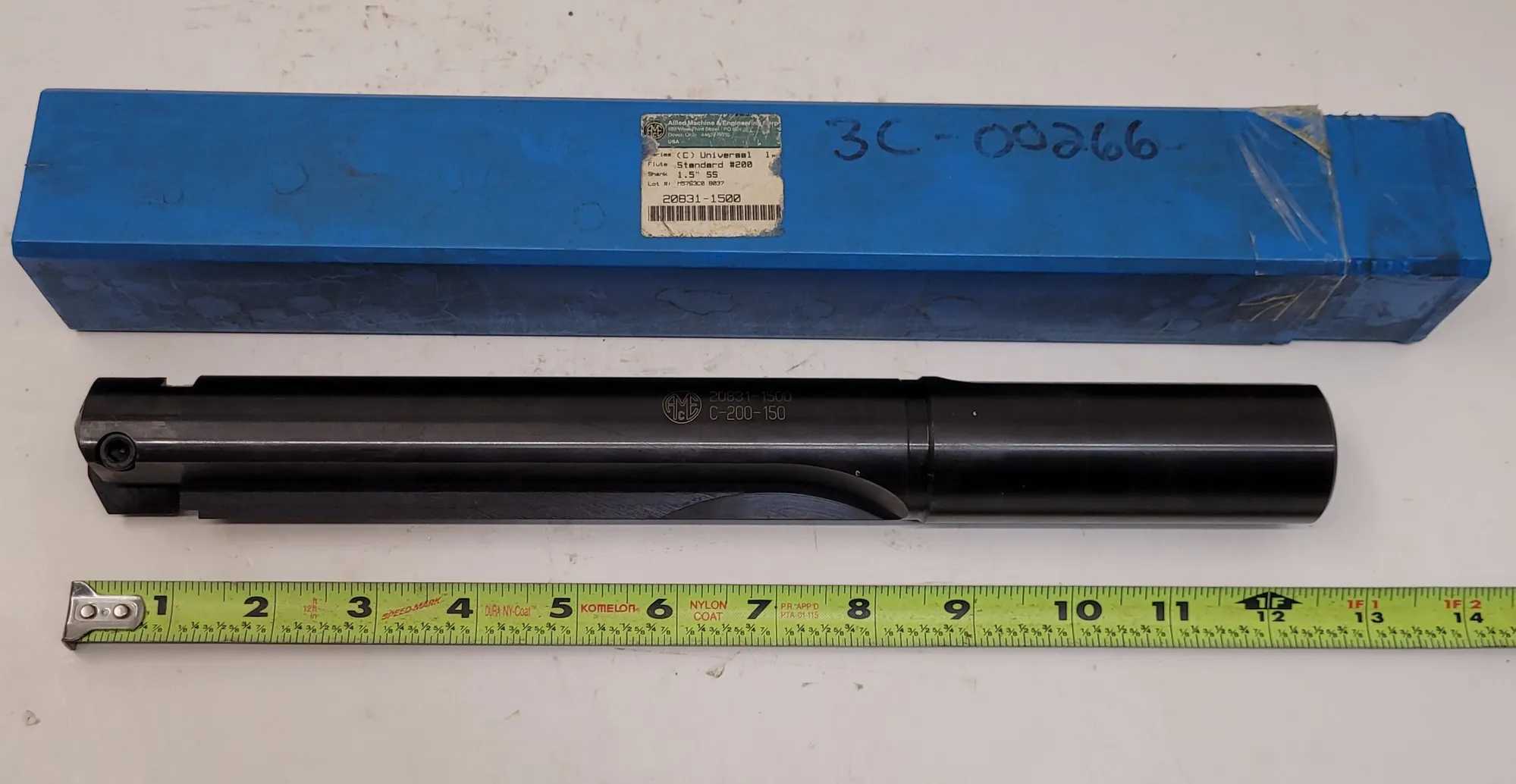

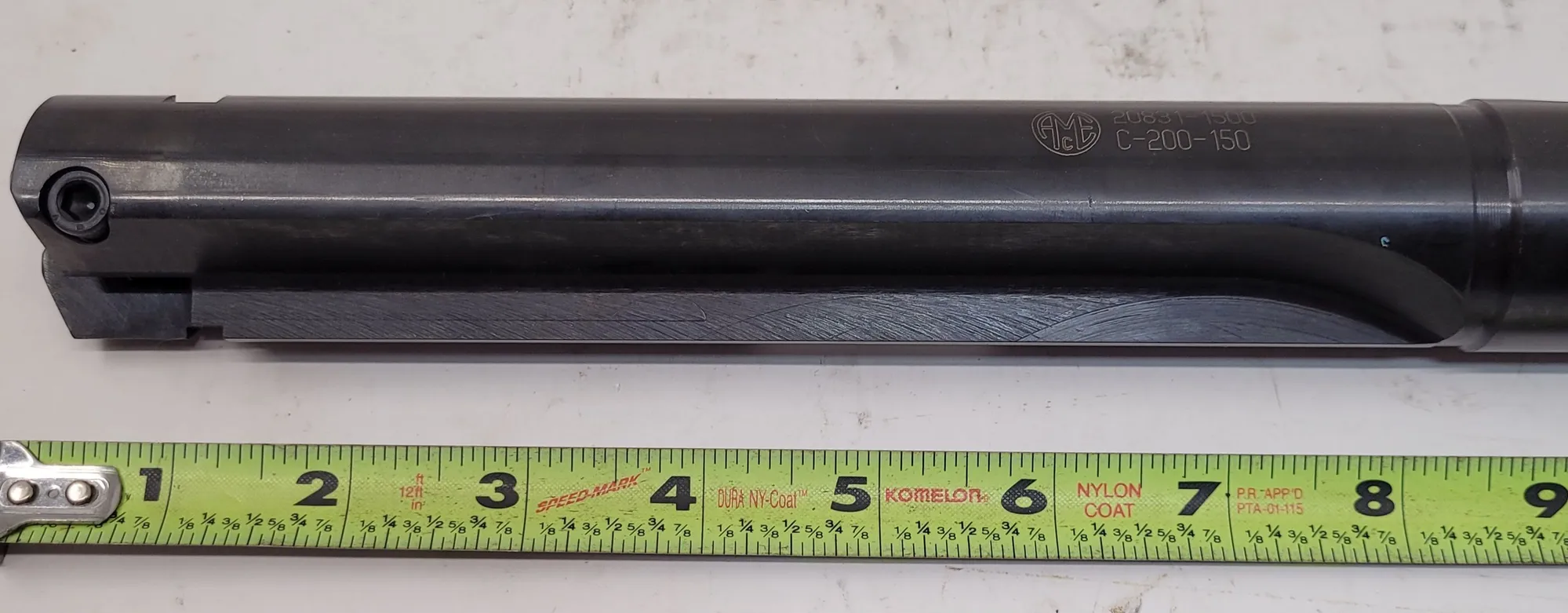

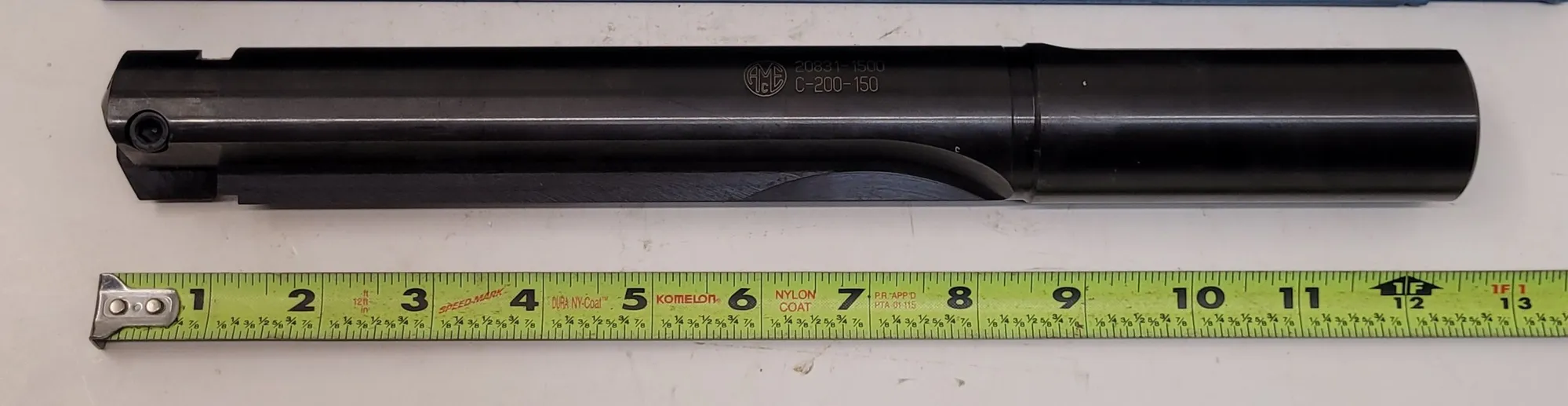

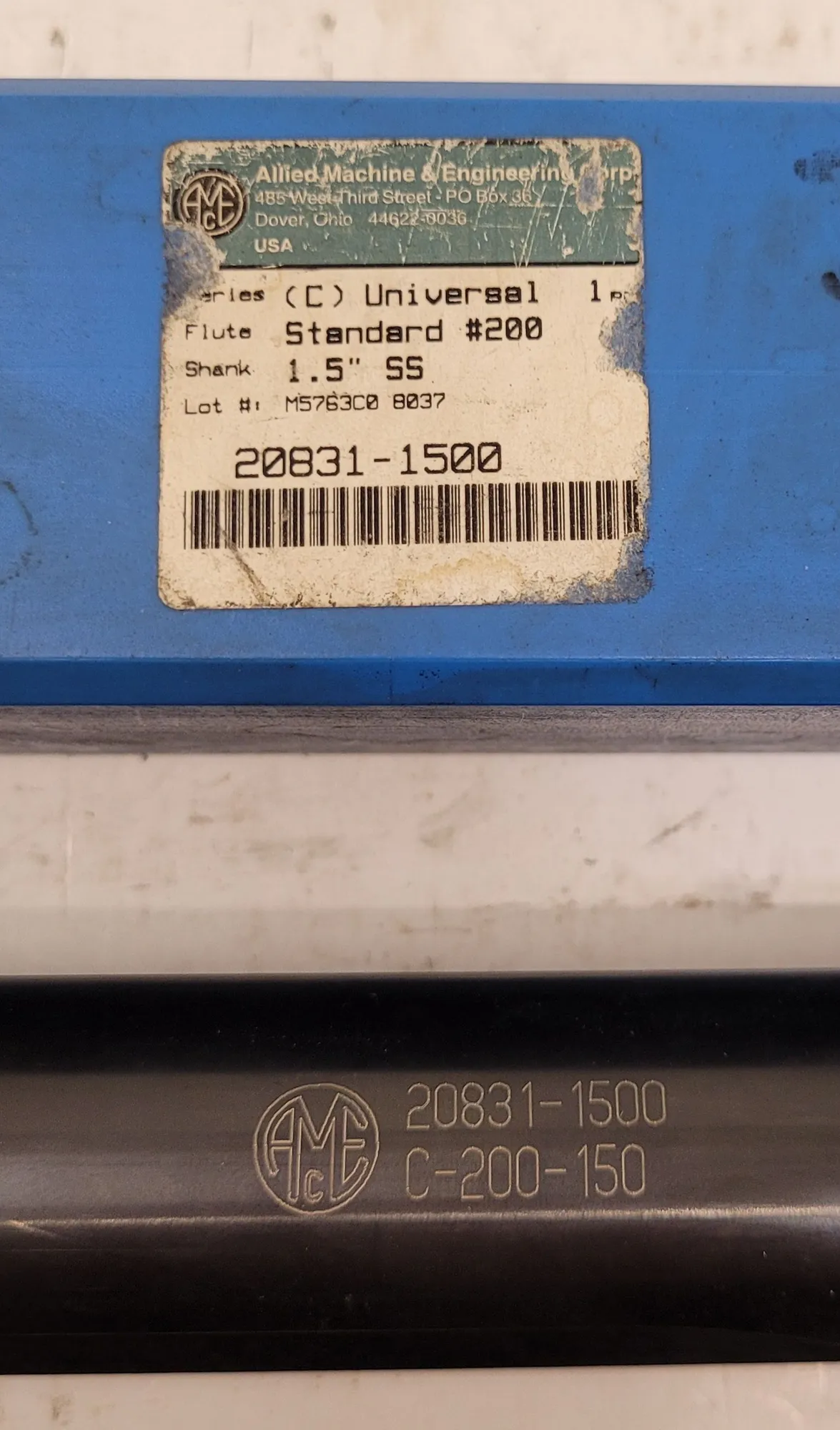

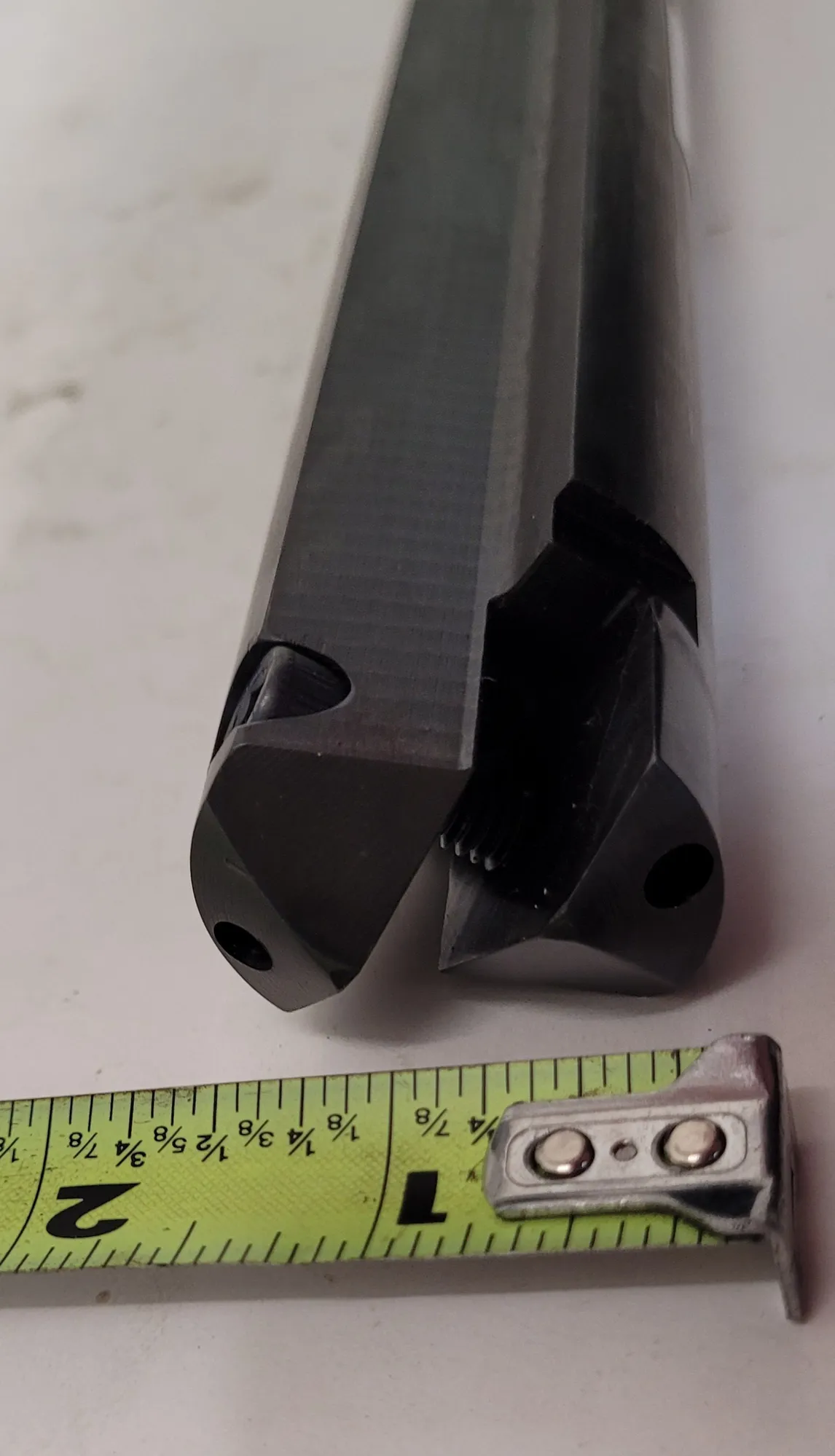

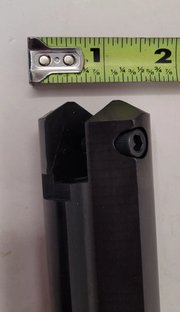

Allied Machine & Engineering AMEC 20831-1500 C Series Indexable Spade Drill

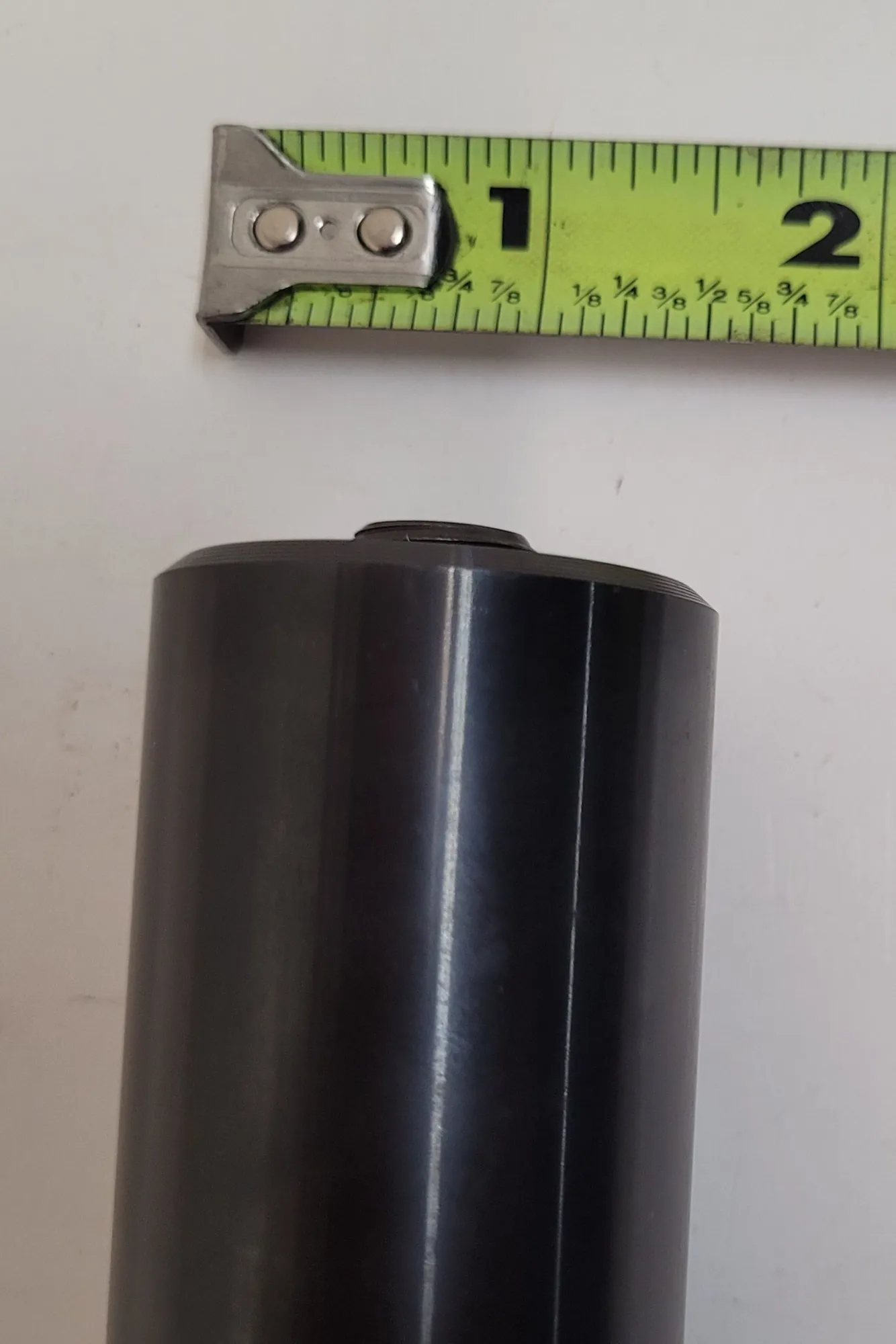

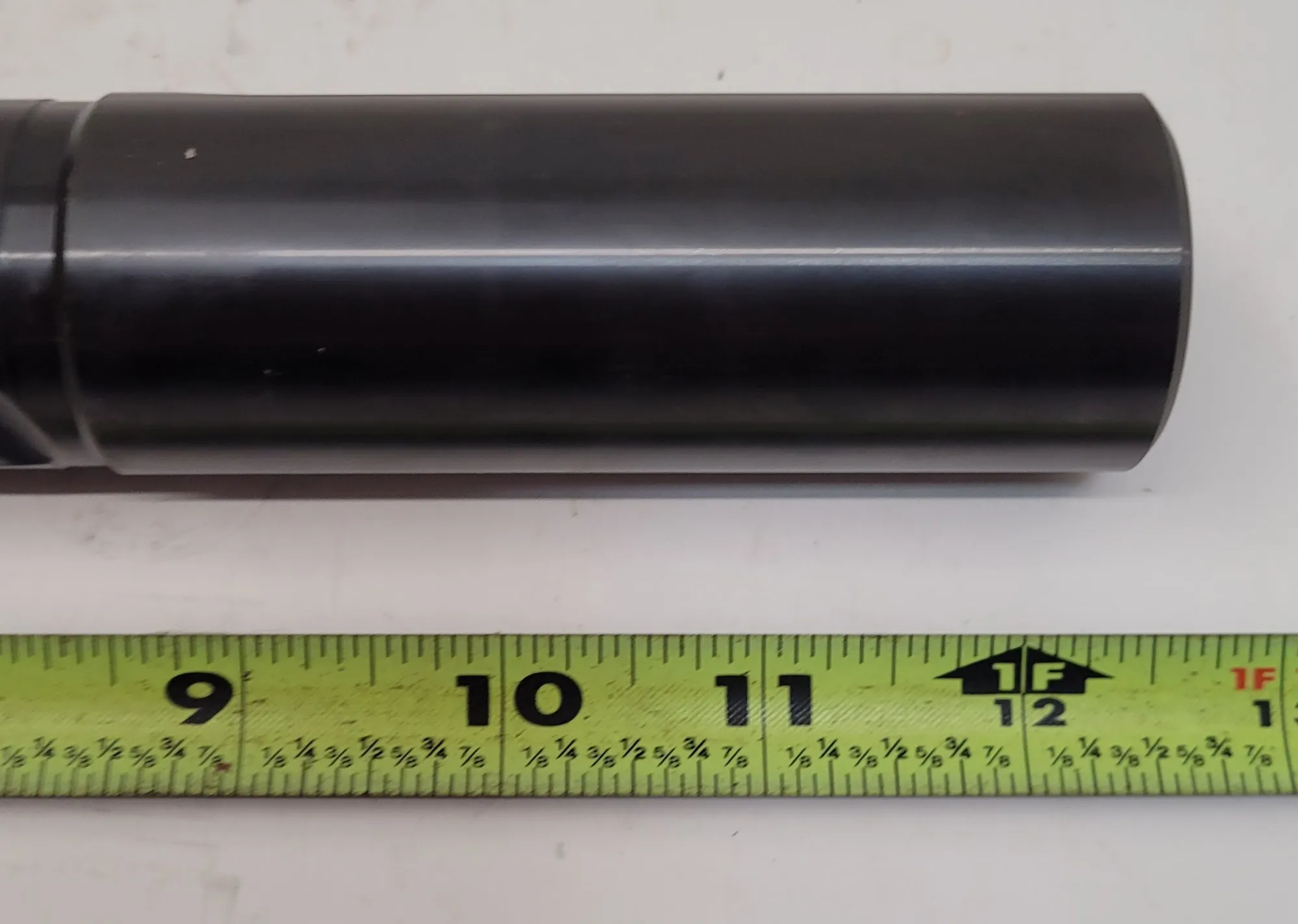

The AMEC 20831-1500 is a C series indexable spade drill with a 12-1/2" overall length (OAL). It features an 8-1/2" flute length and an 8-51/64" HP reference length. The tool utilizes a lathe shank type with a 4" shank length and a 1-1/2" shank diameter. This drill is designed for a diameter range of 1-1/2" (minimum) to 2-3/8" (maximum). It has a straight flute type and is categorized as a standard length type, explicitly noted as 'no' for deep hole applications. The drill has a pipe tap side measurement of 1/4".
