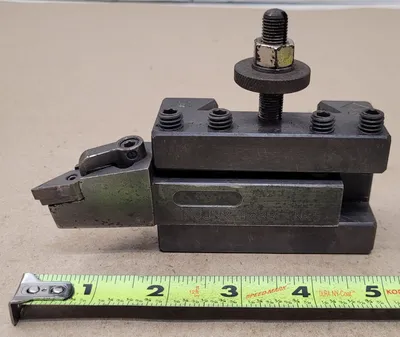

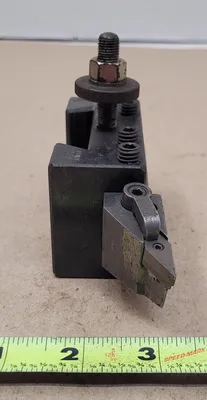

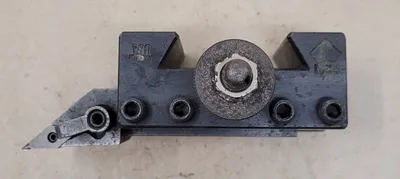

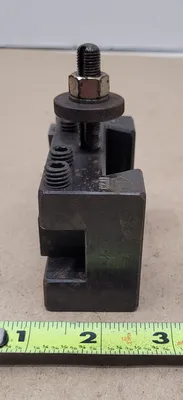

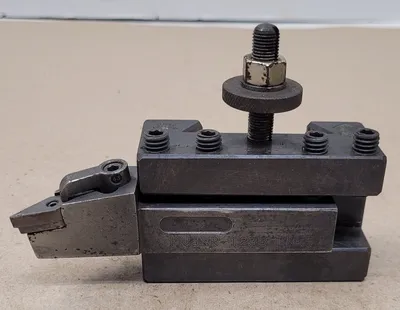

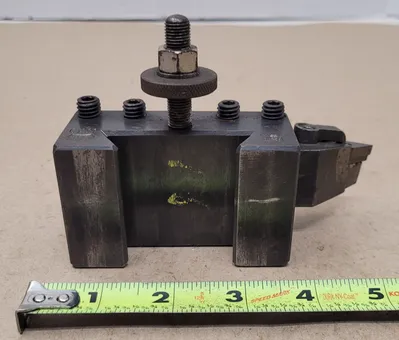

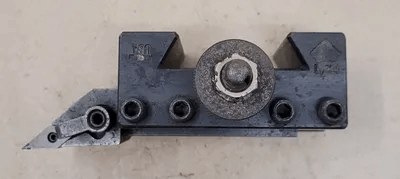

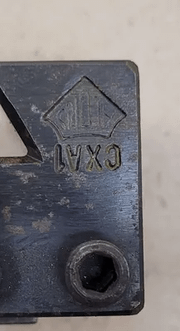

Aloris Cxa 1 Lathe Tool Post Holder with Kennametal MVJNR-123B Tool Holder

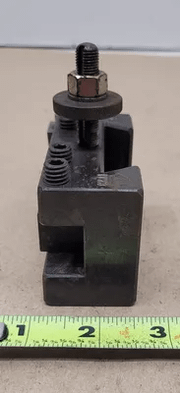

The Aloris CXA 1 Lathe Tool Post Holder is designed for lathes with a 13 to 18 inch swing. This holder features a 2-1/4 inch tool holder wedge, an overall height of 2-1/8 inches, and an overall length of 3-1/2 inches. It accommodates a maximum cutting tool size of 3/4 inch and offers a centerline height of 1-7/16 inches. The tool bit range is 1/4 to 3/4 inch. The post holder includes a Kennametal MVJNR-123B, which has a shank height [H] of 19.05 mm and a shank width [B] of 19.05 mm. Key dimensions of the Kennametal holder include an F dimension of 25.4 mm, a tool length [L1] of 114.3 mm, and a head length [LH] of 42.2 mm. It accepts a gage insert VN..332, utilizing a lock pin ID drive size of 5/64 and a clamp screw ID drive size of 5/32. The unit does not support through coolant.
