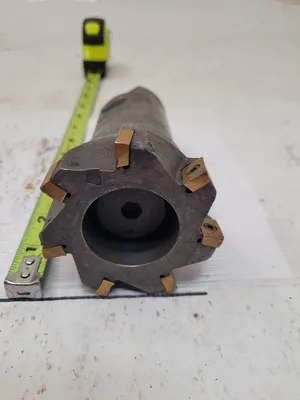

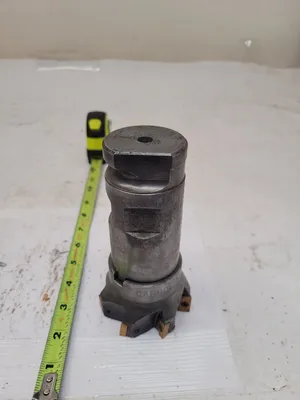

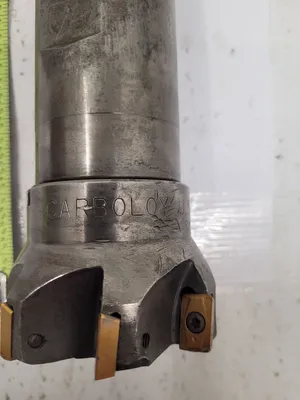

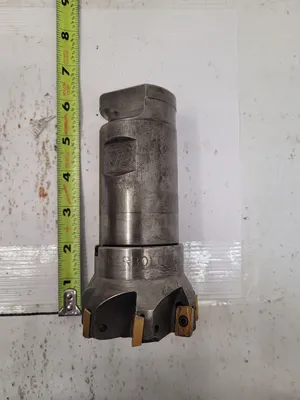

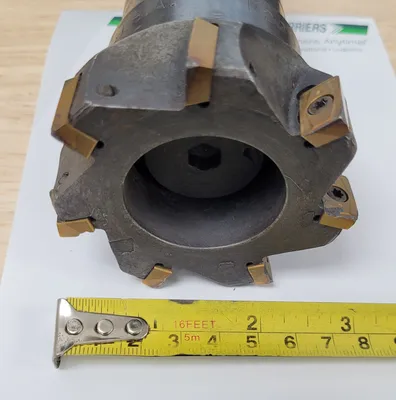

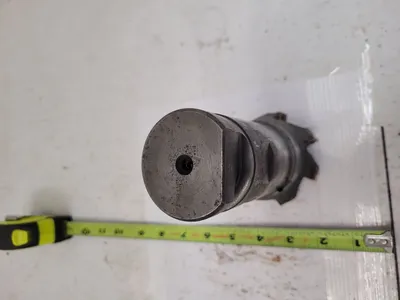

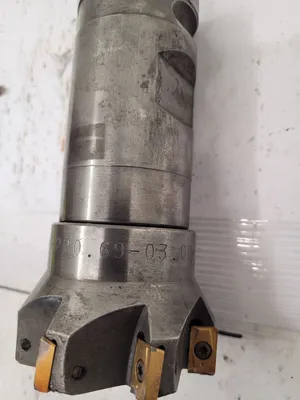

CARBOLOY R220.69-03.00-16 FACE MILL TOOLING

THE CARBOLOY R220.69-03.00-16 FACE MILL TOOLING FEATURES A CUTTING DIAMETER OF 3.000 IN. KEY OPERATIONAL LIMITS INCLUDE A MAXIMUM ROTATIONAL SPEED OF 10300 RPM, A MAXIMUM DEPTH OF CUT IN THE FEED DIRECTION END OF 0.063 IN, AND A MAXIMUM DEPTH OF CUT IN THE FEED DIRECTION SIDE OF 0.591 IN. THE TOOL HAS A CONNECTION BORE DIAMETER OF 1.000 IN AND A CONTACT SURFACE DIAMETER ON THE MACHINE SIDE OF 2.441 IN. GEOMETRIC SPECIFICATIONS INCLUDE A RADIAL RAKE ANGLE OF -9.200 DEGREES, AN AXIAL RAKE ANGLE OF 6.000 DEGREES, A TOOL CUTTING EDGE ANGLE IN BOTH FEED DIRECTION END AND SIDE OF 90.000 DEGREES, AND A MAXIMUM RAMPING ANGLE OF 0.600 DEGREES. THE KEYWAY WIDTH IS 0.382 IN, THE DEPTH OF THE KEYWAY IS 0.224 IN, AND THE FUNCTIONAL LENGTH IS 1.969 IN.
