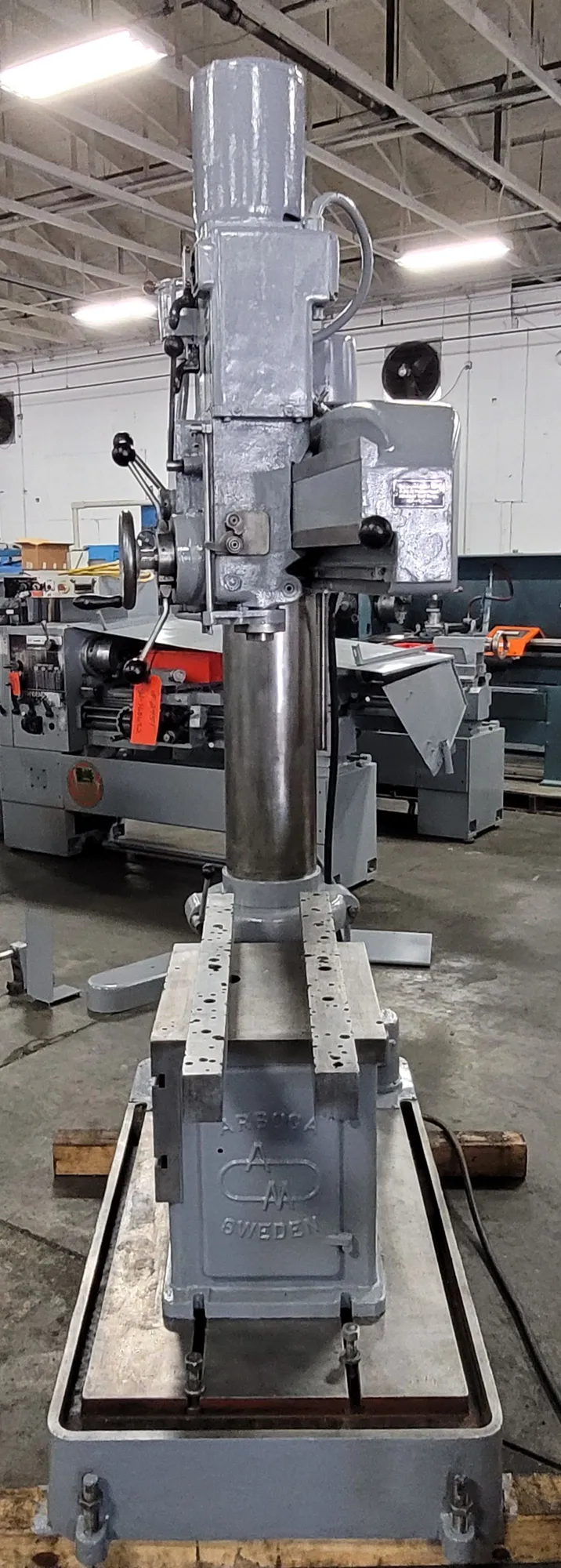

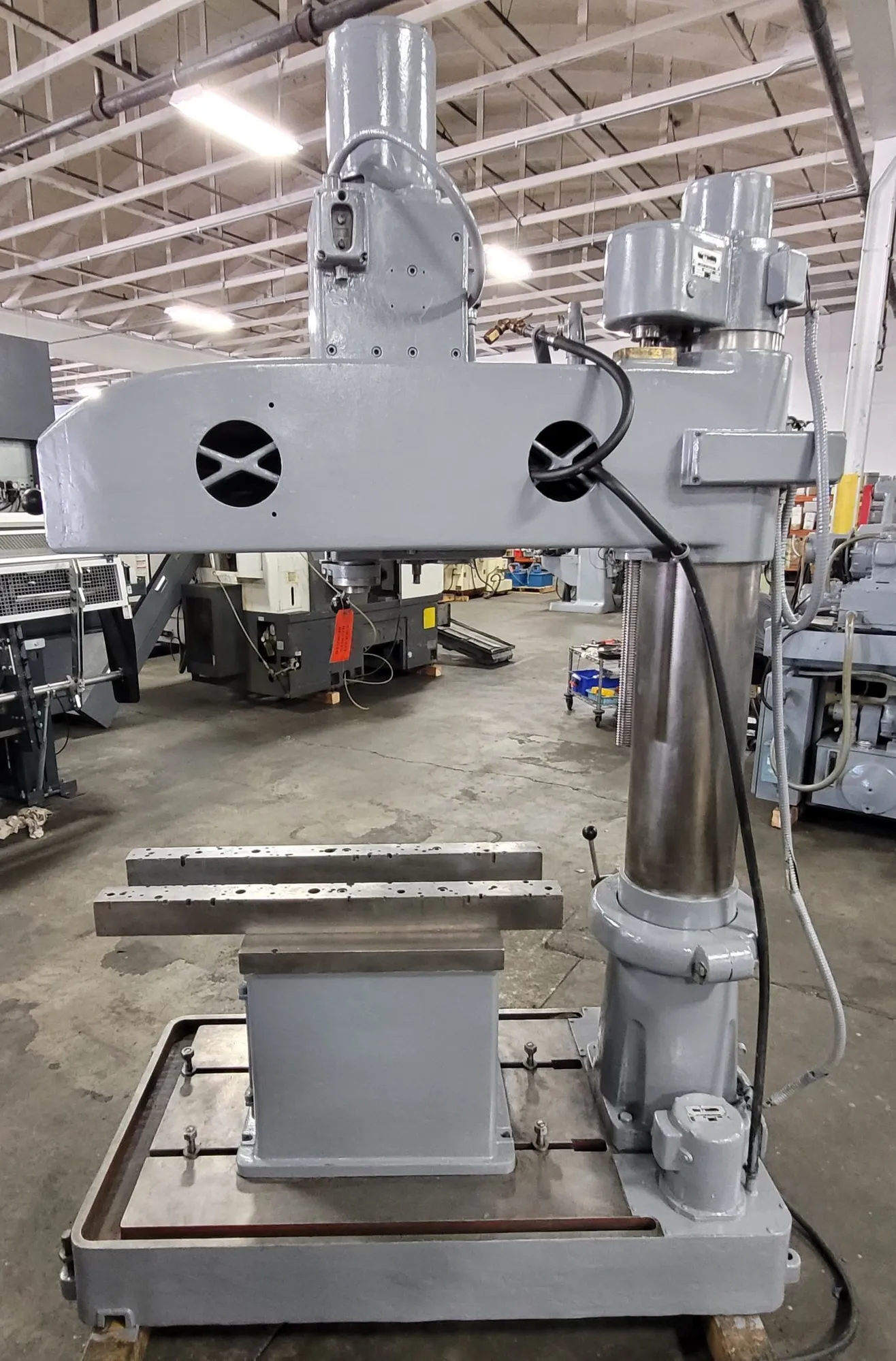

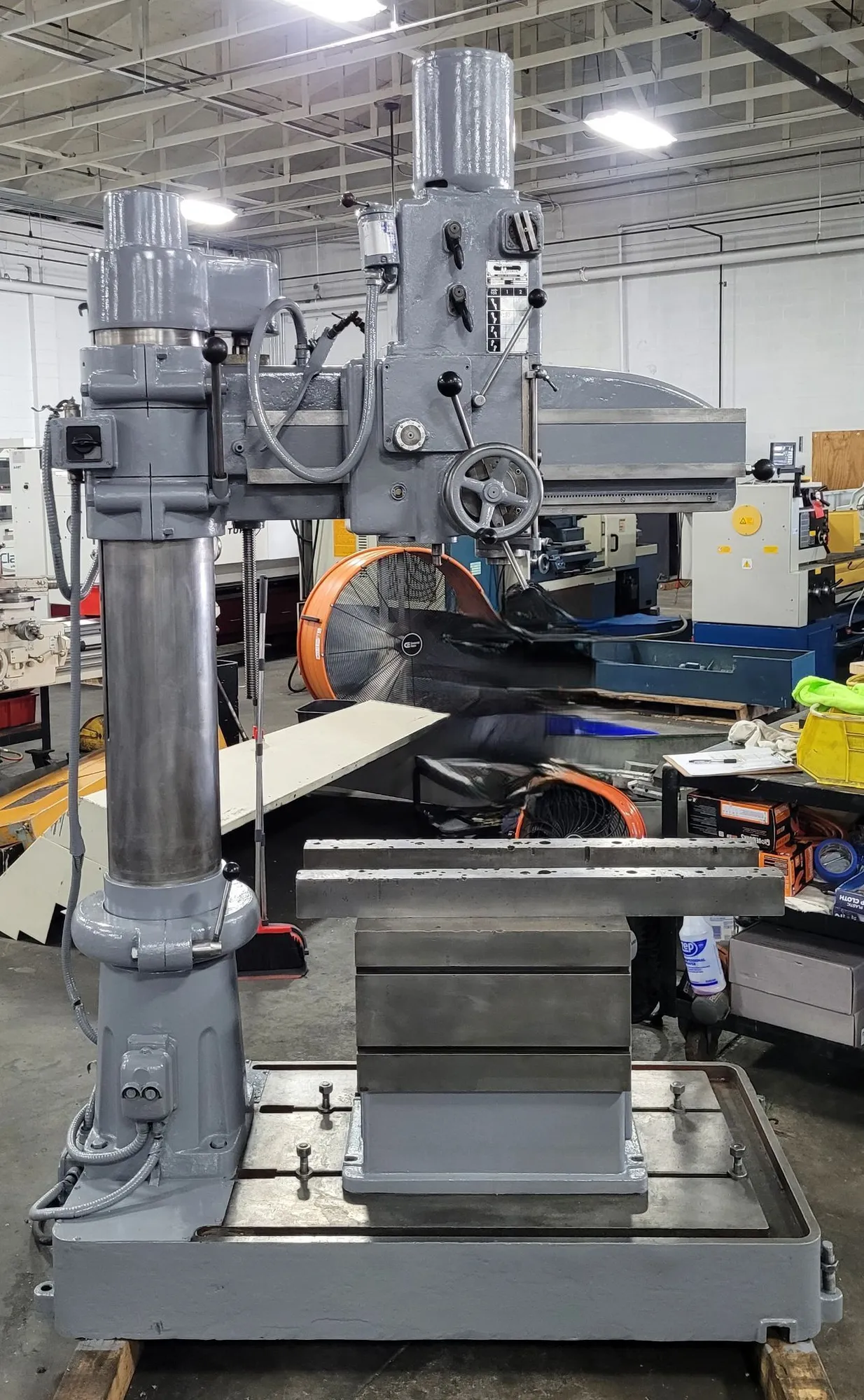

ARBOGA RLM 3508 RADIAL ARM DRILL, 3 HP, 39.75" ARM, 8.625" COLUMN, 1.57" CAPACITY

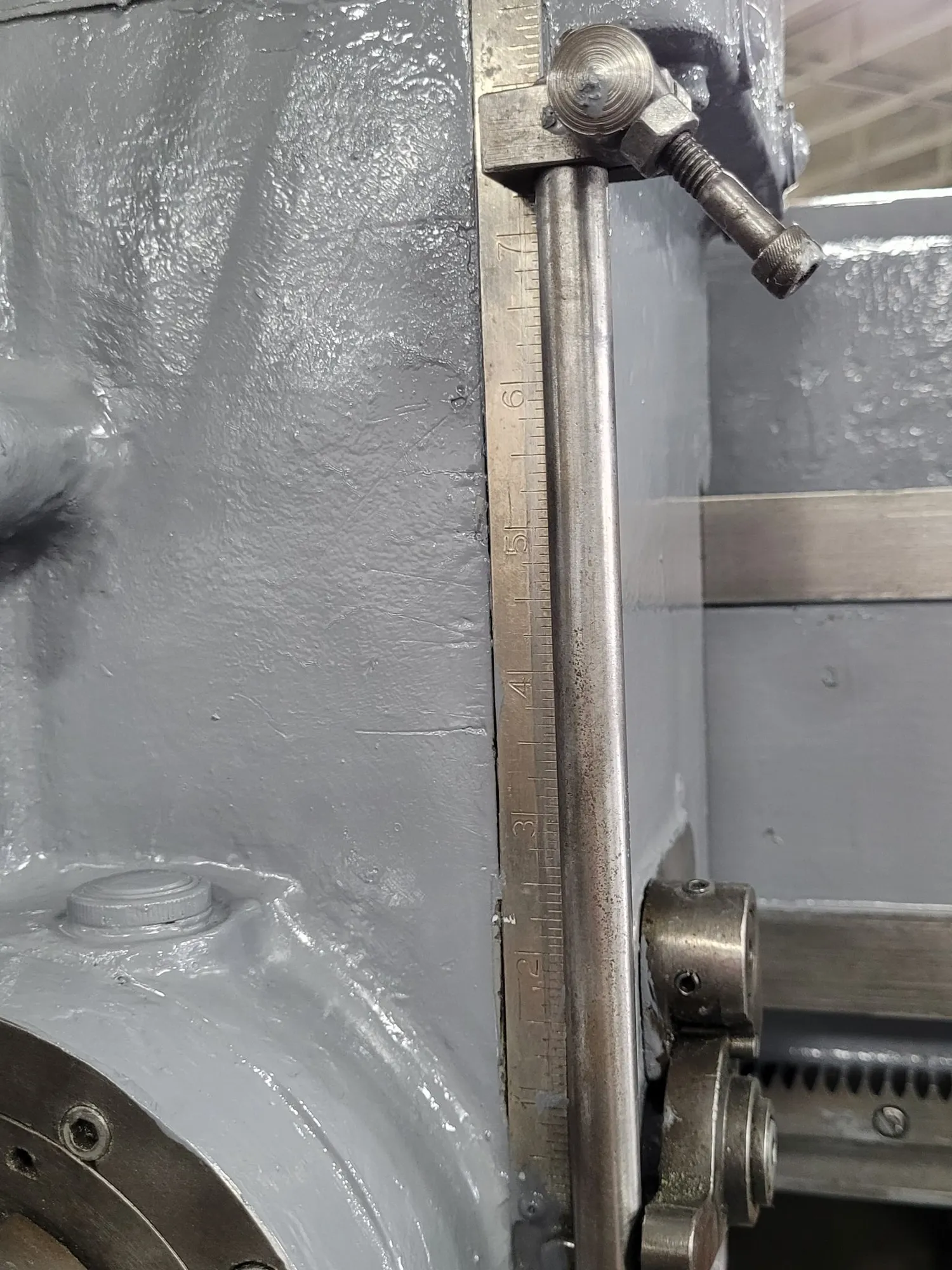

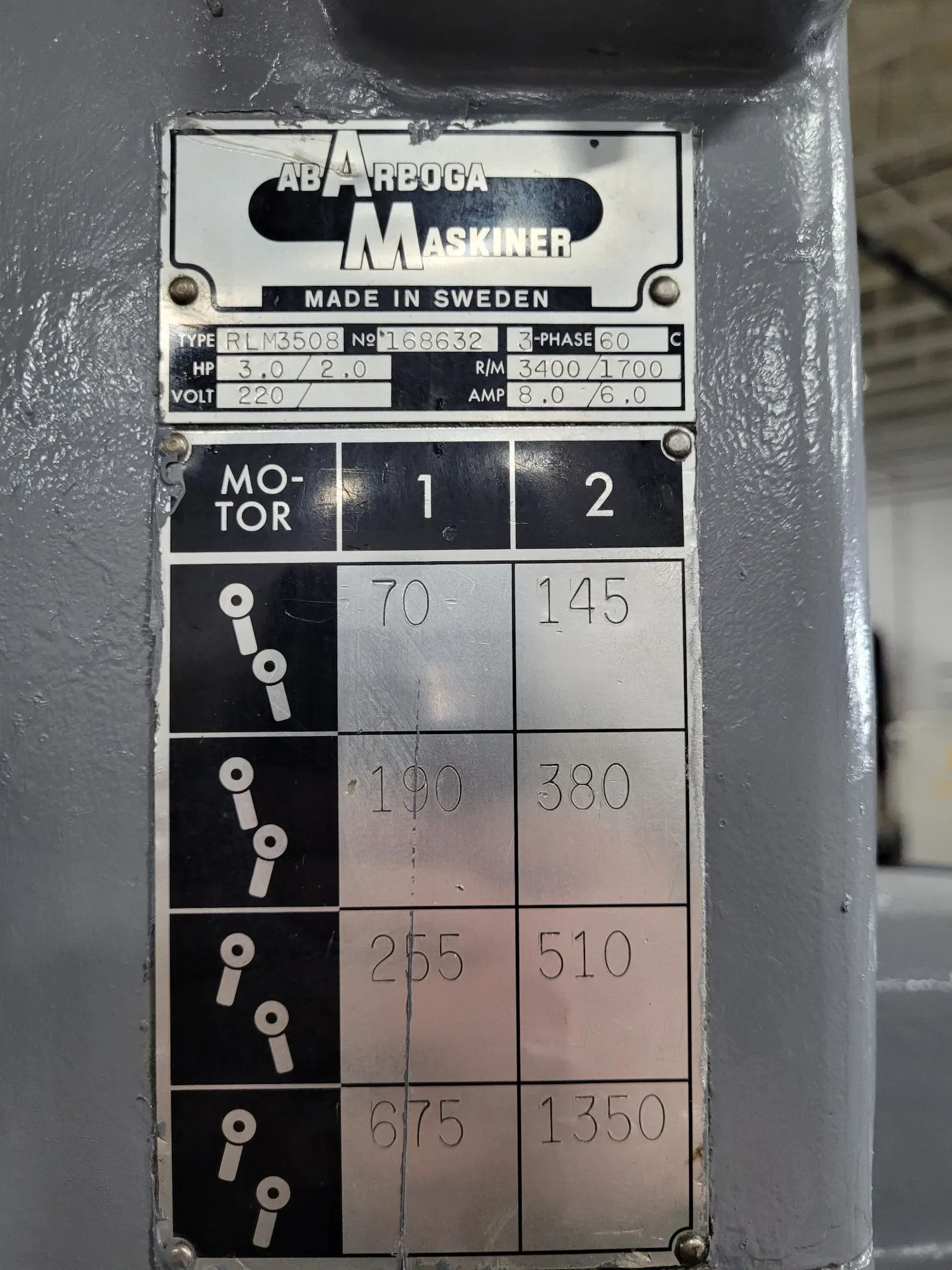

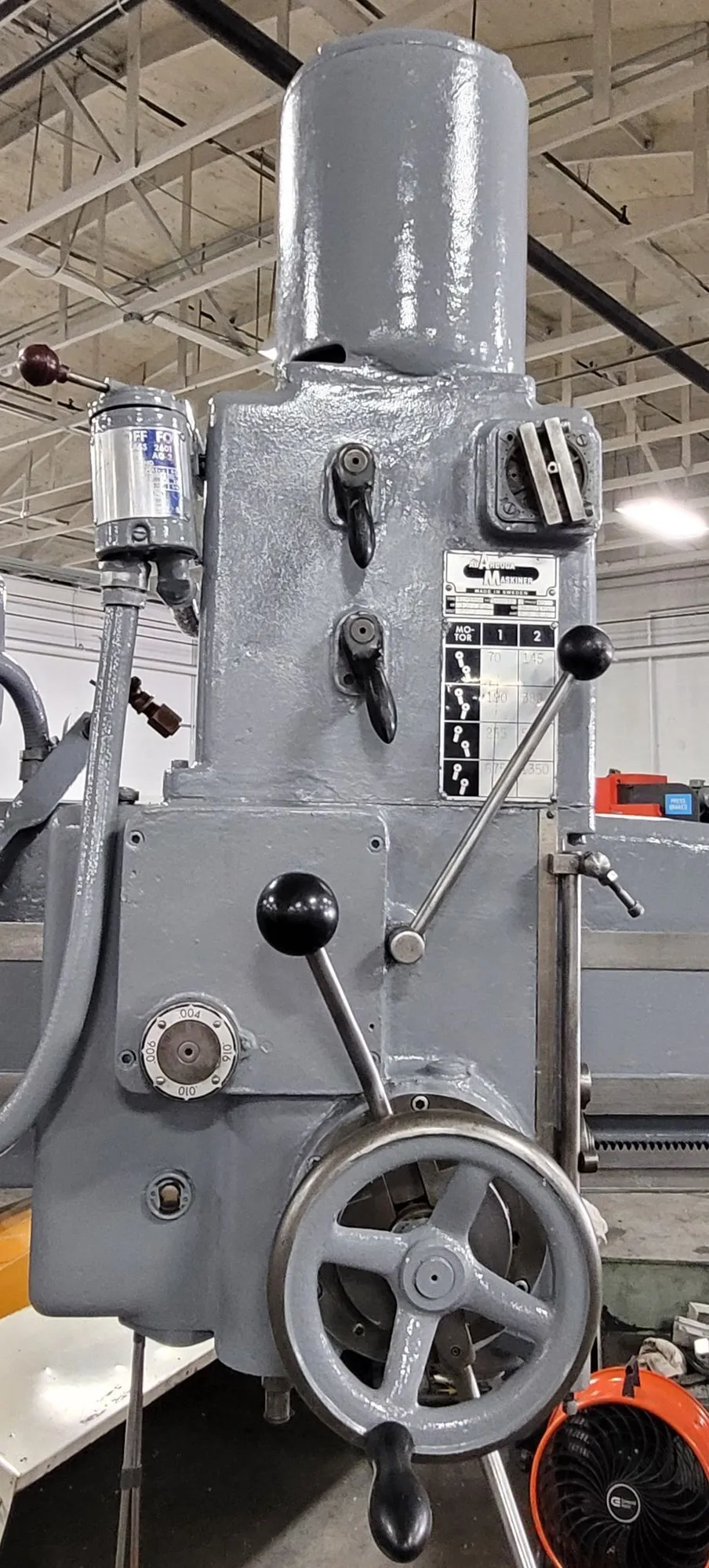

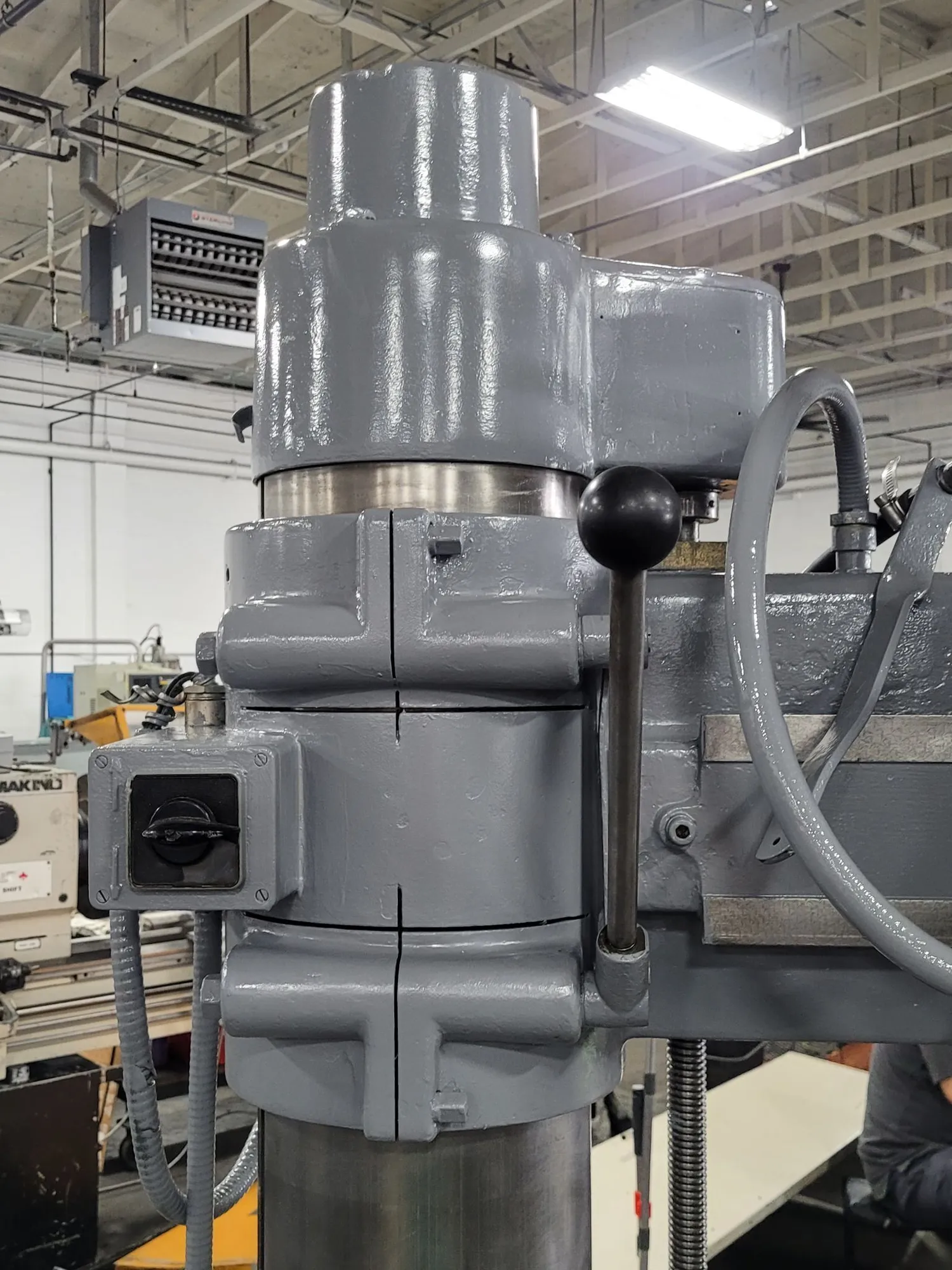

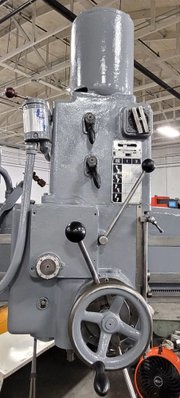

THE ARBOGA RLM 3508 IS A SWEDISH-BUILT RADIAL ARM DRILL PRESS ENGINEERED FOR PRECISION INDUSTRIAL DRILLING APPLICATIONS. IT FEATURES AN ALL-GEARED HEAD DESIGN, DRIVEN BY A 3 HP MOTOR THAT ELIMINATES TRADITIONAL BELT SLIPPAGE. THE MACHINE OFFERS EIGHT SPINDLE SPEEDS RANGING FROM 70 TO 1350 RPM, ALONGSIDE FOUR FEED RATES SPANNING .004" TO .016" PER REVOLUTION. EQUIPPED WITH A NO. 4 MORSE TAPER SPINDLE, IT DELIVERS A DRILLING CAPACITY OF UP TO 1.57 INCHES (40 MM) IN STEEL AND PROVIDES A SPINDLE TRAVEL (QUILL) RANGE OF 7 TO 7.625 INCHES (194 MM). ITS PHYSICAL DIMENSIONS INCLUDE AN 8-5/8" COLUMN DIAMETER, AN ARM LENGTH OF 3.33 FEET, AND A MAXIMUM DISTANCE OF 39-3/4" FROM THE SPINDLE CENTER TO THE COLUMN FACE. FOR EASE OF SETUP, THE DRILL UTILIZES POWER ELEVATION. THE UNIT WEIGHS APPROXIMATELY 2700 LBS.
