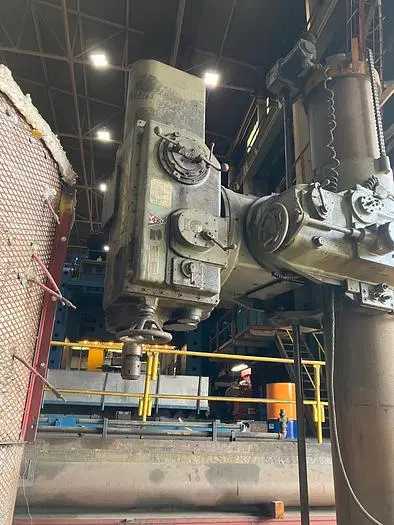

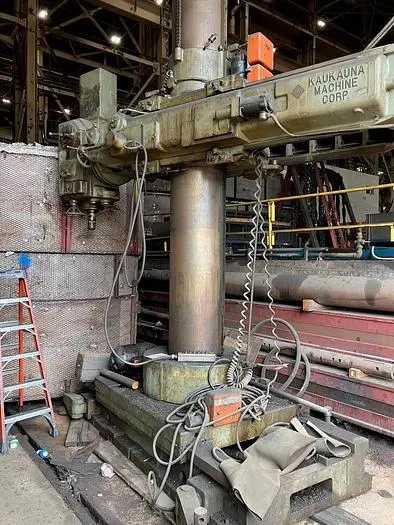

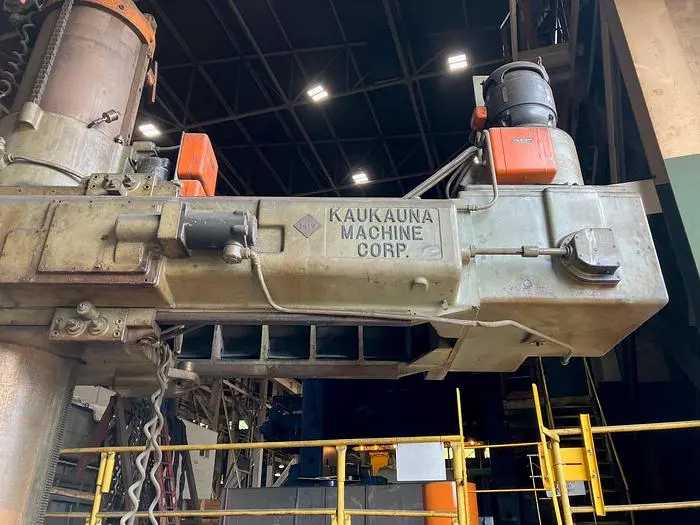

Kaukauna 140U Portable Universal Drill & Tapping Machine, 8' Arm, 10 HP, 48500 lbs

The Kaukauna 140U portable universal drill & tapping machine is engineered for versatility and power, featuring an 8' arm length and a 22" column diameter. The machine is designed with portable use in mind, including a lifting bail and hinged spreader arms on the runway. Key specifications include 18" of power spindle travel and 60" of vertical travel for the head on the column. Horizontal adjustments include 36" on rails and 48" of column travel on the runway. The universal machining capability is achieved through 360-degree manual column swivel, 360-degree power headstock swivel, and 180-degree power trunnion swivel. The 4" diameter spindle has a #5MT taper. Power is delivered by a 10 HP/1800 RPM spindle motor, complemented by a 5 HP rapid traverse motor. The machine offers (9) spindle speeds ranging from 45 to 800 RPM and (9) spindle feeds from .0035 to .062 IPR, with a rapid traverse rate of 80 IPM. Electrical requirements are 220-440/3/60, and the approximate weight is 48,500 lbs.
